Servo Overview:

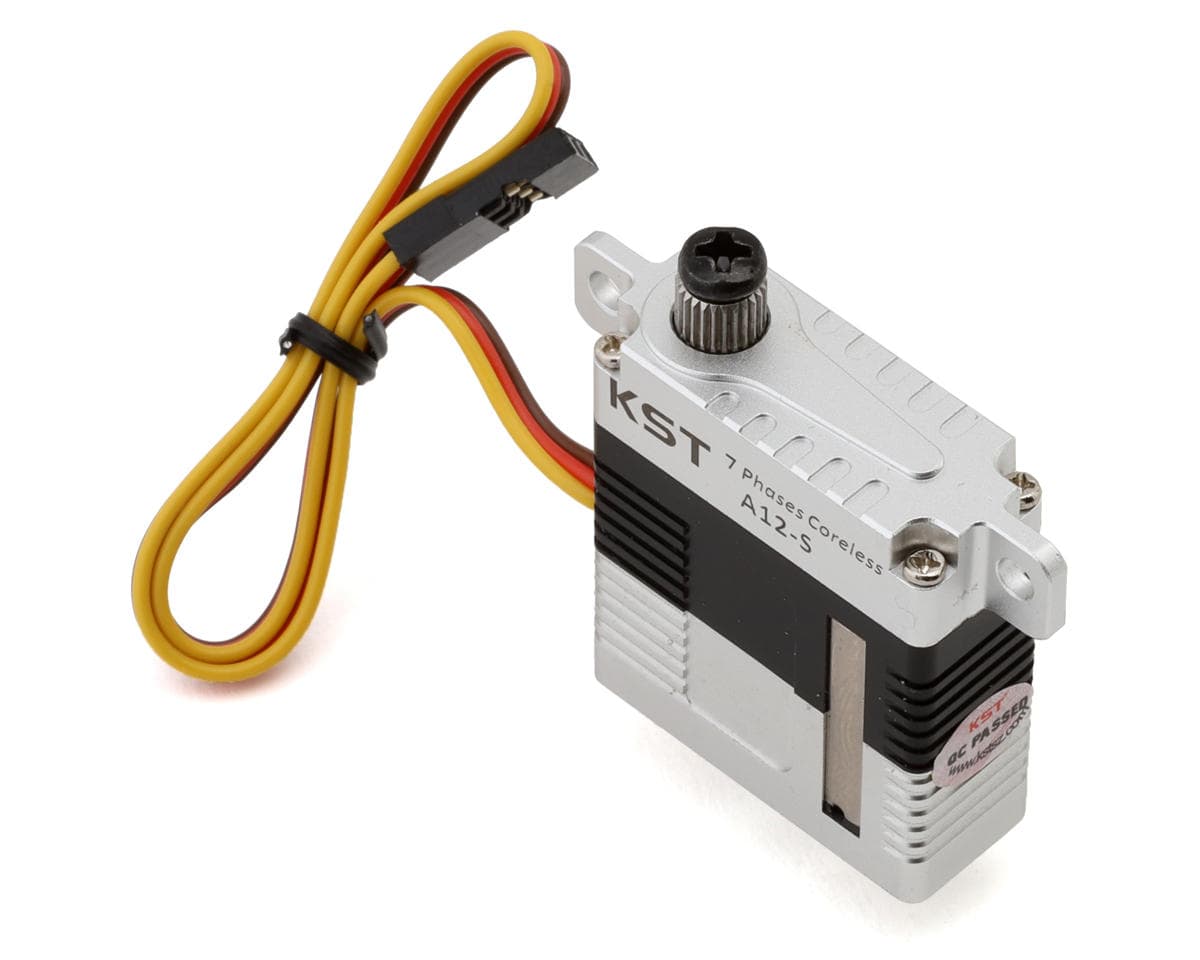

The KST A12-S Aluminum Mini Coreless Magnetic Sensor Metal Gear High Voltage Servo is purpose-built for large-scale gliders, open-class GPS gliders, large aerobatic gliders, and jet turbine models. This servo shares the same length as the popular KST X10 servo, but features a slightly thicker twelve-millimeter profile for added strength and stability. Equipped with a twenty-five tooth spline compatible with Futaba standards, this servo delivers precise and reliable control for a variety of demanding applications.
About the Metal Gear High Voltage Servo
Precision Control for Large-Scale Aircraft
The KST A12-S features a wear-free magnetic Hall effect sensor for long-lasting accuracy and a seven-phase coreless DC motor that delivers smooth, powerful performance. Designed for high-voltage operation, it is ideal for pilots seeking a combination of compact size, high torque, and exceptional accuracy. Its robust aluminum housing ensures excellent durability and heat dissipation, while high-quality metal gears provide strength and longevity under high loads.
Features:
- Twenty-five tooth spline output compatible with Futaba standards
- Wear-free magnetic sensor for lasting precision
- Seven-phase coreless DC motor for smooth power delivery
- Durable aluminum housing with efficient heat dissipation
Includes:
- (1) A12-S Aluminum Mini Coreless Magnetic Sensor Metal Gear High Voltage Servo

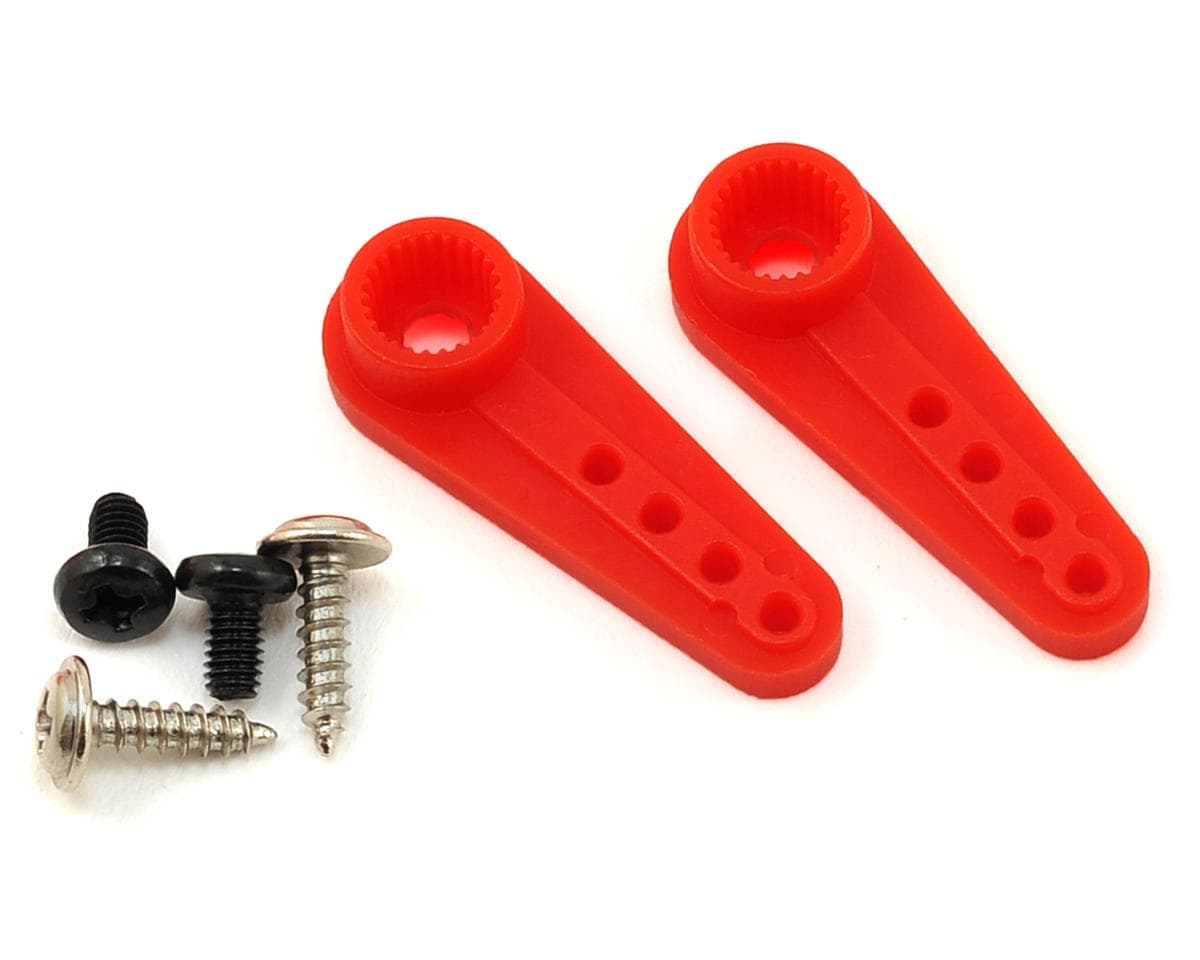

- Servo Accessories
- Mounting Hardware
Specifications:
| Application | Large-Scale Gliders |
|---|---|
| Input Voltage | 6.0-8.4V |
| Operating Speed @ 6.0V | 0.11sec/60° |
| Operating Speed @ 7.4V | 0.09sec/60° |
| Operating Speed @ 8.4V | 0.08sec/60° |
| Dynamic Torque @ 6.0V | 155.65oz-in (11.21kg-cm) |
| Dynamic Torque @ 7.4V | 181.30oz-in (13.05kg-cm) |
| Dynamic Torque @ 8.4V | 191.06oz-in (13.76kg-cm) |
| Pulse/Frequency | 333Hz |
| Motor Type | 7-Phase Coreless |
| Output Shaft Spline | 25T |
| Gear Material | Hardened Steel |
| Position Sensor | Magnetic (Contactless) |
| Dimensions | 1.18x0.47x1.4in (30x12x35.5mm) |
| Weight | 1.13oz (32g) |
