About this part

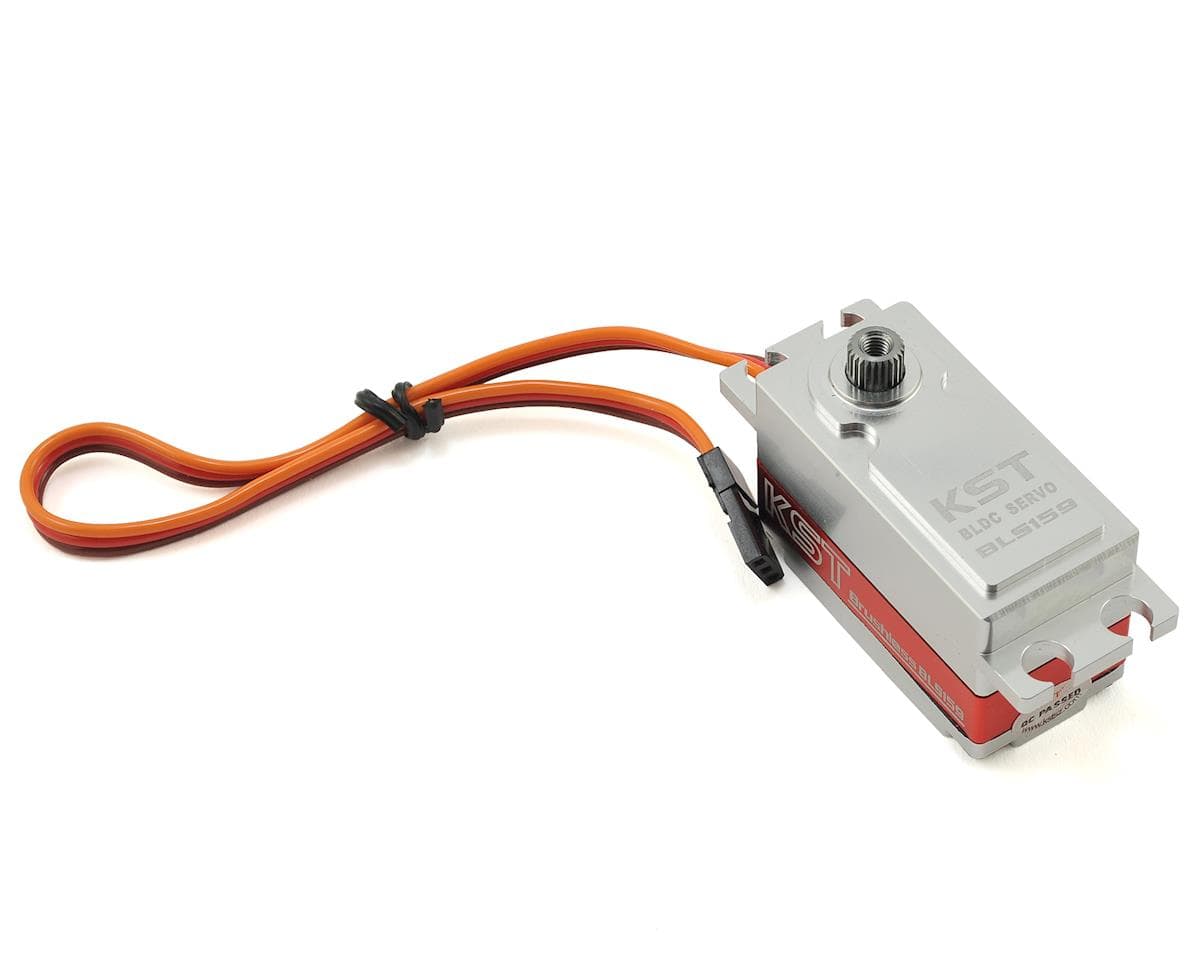

The KST BLS159 Low Profile Brushless Digital Servo features a CNC aluminum case, metal servo gears, and a wide input voltage from 4.8-6V making this the perfect choice for various RC Car applications from 1/10 scale 2wd Buggy or 4wd Buggy, 1/10 scale drift cars, or anything else where a Low Profile servo is required!
Features:
- Low profile standard size aluminum case
- Full metal gears
- Dual ball bearings
- Lightning fast
- Brushless motor
Specifications:
Operating Voltage: 4.8-6V
Size: 40.5x21.1x30mm
Torque: 8kg.cm @ 4.8V; 10Kg.cm @ 6V | 110oz/in @ 4.8V; 138oz/in @ 6.0V
Speed: 0.10sec/60° @ 4.8V; 0.09sec/60° @ 6.0V
Weight: 55g
Working Frequency: 1520us/333Hz, 900us - 2100us
Motor: Brushless
Ball Bearing: 2BB
Reviews1.0 · 1 review
Jorge CuevasVerified owneron KST BLS159 Low Profile Brushless Digital Metal Gear Servo
Servo is ok, but customer service is non existent. I stripped a gear and contacted KST to get the part number so I could replace the gear and continue using my servo. Reached out to them twice, and never received a response. A-Main was also not able to inform me (they did respond) the part number of the replacement gear. Very lousy experience, avoid KST at all cost.
1 found this helpful
