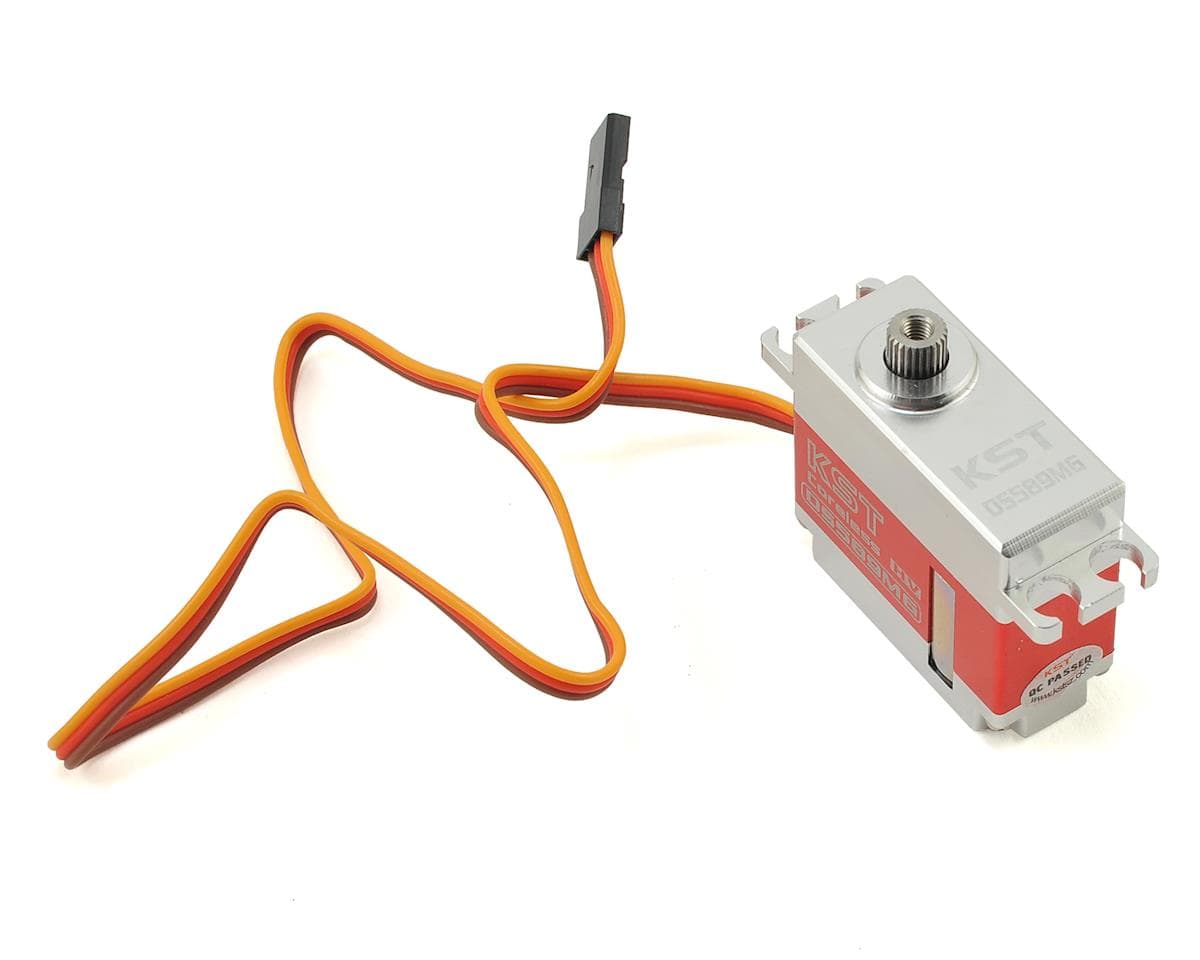

KST DS589 Cyclic Mini Digital Metal Gear Servo

AMain Hobbies

KST DS589 Mini Size Digital Servo is a great choice for helicopters ranging from 430mm-570mm rotor blade size requiring mini servos such as the Align T-Rex 500, Mikado Logo 480, MSH Protos 500, and SAB Goblin 570. Additionally these servos can be used in other RC applications where the physical dimensions, and torque/speed ratings suit the need of the RC application.&nbsp;&nbsp;


Features:

<ul style="padding-top: 0px; padding-right: 0px; padding-bottom: 0px; border: 0px; vertical-align: baseline;">
 <li style="margin: 0px 0px 0px 2rem; border: 0px; font-weight: inherit; font-style: inherit; font-family: inherit; vertical-align: baseline;">Mini size aluminum case</li>
 <li style="margin: 0px 0px 0px 2rem; border: 0px; font-weight: inherit; font-style: inherit; font-family: inherit; vertical-align: baseline;">Full metal gears</li>
 <li style="margin: 0px 0px 0px 2rem; border: 0px; font-weight: inherit; font-style: inherit; font-family: inherit; vertical-align: baseline;">Dual ball bearings</li>
 <li style="margin: 0px 0px 0px 2rem; border: 0px; font-weight: inherit; font-style: inherit; font-family: inherit; vertical-align: baseline;">HV compatible</li>
 <li style="margin: 0px 0px 0px 2rem; border: 0px; font-weight: inherit; font-style: inherit; font-family: inherit; vertical-align: baseline;">Lightning fast</li>
 <li style="margin: 0px 0px 0px 2rem; border: 0px; font-weight: inherit; font-style: inherit; font-family: inherit; vertical-align: baseline;">Coreless motor&nbsp;&nbsp;&nbsp;
 </li>
</ul>
Specifications:&nbsp;&nbsp;&nbsp;
 Operating Voltage:&nbsp;6-8.4V&nbsp;&nbsp;&nbsp;
 Size:&nbsp;35.5x15x32.7mm&nbsp;&nbsp;&nbsp;
 Torque:&nbsp;6.5kg.cm @ 6.0V; 9.2kg.cm @ 8.4V&nbsp;&nbsp;&nbsp;
 Speed:&nbsp;0.10sec/60° @ 6.0V; 0.08sec/60° @ 8.4V&nbsp;&nbsp;&nbsp;
 Weight:&nbsp;40g&nbsp;&nbsp;&nbsp;
 Working Frequency:&nbsp;1520us/333Hz, 800us - 2200us&nbsp;&nbsp;&nbsp;
 Motor:&nbsp;Coreless&nbsp;&nbsp;&nbsp;
 Ball Bearing:&nbsp;2BB&nbsp;
