Servo Overview:

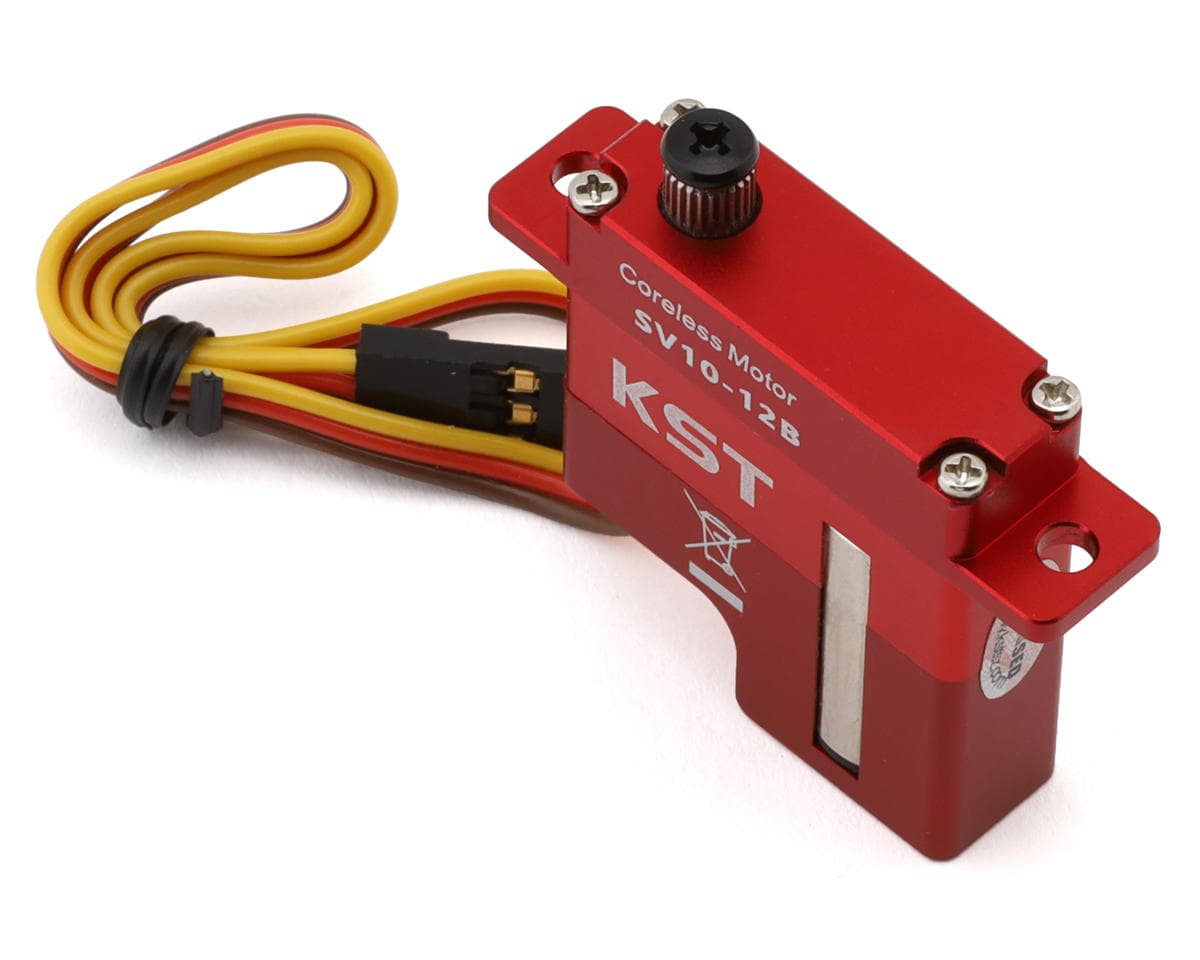

The KST SV10-12B Aluminum Coreless Super High Voltage Metal Gear Wing Servo is a high-performance, precision-engineered servo designed for RC gliders and industrial UAVs. Built to operate on Super High Voltage (SHV), it supports twelve-volt DC or direct drive from up to a 3S LiPo battery, with a wide input voltage range of 8.4 to thirteen volts. This servo is tailored for demanding high-load applications, delivering reliable power and speed in a robust aluminum alloy casting.
About the Metal Gear SHV Servo
Performance & Durability
Delivering an impressive 194.44 ounce-inches of torque at thirteen volts and an ultra-fast 0.10-second response per sixty degrees, the SV10-12B excels in both power and speed. Its high-performance coreless DC motor ensures efficient and smooth operation, while the hardened steel gears provide strength and long-lasting durability. The servo is programmable, allowing users to customize soft start and large default travel angles to suit their specific needs. Additionally, this servo is available with both standard or horizontal mounting options, ensuring flexibility to meet your installation requirements.
Features:
- Wide operating range from 8.4V to 13.0V
- Programmable soft start and travel angle
- High-performance coreless DC motor
- Hardened steel gears for durability
- Aluminum alloy casing for strength and heat dissipation
Includes:
- (1) SV10-12B Aluminum Coreless Super High Voltage Metal Gear Wing Servo

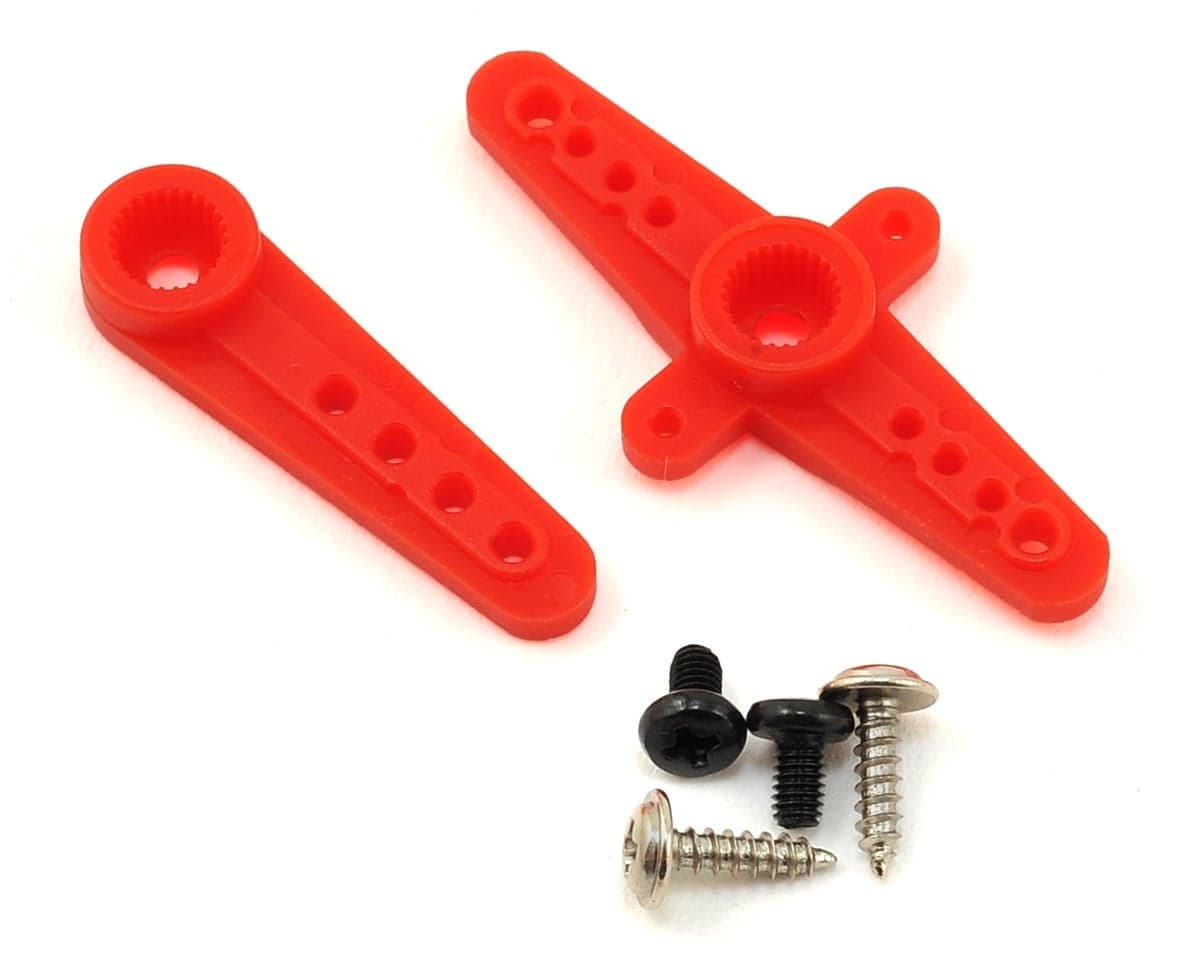

- Servo Accessories
- Mounting Hardware
Specifications:
| Application | Gliders & Industrial UAVs |
|---|---|
| Input Voltage | 8.4-13.0V |
| Operating Speed @ 8.4V | 0.15sec/60° |
| Operating Speed @ 12.0V | 0.11sec/60° |
| Operating Speed @ 13.0V | 0.10sec/60° |
| Dynamic Torque @ 8.4V | 152.78oz-in (11kg-cm) |
| Dynamic Torque @ 12.0V | 180.56oz-in (13kg-cm) |
| Dynamic Torque @ 13.0V | 194.44oz-in (14kg-cm) |
| Pulse/Frequency | 333Hz |
| Motor Type | Coreless |
| Output Shaft Spline | 25T |
| Gear Material | Hardened Steel |
| Dimensions | 1.18x0.39x1.32in (30x10x33.5mm) |
| Weight | 0.88oz (25g) |
