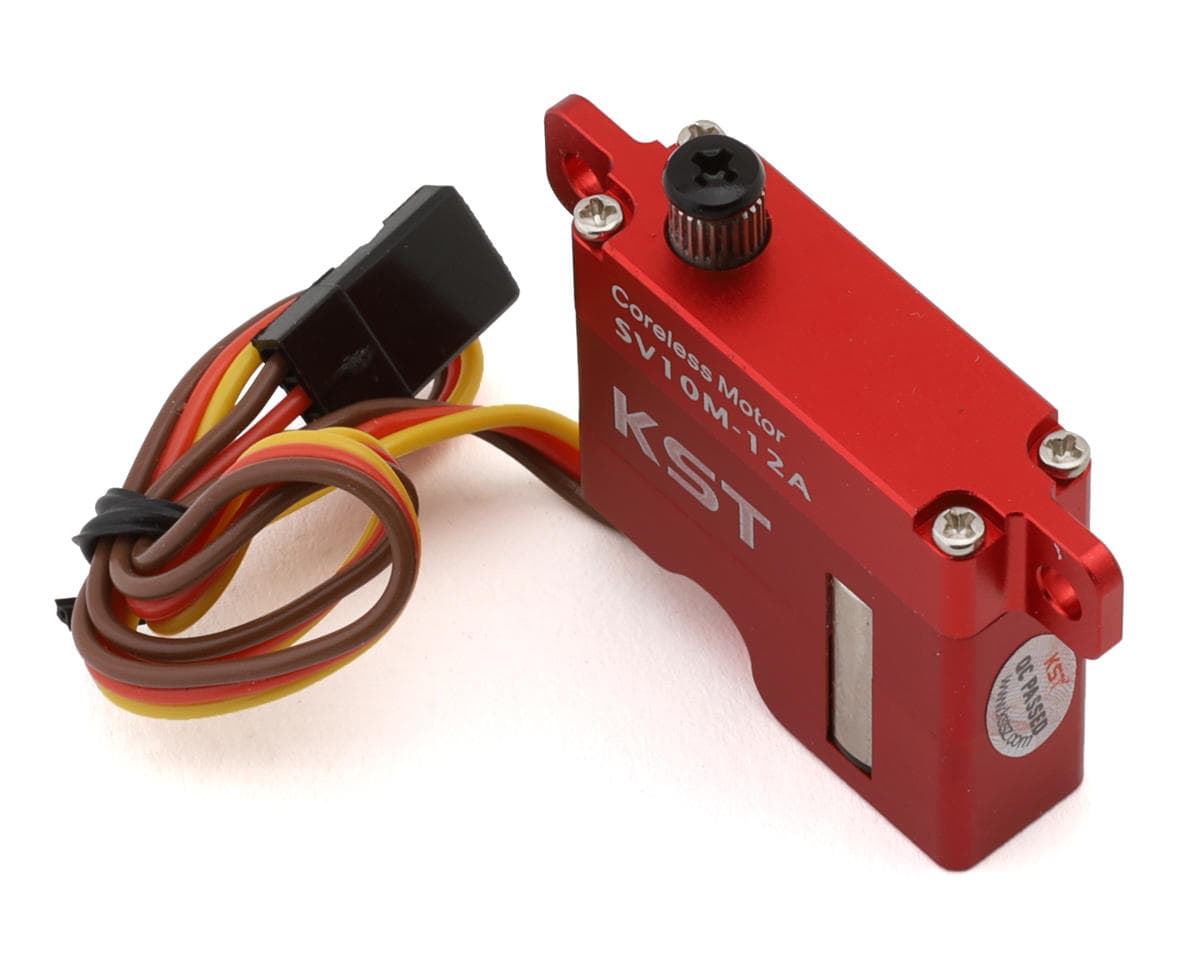

KST SV10M-12A Aluminum Coreless Super High Voltage Metal Gear Wing Servo (Horizontal Mount) (Gliders)

Servo Overview:

The KST SV10M-12A Aluminum Coreless Super High Voltage Metal Gear Wing Servo is a high-performance, compact servo designed for RC gliders and industrial UAVs. Engineered to operate on Super High Voltage (SHV), it supports twelve-volt DC or direct drive from up to a 3S LiPo battery with a voltage range of 8.4V to 13.0V. This servo is ideal for applications requiring both high torque and fast response in a lightweight, space-efficient package.

About the Metal Gear SHV Servo

Performance & Reliability

Delivering 125 ounce-inches of torque at thirteen volts and a rapid 0.10-second response per sixty degrees, the SV10M-12A is built to handle high-load tasks with precision and speed. It features a high-performance coreless DC motor, hardened steel gears, and a durable aluminum alloy casing that ensures longevity and excellent heat dissipation. Programmability allows customization of soft start and large default travel angles for smooth, controlled operation. Additionally, this model is available in both standard and horizontal mounting options, providing flexibility for various installation needs.

Features:

• Wide operating voltage from 8.0V to 13.0V
• Programmable soft start and travel angle
• High-performance coreless DC motor
• Hardened steel gears for durability
• Lightweight aluminum alloy casing
• Available in standard and horizontal mounting options
