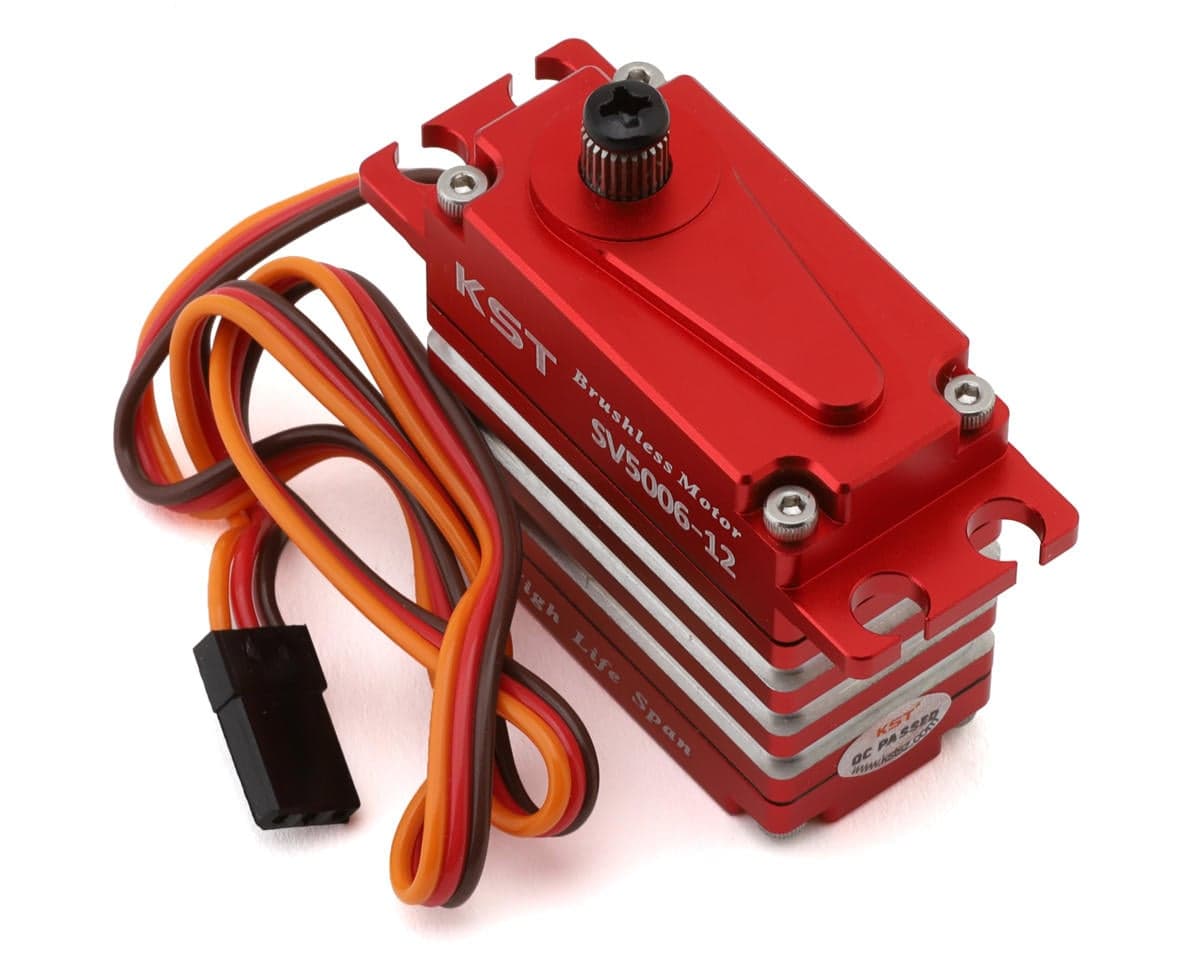

KST SV5006-12 Aluminum Standard Brushless Digital Super High Voltage Metal Gear Servo (Red)

Servo Overview:

The KST SV5006-12 Aluminum Standard Brushless Digital Super High Voltage Metal Gear Servo is a top-tier choice for RC cars, competition RC planes, and robotics applications that demand both power and precision. Built for Super High Voltage (SHV) operation, it supports twelve-volt DC or direct drive from up to a 3S LiPo battery, with a voltage range of 8.4V to 13.0V. This servo is engineered to deliver reliable, consistent performance in high-stress environments, making it ideal for competitive and heavy-duty use.

About the Metal Gear SHV Servo

Power & Precision

Delivering an impressive 763.89 ounce-inches of torque at thirteen-volts with an ultra-fast 0.063-second response per sixty degrees, the SV5006-12 combines brute strength with exceptional speed. A four-pole brushless motor ensures smooth and efficient power delivery, while hardened steel gears and six ball bearings provide durability and low-friction operation. With its CNC aluminum housing, this servo is built to perform flawlessly in the most demanding RC and robotics applications.

Features:

• Wide operating range from 8.4V to 13.0V
• Delivers 763.89 ounce-inches torque at 13V
• Ultra-fast 0.063-second response time
• 4-pole brushless motor for power and efficiency
• Six ball bearings for smooth, precise movement
• Hardened steel gears for long-lasting durability
