About this part
Servo Overview:

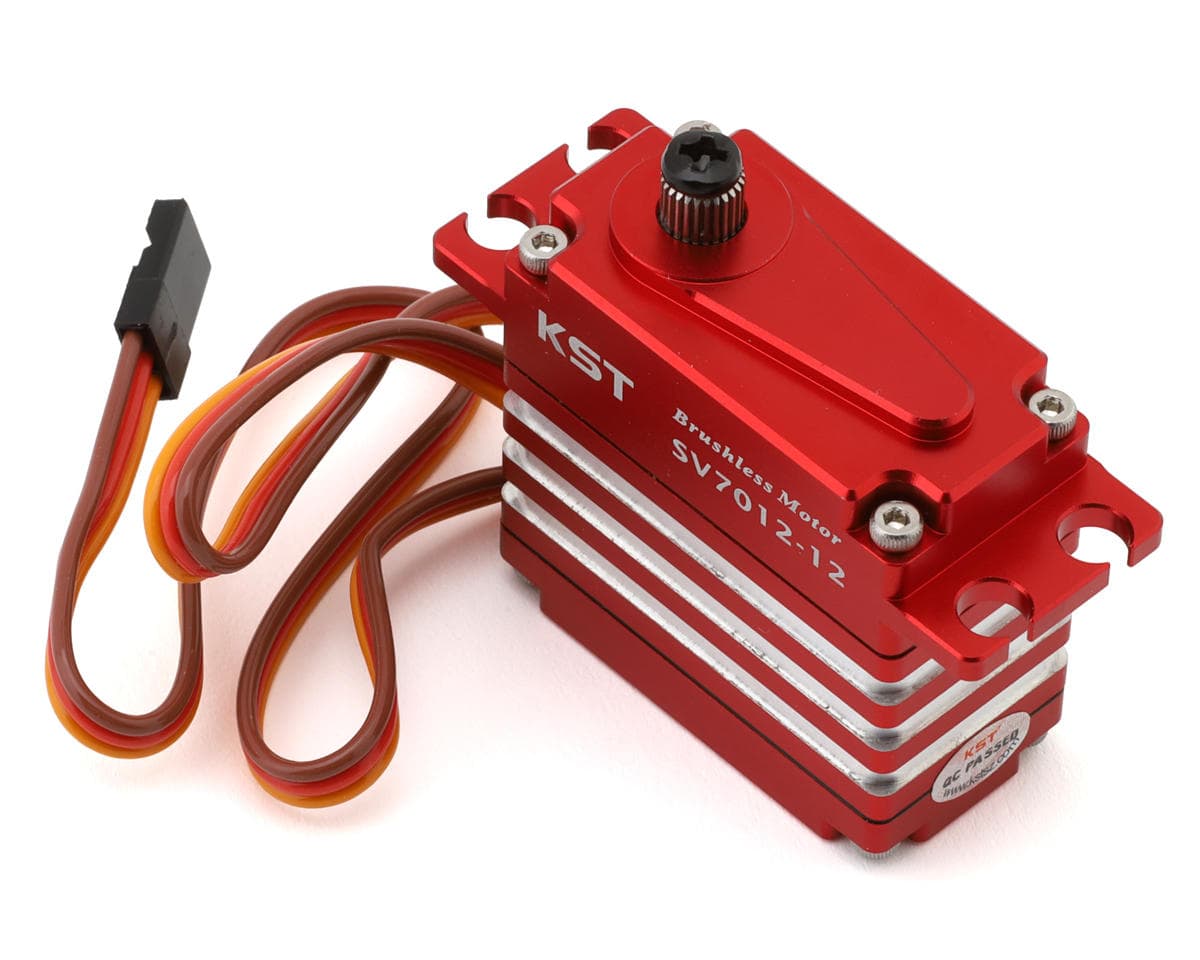

The KST SV7012-12 Aluminum Standard Brushless Digital Super High Voltage Metal Gear Servo is a powerful, precision-engineered solution for demanding applications such as large-scale planes, industrial UAVs, and robotics. Designed for Super High Voltage (SHV) operation, it supports twelve-volt DC or direct drive from a 3S LiPo battery, with a wide voltage range from 8.4V to 13V. This multi-role servo is built for both professional and beginner use, offering reliable performance and long-lasting durability in high-load environments.
About the Metal Gear SHV Servo
Power & Precision
Delivering a massive 1041.67 ounce-inches of torque and an ultra-fast 0.10-second response per sixty degrees at 13V, the SV7012-12 excels in both strength and speed. A four-pole brushless motor ensures efficient, consistent power delivery, while hardened steel gears and six ball bearings provide durability and smooth operation. The aluminum alloy housing offers strength and heat dissipation, and the contactless Hall sensor delivers precise, wear-free position feedback. This combination of technology and construction makes it ideal for advanced motion control where accuracy, speed, and longevity are critical.
Features:
- Wide operating range from 8.4V to 13.0V
- Delivers 1,041.67 ounce-inches of torque at 13V
- Ultra-fast 0.10-second response time
- 4-pole brushless motor for efficient power delivery
- Six ball bearings for smooth, reliable movement
- Contactless Hall sensor for precise, wear-free feedback
- Hardened steel gears for long-lasting durability
Includes:
- (1) SV7012-12 Aluminum Standard Brushless Digital Super High Voltage Metal Gear Servo

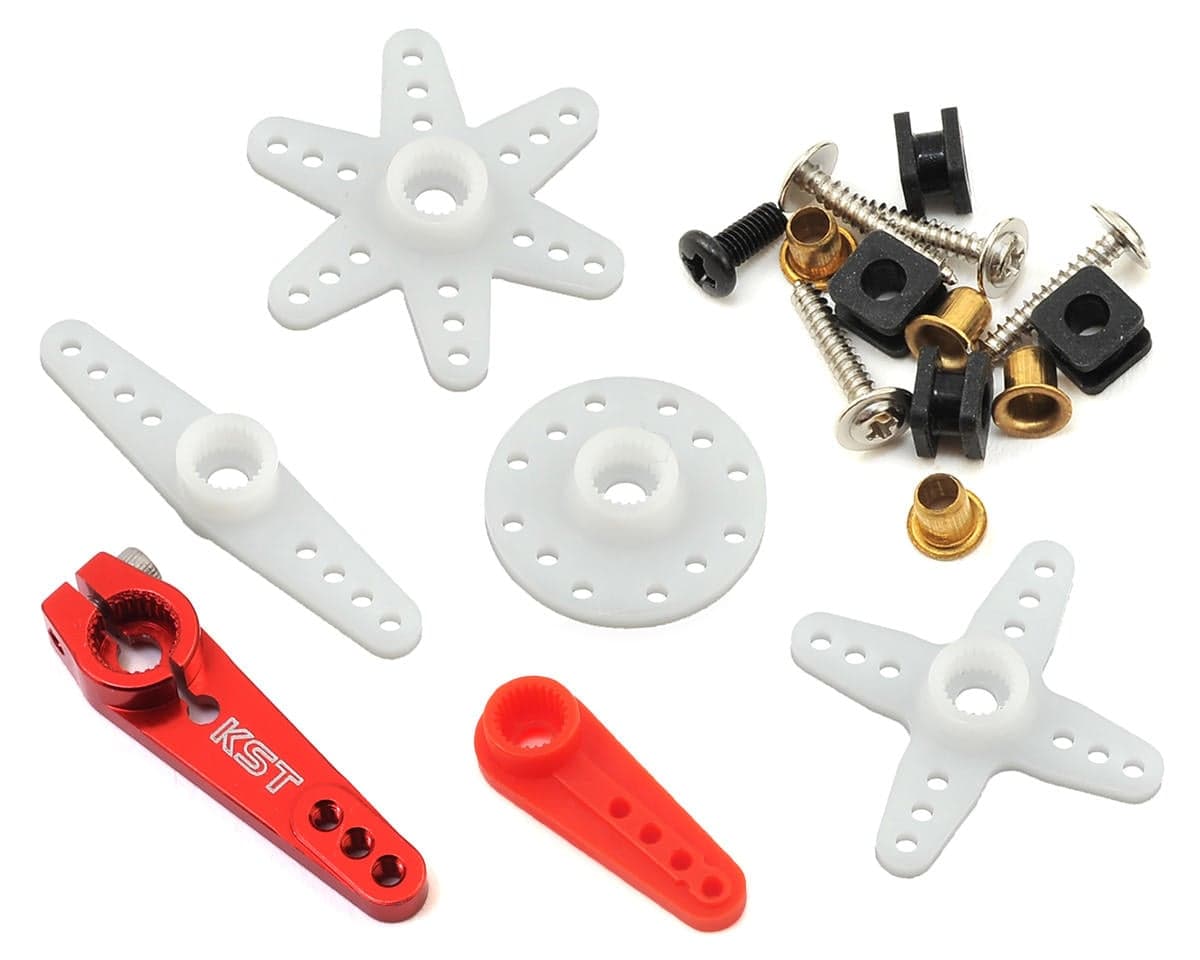

- Servo Accessories
- Mounting Hardware
Specifications:
| Application | Large-Scale Planes, Industrial UAVs, Robotics |
|---|---|
| Input Voltage | 8.4-13.0V |
| Operating Speed @ 8.4V | 0.16sec/60° |
| Operating Speed @ 12.0V | 0.12sec/60° |
| Operating Speed @ 13.0V | 0.10sec/60° |
| Dynamic Torque @ 8.4V | 763.89oz-in (55kg-cm) |
| Dynamic Torque @ 12.0V | 972.22oz-in (70kg-cm) |
| Dynamic Torque @ 13.0V | 1041.67oz-in (75kg-cm) |
| Pulse/Frequency | 333Hz |
| Motor Type | 4-Pole Brushless |
| Output Shaft Spline | 25T |
| Gear Material | Hardened Steel |
| Dimensions | 1.57x0.79x1.57in (40x20x40mm) |
| Weight | 2.65oz (75g) |
