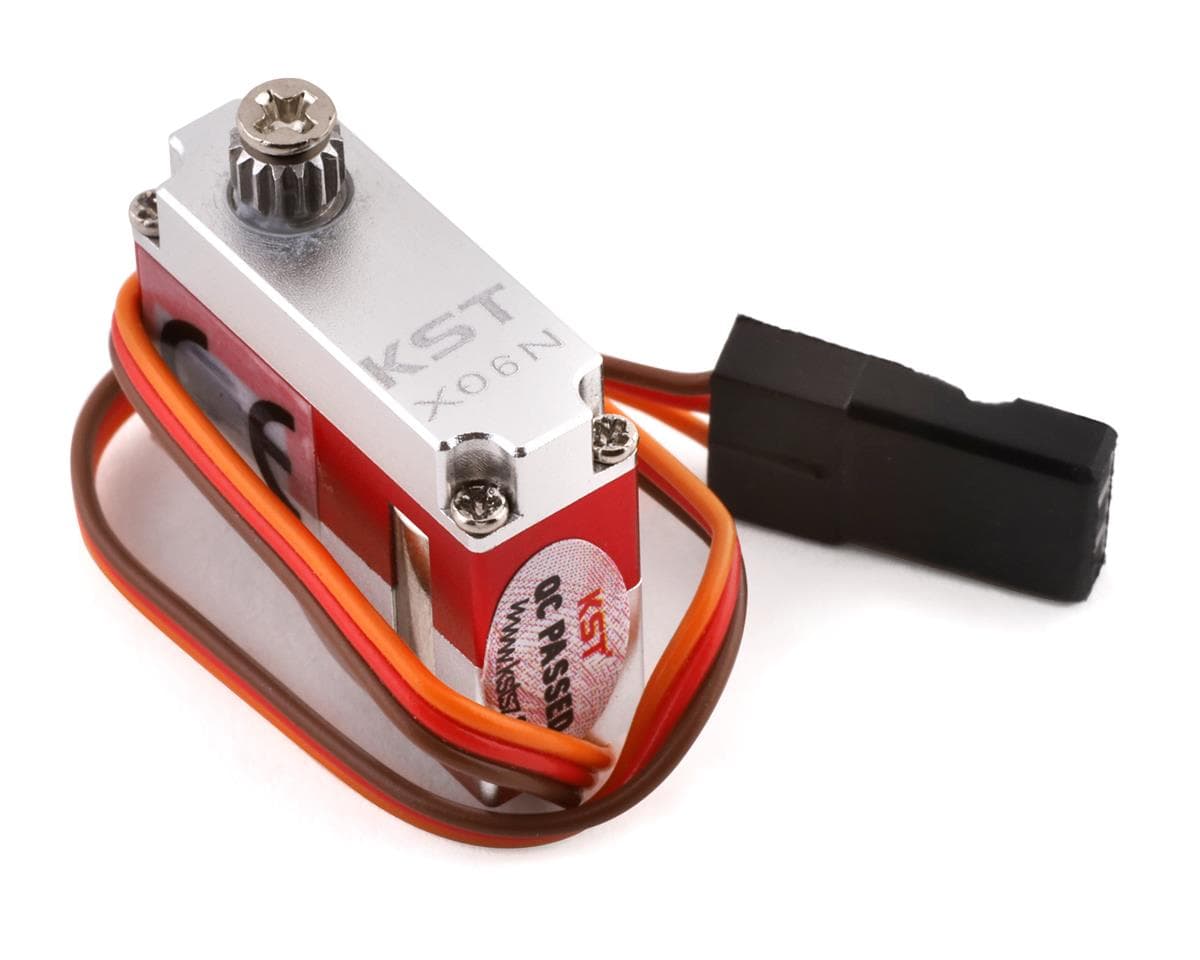

KST X06N Micro Digital Metal Gear Servo (Flangeless)

AMain Hobbies

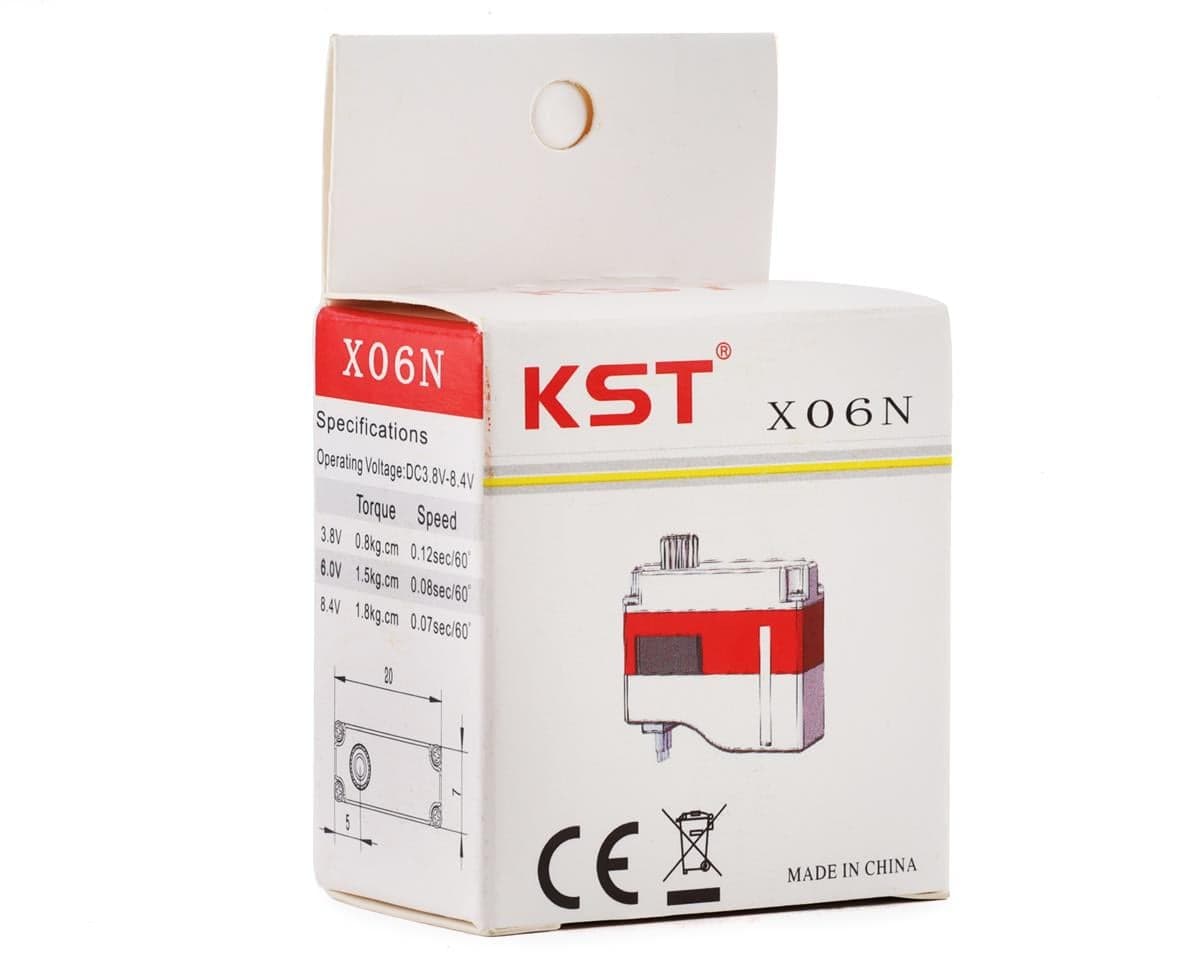

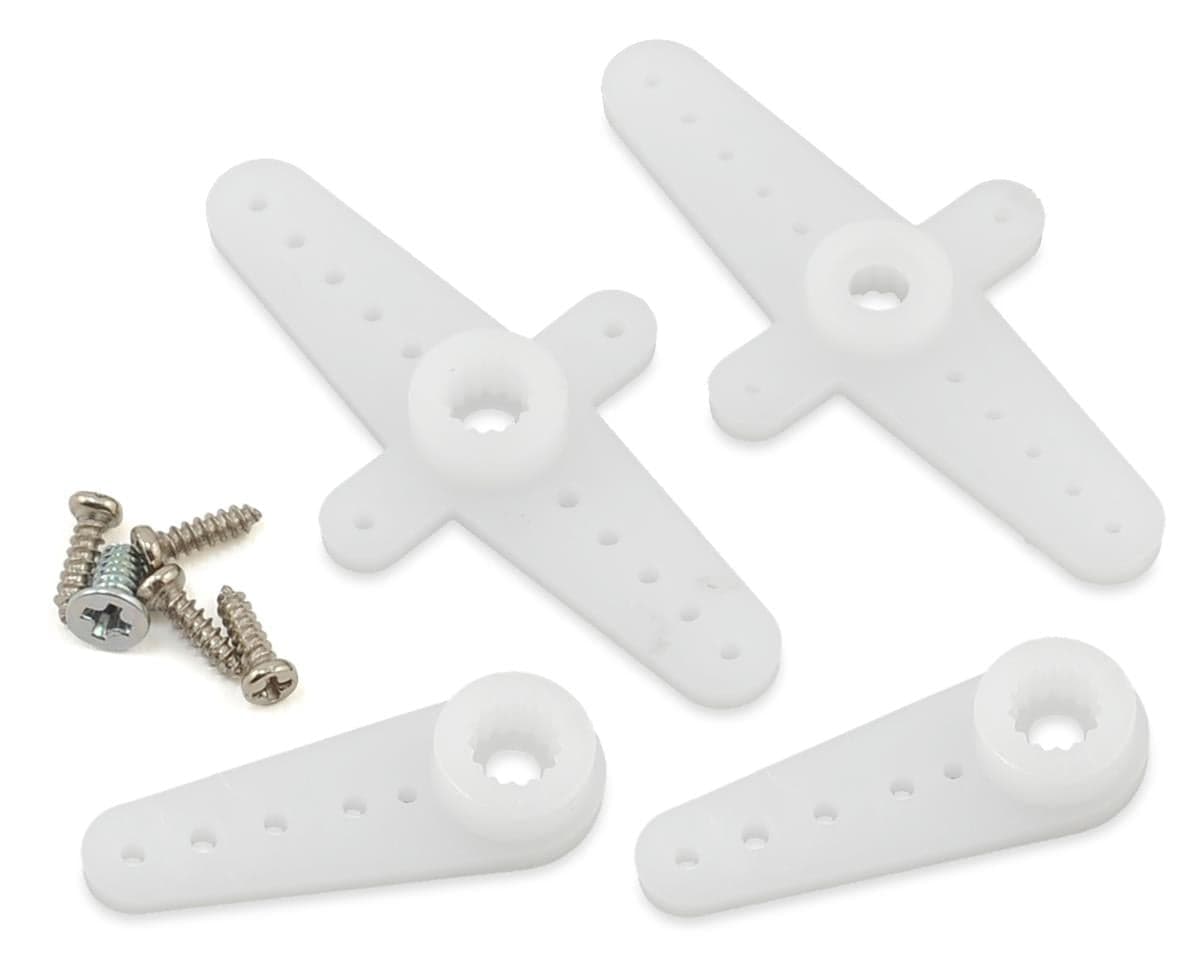

The KST&nbsp;X06N Micro Digital Metal Gear Servo is an alternate version of the X06 servo that features no mounting flanges. This servo is great for glider applications where space is limited and every gram counts. Capable of running on a either a 1S or 2S LiPo this servo is very versatile. Package includes one X06N servo four servo horns and hardware.

 Specifications:

<div>
 <ul>
 <li>Voltage: 3.8-8.4V DC</li>
 <li>Stall Torque:</li>
 <ul>
 <li>3.8V: 8N/cm (11.32oz/in)</li>
 <li>6.0V: 15N/cm (21.24oz/in)</li>
 <li>8.4V: 18N/cm (25.49oz/in)</li>
 </ul>
 <li>Speed:</li>
 <ul>
 <li>3.8V: 0.12sec/60°</li>
 <li>6.0V: 0.08sec/60°</li>
 <li>8.4V: 0.07sec/60°</li>
 </ul>
 <li>Travel Angle: 60° (120° total)</li>
 <li>Operating Tempature: -20°C to 65°C (-4°F to 149°F)</li>
 <li>Size LxWxH: 20x7x16.6mm (0.78x0.27x0.65in)</li>
 <li>Weight: 6g ± 10%</li>
 </ul>
</div>

The KST&nbsp;X06N Micro Digital Metal Gear Servo is an alternate version of the X06 servo that features no mounting flanges. This servo is great for glider applications where space is limited and every gram counts. Capable of running on a either a 1S or 2S LiPo this servo is very versatile. Package includes one X06N servo four servo horns and hardware. Specifications: Voltage: 3.8-8.4V DC Stall Torque: 3.8V: 8N/cm (11.32oz/in) 6.0V: 15N/cm (21.24oz/in) 8.4V: 18N/cm (25.49oz/in) Speed: 3.8V: 0.12sec/60° 6.0V: 0.08sec/60° 8.4V: 0.07sec/60° Travel Angle: 60° (120° total) Operating Tempature: -20°C to 65°C (-4°F to 149°F) Size LxWxH: 20x7x16.6mm (0.78x0.27x0.65in) Weight: 6g ± 10%
