About this part

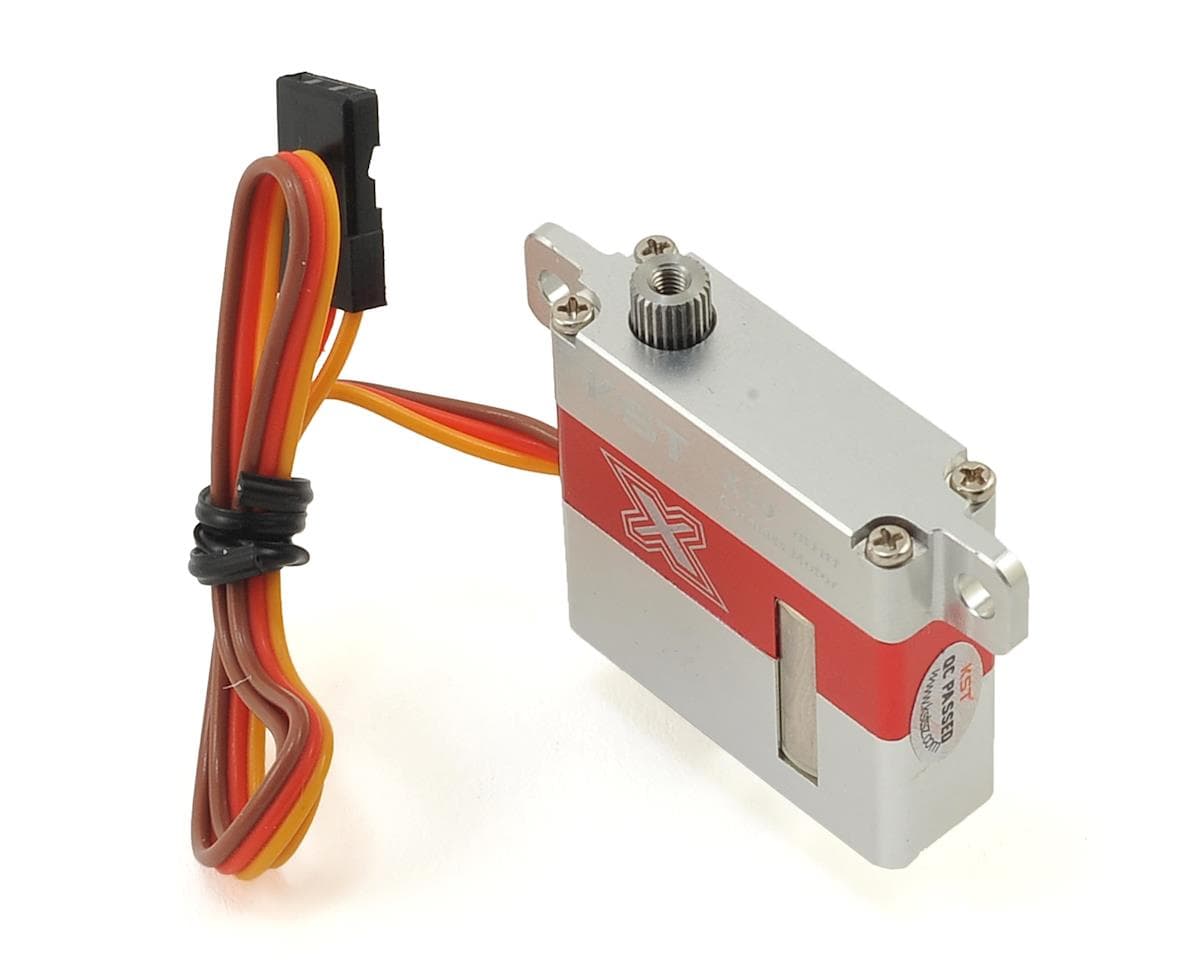

The KST X10 Mini Servo is an ideal choice for gliders looking for a high torque high voltage wing servo. Featuring a motor controller tailored towards providing incredible precision and torque, the X10 coreless motor is paired with a set of hardened steel gears that provide minimal backlash during operation. Compared to the standard X10, the X10 Mini is physically shorter with a smaller motor, allowing for another option in tight and specific airplane builds.
Features:
- Micro size aluminum case
- Full steel gears
- Dual ball bearings
- HV compatible
Specifications:
Operating Voltage: 6-8.4V
Size: 30x10x30mm (width x height x thickness)
Torque: 5.5kg.cm @ 6.0V; 7.5kg.cm @ 8.4V
Speed: 0.13sec/60° @ 6.0V; 0.09sec/60° @ 8.4V
Weight: 23g
Working Frequency: 1520us/333Hz, 800us - 2200us
Motor: Coreless
Ball Bearing: 2BB
