Servo Overview:

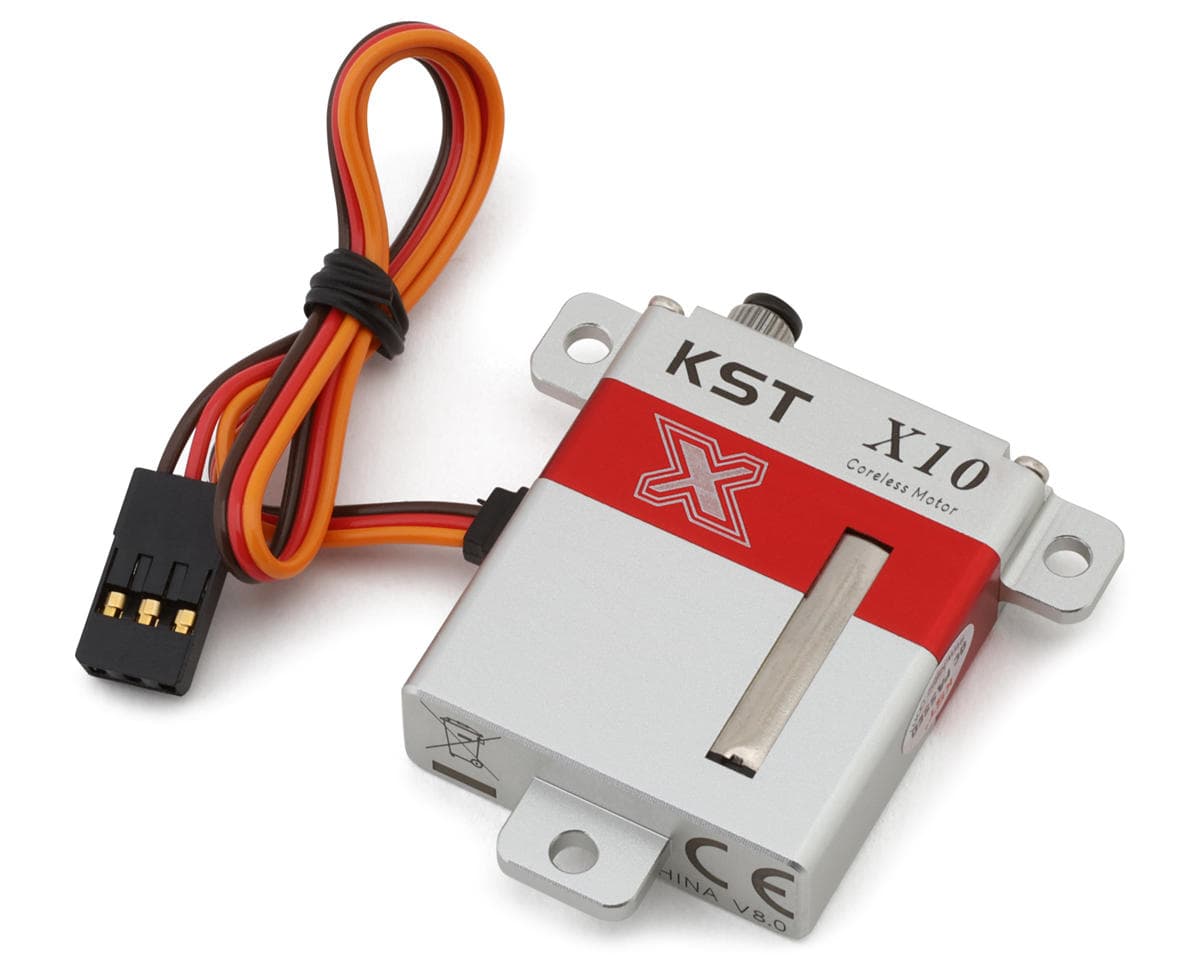

The KST X10 V8.0 Aluminum Coreless Digital Metal Gear Wing Servo offers a high-performance servo with exceptional value for your latest sailplane wing. This servo delivers incredible torque combined with ultra-smooth operation, making it an ideal choice for pilots looking to maximize precision and reliability without breaking the bank.
About the Metal Gear Servo
Competitive Precision
Perfectly suited for demanding applications such as F3J, F3B, and F3F wing and flap installations, the X10 V8.0 stands out with its refined control and responsiveness. The coreless digital motor and aluminum housing provide durability and efficiency, ensuring smooth and accurate servo movements that enhance your sailplane's performance in competition or recreational flying.
Features:
- Budget-friendly servo with incredible torque
- Extremely smooth and precise operation
- Coreless digital motor for efficiency and durability
- Ideal for F3J, F3B, and F3F wing and flap applications
- Aluminum housing for strength and heat dissipation
- Perfect balance of power, smoothness, and value
Includes:
- (1) X10 V8.0 Aluminum Coreless Digital Metal Gear Wing Servo

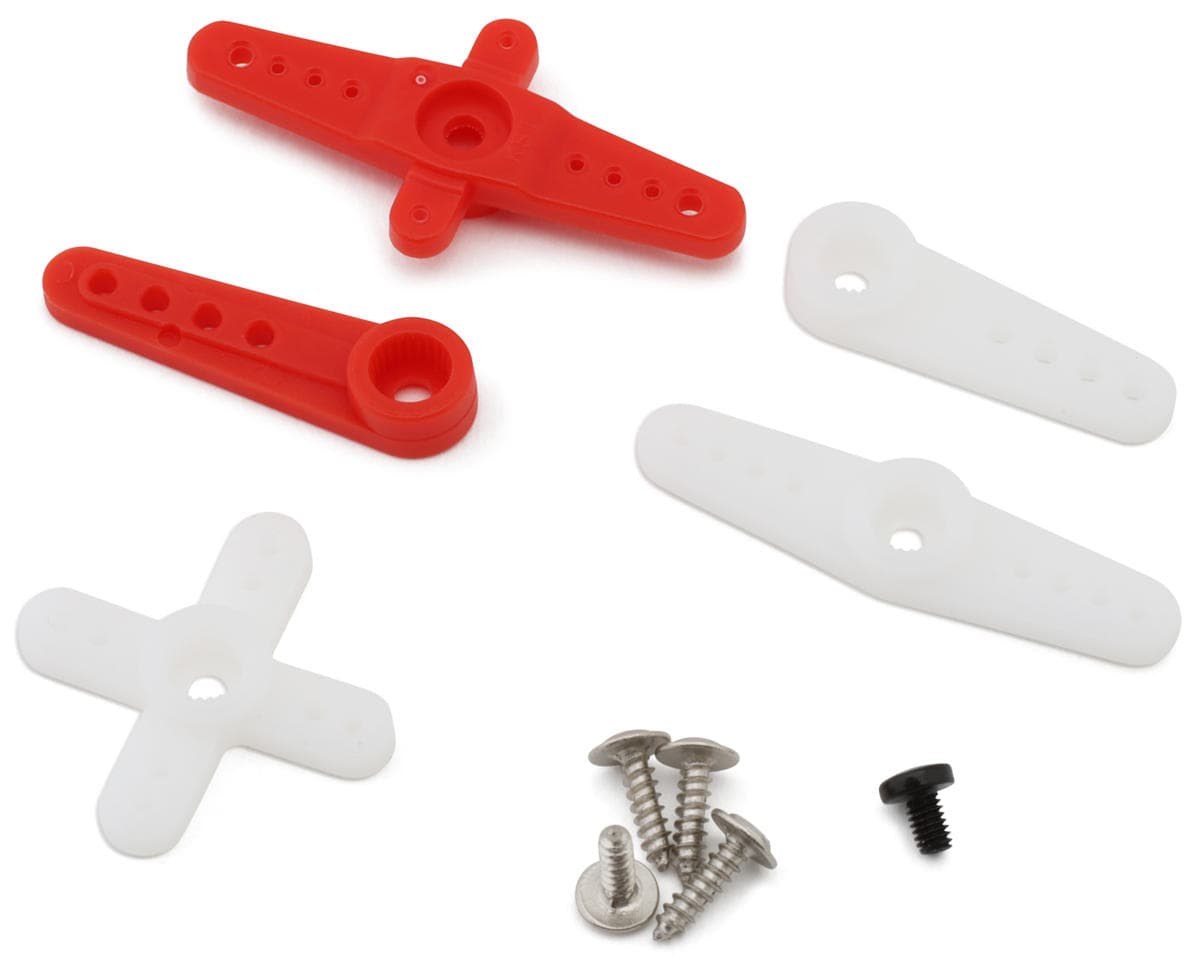

- Servo Accessories
- Mounting Hardware
Specifications:
| Application | F3J, F3B, and F3F |
|---|---|
| Input Voltage | 4.8-8.4V |
| Operating Speed @ 4.8V | 0.16sec/60° |
| Operating Speed @ 6.0V | 0.14sec/60° |
| Operating Speed @ 7.4V | 0.12sec/60° |
| Operating Speed @ 8.4V | 0.10sec/60° |
| Dynamic Torque @ 4.8V | 86.11oz-in (6.2kg-cm) |
| Dynamic Torque @ 6.0V | 104.17oz-in (7.5kg-cm) |
| Dynamic Torque @ 7.4V | 131.94oz-in (9.5kg-cm) |
| Dynamic Torque @ 8.4V | 150oz-in (10.8kg-cm) |
| Pulse/Frequency | 333Hz |
| Motor Type | Coreless |
| Output Shaft Spline | 25T |
| Gear Material | Hardened Steel |
| Dimensions | 1.18x0.39x1.4in (30x10x35.5mm) |
| Weight | 0.99oz (28g) |
