KST

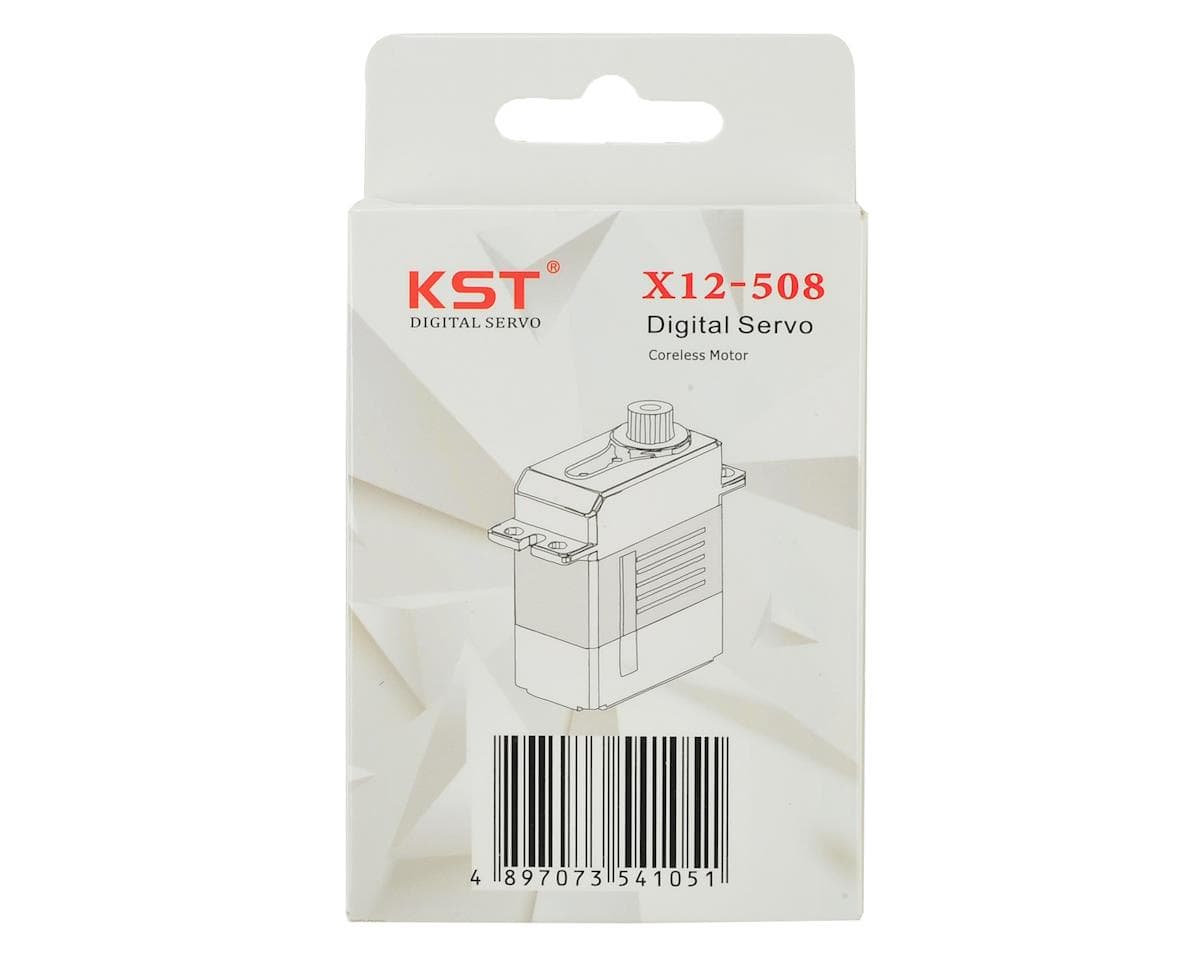

KST X12-508 Micro Digital Metal Gear Servo
Part # KSTX12-5085.0(2)
Where to buy
$40.00
Prices are as last seen at the store; stock is not tracked.
About this part
The KST X12-508 Micro Digital Servo is an ideal choice for Cyclic applications on 325-420mm helicopters that use micro servos such as the Align T-Rex 450, T-Rex 470L, MSH Protos 380, SAB Goblin 380, and Goblin 420 helicopters. Additionally these can be used in other R/C applications which are correctly sized dimensionally, and offer the correct torque/speed ratings when needed.
Features:
- Micro size aluminum case
- Full metal gears
- Dual ball bearings
- HV compatible
- Lightning fast
- Coreless motor
Specifications:
Operating Voltage: 4.8-8.4V
Size: 23x12x27.5mm
Torque: 4.2kg.cm @ 6.0V; 6.2kg.cm @ 8.4V
Speed: 0.09sec/60° @ 6.0V; 0.07sec/60° @ 8.4V
Weight: 20g
Working Frequency: 1520us/333Hz, 800us - 2200us
Motor: Coreless
Ball Bearing: 2BB
Reviews5.0 · 2 reviews
BrunexVerified owneron KST X12-508 Micro Digital Metal Gear Servo
I ordered 3 of these servos to replace the stock servos on my Align Trex 470. Within the first 4 flights the servos developed slope and play in the gears that would give me issues on the pitch for the main blades. The KST are rock solid, no play at all. Highly recommended.
2 found this helpful
Benoy Philip ThomasVerified owneron KST X12-508 Micro Digital Metal Gear Servo
using for ALIGN 470LM Cyclic SERVOS. Highly recommended.
