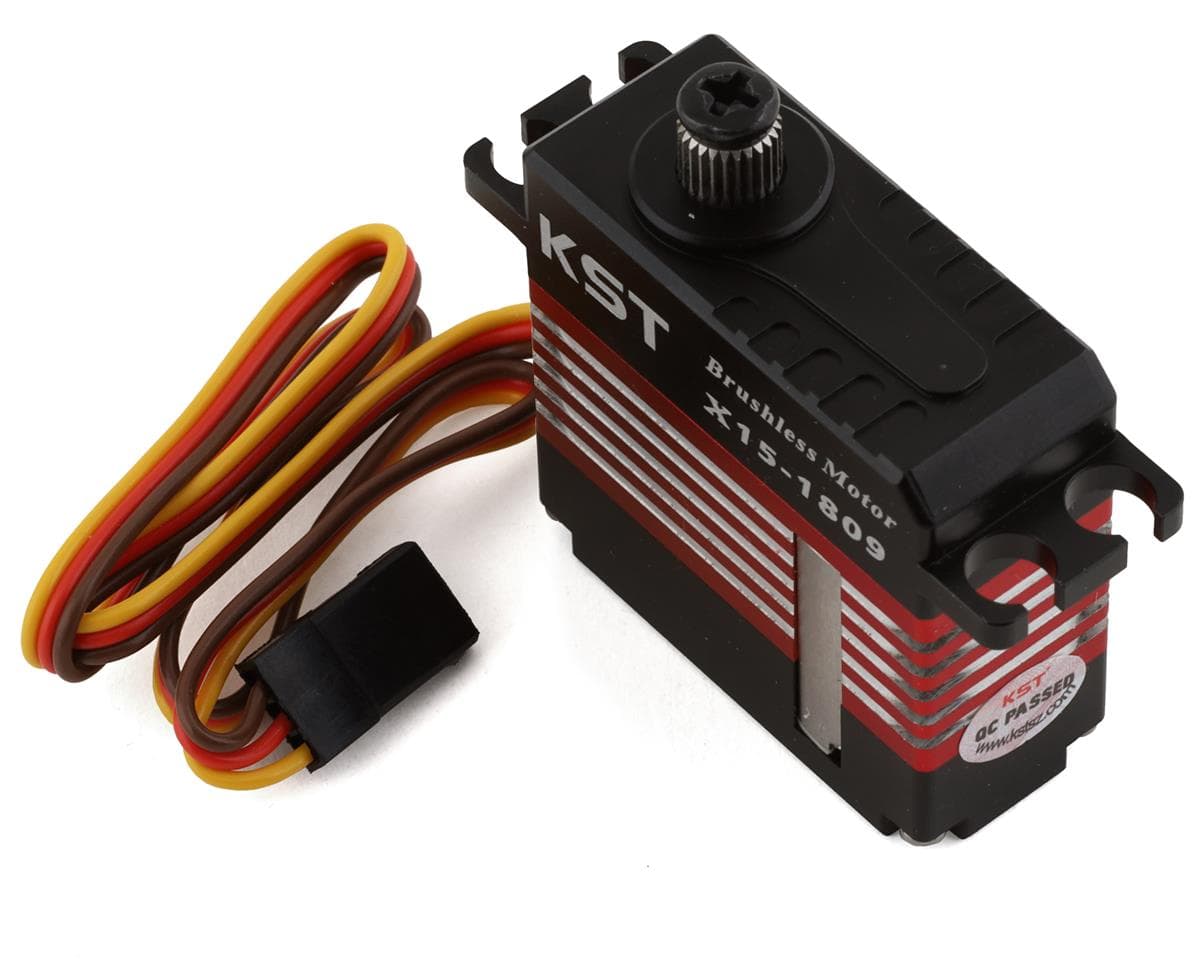

KST X15-1809 Mini Digital Metal Gear High Voltage Servo
Part # KSTX15-1809
Where to buy
$90.00
Prices are as last seen at the store; stock is not tracked.
About this part
The KST X15-1809 Mini Digital Metal Gear High Voltage Servo is a great choice for helicopters ranging from 430mm-570mm rotor blade size requiring mini servos such as the Align T-Rex 500, Mikado Logo 480, MSH Protos 500, and SAB Goblin 570. Additionally these servos can be used in other RC applications where the physical dimensions, and torque/speed ratings suit the need of the RC application.
Features:
Features:
- Mini size aluminum case
- Full metal gears
- Dual ball bearings
- HV compatible
- Lightning fast
- Coreless motor
Specifications:
- Operating Voltage: 6-8.4V
- Size: 35.5x15x32.5mm
- Torque:
- 6.0V: 18.35kg.cm (254.8oz/in)
- 7.4V: 22.43kg.cm (311.5oz/in)
- 8.4V: 24.47kg.cm (339.8oz/in)
- Speed:
- 6.0V: 0.09sec/60° @ 6.0V
- 7.4V: 0.08sec/60° @ 7.4V
- 8.4V: 0.07sec/60° @ 8.4V
- Weight: 45g
- Working Frequency: 1520us/333Hz, 900us - 2100us
- Motor: Brushless
- Ball Bearing: 2BB
- Output Gear: 25T Futaba
- (1) KST X15-1809 Mini Digital Metal Gear High Voltage Servo

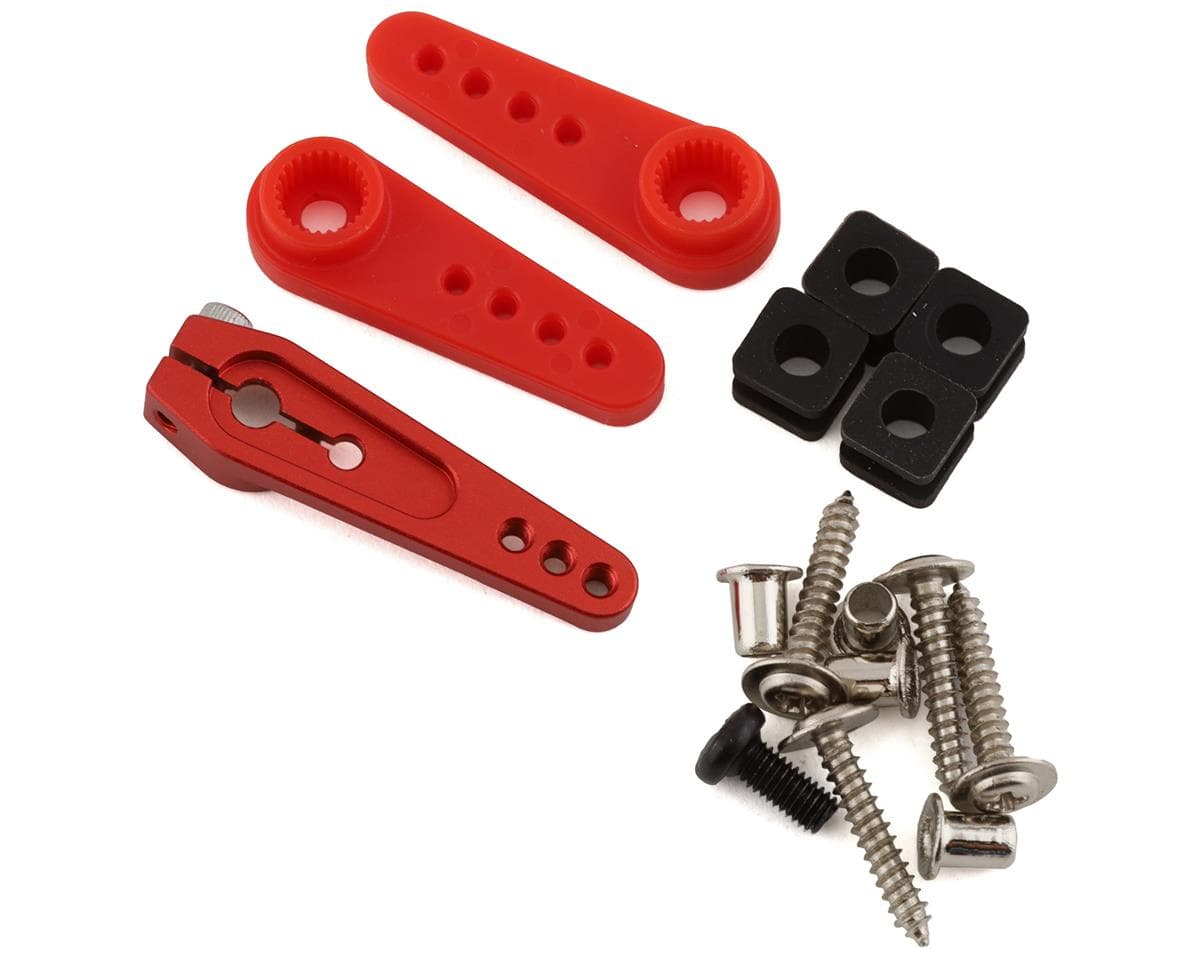

- (1) Aluminum Servo Horn
- (2) Plastic Servo Horns
- Mounting Hardware
