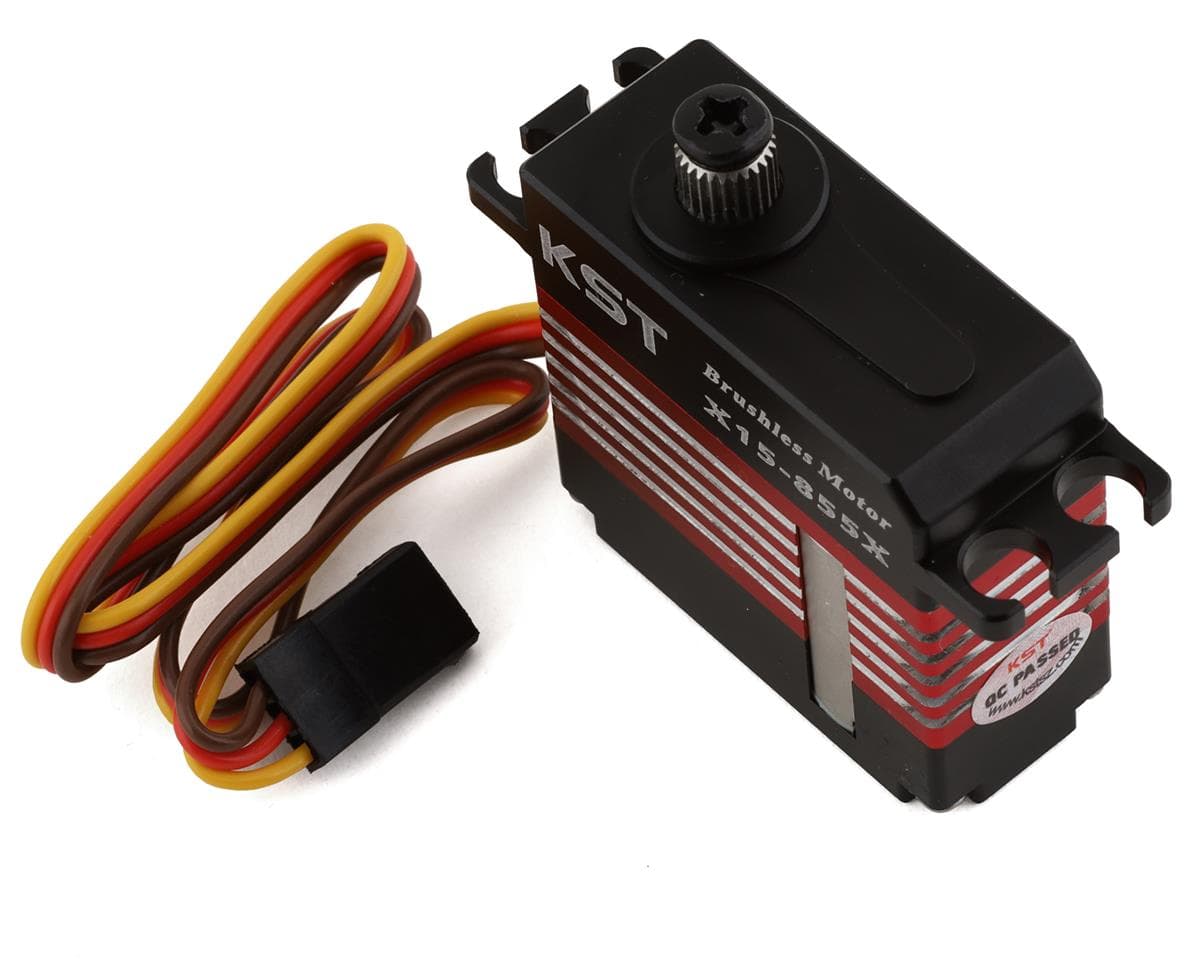

KST X15-855X Mini Tail Digital Metal Gear High Voltage Servo
Part # KSTX15-855X
Where to buy
$90.00
Prices are as last seen at the store; stock is not tracked.
About this part
The KST X15-855X Mini Tail Digital Metal Gear High Voltage Servo is a great choice for helicopters ranging from 430mm-570mm rotor blade size requiring mini tail servos such as the Align T-Rex 500, Mikado Logo 480, MSH Protos 500, and SAB Goblin 570. Additionally these servos can be used in other RC applications where the physical dimensions, and torque/speed ratings suit the need of the RC application.
Features:
Features:
- Mini size aluminum case
- Full metal gears
- Dual ball bearings
- HV compatible
- Lightning fast
- Coreless motor
Specifications:
- Operating Voltage: 6-8.4V
- Size: 35.5x15x32.5mm
- Torque:
- 6.0V: 10.2kg.cm (141.7oz/in)
- 7.4V: 13.3kg.cm (184.1oz/in)
- 8.4V: 15.3kg.cm (212.5oz/in)
- Speed:
- 6.0V: 0.07sec/60° @ 6.0V
- 7.4V: 0.06sec/60° @ 7.4V
- 8.4V: 0.05sec/60° @ 8.4V
- Weight: 45g
- Working Frequency: 760us/560Hz, 450us - 1050us
- Motor: Brushless
- Ball Bearing: 2BB
- Output Gear: 25T Futaba
- (1) KST X15-855X Mini Tail Digital Metal Gear High Voltage Servo

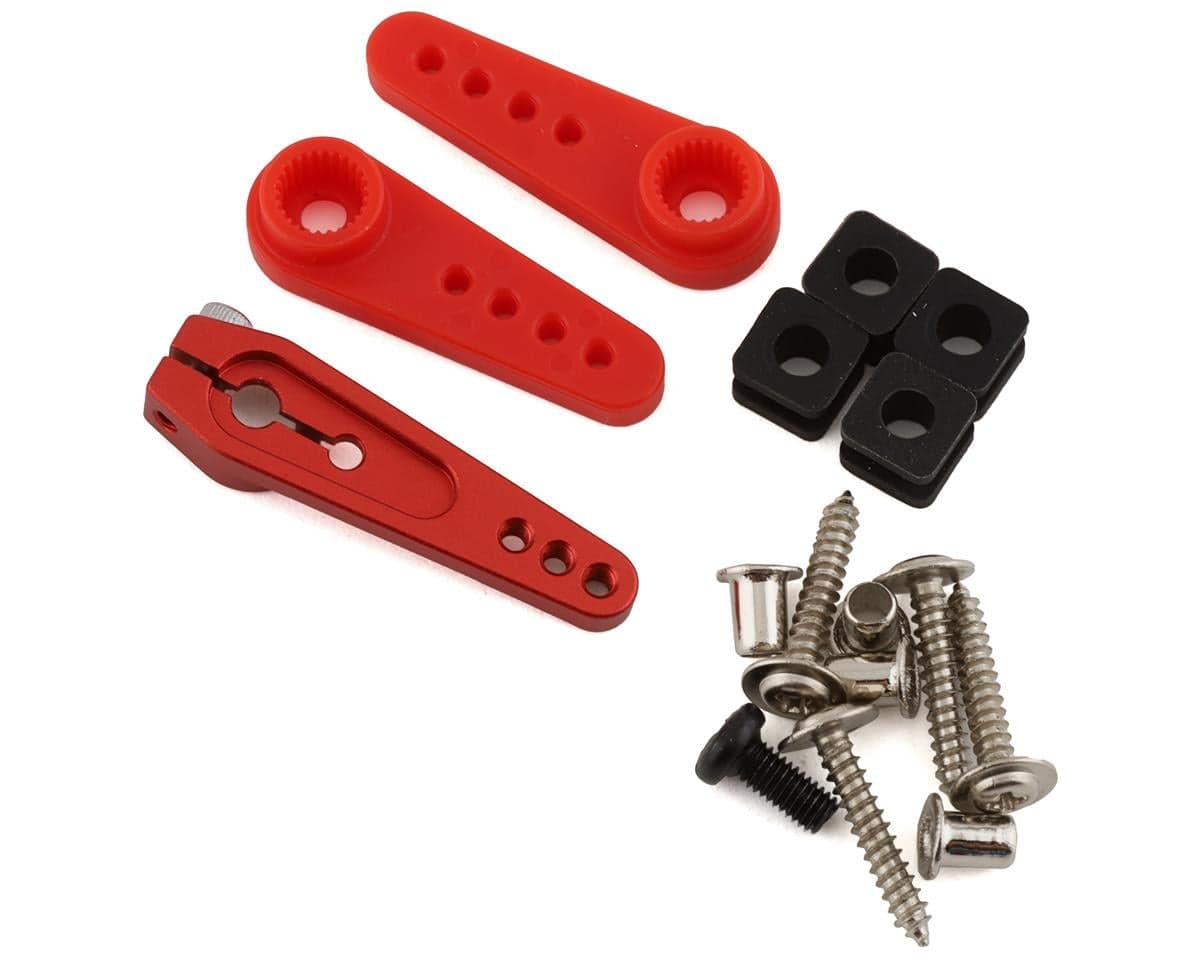

- (1) Aluminum Servo Horn
- (2) Plastic Servo Horns
- Mounting Hardware
