Kyosho EasyLap Digital Timing System
About this part
- For Indoor and Outdoor Tracks
- Unlimited cars
- Personal transponder with unique ID (also compatible with Robitronic transponders)
- Transponder (not included) measures 10.5x9.5x5.8mm and is incredibly lightweight
- Software for all Windows System (LiveTime or Zround)
- Full USB Support
- Receiver Modules with Power Led & Action Led Display
- Windows 2000, XP, Vista, Windows 7,Windows 8 or 8.1 (32/64-Bit System Support)
- One available USB 2.0 port
- Installing Drivers
- Build your own bridge by any material like PVC pipe or wood. Height recommendation from sensor to ground (16 inches/40.6cm)

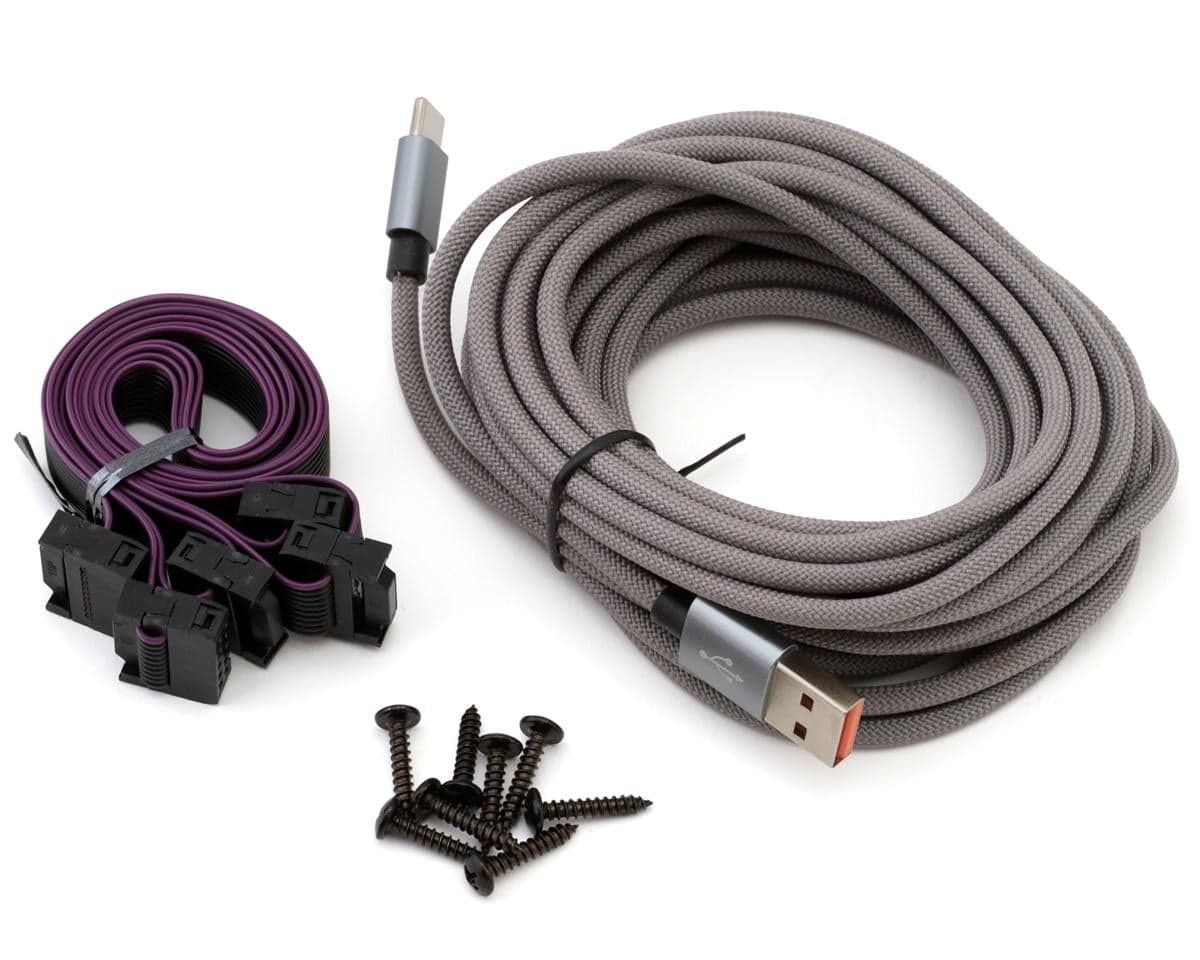

- (1) USB PC-Interface with data cable
- (4) Receiver Modules for track with max width (4 feet/1.2 meter)
Reviews5.0 · 4 reviews
Cost effective timing system that works well. If you are missing laps from being registered, a few things I did to resolve this: -Used all 4 sensors with a smaller gap between them than recommended -Place the finish line pipe (using PVC pipe to hold) lower than recommended -Added the transponder connectors direct to battery rather than through my mini-z ESC (Using KYOET009-S) -And the most helpful for me, was adjusting the angle of the sensors on the PVC. I originally started flat or parallel with ground, but what worked best for me was slightly angling the sensors relative to the ground. With these minor tweaks, I do not miss any laps and its great. Make sure your transponder has clear line out of any windows. Some people appear to have issues with the dark Autoscale body windows, but after the tweaks I made this does not seem to cause issues. I like "Next Level Timing" software better than Zround, but both a free so you can try both.
simple and easy set up.. easy to use..make sure your channel 4 is turned up all the way if its not hitting the sensor everytime..light on transponder shouldnt be blinking.. lol learned the hardway great system
Everything I buy from amain is always sent promptly and great quality. I wish they had a store in Texas.
This is a MUST HAVE for anyone wanting lap times, and connectivity to scoring systems. Transponders are approx $20 At home or professional tracks
Reviewers rate the Kyosho EasyLap Digital Timing System 5/5 and describe it as simple to set up and easy to use, with one reviewer noting it suits lap timing and connection to scoring systems. Reviewers agree that lap registration can be unreliable out of the box and that setup adjustments help. Suggested fixes include using all four sensors with a tighter spacing, lowering the finish line pipe, tilting the sensors slightly rather than keeping them flat, powering the transponder directly from the battery, and making sure channel 4 is fully turned up and the transponder has a clear line of sight. One reviewer also praised the seller's prompt shipping and product quality. Note that reviews are few.
- + Simple setup and easy to use
- + Good for lap timing and scoring system connectivity
- + Cost effective
- − Missed laps unless sensor placement and angle are adjusted
- − Requires troubleshooting such as channel 4 setting and transponder line of sight
