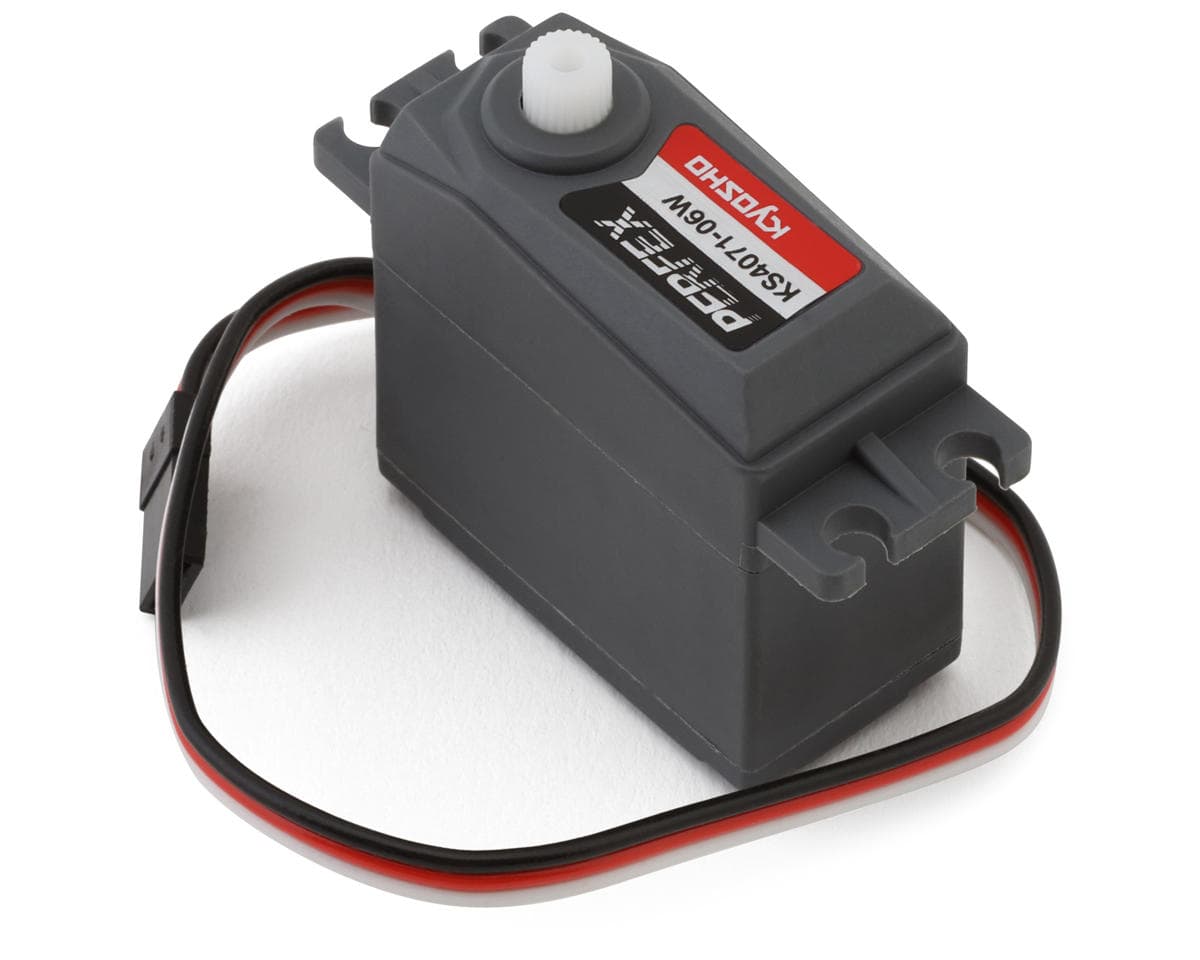

Name: Kyosho KS4071-06W Digital Servo
Brand: Kyosho
SKU: KYO82281
Price: 22.49 USD

Kyosho KS4071-06W Digital Servo

AMain Hobbies

<h2>Servo Overview:
</h2>

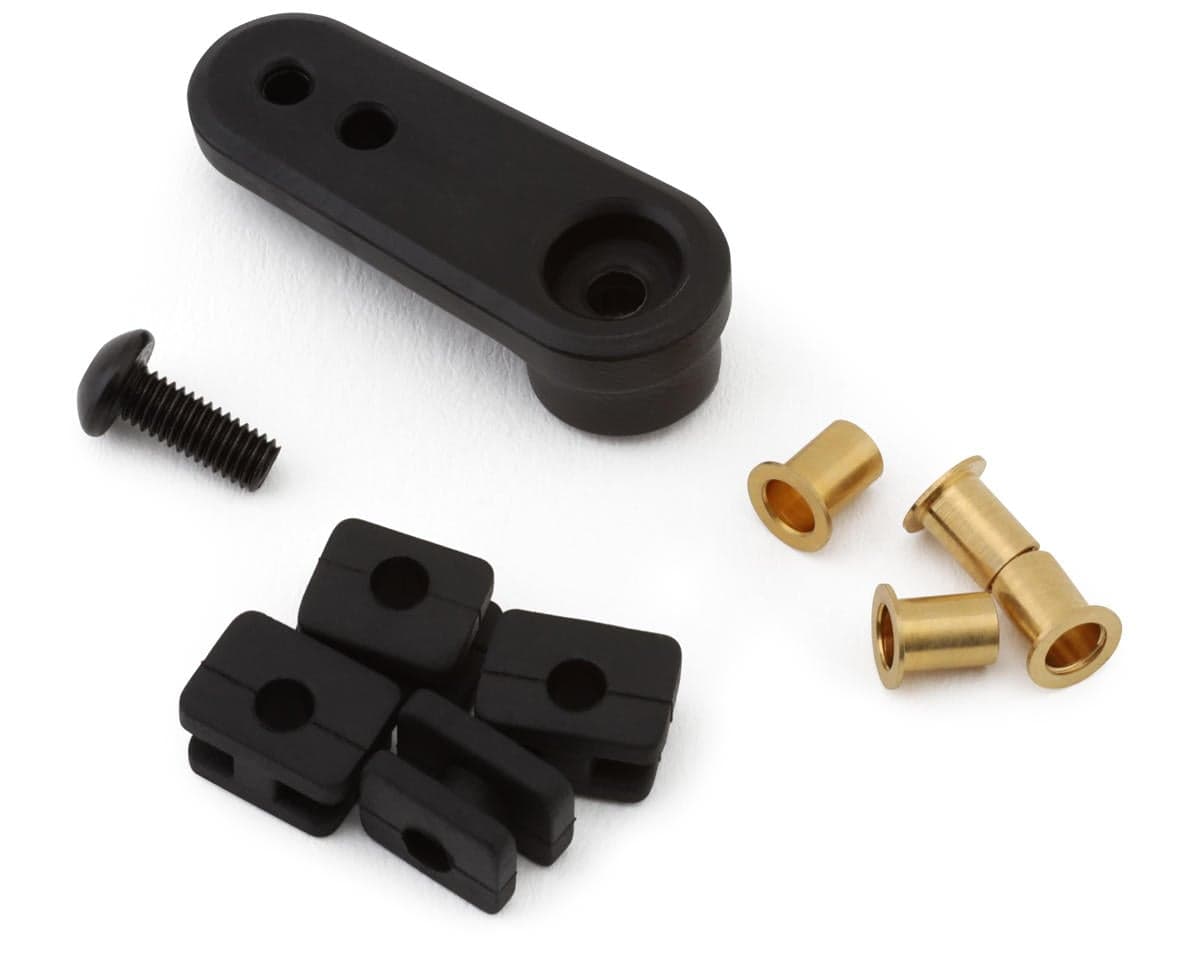

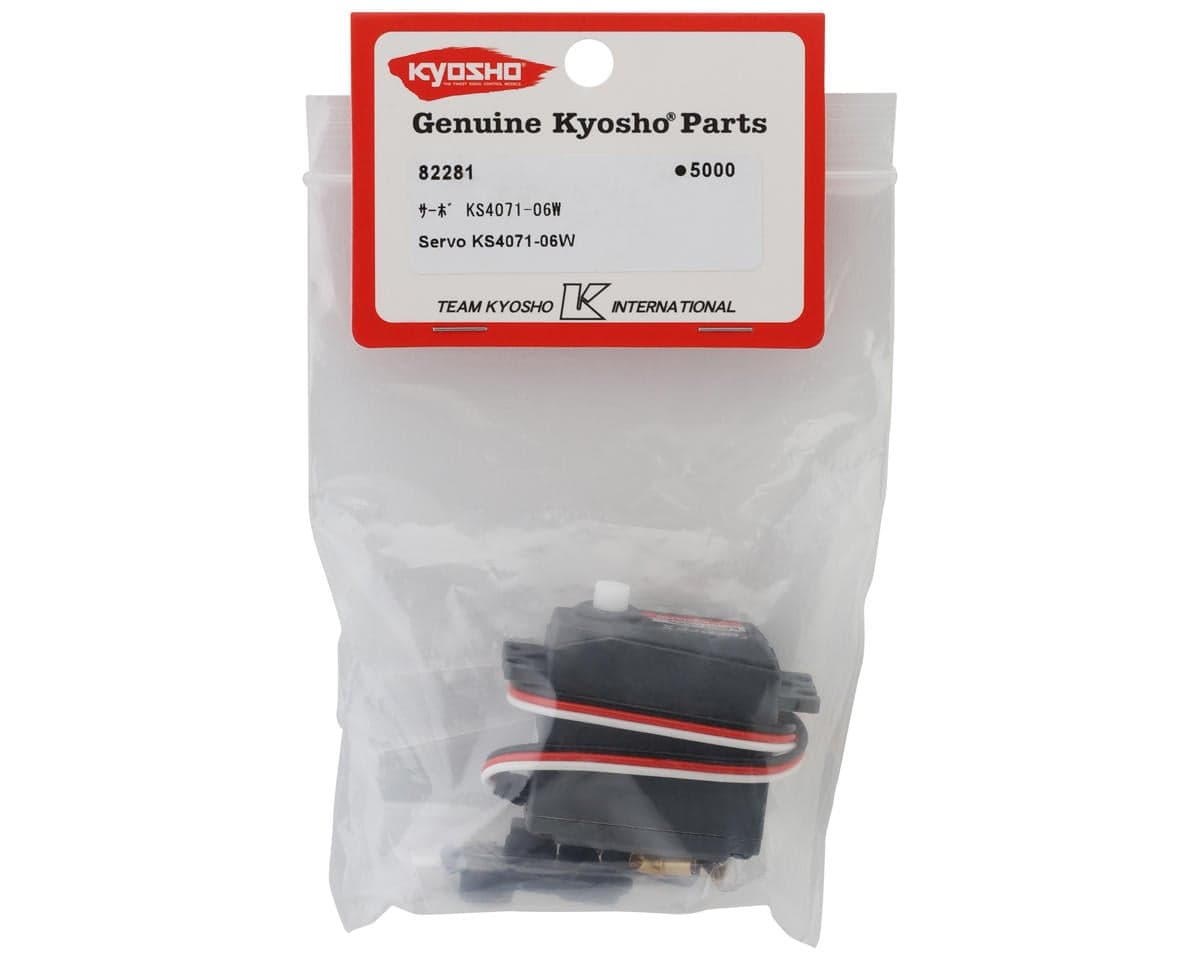

Kyosho KS4071-06W Digital Servo. This optional servo has a 220mm lead length making it easy to use on most 1/10 vehicles. A servo grommet is also included to protect the servo from engine vibration when installed on an engine model. Package includes one servo, one servo horn, and mounting hardware.


<h3>Specifications:
</h3>
<ul style="list-style-type: none;">
 <li style="margin-left: 0;">Suggested Application: 1/10 Scale</li>
 <li style="margin-left: 0;">Input Voltage: 5.0-6.0V</li>
 <li style="margin-left: 0;">Speed:</li>
 <ul>
 <li>@5.0V: 0.17sec/60°</li>
 <li>@6.0V: 0.15sec/60°</li>
 </ul>
 <li style="margin-left: 0;">Torque</li>
 <ul>
 <li>@5.0V: 6kg-cm</li>
 <li>@6.0V: 7kg-cm</li>
 </ul>
 <li style="margin-left: 0;">Pulse/Frequency: -</li>
 <li style="margin-left: 0;">Motor Type: Digital</li>
 <li style="margin-left: 0;">Output Shaft: 25T</li>
 <li style="margin-left: 0;">Gear Material: Plastic</li>
 <li style="margin-left: 0;">Dimensions: -</li>
 <li style="margin-left: 0;">Servo Lead Length: 8.66in (220mm)</li>
 <li style="margin-left: 0;">Weight: 2.12oz (60g)</li>
</ul>

Servo Overview: Kyosho KS4071-06W Digital Servo. This optional servo has a 220mm lead length making it easy to use on most 1/10 vehicles. A servo grommet is also included to protect the servo from engine vibration when installed on an engine model. Package includes one servo, one servo horn, and mounting hardware. Specifications: Suggested Application: 1/10 Scale Input Voltage: 5.0-6.0V Speed: @5.0V: 0.17sec/60° @6.0V: 0.15sec/60° Torque @5.0V: 6kg-cm @6.0V: 7kg-cm Pulse/Frequency: - Motor Type: Digital Output Shaft: 25T Gear Material: Plastic Dimensions: - Servo Lead Length: 8.66in (220mm) Weight: 2.12oz (60g)
