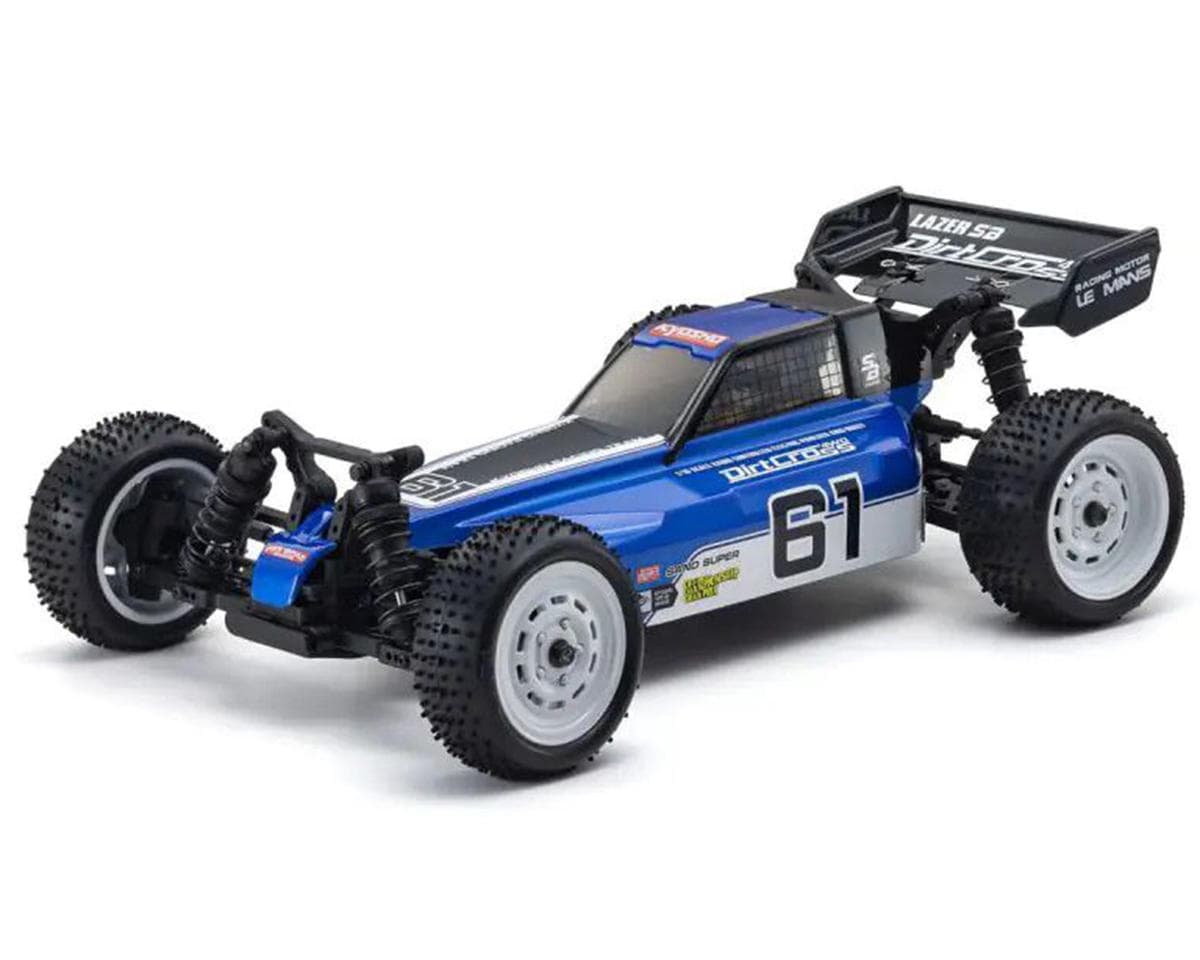

Kyosho Lazer SB Dirt Cross 1/10 4WD Electric Buggy Kit
About this part
Modernized Vintage R/C Off-Road Racer with a Retro Look
Unleash the power of 4WD with the Kyosho Lazer SB Dirt Cross 1/10 Electric Buggy Kit - a fusion of vintage style and modern performance. Designed to dominate the track, this next-gen buggy combines the nostalgia of classic racing with cutting-edge engineering. With its sleek design, upgraded chassis, and supreme drivetrain, the Lazer SB Dirt Cross offers an unbeatable combination of style, speed, and precision. Get ready to experience the thrill of R/C racing like never before.
About the Lazer SB Dirt Cross Kit
Design & Engineering
Get ready to experience the unique power and control of 4WD with the Kyosho Lazer SB Dirt Cross 1/10 4WD Electric Buggy Kit. Built on a pure racing base, this next-gen basic buggy is designed to deliver unparalleled performance on the track. Engineered with precision and purpose, the Lazer SB Dirt Cross combines the proven reliability of a shaft-driven 4WD system with innovative design features to optimize both performance and value. Whether you're a seasoned racer looking for a cost-effective upgrade or a newcomer to the world of R/C racing, this mid-range 4WD buggy offers the perfect blend of performance and affordability, making it the ideal choice for drivers of all skill levels.

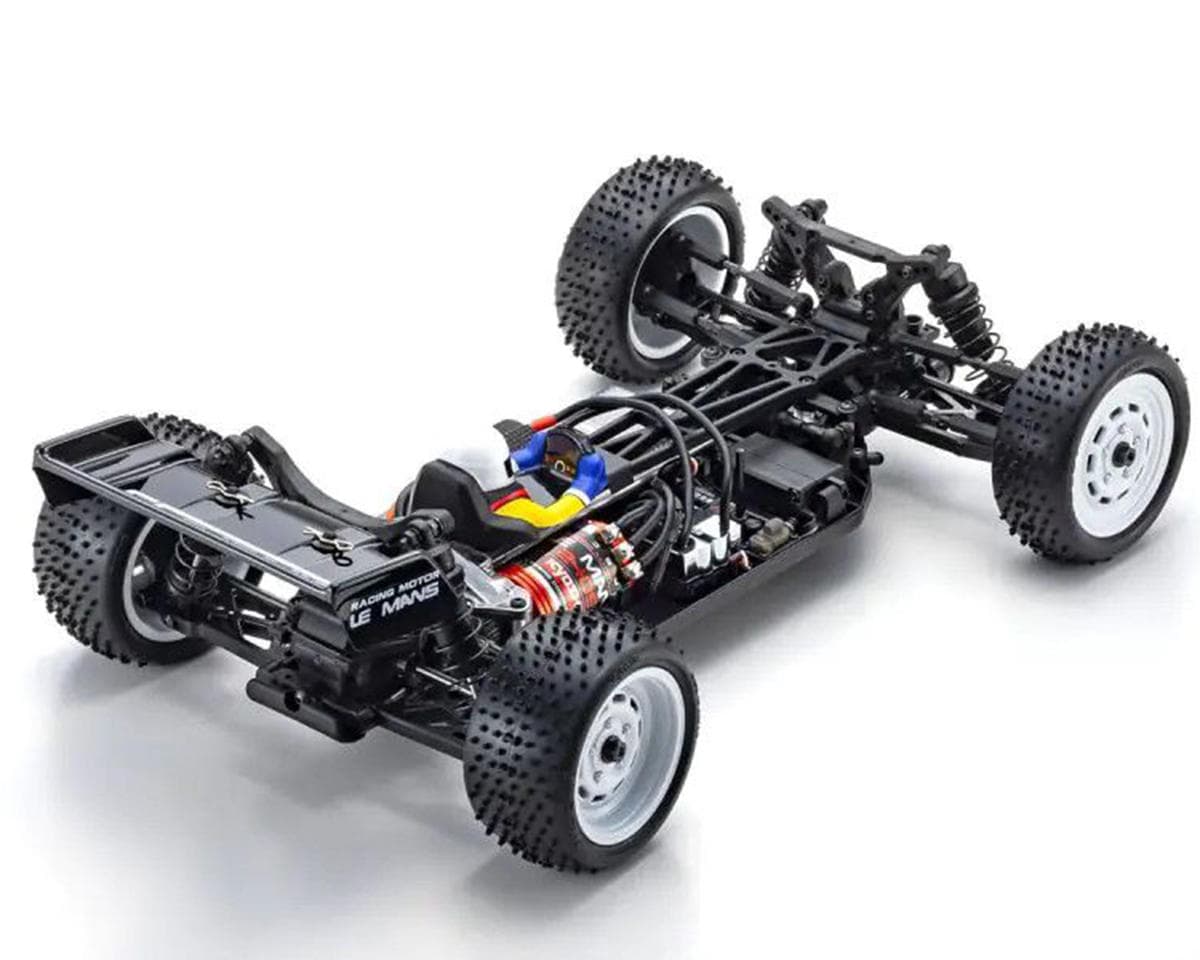

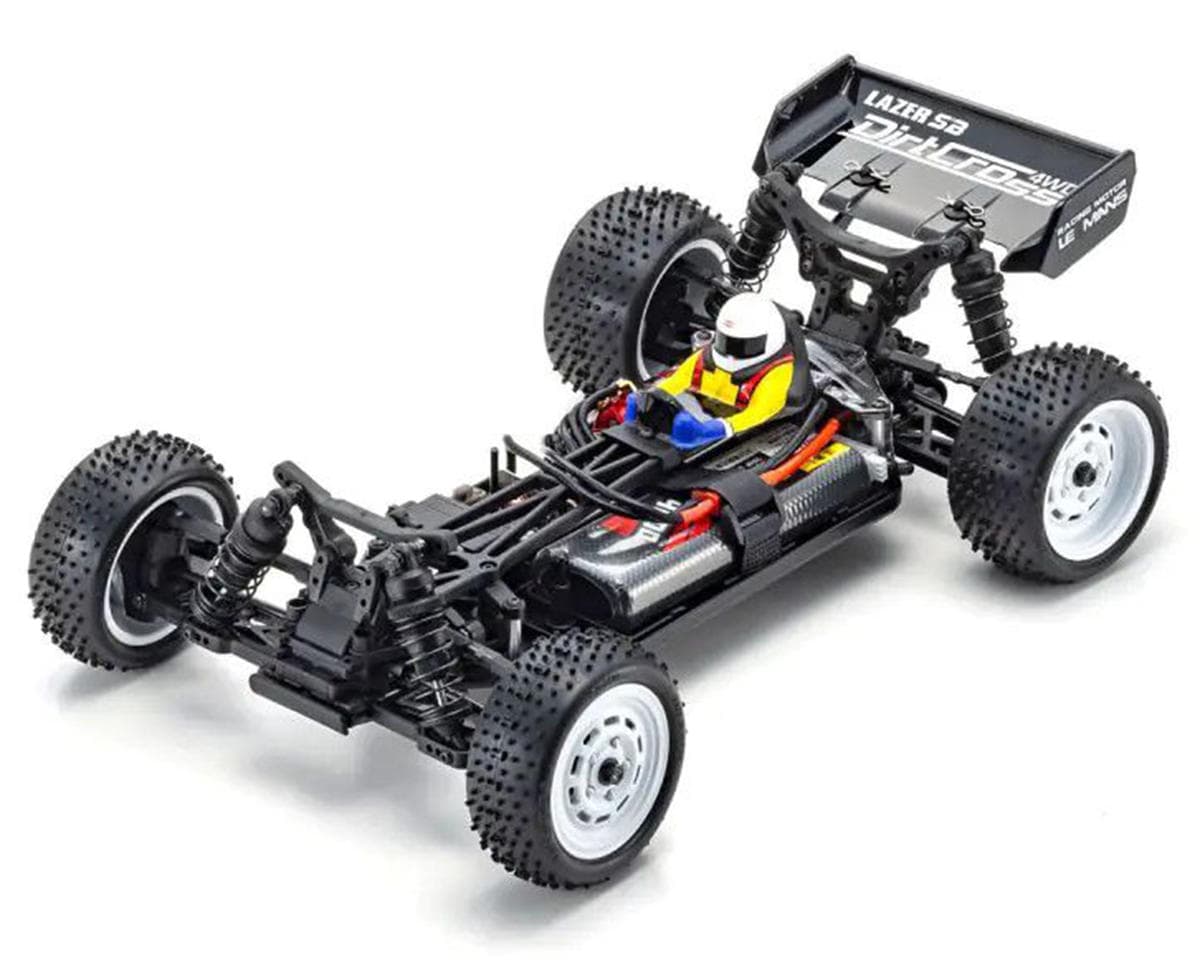

Chassis
The Lazer SB Dirt Cross boasts a redesigned main chassis, body, wing, wheels, tires, and driver figure, all meticulously engineered to enhance both performance and aesthetics. The main chassis is constructed from high rigidity and lightweight resin, providing a stable platform for aggressive driving maneuvers. The newly designed body features a classic rear cabin style, evoking a sense of nostalgia while still delivering modern performance. Paired with a rear wing and driver figure, the body not only enhances aerodynamics but also adds a touch of realism to the driving experience. The spoke wheels and H-pattern pin tires provide reliable grip on a wide range of surfaces, while the adjustable threaded oil-filled shocks ensure smooth handling over any terrain. With its vintage look and modern capabilities, the Lazer SB Dirt Cross sets a new standard for 4WD electric buggies, combining style and performance in equal measure.
Drivetrain & Suspension
The supreme drivetrain and suspension of the Lazer SB Dirt Cross ensure unrivaled performance and reliability on the track. Equipped with a proven and reliable shaft-driven 4WD system, this buggy delivers exceptional traction and stability, even on low-grip surfaces. The front and rear gearboxes are equipped with gear differentials, ensuring reliable operational stability over long periods of racing. The durable aluminum center driveshaft and motor mount provide added strength and durability, while the double wishbone suspension and adjustable turnbuckles allow for precise tuning of camber and toe to suit any track conditions. With its slipper clutch system, the Lazer SB Dirt Cross protects the gears and drive system from excessive loads, allowing drivers to push the limits with confidence. Whether you're tearing up the dirt track or navigating off-road racing circuits, this buggy is built to deliver championship-worthy performance every time.
Features:
- Based on the proven Lazer ZX-5 with major improvements
- Vintage look with modern capabilities
- Spoke wheels, pin tires and Tub chassis to recreate that retro racing buggy style
- Shaft driven 4WD drivetrain
- Front and rear gear differentials for smooth handling
- Heavy duty aluminum motor mount
- Lightweight and rigid aluminum center driveshaft
- Adjustable turnbuckles to tune camber and toe
- Race-proven double wishbone suspension
- Adjustable threaded oil-filled shocks
Includes:
- (1) Lazer SB Dirt Cross 1/10 4WD Electric Buggy Kit
- (1) Clear Body
- (1) Wing
- (4) Wheels & Tires
- (3) L-shape Hex Wrenches (1.5mm, 2.0mm & 2.5mm)
- (1) Cross wrench
- Manual
Needed To Complete:
- (1) 2-3 Channel Transmitter/Receiver System
- (1) Steering Servo
- (1) 1/10 ESC & 540-Motor
- (1) 2S LiPo Battery & Compatible Charger
- Paint for Body
- Misc. Tools For Assembly & Silicon Oil
Specifications:
| Scale | 1:10 |
|---|---|
| Drive | 4WD |
| Power Source | 2S LiPo |
| Length | 15.55in (395mm) |
| Wheelbase | 10.57in (268.5mm) |
| Width | 9.65in (245mm) |
| Height | 4.92in (125mm) |
| Weight | 51.15oz (1450g) |
| Assembly Level | Kit |
*Tech Note: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
Manuals:
Coming Soon
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.8 · 4 reviews
Quality of parts is great and it builds into a solid car. However, instructions are a vague with respect to the parts tree’s.
I feel bad doing this before even finishing building it but I will say I raced the car this is based on so building it has be a great memory for me. The plastic shocks felt like a let down at first but they feel great and sealed up well. I already have what I need to get it rolling and ordered some custom stickers for it. I will update if anything changes.
Very nice design and rewarding build. The fit and finish is absolutely top notch. The plastic is all fiber filled and feels very strong. Some aluminum shocks make it look a bit more premium but the standard ones are good too (based from experience with the dirt master)
The Kyosho Dirt Cross is a Great build and super fun to drive! More than just a basher it is race worthy especially once you get the universal driveshafts for it!
Four verified owners rate this kit highly, averaging 5 out of 5. Reviewers praise the build experience, the fit and finish, and the fiber-filled plastic, which they describe as strong. The plastic shocks initially disappointed one reviewer but were later described as sealing well, and another found the standard shocks good though aluminum shocks look more premium. One reviewer reports the car is fun to drive and race-capable, particularly with universal driveshafts. The main recurring complaint is that the instructions are vague about the parts trees. All reviews are for the Kyosho Lazer SB Dirt Cross 1/10 4WD Electric Buggy Kit variant.
- + Solid, strong build
- + Excellent fit and finish
- + Fiber-filled plastic parts
- + Fun to drive, race-capable with universal driveshafts
- − Vague instructions for parts trees
- − Plastic shocks initially disappointing
