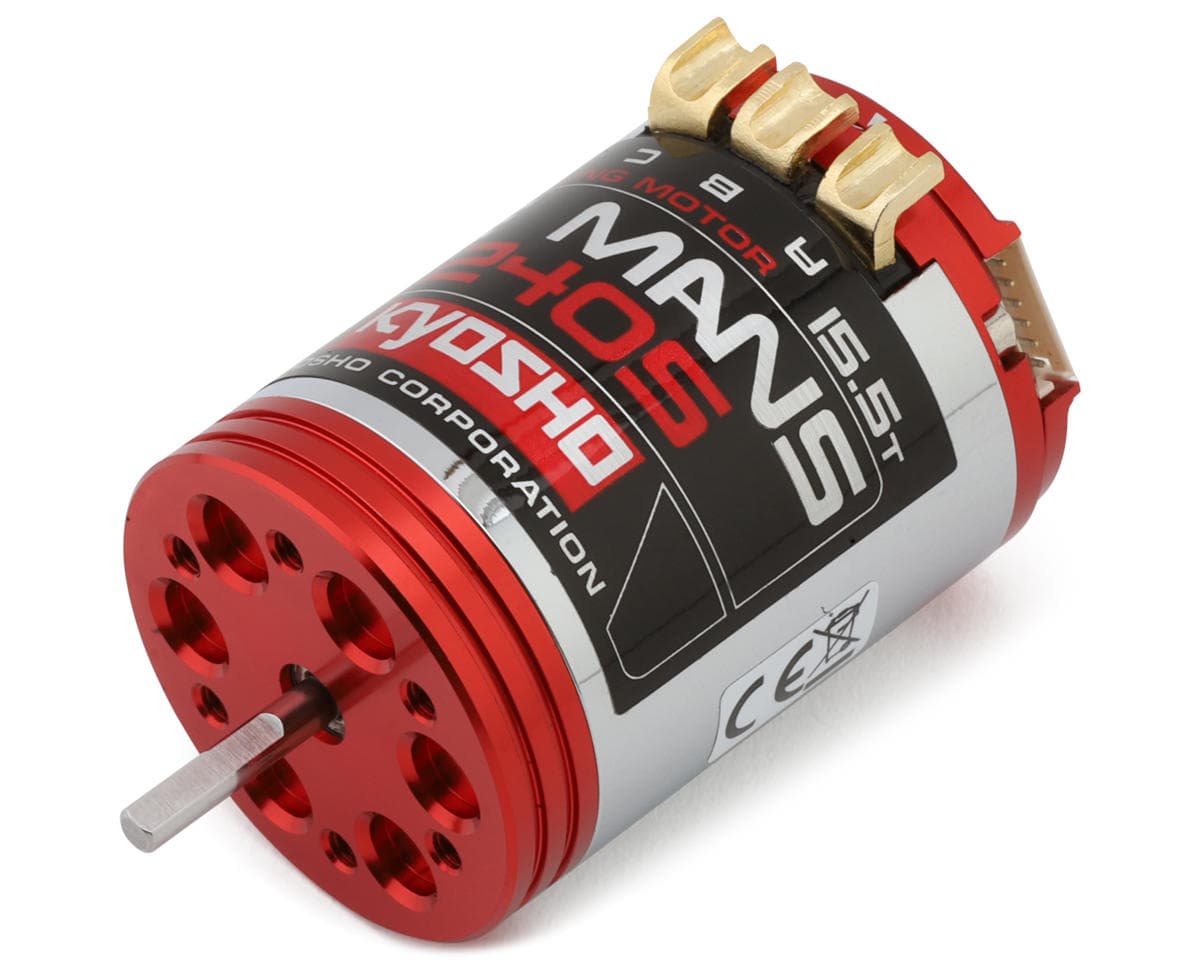

Kyosho LE MANS 240S Sensored Brushless Motor (15.5T/4WD)
About this part
Brushless Motor Overview:
Unleash smooth, efficient power with the Kyosho Le Mans 240S 15.5T — built for 4WD racing dominance with stunning looks, precise control, and race-proven performance.
About the Le Mans 240S Sensored Brushless Motor
Race-Ready Brushless Power
The Kyosho LeMans 240S 15.5T Sensored Brushless Motor is engineered for peak 4WD racing performance. With a dustproof, no-vent design and a stunning nickel-plated finish, it delivers both durability and visual appeal. The CNC-machined end bells ensure structural precision, while the adjustable timing allows for fine-tuning power output. Gold-plated terminals provide superior electrical efficiency, and with 2550KV, 320W max power, and 90% efficiency, the 240S delivers smooth, consistent speed and torque — perfect for racers seeking responsive, controlled performance on the track.
Features:
- Dustproof design with no vents
- Nickel plating for a shiny finish
- CNC-machined front and rear bells to maximize heat dissipation
- Adjustable end bell timing
- Gold-plated A, B, C solder taps
- High efficiency with 2550kV output
Includes:
- (1) Le Mans 240S Sensored Brushless Motor
Specifications:
| Type | Sensored Brushless |
|---|---|
| Size | 540 |
| Application | 4WD On-Road & Off-Road |
| Turns | 15.5T/2550kV |
| Input Voltage | 1-3S (7.4-11.1V) |
| Motor Diameter | 1.40in (35.8mm) |
| Motor Length | 2.02in (51.2mm) |
| Shafts Diameter | 0.6in (15mm) |
| Shaft Length | 1/8in (3.175mm) |
| Weight | 6.3oz (179g) |
