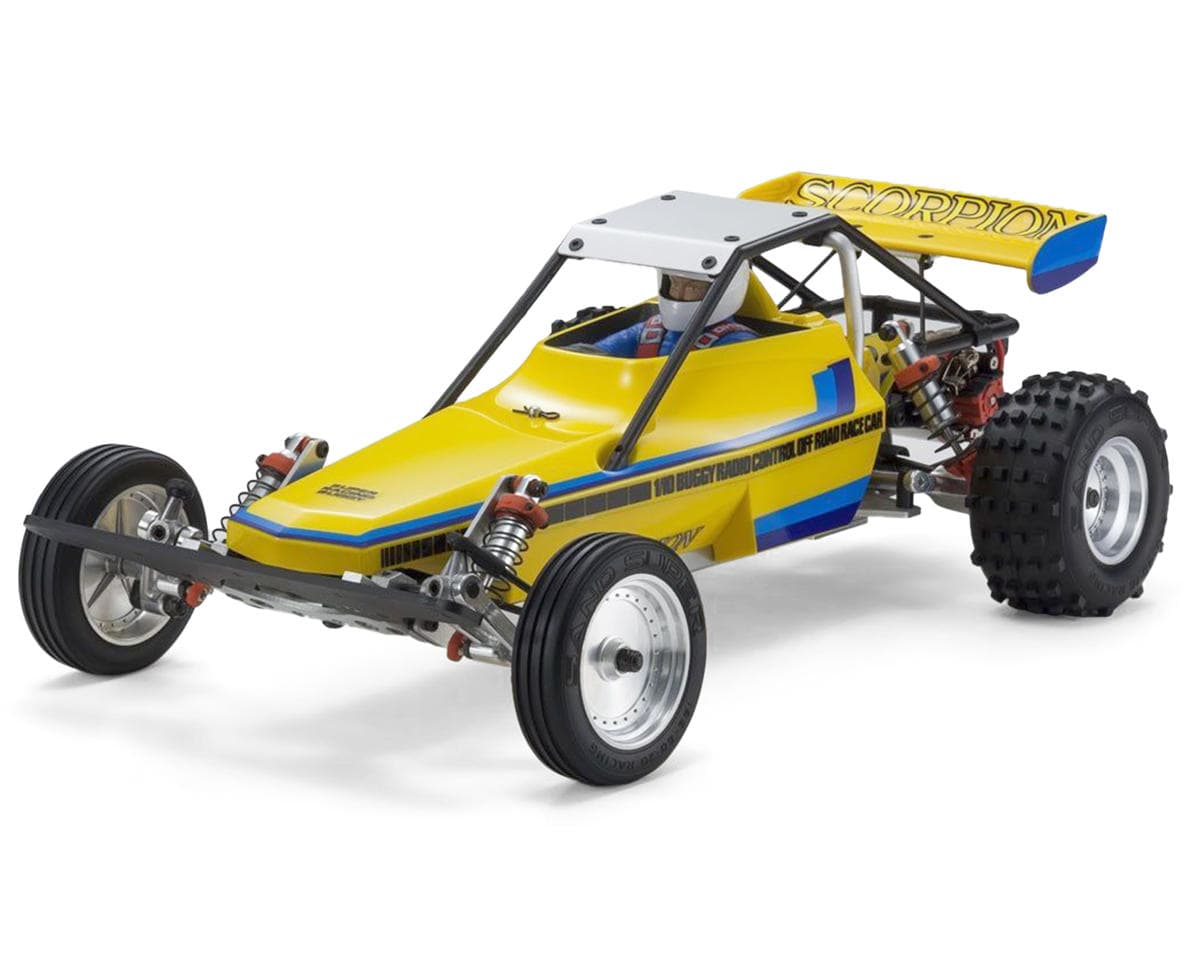

Kyosho Scorpion 2014 1/10 2WD Electric Off-Road Buggy Kit
About this part
Modernized Vintage R/C Off-Road Racer
Get ready for the ultimate resurgence of Kyosho's legendary Scorpion! Combining the wild, free spirit of the original 1982 Baja buggy with cutting-edge performance technology, the 2014 Scorpion is a perfect blend of vintage charm and modern engineering. This high-performance RC car promises to thrill both nostalgic collectors and competitive racers, making it a must-have for anyone passionate about 1/10 vintage off-road racing.
About the Scorpion 2WD Off-Road Buggy Kit
History Design & Engineering
The Kyosho Scorpion has an illustrious history that traces back to 1982 when it revolutionized the racing buggy category by merging RC car excitement with the finesse of pure motorsports. This iconic buggy earned its legendary status with its wild and free Baja buggy style, coupled with a robust and innovative design. Fast forward to 2014, and Kyosho has meticulously revived the Scorpion, infusing it with modern performance technology while retaining the spirit and aesthetic of the original. The updated Scorpion captures the hearts of vintage collectors and off-road racing enthusiasts alike, with its aerodynamic design and formidable engineering that echoes the triumphs of its predecessor.

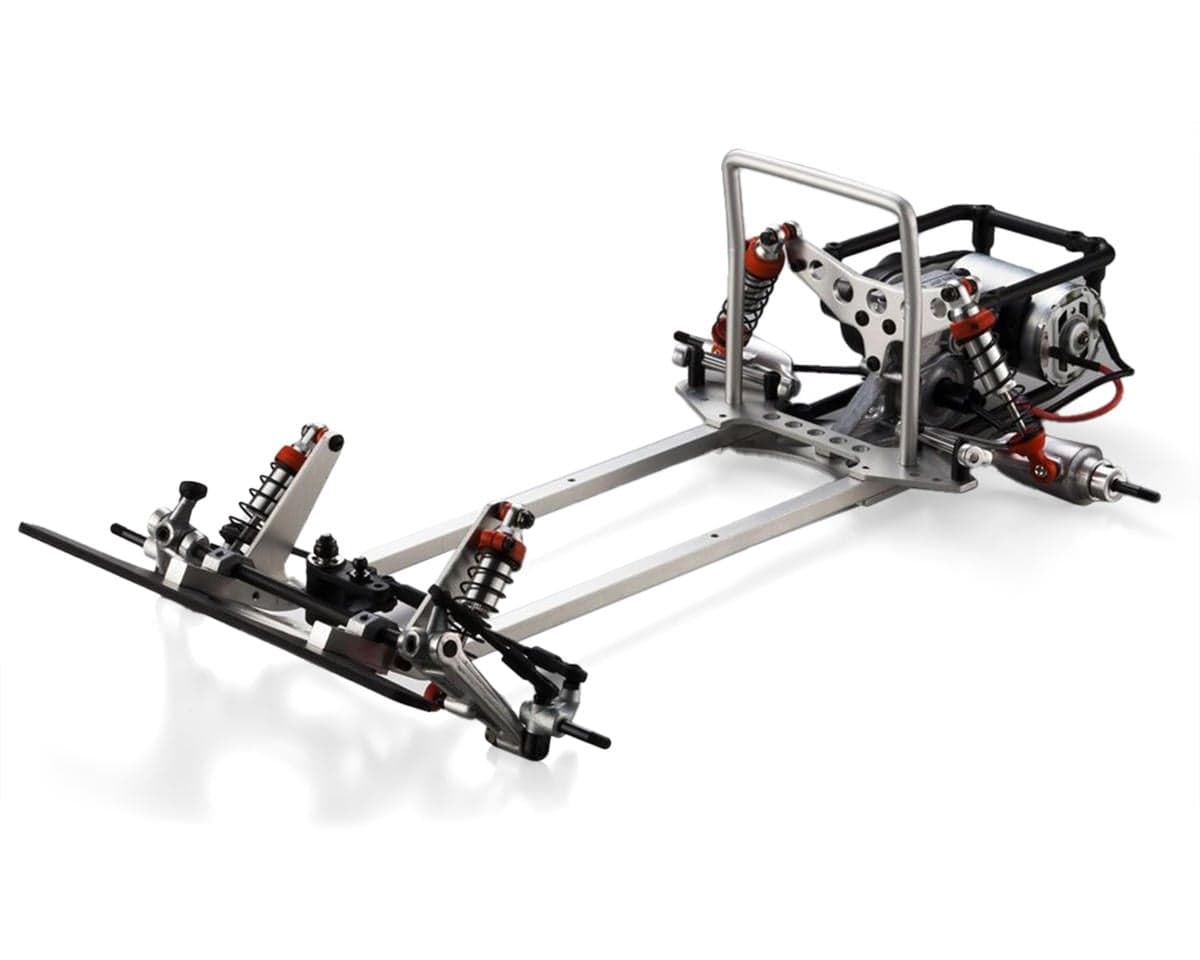

Chassis
The 2014 Scorpion’s chassis is a marvel of engineering, featuring an advanced 6061T6 forged aluminum construction that ensures unprecedented levels of strength, rigidity, and durability. This high-grade aluminum chassis not only maintains the semi-trailing suspension arms’ nostalgic design but also boasts a countersunk surface, allowing screws to be seated flat to minimize contact resistance and scraping. This design choice enhances the classis's durability and performance on modern buggy racing tracks, ensuring that the Scorpion can withstand the rigors of intense racing. The lightweight design reduces the use of nuts and tapping screws, replacing them with more secure hex screws, which adds to the structural integrity and ease of assembly.
Drivetrain & Suspension
The drivetrain and suspension of the 2014 Scorpion are meticulously designed to offer superior performance and control. The two-piece die-cast aluminum gearbox houses precision 48 pitch gears, which significantly reduce traction pulsation, delivering a direct driving control characteristic. This gearbox also includes a differential system that enhances the buggy’s maneuverability and stability. Additionally, the slipper clutch protects the drivetrain by absorbing shocks and providing efficient traction, thus ensuring the longevity of the transmission. The suspension system features aluminum suspension arms and oil-filled shocks with stainless shafts and aluminum cylinders, offering a smooth stroke and exceptional handling. This combination of advanced materials and engineering makes the Scorpion 2014 not only a nostalgic revival but also a formidable contender in modern 1/10 vintage RC off-road racing.
Features:
- Based on the legendary and proven Scorpion platform with modern capabilities
- Pre-assembled gearbox and oil-filled shocks
- Stylish aerodynamic Baja buggy design
- Aluminum suspension arms
- Two-piece aluminum gearbox
- All metal gear transmission
- Aluminum main chassis, shock towers and shock bodies
- Slipper clutch operated to protect the drivetrain and deliver efficient traction
- Vintage block pattern race tires
- Rear mounted motor 2WD design
Includes:
- (1) Scorpion 2014 1/10 2WD Electric Off-Road Buggy Kit
- (1) Clear Body & Decals
- (1) Racer Figure
- (4) Wheels & Tires
- (1) Cross wrench
- Manual
Needed To Complete:
- (1) 2-3 Channel Transmitter/Receiver System
- (1) Steering Servo
- (1) 1/10 ESC & 540-Motor
- (1) 2S LiPo Battery & Compatible Charger
- Paint for Body
- Misc. Tools For Assembly & Silicon Oil
Specifications:
| Scale | 1:10 |
|---|---|
| Drive | 2WD |
| Power Source | 2S LiPo |
| Length | 15.67in (398mm) |
| Wheelbase | 10.35in (263mm) |
| Width | 9.29in (236mm) |
| Height | 5.71in (145mm) |
| Weight | 34.74oz (985g) |
| Assembly Level | Kit |
*Tech Note: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
Manuals:
Coming Soon
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 3 reviews
What can I say, Another great Kyosho legendary series buggy. What I love about this cassis set up is the parts interchangeability with other buggies like the Tomahawk, Beetle, and Turbo Scorpion. It makes it easy to assemble a parts box to cover multiple models that you may possibly purchase. Assembly was fun and precise as I expected for having purchased other Kyosho products. I chose to power this Scorpion with the LeMans 240S 15.5 turn brushless (beautiful motor nickel plated wow) plus, The 240 LeMans esc and rounded it out with Kyosho perfex KS-5031-09MW metal gear servo. In closing plenty of power, Art like display able looks premium drive feel and performance plus decent durability. I will continue to buy other cars in this series.
hands down the most satisfying rc ive ever owned.bought one in 2020 but unfortunatley got ran over by a speeding car :(
The best! I can always count on Amain. Thank you for always coming through. Highly recommend!!!
All three verified owners rated the Kyosho Scorpion 2014 1/10 2WD Electric Off-Road Buggy Kit 5/5. Reviewers praise its parts interchangeability with other Kyosho models such as the Tomahawk, Beetle and Turbo Scorpion, precise and enjoyable assembly, and strong power, drive performance and appearance. One reviewer describes a build using a LeMans 240S brushless motor, a LeMans ESC and a Perfex metal gear servo, and rates durability as decent. One review mainly thanks the seller and does not discuss the product. No criticisms of the kit appear, and the sample is small.
- + Parts interchangeability with other Kyosho models
- + Precise, enjoyable assembly
- + Strong power and drive performance
- + Premium-looking appearance
