Kyosho Ultima SB Dirt Master 1/10 2WD Electric Buggy Kit
About this part
Ultima SB Dirt Master 1/10 2WD Electric Buggy Kit
This is the Ultima SB Dirt Master 1/10 2WD Electric Buggy Kit. Built on the foundation of the competition-level Ultima RB5, the Dirt Master features high-quality performance components at a mid-range price. Its rear motor layout provides unbeatable grip and stability over low-traction surfaces like gravel and riverbeds. The nostalgic flair of the Dirt Master's updated body pays homage to the classic buggy design while incorporating modern performance features. And with its racing heritage, this buggy is equally at home on fully-fledged RC racing circuits as it is in the great outdoors.
Whether you're a beginner driver looking to step up your off-road game or a seasoned racer seeking some good old-fashioned bashing fun, the Ultima SB Dirt Master is the perfect choice. Get ready to experience the purest form of off-road excitement with the Ultima SB Dirt Master.

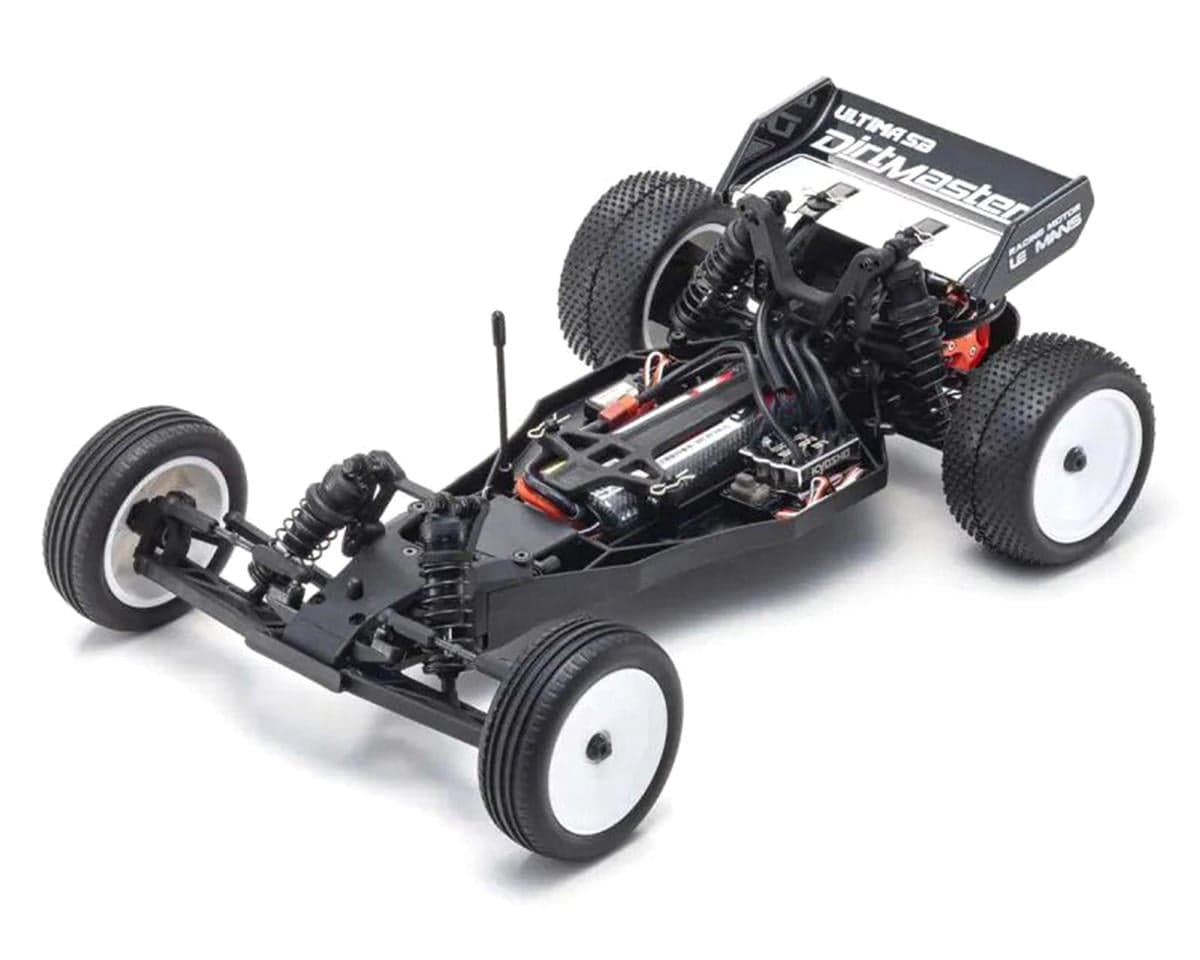

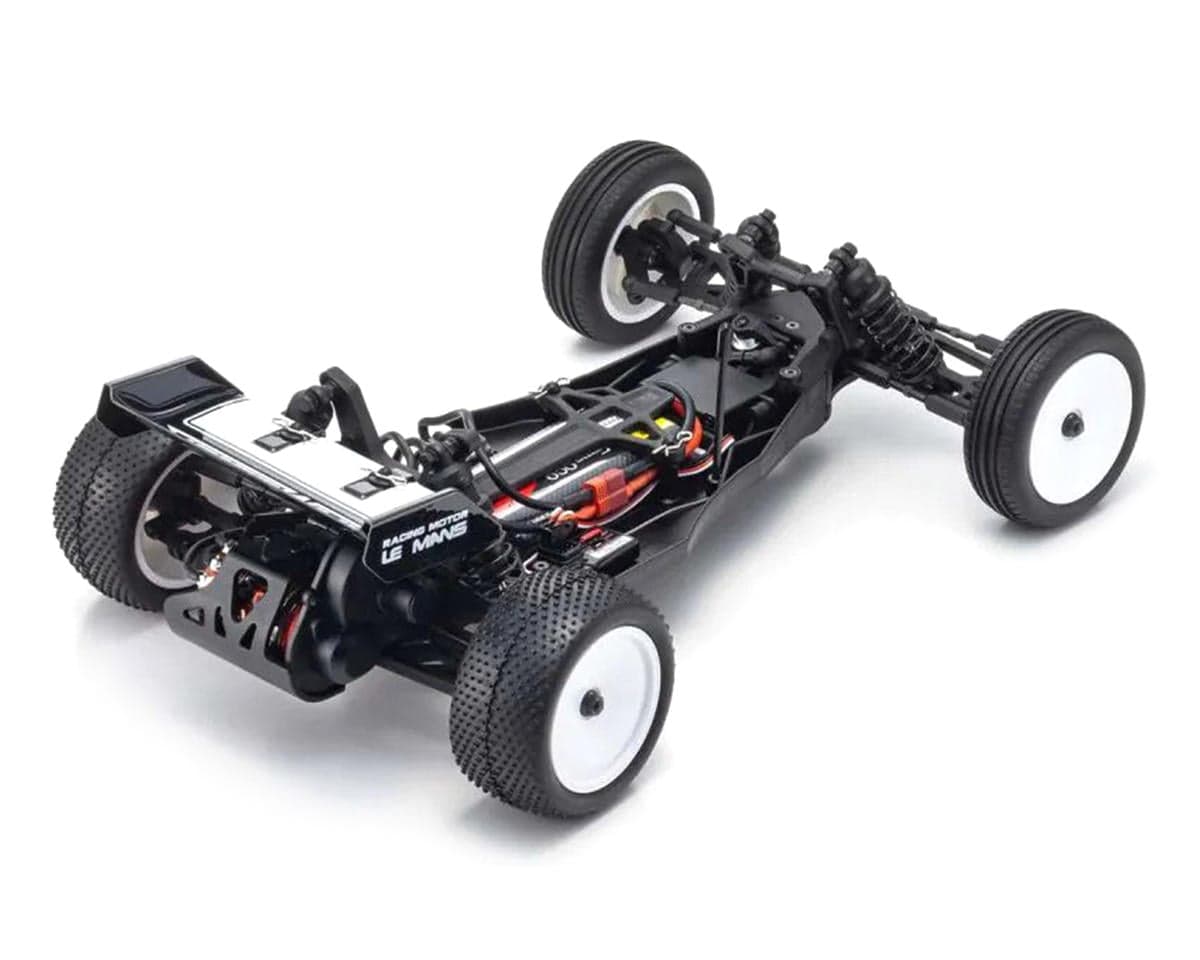

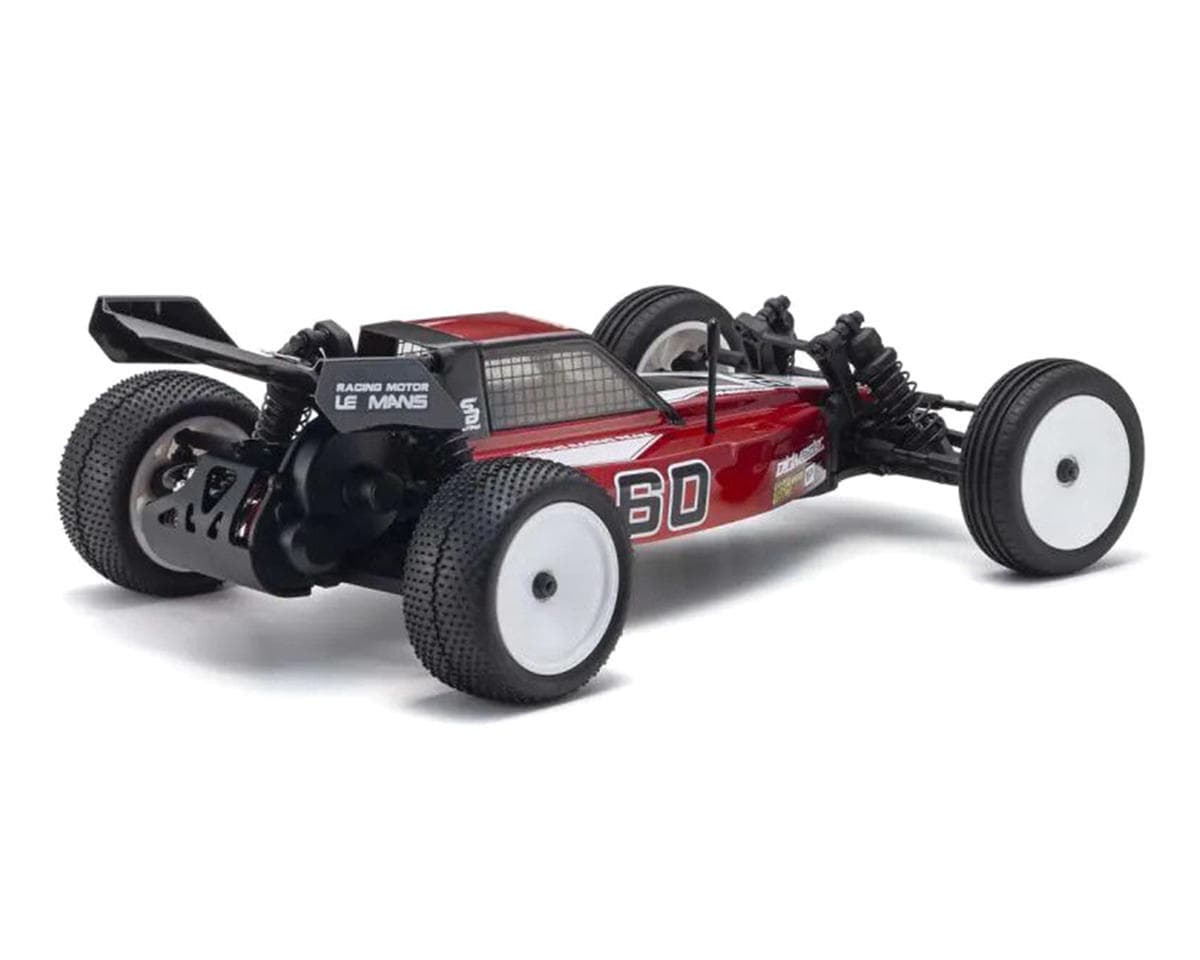

NOTE: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Features:
- Based on a competition-level racing buggy, this unassembled EP buggy kit delivers high performance at a low price.

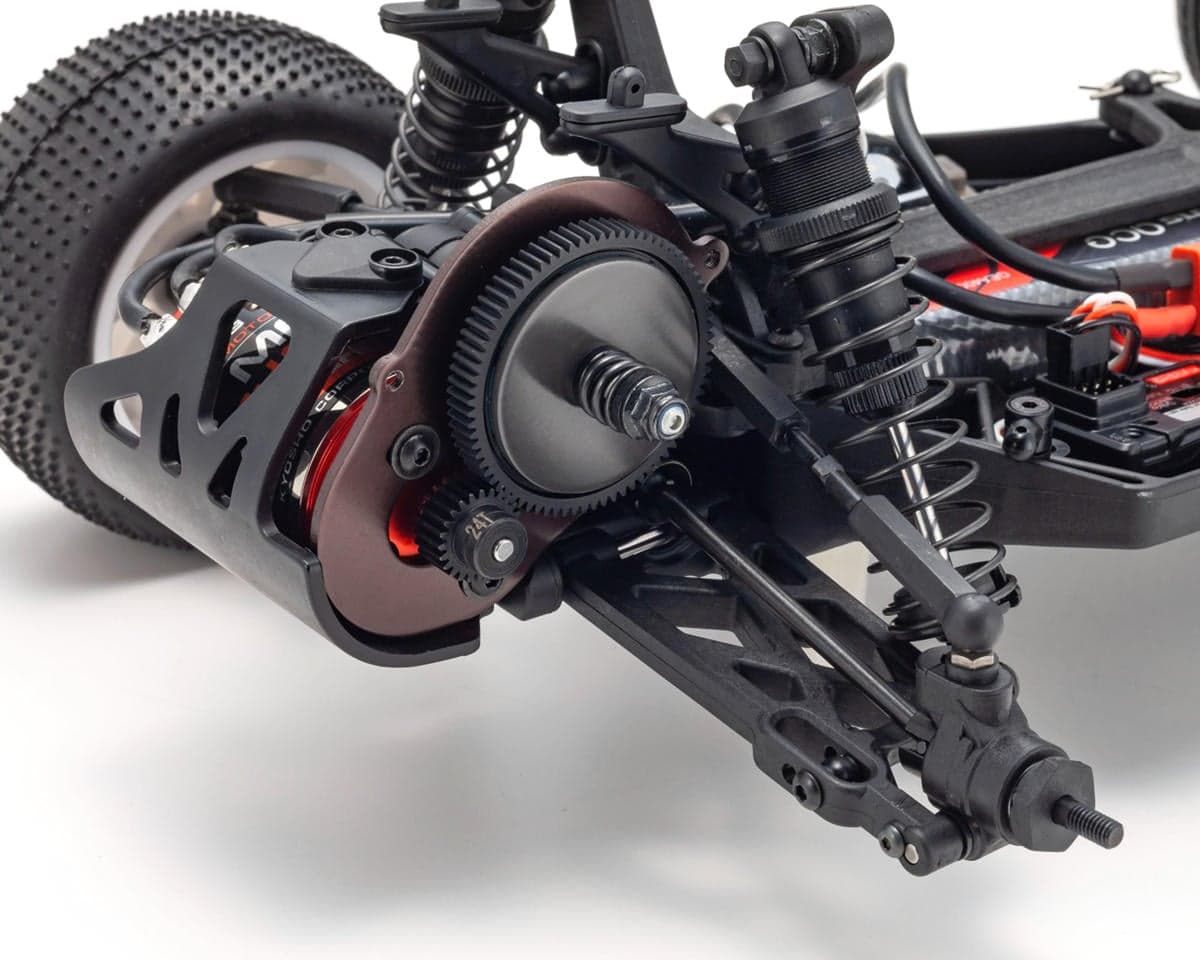

- Rear motor design delivers excellent rear tire grip and superior control.
- Included front/rear tires and wheels demonstrate stability over various types of road surfaces.
- Classic style body with ageless smart design is equipped with a rear wing that enhances driving stability.
- Resin main chassis is easy to assemble and exhibits moderate flex characteristics, and can be equipped with standard RC components.
- Race-proven double-wishbone front and rear suspension is equipped with precision resin oil shocks.
- Steering mechanism is equipped with a servo saver function that protects the servo from crash shocks.
- Full bearing specifications as standard greatly improves drive system efficiency.
- Compatible with optional parts for the Ultima series and racing springs.
- Driver Set from 2014 Beetle (KYOSCB003B) can be installed to enhance scale realism.
Specifications:
- Length: 380mm
- Width: 249mm
- Height: 140mm
- Weight: 1,450g
- Wheelbase: 270mm
- Tire Size: Front:84×28mm Rear:86.5×42mm
- Gear Ratio: 8.23:1
Includes:
- (1) Ultima SB Dirt Master 1/10 2WD Electric Buggy Kit
- (1) Polycarbonate clear body
- (1) Wing
- (1) Window mask set
- Decals
- Chassis parts
- Cross wrench
- Hex wrench?1.5mm/2.0mm?
- Grease
- Tires with Tire Inners
- Wheels
- Pinion Gear
Needed to Complete:
- (1) 2 Channel R/C System
- (1) Servo
- (1) Compatible ESC
- (1) 540 Size Motor
- (1) 7.2V Ni-MH Battery or (1) 7.4V Li-Po Battery
- (1) Compatible Charger
- Polycarbonate body paint
- Silicone oil for Shocks
- Assembly Tools
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.5 · 15 reviews
This is a nice kit but you should know that it does not fit standard 2s Lipo sticks as they are too thick for the battery hold down unless modified. The kit does recommend 2 batteries however. Both are made by Gens Ace and are only 18mm thick.
This car is actually perfect for the closed end bell motor class at our local Rchr off-road track it’s a straight forward build and handles really well right out of the box
I like the car! It runs smooth as silk and straight as an arrow. I would give 5* but do have a few complaints. 1- instructions were terrible… lots of plastic shims that were hard to differentiate and was just plain hard to follow. Other than 6 bags of part trees, the parts can be difficult to find. 2- the typical 1/10 scale lipo race batteries don’t fit. I Macgyver’d it with a zip tie for now. 3- the spectrum esc I bought BARELY fits… I had to cut the mounts off and sand even further and it’s still crazy snug. Now that it has been built and with a little part tweaking all is well. The car could win races, again it drives amazing. I would not recommend this kit for a beginner though.
Great little buggy! Picked one up for my daughter and we love it.
Not meant to be driven. Everything is plastic. Washers, pivots, pill inserts. It all wears down to nothing with just regular driveing. Also Kyosho does not offer replacement parts for this model. I lost a tie rod because it was one of many things flying off the car going around a dirt track so I found some Kyosho support online and they basically told me to use the tie rod of a different model. It didn't take two weeks to grind that car down by just driving it.
Reviewers generally praise the kit's build quality, fit, and on-track handling, with several calling it a strong buggy for practice or bashing. The most common complaint is unclear instructions, especially around the many plastic shims and part trees, and some advise having calipers or a mm ruler on hand. Fitment issues recur: standard 1/10 race LiPo packs and some ESCs fit poorly, often requiring modification. One reviewer found the plastic components wore quickly and reported difficulty obtaining replacement parts, while others said the build was enjoyable and the car durable. Several reviews are short or written before the build was completed.
- + High build quality and precise part fit
- + Good on-track handling and performance
- + Full ball bearings and turnbuckles at its price
- + Enjoyable build for experienced builders
- − Unclear instructions and hard-to-tell shims
- − Standard 1/10 race LiPo and some ESCs do not fit
- − Heavy use of plastic parts that may wear quickly
- − Limited availability of replacement parts
