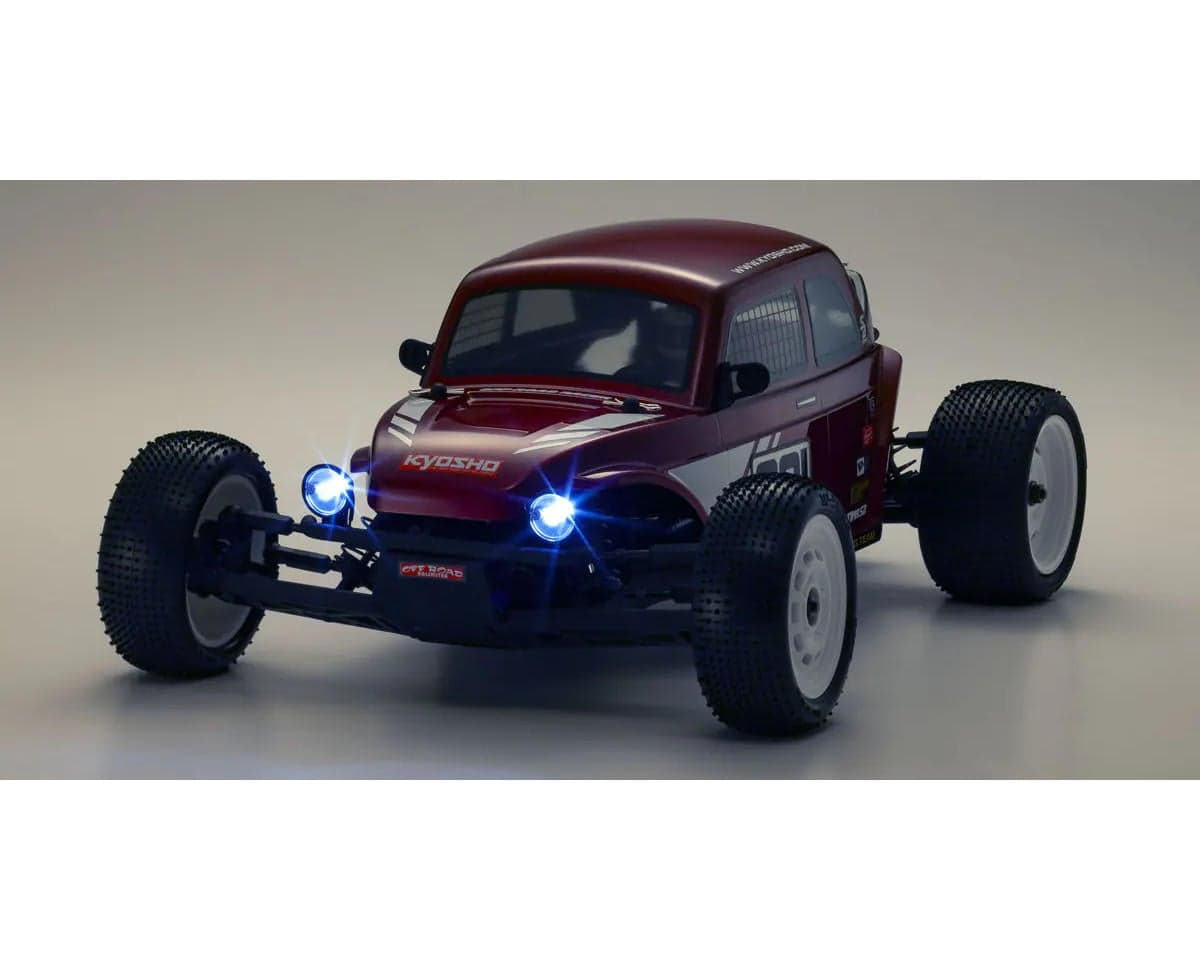

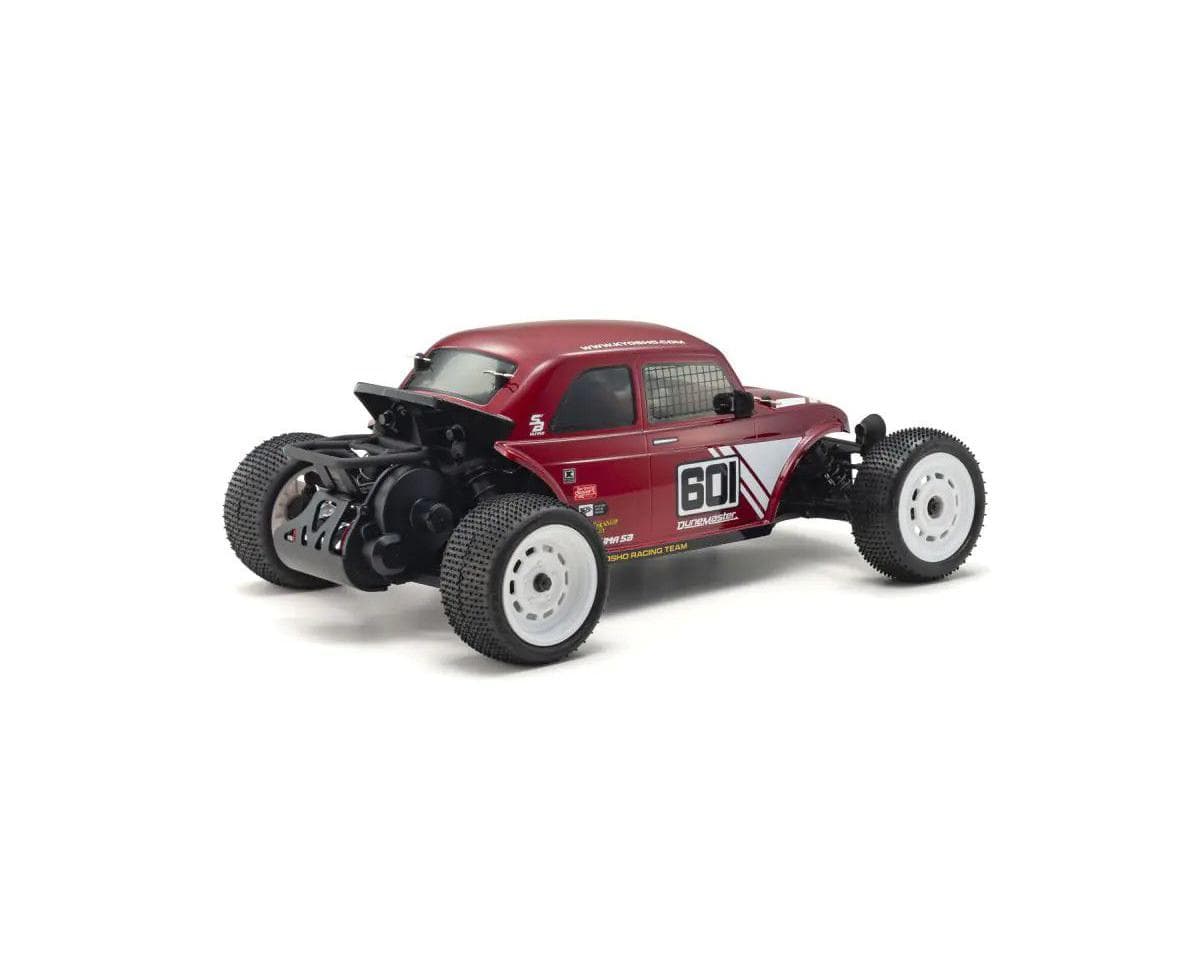

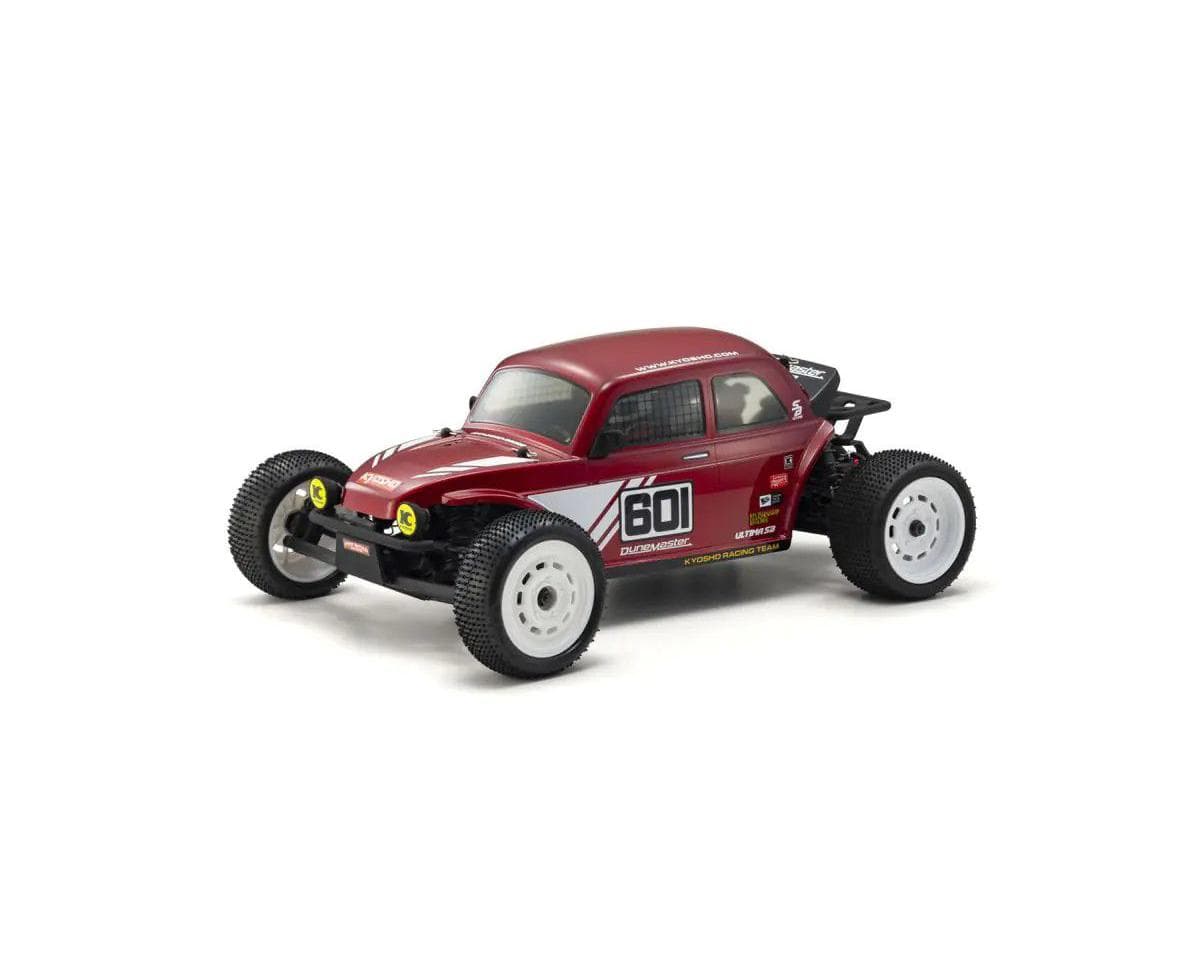

Kyosho Ultima SB Dune Master 1/10 2WD Off-Road Electric Buggy Kit
About this part
Retro Style Buggy with Advanced Modern Performance
The Kyosho Ultima SB Dune Master 1/10 2WD Off-Road Electric Buggy Kit combines retro styling with modern performance upgrades for an exhilarating off-road driving experience. Built on the proven Ultima RB5 chassis with a rear motor configuration, it offers excellent traction and stability on various surfaces. Whether you're bashing through dirt fields or racing on tracks, this versatile buggy provides thrilling performance for both beginners and experienced drivers. Its realistic design elements add a dynamic off-road vibe to every adventure.
About the Ultima SB Dune Master

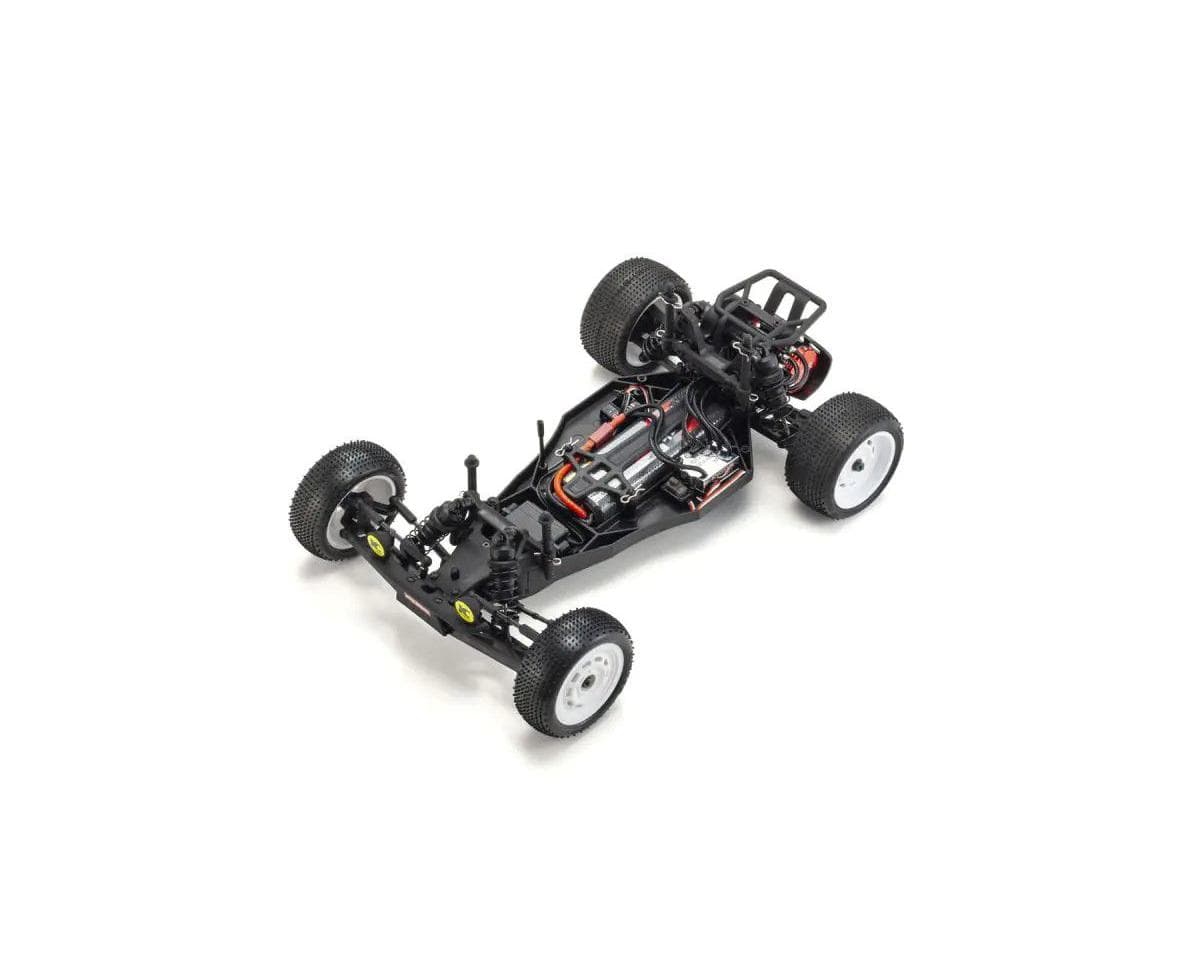

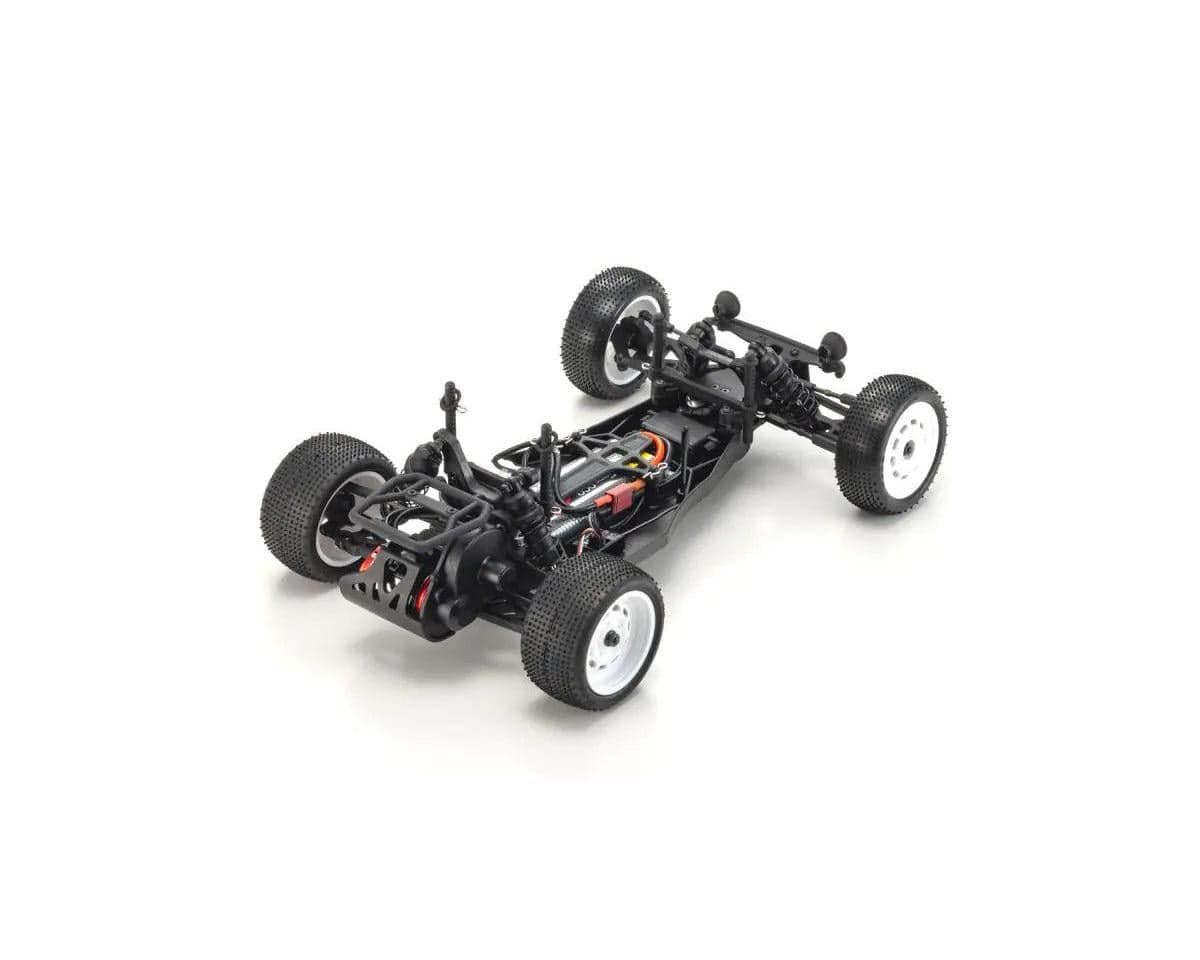

High-Performance Rear Motor Chassis
The Ultima SB Dune Master features a rear motor chassis configuration that enhances rear tire grip and stability. This setup provides exceptional traction on low-grip surfaces such as dirt fields and open terrain while delivering impressive speed on racing tracks. The competition-grade Ultima RB5 chassis, with its proven track record at major races, forms the foundation for the Dune Master and ensures superior handling and control for all driving conditions.
Realistic Scale Design
Designed with a unique basher-style body, the Dune Master stands out with a full-scale off-road vehicle appearance. The detailed molded resin roll cage, side mirrors, and driver figure create an authentic off-road aesthetic. The updated wheel design and micro pin spike tires provide extreme grip and enhance the buggy's rugged appearance, making it as visually impressive as it is high-performing.
Durable Build & Suspension
The Ultima SB Dune Master offers robust build quality with an easy-to-assemble resin main chassis that balances flexibility and durability. Double wishbone suspension on both the front and rear ensures superior surface tracing, supported by precision resin oil shocks that absorb impacts and maintain stability. Adjustable turnbuckles and a slipper clutch allow for fine-tuned driving performance, making it adaptable to various driving conditions.
Features:
- Rear motor design for superior rear tire grip
- Durable resin chassis with excellent flexibility
- Double wishbone suspension for superior handling
- Molded resin roll cage for realistic off-road style
- Micro pin spike tires for extreme grip
- Slipper clutch protects gears from excess loads
- Adjustable turnbuckles for precise tuning
- Gear differential enables smooth cornering
- Realistic side mirrors and detailed driver figure included
- Dial-adjustable spring tension for easy chassis height adjustment
Includes:
- (1) Kyosho Ultima SB Dune Master 1/10 2WD Off-Road Electric Buggy Kit
- (1) Clear Polycarbonate Dune Master Buggy Body
- (1) Window Masking Sheet
- (1) Decal Set
- (4) Micro Pin Spike Tires & Wheels
- (1) 24T Pinion Gear
- Product Manual
Needed To Complete:
- (1) 2-3 Channel Transmitter & Receiver
- (1) Steering Servo
- (1) 540-Size Motor
- (1) Electronic Speed Controller (ESC)
- (1) 6-Cell NiMH or 2S LiPo Battery (7.2V)
- (1) Compatible Battery Charger
- Polycarbonate Paint for Body
- Silicone Shock Oil
- Tools for Assembly
Specifications:
| Scale | 1:10 |
|---|---|
| Drive | 2WD |
| Power Source | 2S LiPo or 6-Cell NiMH (7.2V) |
| Length | 14.88in (378mm) |
| Wheelbase | 10.63in (270mm) |
| Width | 9.8 (249mm) |
| Height | 5.91in (150mm) |
| Weight | 52.21oz (1480g) |
| Assembly Level | Kit* |
*Tech Note: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
Manuals:
User Manual
Reviews5.0 · 5 reviews
This is an excellent kit for the price. It is a Dirt Master with extra parts and the different body. The only change that I needed to make was to put a 2 mm spacer under the battery hold down posts. This will allow you to use a standard shorty pack mounted forward. The kit does not accommodate 25 mm thick batteries. It works well however with newer LCG battery packs. I liked the body mounts for the Bug like body as this kit may be used for a late model oval conversion
This was a smooth build. You'll want to have a set of calipers on hand (or at least a metric ruler) to make it easier to tell the plastic spacers apart from each other because there are a lot of them and the manual doesn't make it obvious. The new body is great. It's easy to trim, and the paint masks and stickers all fit perfectly. The finished car is relatively lightweight and handles well. I'm very satisfied.
Just finished building the Dune Master tonight and the build was enjoyable and went smoothly. Probably the easiest RC body I have cut out. Rear spoiler stickers are a little tricky. Haven’t had a chance to get it out and give it a full rip yet though. Went brushed with a HW 1060 and Superstock RZ. Bench testing and the tires balloon so, this combo will be plenty of power for its intended use.
Great Kit. Didn't want to dock it a star but my only grip is way too many different sized plastic spacers. Minimal difference in width that you can't distinguish by the naked eye. Otherwise went together great. Suspension is a little soft with the recommended oil. I went with 37.5. I'm going to up it at some point. Went with a Hobbywing quicrun 10BL120 combo with the 3150kv motor. Fun on 2s. Absolutely rips on 3s. Stock spur gear and I believe a 23t pinion
This buggy is basically the same as a Dirtmaster-just a different body and wheels/tires.The build is pretty easy-just sort out all the different size spacers and hardware before you start it. I used a Dynamite 15t brushed motor and a Hobbywing 1060 ESC with a 3000 Mah Nimh battery. If you want to build it in one day, allow 5 to 6 hours.I took several days and the result is quite nice. I used Losi shock oil and it seems to work okay.Soon I want to run it on my Secret Off Road Test Track!!! The only complaint I have with the kit is the use of Allen hex fasteners instead of standard Phillips head screws-they tend to strip out rather easily. So be careful-otherwise, it's a cool kit!!
All five reviewers are verified owners who rate the kit five stars and describe the build as smooth or enjoyable. Reviewers note that it is essentially a Dirt Master with a different body and wheels and tires. The new body is praised as easy to trim and fit well with masks and stickers, though rear spoiler stickers were tricky for one reviewer. The most consistent complaint is the large number of similar-looking plastic spacers, which reviewers say is hard to tell apart without calipers or a metric ruler. One reviewer reported that the battery compartment does not accommodate 25 mm thick packs without a 2 mm spacer. Another noted that the Allen hex fasteners can strip easily. Reviewers used a range of brushed and brushless electronics, and one found the suspension soft on the recommended oil.
- + Smooth, enjoyable build
- + Easy-to-trim body with good fit
- + Good value for the price
- + Lightweight and handles well
- − Many similar-sized plastic spacers are hard to tell apart
- − Does not accept 25 mm thick batteries without a spacer
- − Allen hex fasteners can strip easily
- − Suspension soft on recommended oil
