About this part

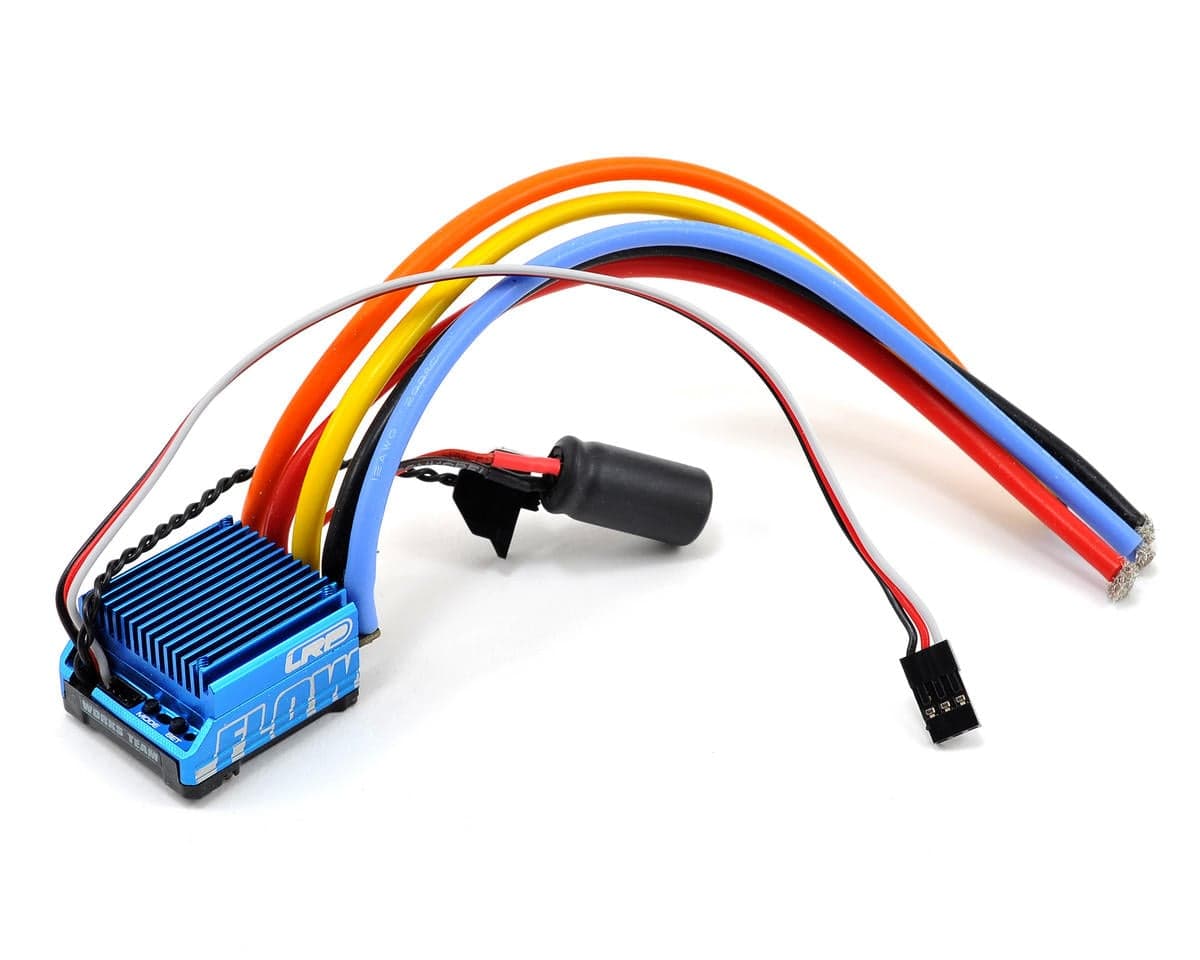

This is the LRP "Flow" WorksTeam Brushless Electronic Speed Control. The hardware and software of the Flow WorksTeam have been designed completely from scratch; the speed control can now be universally used with modified and stock motors. Due to the multitude of mode setup options, the Flow WorksTeam can be precisely adapted to both modified and stock class racing.
Apart from its unique software, the Flow features a machined aluminum 2-piece case which acts as a heatsink transferring the heat efficiently to the outside, keeping the speed control running cooler in all racing conditions. A high-power output over the entire RPM range and the simple yet flexible adjustability are only some of the features found in the Flow WorksTeam.
With an already outstanding pre-release performance at the 2012 I.F.M.A.R. TC Worlds and 2012 Off Road R.O.A.R. Super Nationals, the FLOW WorksTeam is sure to be the most sought-after competition brushless speed control on the market.
Features:
- Modified and Stock Racing: All-purpose on road and off road software for modified and stock classes, including boost 0
- Multi-Mode Profile Adjustment: 7 fully adjustable parameters for stock and modified: auto brake, feel, torque timing, boost timing, boost angle, boost turbo, and cutoff voltage
- HD Full Aluminum Case: For lowest core temperature and tough race design
- All-New 6V/3A linear BEC
- Easy Solder U-Tab Design: Heavy copper, multilayer PCB for low resistance
- X-Brake Pro: New, efficient, and precise brake software
- USB Software Updateability: Benefit from all the latest performance improvements and updates available at www.LRP.cc!
- Revolutionary Internal Temp Check System 3: Allows you to read out the maximum internal temperature for both the ESC and motor
- Extra Small Size: 32x34x21mm size for easy installation

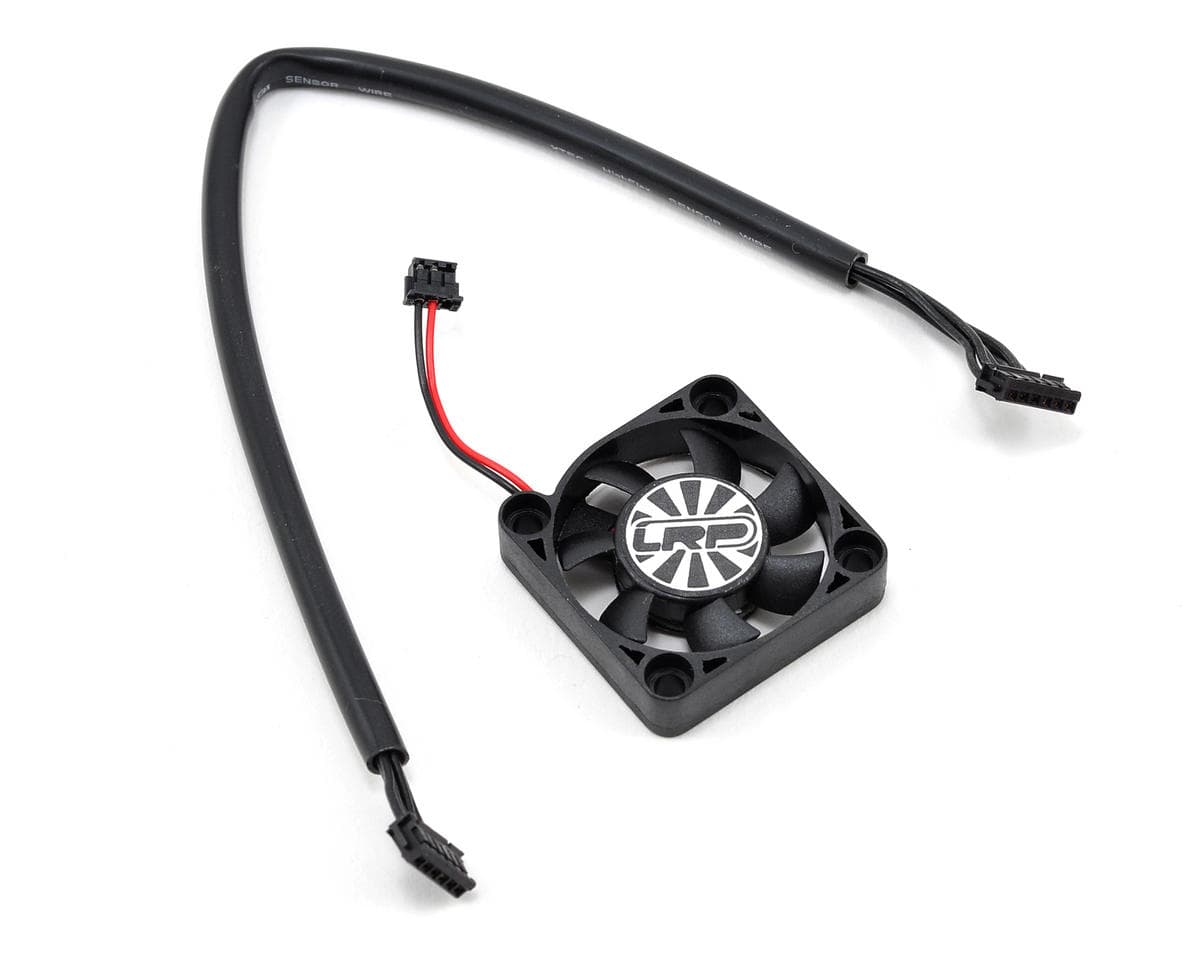

- Included plug-in high-performance fan
Specifications:
Case Size: 32x34x21mm
Voltage Input: 3.7 - 7.4V
BEC: 6.0V / 3.0A
Sensored Brushless System: Yes
Forward/Brake: Yes
Multi Mode Profile Adjustment: Yes
Multi Protection System 2: Yes
Internal Temp Check System 3: Yes
Power Wires: 3.3mm
Recommended Motor Limit: 3.5 Turn
Rated current: 400A/phase
Typical voltage drop: At 20A - 0.011V/Phase
Weight (w/no wires): 40g
Plugged fan: Yes (plug-in high performance fan included)
Reviews3.8 · 13 reviews
LRP has done it again and created another great esc. The new speedo provides an all new software with 7 settings to make it very adjustable. The power given from this speedo is the fastest I've driven yet, but is still smooth and comfortable. The casing is now provided in aluminum which keeps temps down and a more durable esc. I have had no issues with these speedos at all. I would highly recommend this.
I have bought this esc for my slash 2wd using with new lrp dynamic 10 motor. Esc is perfect for racers or bashers that want undestroyable esc. Also its extremely smooth,durable and adjustable.Even on/off switch is perfect if it breaks you can run without problems because esc turns off when the cables are together!really great feature...temperatures on this esc wont get higher than 100 degrees.Only thing that dissapointed me was that its only 2s capable...but i can understand that because every racer wont run 3s..otherwise really great product.Especialy when you've had cheap hobbywings :-D
Have 8 of these ESCs for my kids and my cars. Run good and smooth. Love changes without laptops. I can check things fast, make changes fast. No problems, will continue to buy.
Got the whole system(6.5) and esc, couldn't be more happier with it. Crazy smooth power from nothing to full throttle. Going to get another electric car and get the same system. Have nothing but good luck w lrp and their equipment.
Awesome little ESC... Pros: Great Feel, Super Smooth, Good Brakes Small Package. Cons: On/Off Switch broke after 2 months of racing, and rainbow wiring is an eye sore that will require a quality soldering iron to remove. However, ESC will function as intended even with a broken on/off switch and if you can look past that it's a great ESC to have. I give it 4 stars only because of my broken switch.
Most reviewers praise the LRP Flow WorksTeam ESC's smooth, powerful throttle response, brake feel, and ease of tuning via its 7 settings and software. Several note it runs cool, including without a fan. Recurring complaints involve the on/off switch breaking with hard use, and the mode/set buttons failing in dusty conditions. Two reviewers reported units failing outright, one of which was replaced under warranty and still failed. Reviewers note the unit is limited to 2S. Ratings are polarized, with most at 5/5 and several 1/5 or 2/5 reports of failure.
- + Smooth throttle and power delivery
- + Good braking feel
- + Adjustable settings and easy setup
- + Runs cool, fan often unnecessary
- − On/off switch breaks with hard use
- − Mode and set buttons fail in dust
- − Some units cut out or failed outright
- − Limited to 2S
