About this part

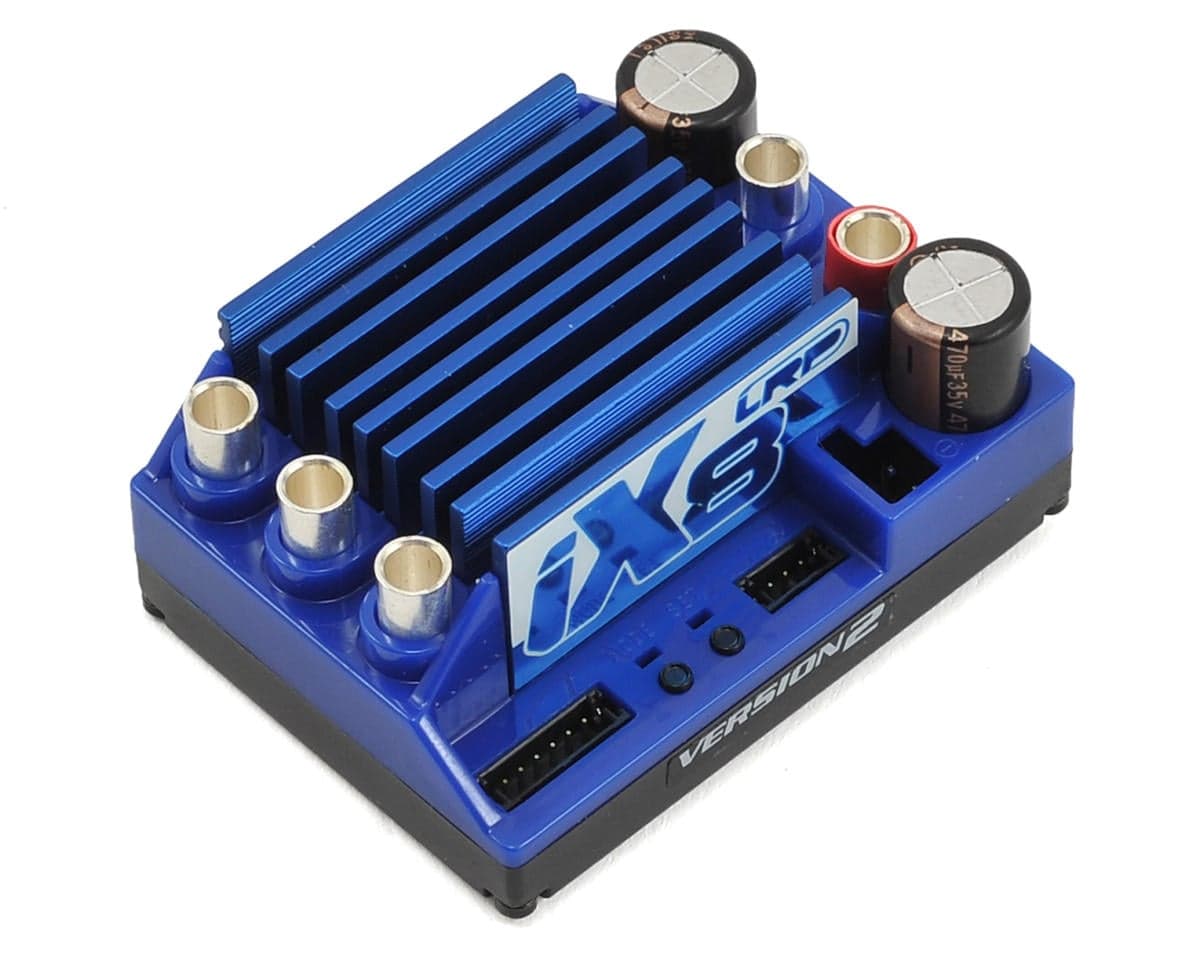

This is the LRP IX8 V2 Brushless Competition Electronic Speed Control. jxs 12/17/15 ir/jxs
Features
- AutoCell System 2 6A switching BEC
- Compatible with 2-6S (7.4V-22.2V) LiPo batteries
- Intelligent Brake/Reverse v1.0 ensures intuitive driving experience between braking and reverse
- Internal Temp Check System 3 alerts user to the maximum internal temperature of the ESC and motor USB software updateability
- Latest v2.6 team firmware-new modes and optimized values
- New brake developed especially for 1/8 scale use
- No-solder connections, 12AWG motor and battery wires with 4mm bullet connectors
- Sensored design
Specifications
| Adjustable Modes: | AutoCell 2, Drive Selection, Power Profiles, Auto- |
| BR-2 Brake: | Yes |
| Case Size: | 2.2 x 1.6 x 0.98 (55 x 40 x 25mm) |
| High Frequency: | Yes |
| Multi Protection System: | Yes |
| Rated Current: | 600A/phase |
| Rec. Motor Limit: | None (measured @ 6V) |
| Reverse Motor Rotation Mode: | Yes |
| Sensored Brushless System: | Yes |
| Switching BEC: | 6V/6.0A |
| Typical Voltage Drop @ 20A: | 0.007V/phase |
| Voltage Input: | 7.4-22.2V (2S-6S LiPo) |
| Weight: | 2.2oz (62g) not including wires |

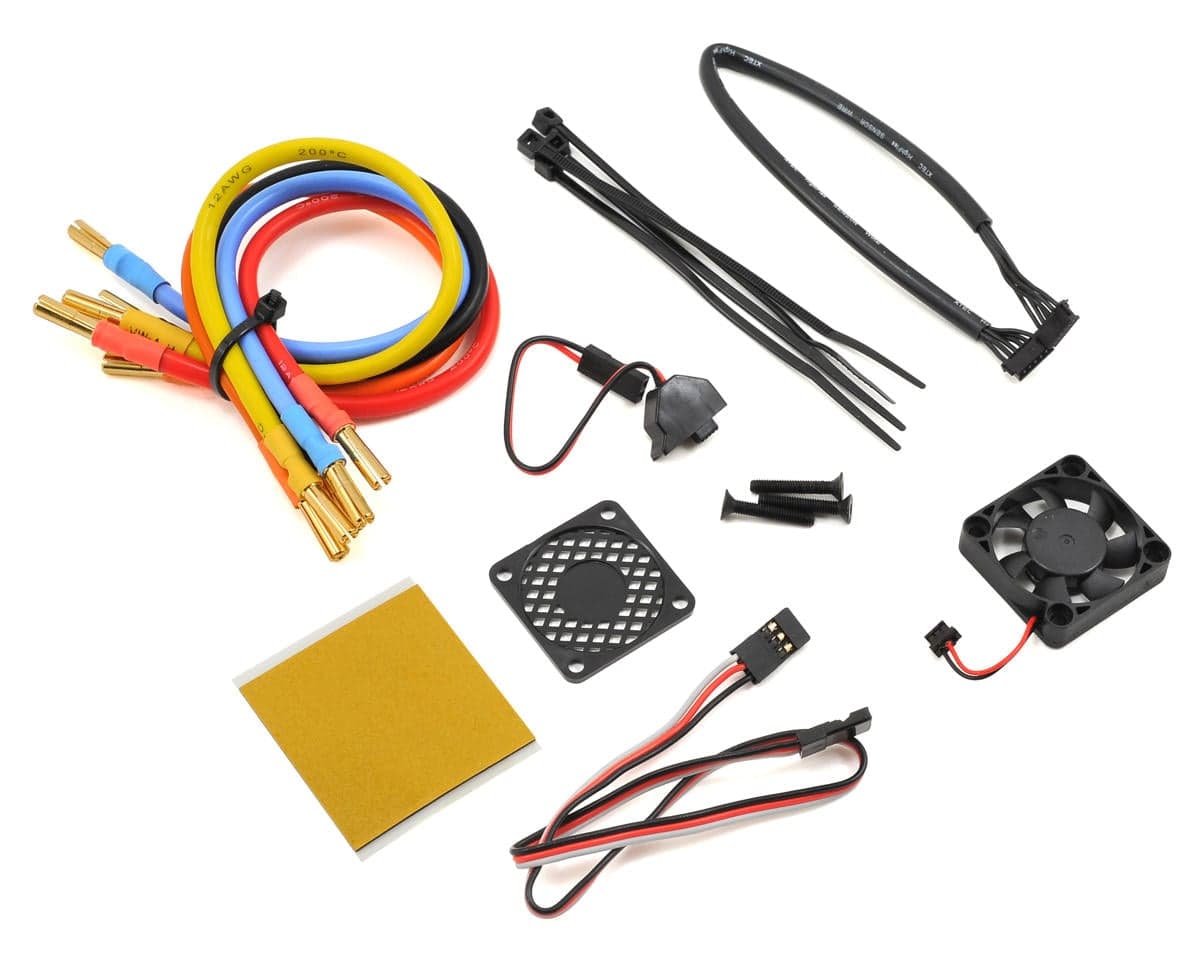

| Includes | LRP IX8 V2 Brushless Competition ESC with Motor and Battery Wires,, Cooling Fan, Mounting Pad, On/Off Switch, Receiver Connector and, Instructions |
Reviews4.5 · 2 reviews
Bob ChristianVerified owneron LRP iX8 V2 Brushless Speed Control
Excellent Esc, the braking control is awesome also. If ya get a LRP definitely find the V3 bridge updater tool and get the current firmware it adds more power settings and eliminates glitches in the FW.
2 found this helpful
Ronald PrasadVerified owneron LRP iX8 V2 Brushless Speed Control
This is a good ESC. New ESC has a cracked case, Amain sent me a new one quickly, very happy.
