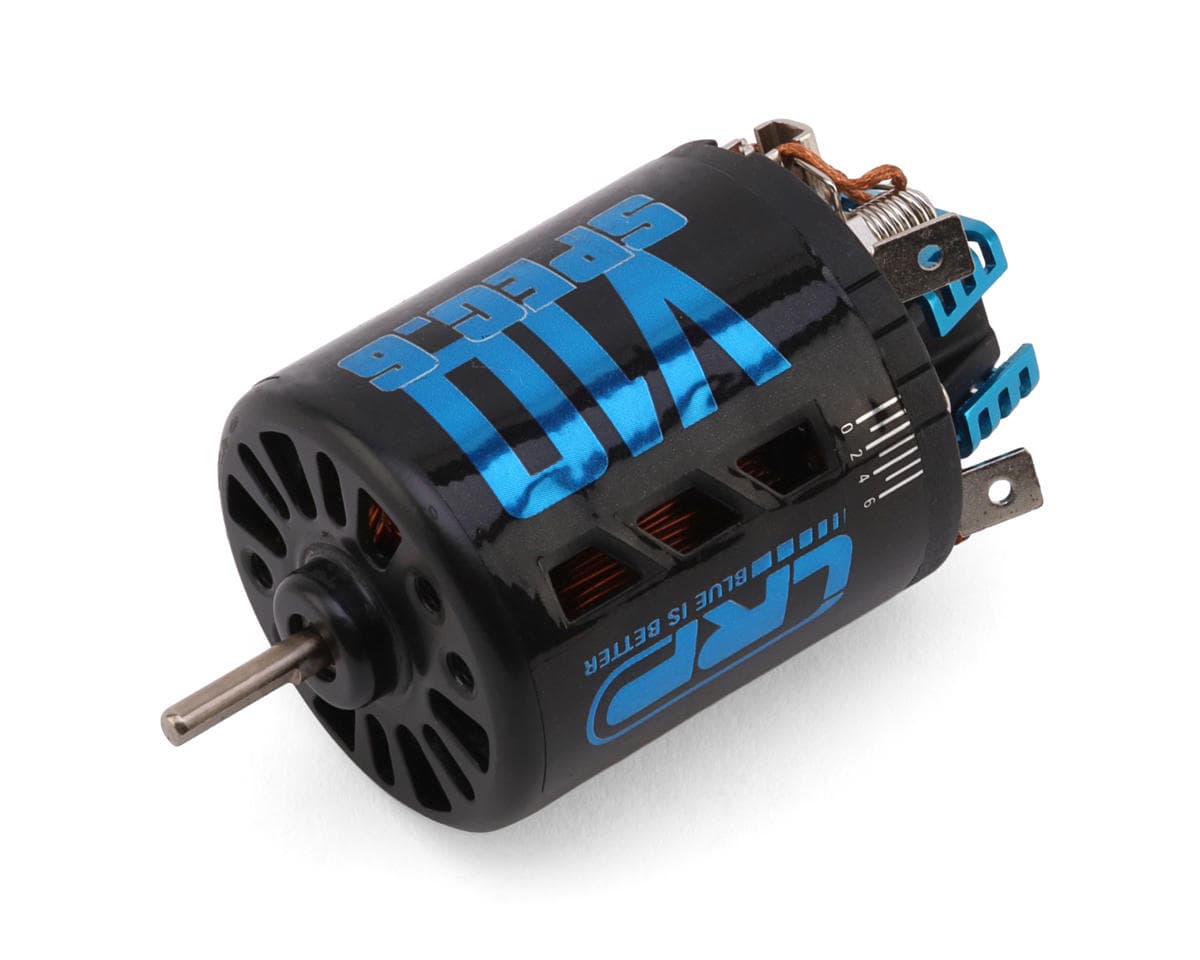

LRP V10 Spec-6 540 Brushed Motor (14T) (Adjustable Timing)
About this part
Motor Overview:
Bring classic racing heritage back to the track with vintage-inspired looks and modern performance — packed with high-power windings, strong magnets, adjustable timing, and ultra-smooth throttle response, this 540 brushed motor delivers the perfect balance of nostalgia, tunability, and reliable speed.
About the V10 Spec-6 Motor
Vintage Tunable Brushed Power
The LRP V10 Spec-6 540 Brushed Motor combines iconic LRP vintage aesthetics with proven high-performance engineering, featuring high-power precision windings, strong magnets, and a 540 2-pole 3-slot design capable of 33,500 RPM at 7.2V, while dual ball bearings, an integrated SMD capacitor, adjustable timing, and a fully rebuildable construction deliver ultra-smooth throttle response, tunable performance, and long-lasting durability for brushed and vintage racing classes.
Features:
- High-power precision windings for maximum performance
- Strong magnets provide excellent holding power
- Dual ball bearings ensure smooth rotation

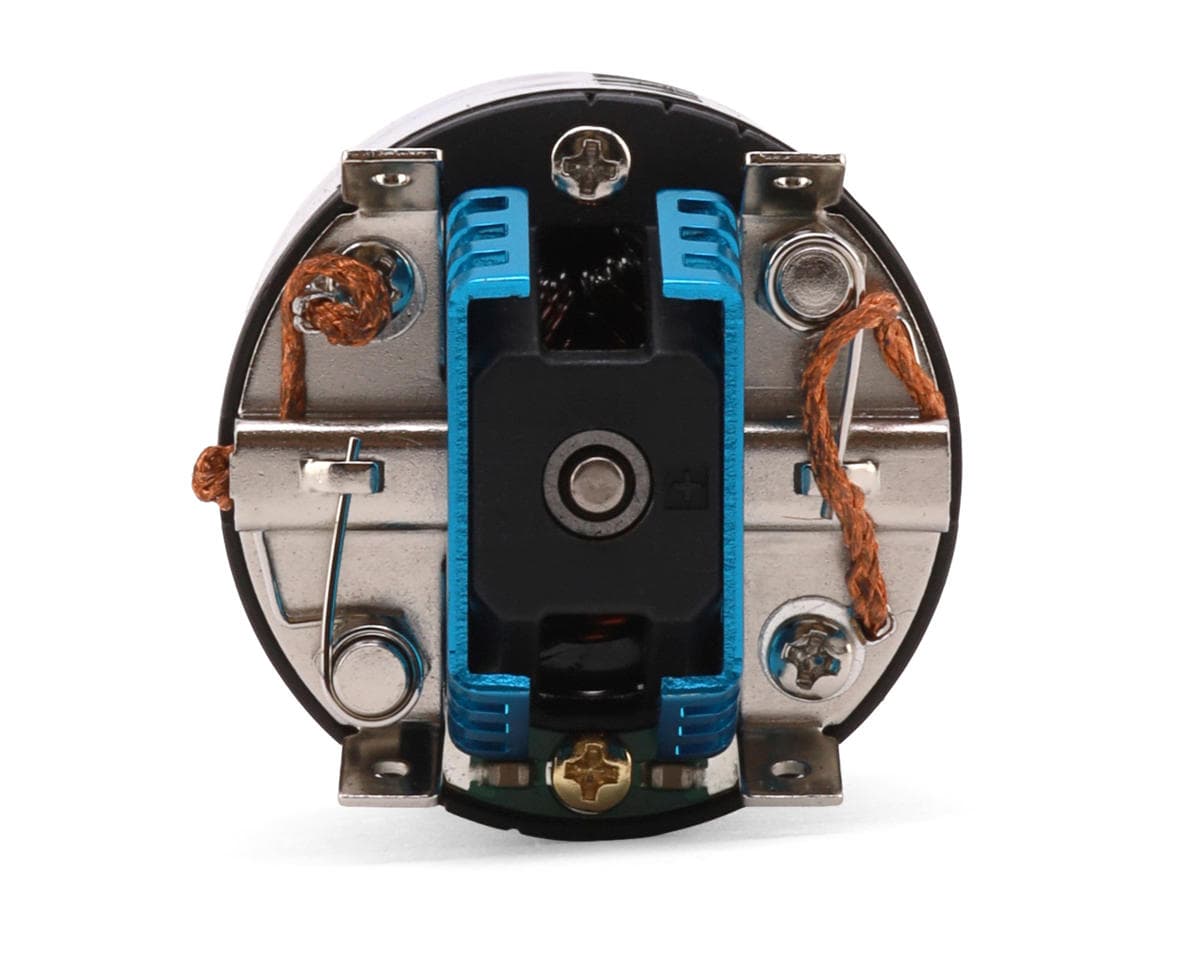

- Fully rebuildable and with adjustable timing
- Adjustable timing for tunable performance
- SMD capacitor enhances throttle response and reliability
Includes:
- (1) LRP V10 Spec-6 Motor

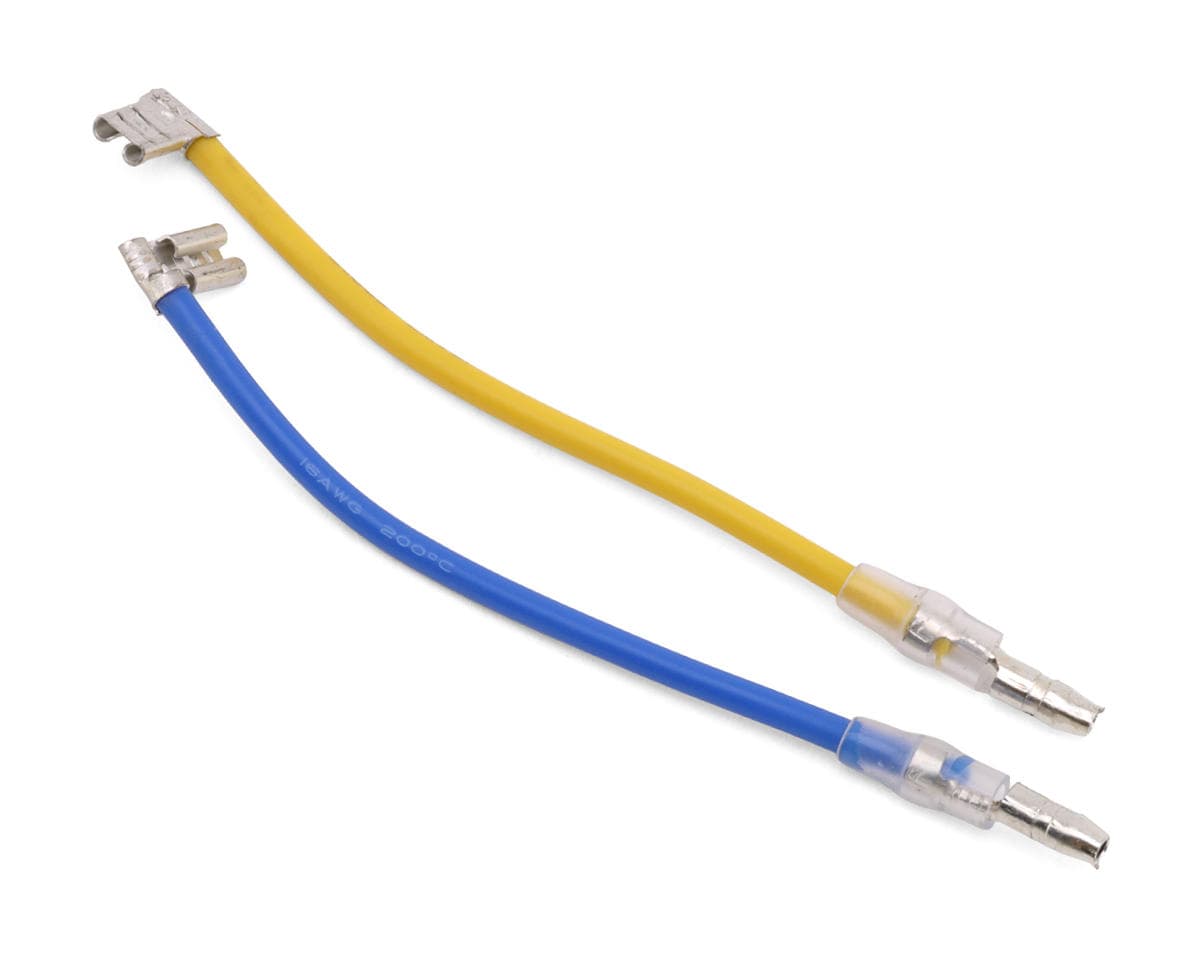

- (2) Connectors
Specifications:
| Motor Type | 540 Brushed, Timeable 2 Pole - 3 Slot |
|---|---|
| Turns | 14T |
| RPM (at 7.2V) | 33,500 |
| Voltage Input | 3.7 - 7.6V |
| Shaft Diameter | 1/8in (3.17mm) |
| Motor Diameter | 1.41in (35.9mm) |
| Weight | 5.5oz (156g) (+/-5%) |
