M2C

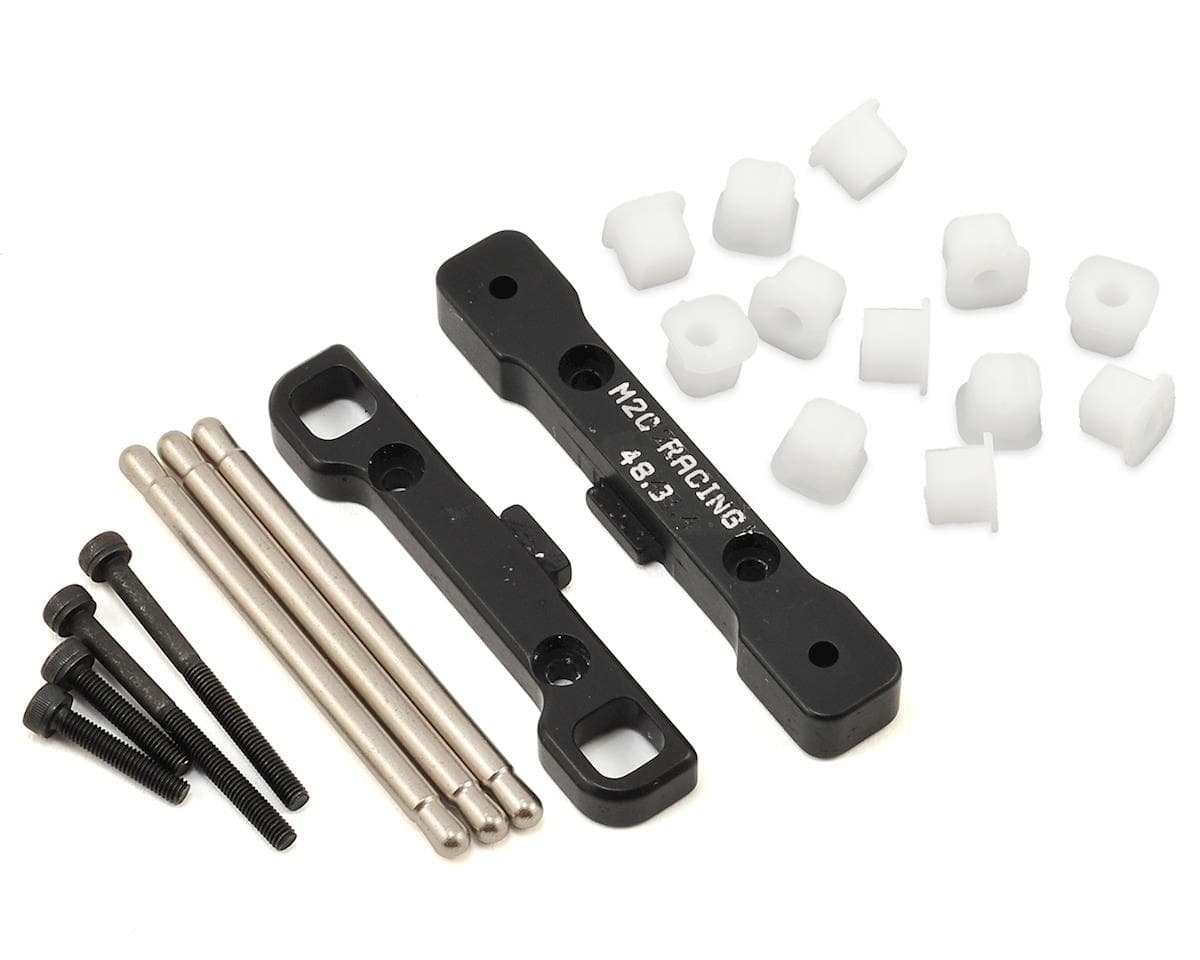

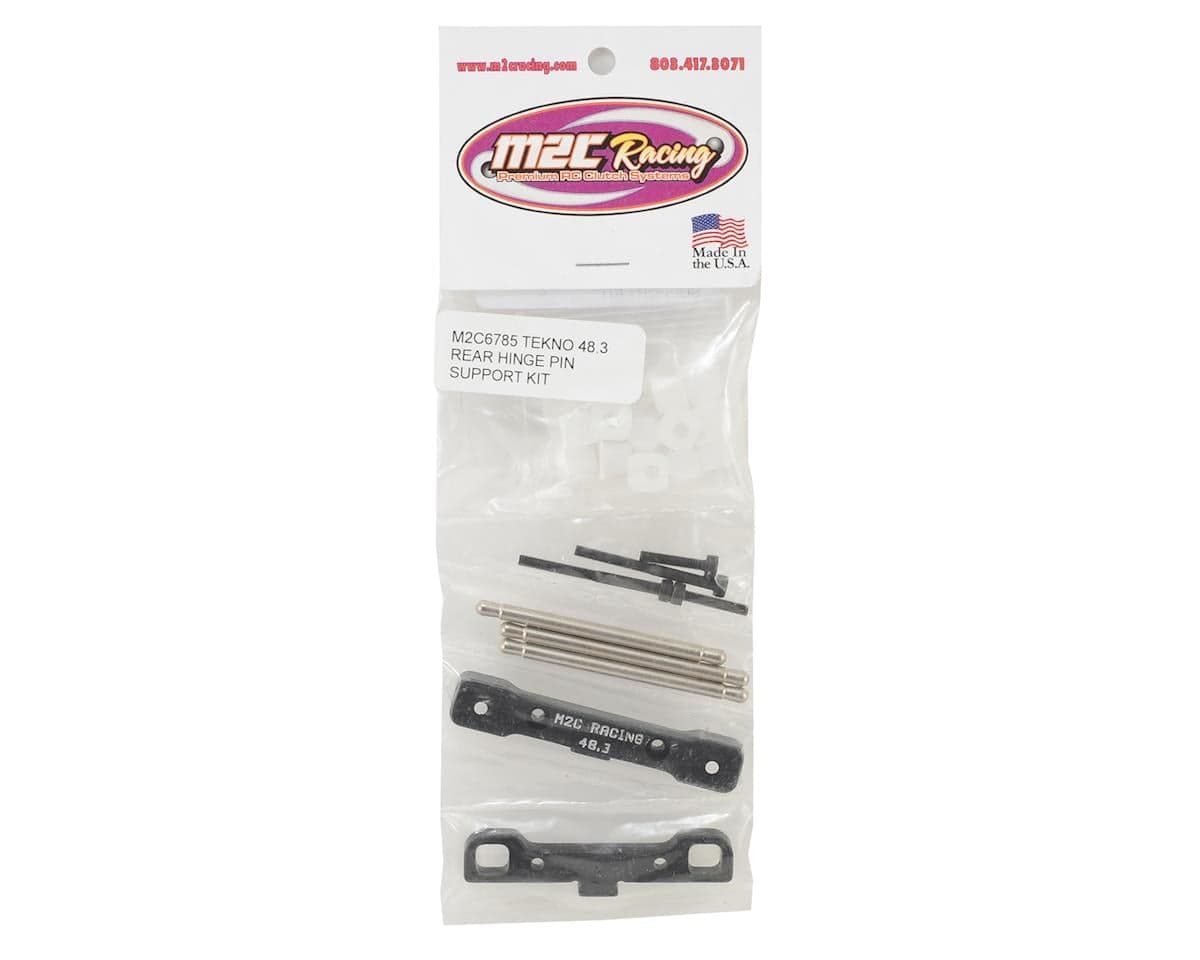

M2C Tekno 48.3 Rear Suspension Support System
Part # M2C6785
Where to buy
$45.49
Prices are as last seen at the store; stock is not tracked.
About this part
This is an optional M2C Racing Tekno 48.3 Rear Suspension Support System. This system is compatible with both the 48.3 nitro buggy and truggy. Made using 7075-T6 Aircraft aluminum and anodized black, these blocks are designed to stand up to the rigors of RC car racing.
M2C made these blocks to be heavy duty, and should withstand nearly any crash. The kit uses the special tapered hinge pins. Due to the unique design, these pins will allow the pins and the arm to rotate in the bushing. In the event of a really bad crash the pins are designed to bend at the weakest point of the pin. This will allow the arm to still move freely.
Includes:
- (3) hinge pins (M2C6737)
- (4) "0" centerline bushings (M2C6730)
- (4) ".5 degree offset centerline bushing (M2C6731)
- (4) "1" degree offset bushing (M2C6732)
- (2) 3x16 mm socket head cap screws
- (2) 3x35 mm socket head cap screws
