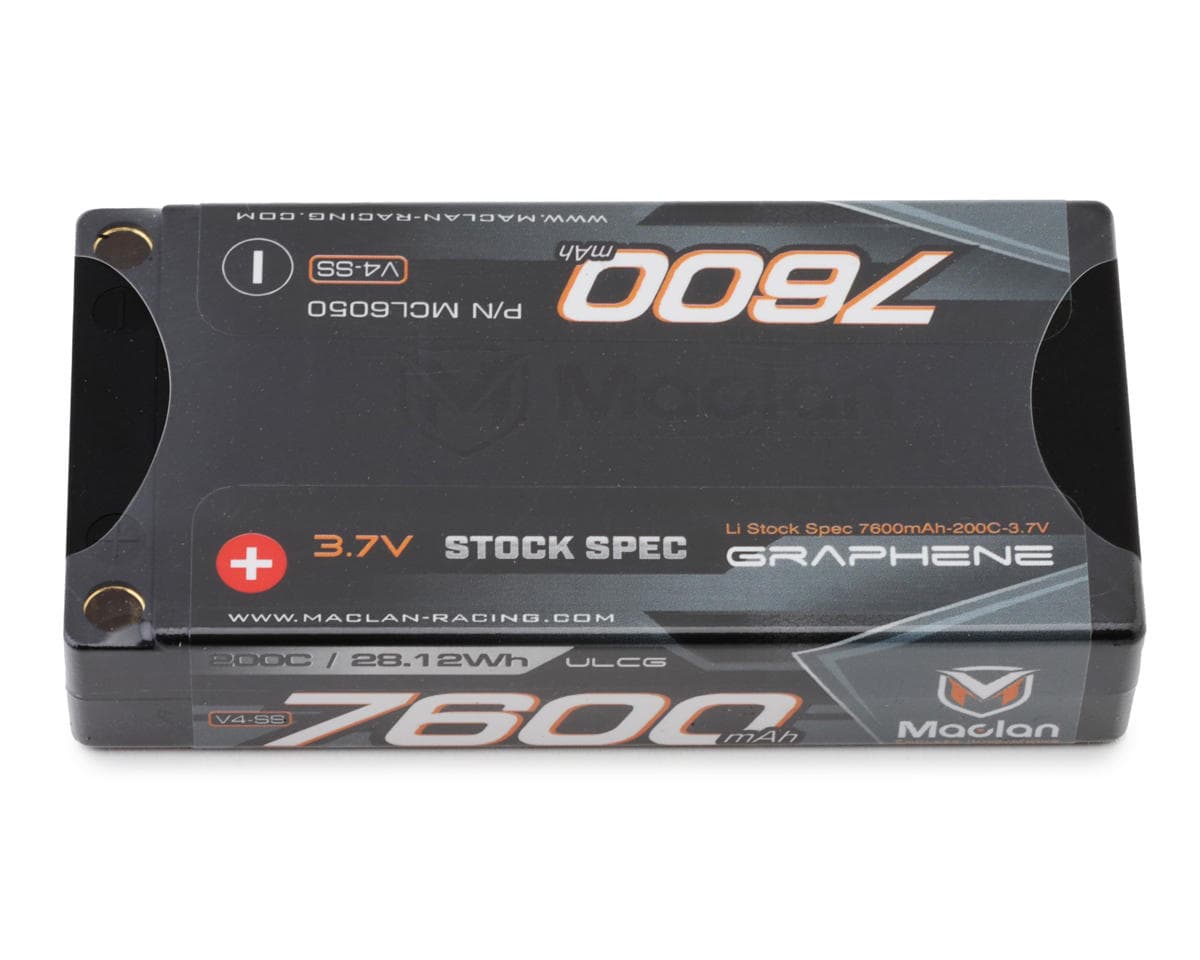

Maclan Graphene V4-SS 1S 200C LiPo ULCG Shorty Battery (3.7V/7600mAh) (Stock Spec) w/4mm Bullets
Part # MCL6050
Where to buy
$89.99
Prices are as last seen at the store; stock is not tracked.
About this part
Battery Overview:
Introducing the cutting-edge V4-SS (Stock Spec) line, meticulously engineered for the demands of competitive stock racing. Crafted with innovative cell chemistry boasting 3.7V (1S) and 7.4V (2S) configurations, these batteries redefine performance standards with their remarkably low internal resistance and unparalleled discharge power (150C~200C), propelling you beyond the limits of conventional racing experiences.
Features:
- Remarkably low internal resistance
- Unparalleled discharge power
- Competition "Stock Spec"
IMPORTANT LITHIUM POLYMER SAFETY INFORMATION
- DO NOT leave a battery in your model when charging
- DO NOT leave lithium batteries unattended when charging
- ALWAYS balance charge lithium battery
- ALWAYS use a LiPo Safe charging bag/box
- YOU MUST use a Li-Poly specific charger to charge lithium batteries (NiMH or NiCD only chargers WILL NOT WORK!)
- YOU MUST not over discharge lithium battery packs
- READ & UNDERSTAND the instructions carefully before operating this battery
NOTE: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in overheated batteries. Discharging capacity can't exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for the first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use a battery that has too low a voltage. Do not expose batteries to sunshine or store/charge batteries at temperatures above 35°C or in a closed car. The high-temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging, or racing, do not charge it until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.
Includes:
- (1) Graphene V4-SS Stock Spec 1S (3.7V/7600mAh) LiPo ULCG Battery
Specifications
| Nominal Voltage: | 3.7V (1S) |
|---|---|
| Capacity: | 7600mAh |
| Maximum Charge Rate: | |
| Discharge Rates | |
| Continuous: | |
| Peak: | 200C |
| Cell Configuration: | 1S1P |
| Watt Hours: | 28.12Wh |
| ROAR Approved: | (Not Available) |
| Connectors | |
| Battery: | 5mm Bullet |
| Balance: | 2mm Bullet |
| Dimensions (LxWxH): | 3.66x1.85x0.72in (93x47x18.5mm) |
| Weight: | 5.46oz (155g) |
