About this part
NOTE: This ESC was not designed for drag racing applications. Maclan's warranty will not cover faults caused by drag racing.
- Purposely built for 1/8th scale e-Buggy and e-Truggy applications
- Upgraded internal components with Hurricane aluminum fan and carbon fiber fan guard
- Silicon coated circuit board for improved durability
- High-performance 32-bit PIC32 CPU for high speed and accurate processing
- Next generation firmware algorithms allow for a nitro-like throttle feel
- On-board USB host + slave dual-mode for ease of connectivity and unlimited extensibility
- Dual ‘power-on’ options for the ease of operation. (can be controlled by a switch or direct to the battery)
- All aluminum structures with omnidirectional heatsink for maximum airflow and optimum cooling performance
- All detachable connectors with several optional length cables
- Adjustable throttle and brake PWM frequency for fine-tuning
- Motor/ESC temperature protection and low voltage protection
- MS Windows 7/10 compatible and mobile app software for data logging, programming, and firmware updating
- Best performance and durability with Maclan MR8.4 series motor
- Scale: 1/8th
- Power Input: 2S-4S Li-Po
- Intended Applications: 1/8 e-Buggy, 1/8 e-Truggy and 1/10 SCT (drag race not supported)
- Continuous Current: 200A
- Peak Current: 1000A
- Mode: Sensored/Smart Sensorless
- CPU: Super speed PIC32 32-bit CPU
- Wire input: Black 12AWG 200mm x2
- Wire output: Black 12AWG 200mm x3
- Cooling fan: 30x30x10mm Hurricane Aluminum turbo fan
- Dimension: 58x48x34mm
- Net weight: 110g (w/o wires and cooling fan)
- Support voltage/ Motor KV:
- 2S: up to 5000KV
- 3S: up to 4000KV
- 4S: up to 3000KV

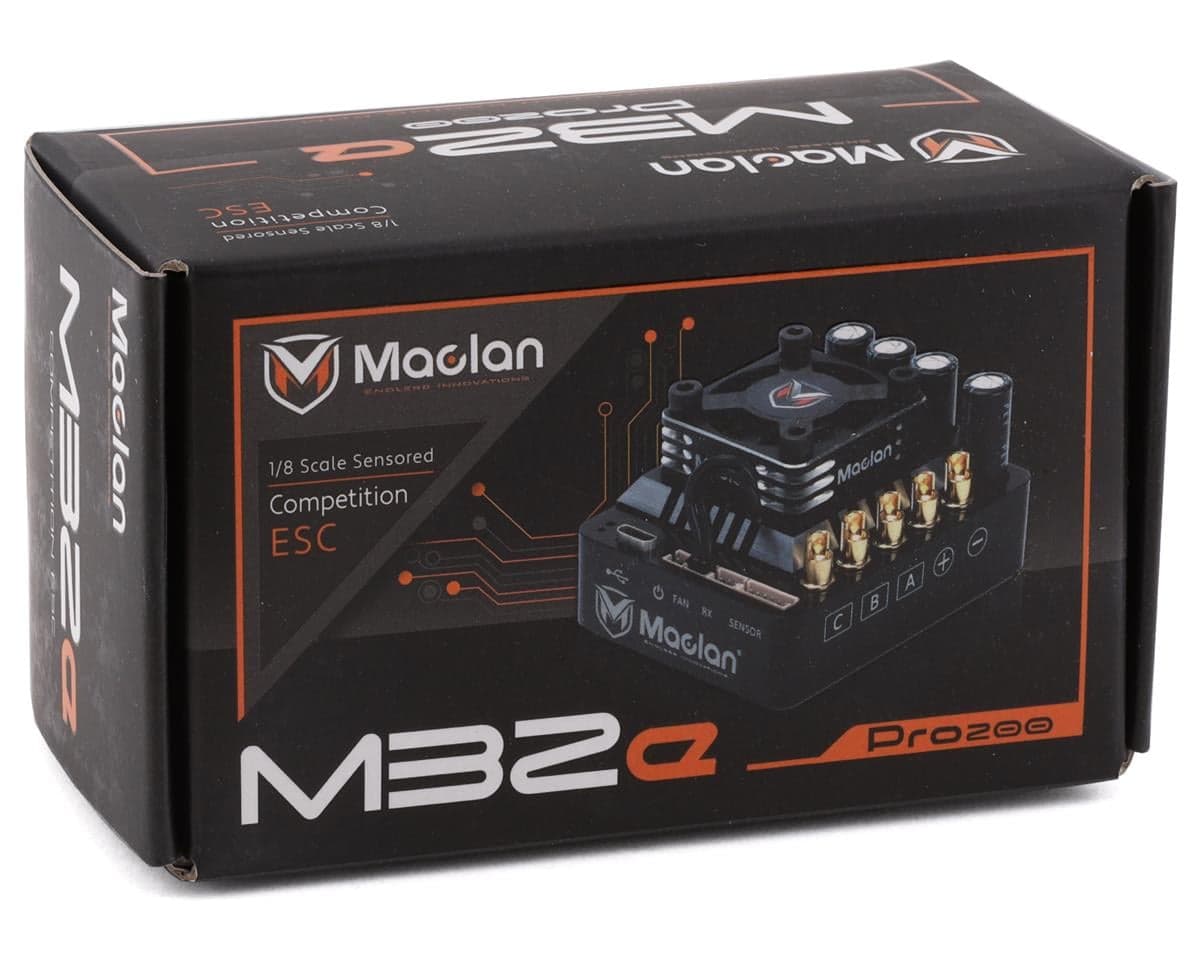

- (1) Maclan M32ePro 200 Competition ESC
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews2.3 · 4 reviews
I got this from my LHS. Ive only run nitro for twenty years, so this would be my first ESC. However, I like that I can link this to my phone with a normal usb-c to usb-c cable, and I was able to use the settings to make the power delivery so close to a nitro vehicle that I cannot tell the difference. It has kept the motor from running over 170 degrees F in 90+ degree F weather with very hard running. I am very happy with this.
My car was built by an AE team driver. RC8B4e. I thought I would try a new brand. Stupid me, never had to return any Reedy product before in the last 5 years. Lost weeks of time on this one. Fried after 7 runs. Buy cautiously.
Second maclan esc to just sort of...die. no reason I can tell, just one day it'll stop beeping, but keep flashing the correct startup; then they die. Runs well, but certainly not better than hobbywing. Beware Maclan's warranty; a claimed 1 year but when contacted it turns out its 1 month. Used or not. Will not purchase maclan again.
Garbage! Don’t waste your time and money! They are like KFC , FRIED…?
Reviewers report sharply divided experiences with this brushless ESC. One owner praised its smooth power delivery, phone connectivity via USB-C, and temperature control under hot, hard running. Three verified owners reported failures: one unit failed after seven runs, another stopped working with no clear cause, and a third described the unit as garbage. Two of the negative reviews also raised concerns about the warranty, with one stating it was advertised as one year but was reportedly only one month. One reviewer found it runs well but not better than a competing brand. All reviews refer to the same variant.
- + Smooth, nitro-like power delivery
- + Phone adjustment via USB-C
- + Stays cool in hot, hard running
- − Units reported failing after short use
- − Warranty terms reported as shorter than advertised
- − Sudden failure with no clear cause
