Maverick FLX10-3S80 Flux 1/10 Brushless ESC w/XT60 Connector

ESC Overview:

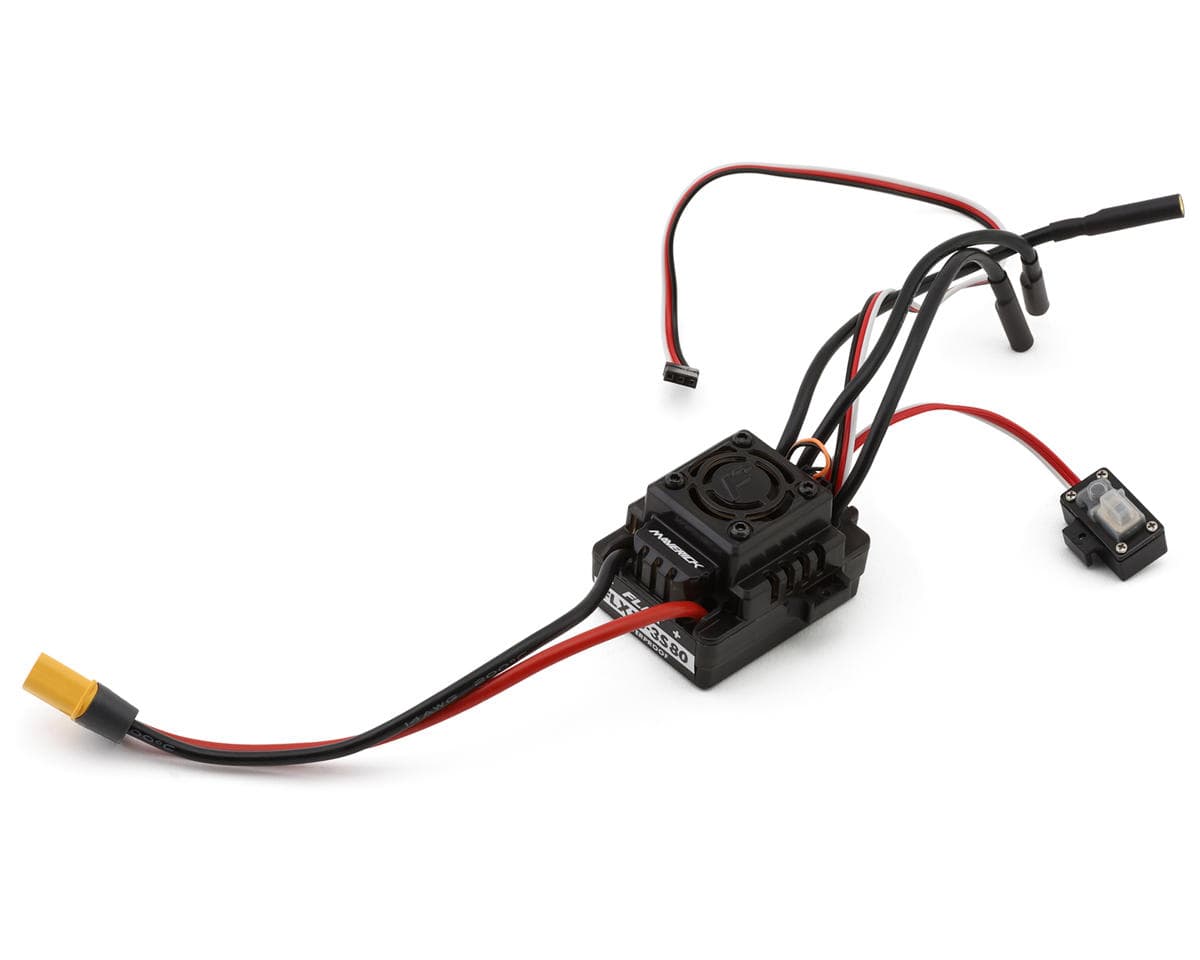

Maverick FLX10-3S80 Flux 1/10 Brushless ESC with XT60 Connector. This is a replacement ESC intended for use in the Maverick 1/10 Quantum Flux 80A MT and XT vehicles, and the Maverick Quantum2 Flux Brushless 1/10 4WD platforms. This ESC is the perfect match for Maverick's MM-3660-BL 3300KV 1/10th scale brushless motor (MVK150168) available separately. The FLX10-3S80 is able to pump 80 amps of power to the motor and is equipped with complete water-resistant protection. A large cooling fan sits on top of the case inside of a protective cover to keep things from overheating during intense operation. This ESC is the perfect blend of performance, durability, and ease of use.

Features:

• Capable of handling 2S or 3S LiPo batteries
• Built-in switch BEC with a continuous current of 2A at 6V.
• Designed to handle up to 80 amps of continuous current
• Specifically designed for use with brushless motors, offering efficient power delivery and improved performance
• Programmable settings that can be adjusted to optimize performance
• Equipped with a heatsink and a cooling fan to prevent overheating during intense operation
• Designed to be water resistant and dustproof, enhancing its reliability in various environments

Specifications:

• Suggested Application: 1/10
• Motor Type: Brushless-Sensorless
• Input Voltage: 2-3S LiPo
• Continuous Current: 80A
• Burst Current: 540A
• Dimensions: 1.99x2.21x1.39in (50.5x56.2x35.4mm)
• Weight: -
• Motor Limits:
  • 2S LiPo: <600kV
  • 3S LiPo: <400kV
• BEC Voltage: 6V-7.4V
• BEC Continuous Current: 2A
• BEC Peak Current: -
• Motor Connector: 4.0mm Bullet
• Battery Connector: T-Plug
• Motor Wire: 14AWG
• Battery Wire: 14AWG
• Throttle Wire: -
• Programmable: Yes

Includes:

• (1) Maverick FLX10-3S80 Flux 1/10 Brushless ESC with XT60 Connector
• Product Manual
