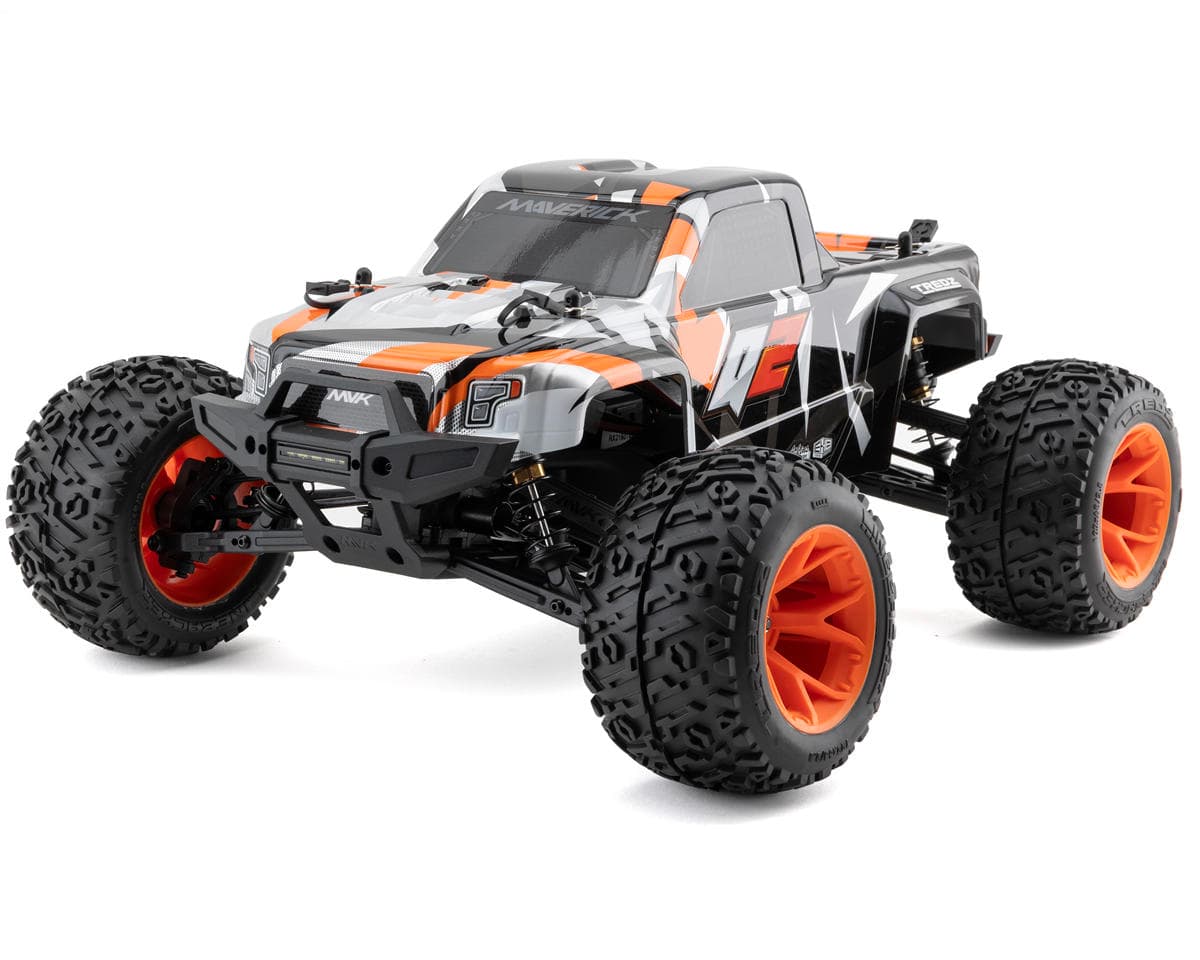

Maverick Quantum2 1/10 4WD RTR Electric Monster Truck (Orange)
About this part
Ultimate 4x4 1:10 Scale Monster Truck
The Maverick Quantum2 Monster Truck is a perfect choice for your first RC, the platform is designed to bash. The Quantum2's durable construction, transmitter-controlled LEDs, and smooth suspension movement collectively deliver an unrestricted bashing experience, making this monster truck truly capable of handling any terrain. With a durable drivetrain and powerful electronics, this truck brings the ultimate in value to the world of off-road RC.
About the Quantum2

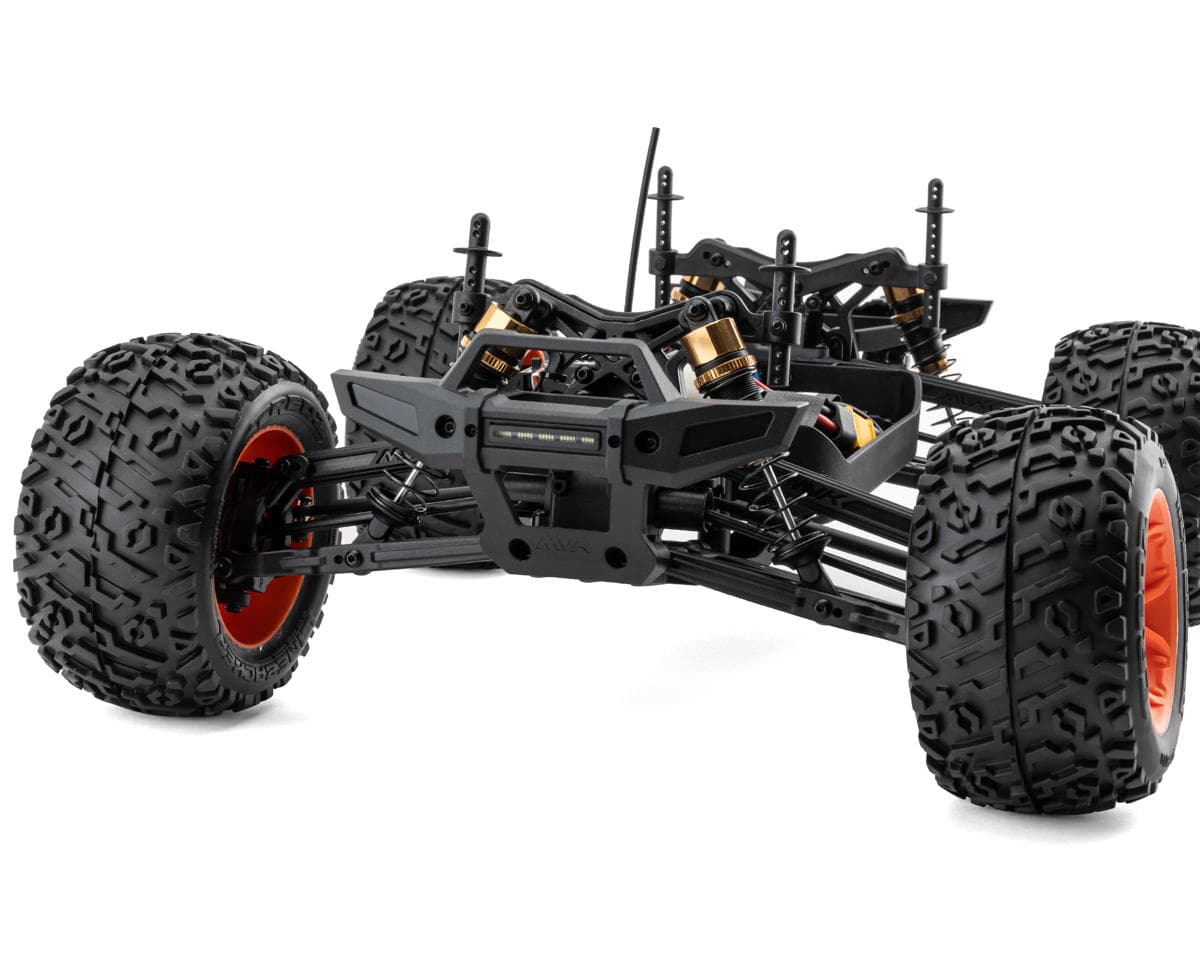

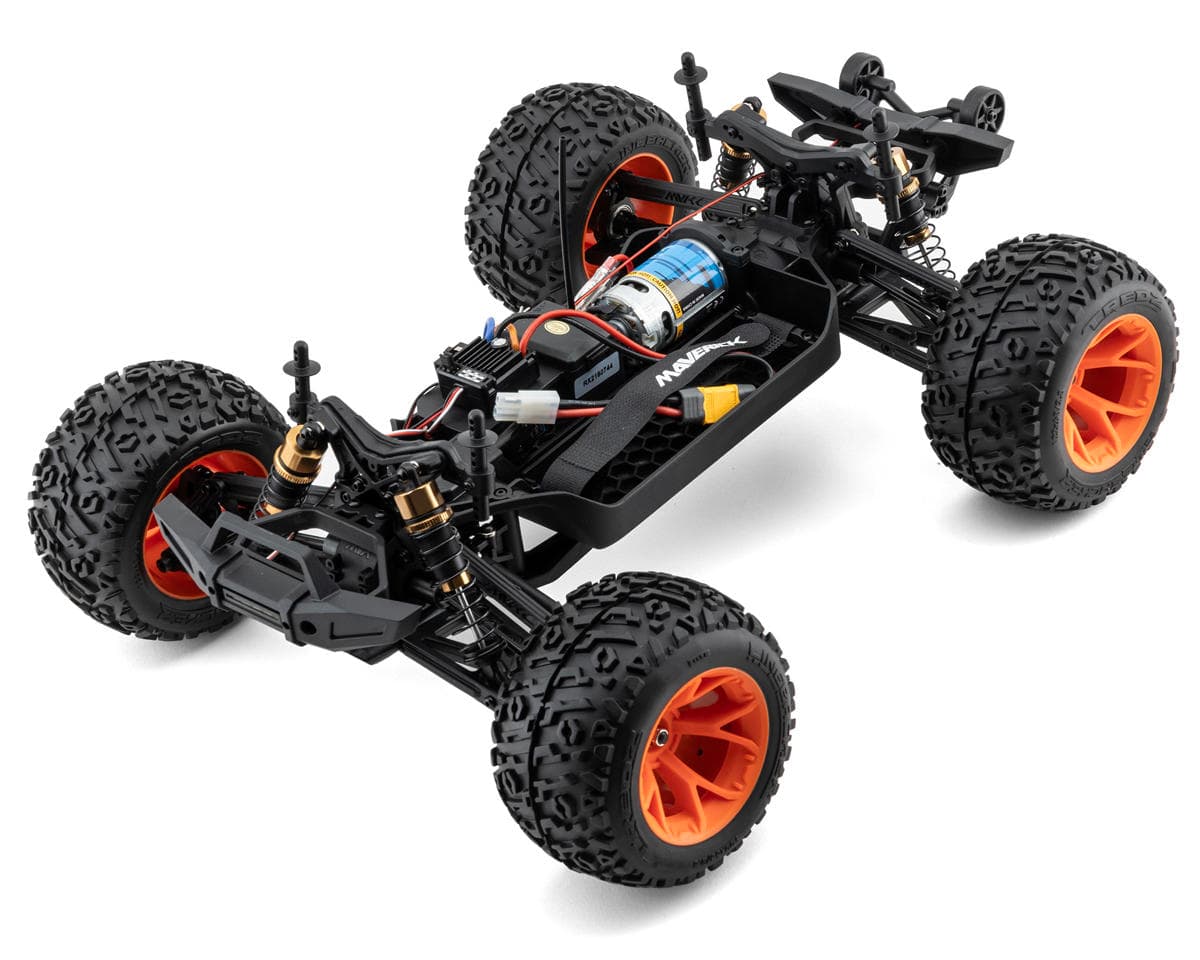

Chassis & Suspension
The main chassis of the Quantum2 uses an internal honeycomb pattern to increase chassis rigidity. The control arms, turnbuckles, and steering components are all made from an extremely durable plastic. This plastic is extremely flexible allowing the components to absorb any hard impacts. The chassis features an 11.22in (285mm) wheelbase with a 13.97in (355mm) width! This incredibly wide stance keeps the truck from traction rolling while the short wheelbase keeps the truck feeling extremely responsive on throttle.

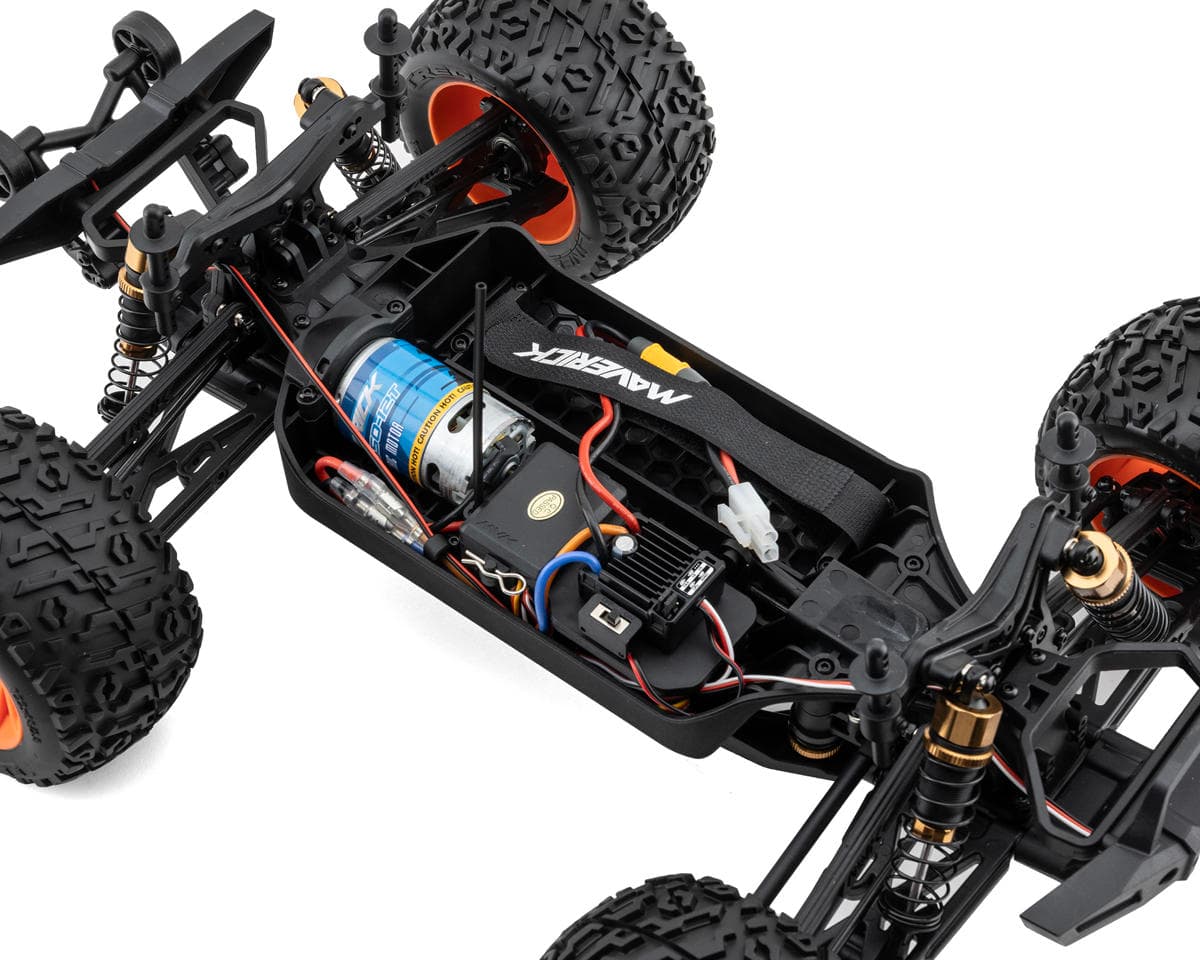

Electronics

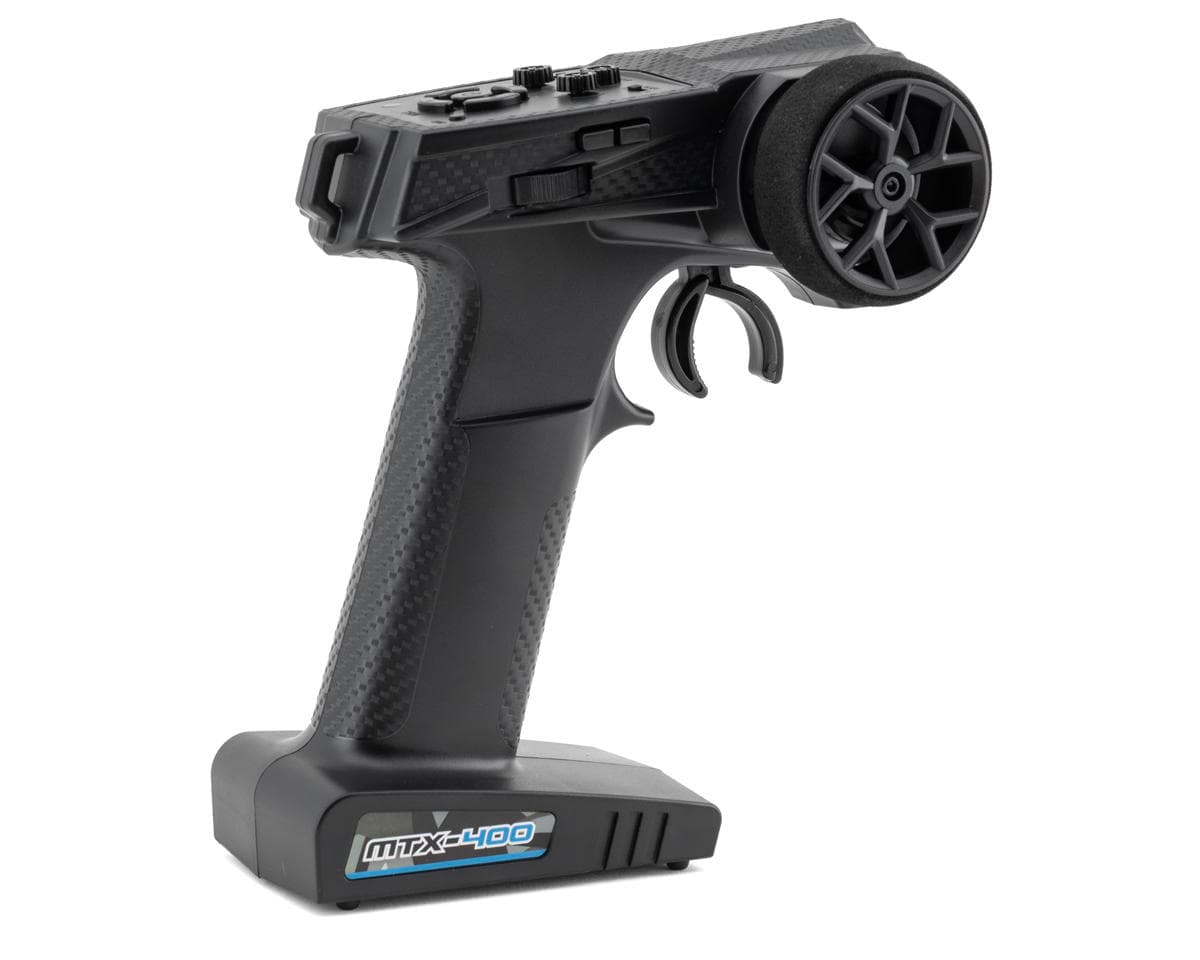

These brushed monster trucks use a powerful 12-turn 550-size to deliver good wheel speed and torque. Paired with a 60-amp Waterproof ESC, this truck is ready to rip through the roughest of terrain. This truck is equipped with the Maverick MTX-400 Transmitter/Receiver Combo. With this transmitter, you can control the LED lighting, adjust trims, adjust dual rates, and more.

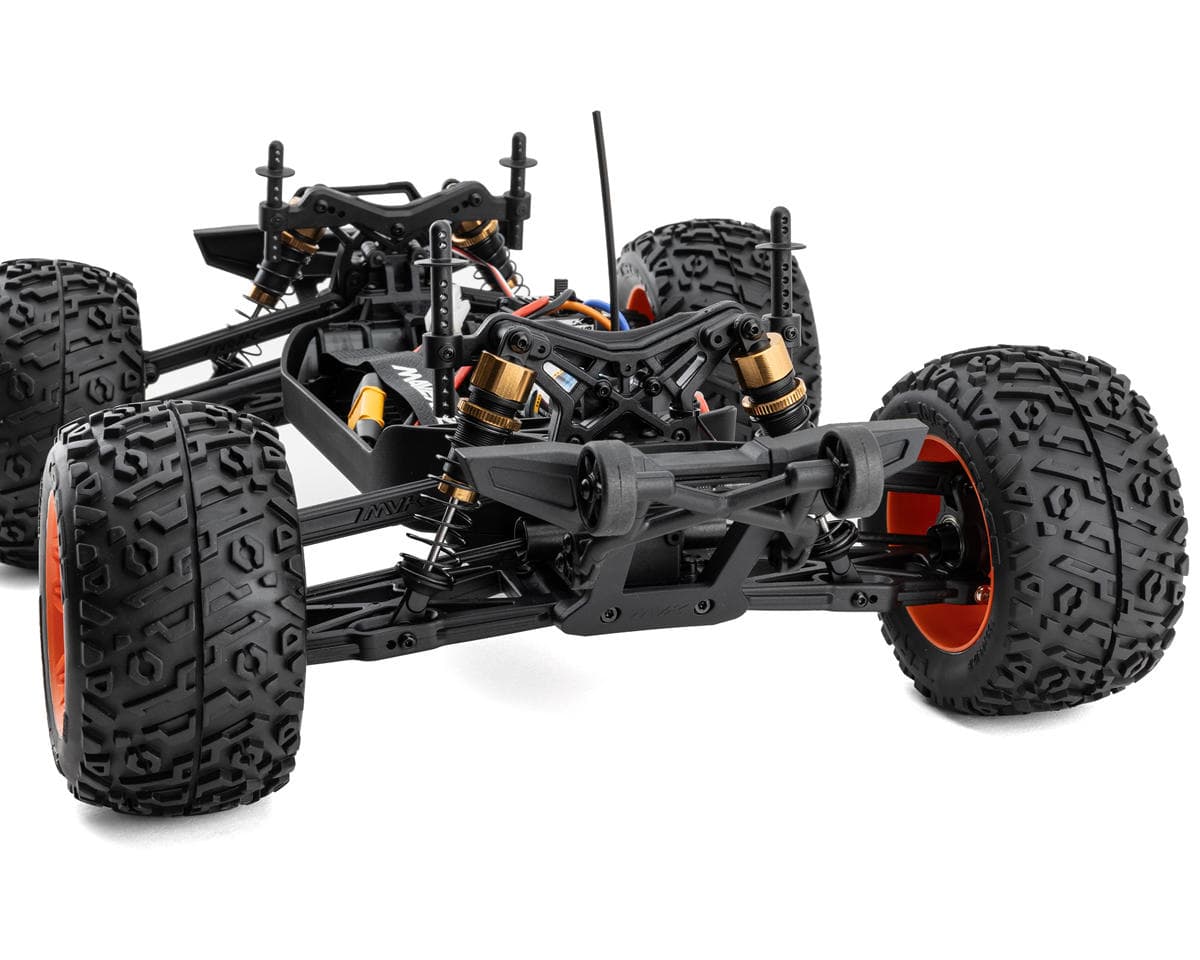

Drivetrain & Tires
This 4WD chassis uses front CVD driveshafts/rear dogbones, oversized wheel nuts, metal gear differentials, adjustable slipper clutch, and a metal center dog bone to deliver the power from the motor to the ground. The rugged drivetrain floats on ball bearings to ensure extremely efficient power transfer. The Linebacker Tires are made by Tredz. These low-profile tires are non-directional and are perfect for gravel, mud, dirt, on-road, off-road, and anywhere your RC adventure takes you.
Features:
- Sturdy oversized upper and lower suspension arms for enhanced durability
- Front and rear metal plate insert hinge pin holders for added strength
- Robust differential crown and pinion gears for increased resilience
- Tough differential outdrives on both front and rear axles
- Convenient quick access motor with gear cover to shield the spur gear from debris
- Secure fixed gear motor mount compatible with 12T to 16T pinions
- Dual-pad slipper clutch with a 51T 32P spur gear for reliable power management
- Dual-point bell crank steering system featuring an integrated servo saver for precise control
- Molded tub chassis reinforced with a hex pattern for structural integrity
- Adjustable wheelie bar included for customizable handling characteristics
Includes:
- (1) Maverick Quantum2 1/10 4WD Monster Truck
- (1) Maverick MTX-400 Transmitter
- User Manual
Needed To Complete:
- (1) 6-Cell NiMH or 2S LiPo Battery w/XT60 Connector
- (1) Compatible Battery Charger
- (4) AA Batteries for Transmitter
Recommended to Complete:
Specifications:
| Scale Size | 1:10 |
|---|---|
| Length | 18.7in (475mm) |
| Width | 13.9in (355mm) |
| Wheelbase | 11.2in (285mm) |
| Terrain | Off-Road |
| Body Style | Monster Truck |
| Drive | 4WD |
| Power Source | Electric |
| Assembly Level | RTR* |
*Tech Note: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Please check the "Needed To Complete" above to make sure you have everything you need to get out and enjoy your RC model.
Manuals:
User Manual
Exploded View
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.2 · 6 reviews
i didn't get mine from amain but have had a blast with it after putting a brushless system in it. but found out they use normal steal bearings with no rubber seal that let dirt get into them or in my case sand. pulled it apart today to do my after run cleaning and found all the 12x18x4 bearing where seized up because they where full of sand from my driveway and had to work with them to clean them out to get them free working again. so will be buying rubber sealed bearing since i know know all the sizes (4) 5x8x2.5 (5) 5x11x4 (4) 6x12x4 (8) 12x18x4 and i have the 2 smaller ones since i have them around for my traxxas but will be gettung the other 2 really soon
Awesome little truck!seems pretty durable as the plastic flex's as needed in crashes and super easy to upgrade to brushless.
I bought this and it came with leaking shocks and a slow transmission. I had to upgrade it immediately to make it fast but it started to breaks down every outing . I purchased all the upgrades, including alloy for the shocks, but the spur broke, and now I’m just left with parts. It’s ok for kids not for someone looking for a hobby grade RC .
What a awesome truck for the price . I bought two of them
Always quick shipping and great customer service and quality products ?
Reviewers generally find the Maverick Quantum2 1/10 4WD RTR monster truck a good value and easy to upgrade, with one owner noting the plastic flexes well in crashes. Opinions diverge on performance: some praise its speed and fun, while others find the stock brushed system slow and recommend a brushless upgrade. The most significant recurring problem is durability with the stock setup. One reviewer reported leaking shocks, a slow transmission and a broken spur gear after upgrades, and another found standard steel bearings without seals seized from sand and dirt ingress. Reviewers also mention quick shipping and good customer service. Based on the six reviews, buyers should expect to upgrade drivetrain components and consider sealed bearings for sandy or dirty use.
- + Good value for the price
- + Easy to upgrade to brushless
- + Plastic flexes well in crashes
- + Quick shipping and good customer service
- − Stock brushed motor feels slow
- − Standard bearings lack seals and seize with dirt or sand
- − Leaking shocks and slow transmission out of the box
- − Spur gear broke after upgrades
