Name: MKS Servos DS1220 Titanium Gear Ultra High Torque Standard Digital Servo
Brand: MKS Servos
SKU: MKS-DS1220
Price: 98.99 USD

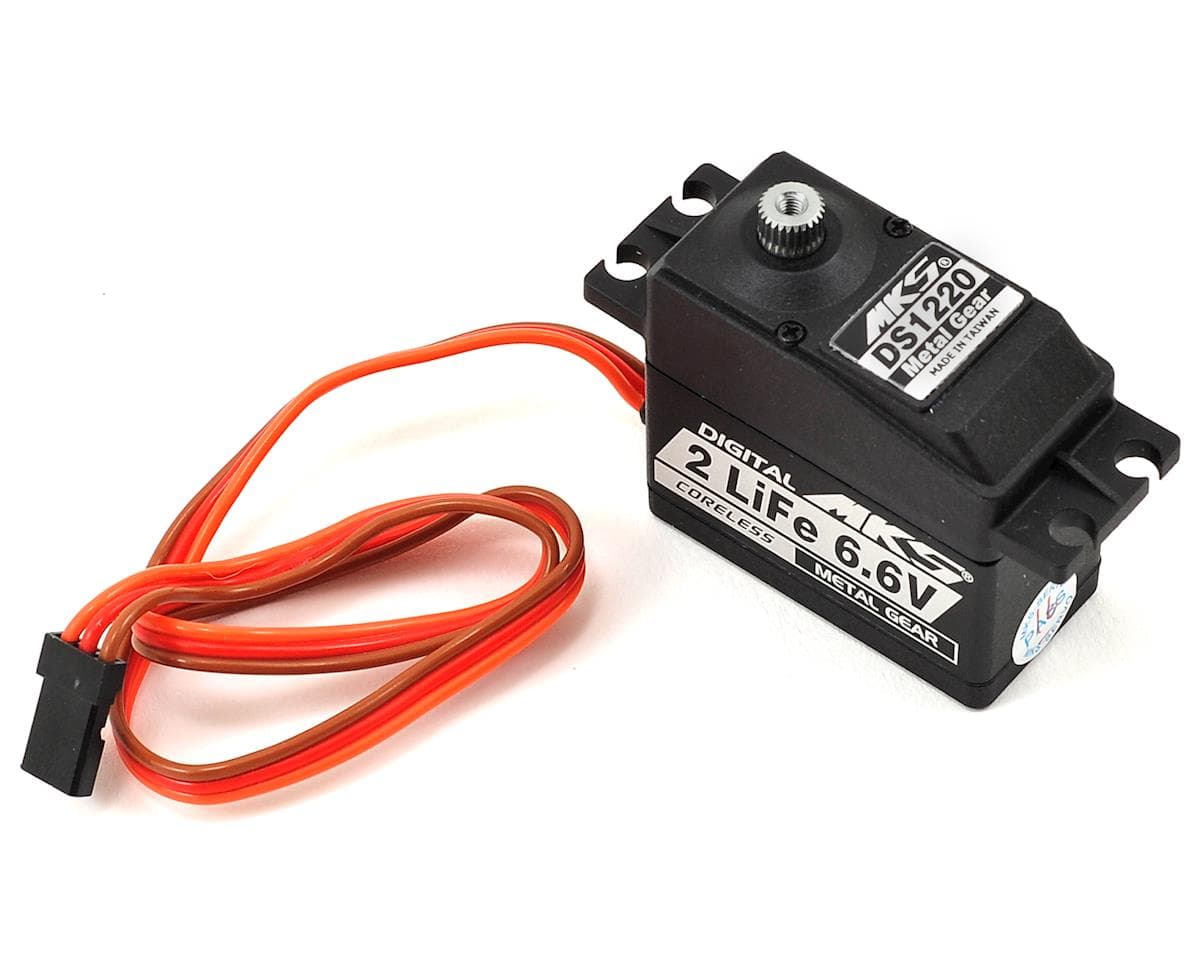

MKS Servos DS1220 Titanium Gear Ultra High Torque Standard Digital Servo

AMain Hobbies

This is the MKS DS1220 Titanium Gear Ultra High Torque Standard Digital Servo. This high torque servo was developed for LiFe applications and is a great choice for 1/8 and 1/10 Scale Buggies, Monster Trucks and Rock Crawlers, Giant Scale Aircraft, and 600~700 CCPM heli applications.

 Specifications:

<ul>
 <li>Torque: </li>
 <ul>
 <li>@6.0V: 345.9 oz-in (24.9 kg-cm) &nbsp;</li>
 <li>@6.8V: 422.17 oz-in (30.4 kg-cm)</li>
 </ul>
 <li>Speed:</li>
 <ul>
 <li>@6.0V: 0.159 s</li>
 <li>@6.8V: 0.140 s</li>
 </ul>
 <li>Weight:&nbsp; 57.44 g</li>
 <li>Dimensions: 40x20x37mm</li>
 <li>Operating Voltage: 6.0 ~ 6.8 V DC Volts &nbsp;</li>
 <li>Working Frequency: 1520μs / 333hz</li>
 <li>Dead Band: 0.0008ms (Default)</li>
 <li>Bearing Type: 2BB&nbsp; &nbsp;</li>
 <li>Motor Type: Japan High Quality Coreless Motor</li>
 <li>Gear Type: Chrome-Titanium alloy gear</li>
</ul>

This is the MKS DS1220 Titanium Gear Ultra High Torque Standard Digital Servo. This high torque servo was developed for LiFe applications and is a great choice for 1/8 and 1/10 Scale Buggies, Monster Trucks and Rock Crawlers, Giant Scale Aircraft, and 600~700 CCPM heli applications. Specifications: Torque: @6.0V: 345.9 oz-in (24.9 kg-cm) &nbsp; @6.8V: 422.17 oz-in (30.4 kg-cm) Speed: @6.0V: 0.159 s @6.8V: 0.140 s Weight:&nbsp; 57.44 g Dimensions: 40x20x37mm Operating Voltage: 6.0 ~ 6.8 V DC Volts &nbsp; Working Frequency: 1520&#956;s / 333hz Dead Band: 0.0008ms (Default) Bearing Type: 2BB&nbsp; &nbsp; Motor Type: Japan High Quality Coreless Motor Gear Type: Chrome-Titanium alloy gear
