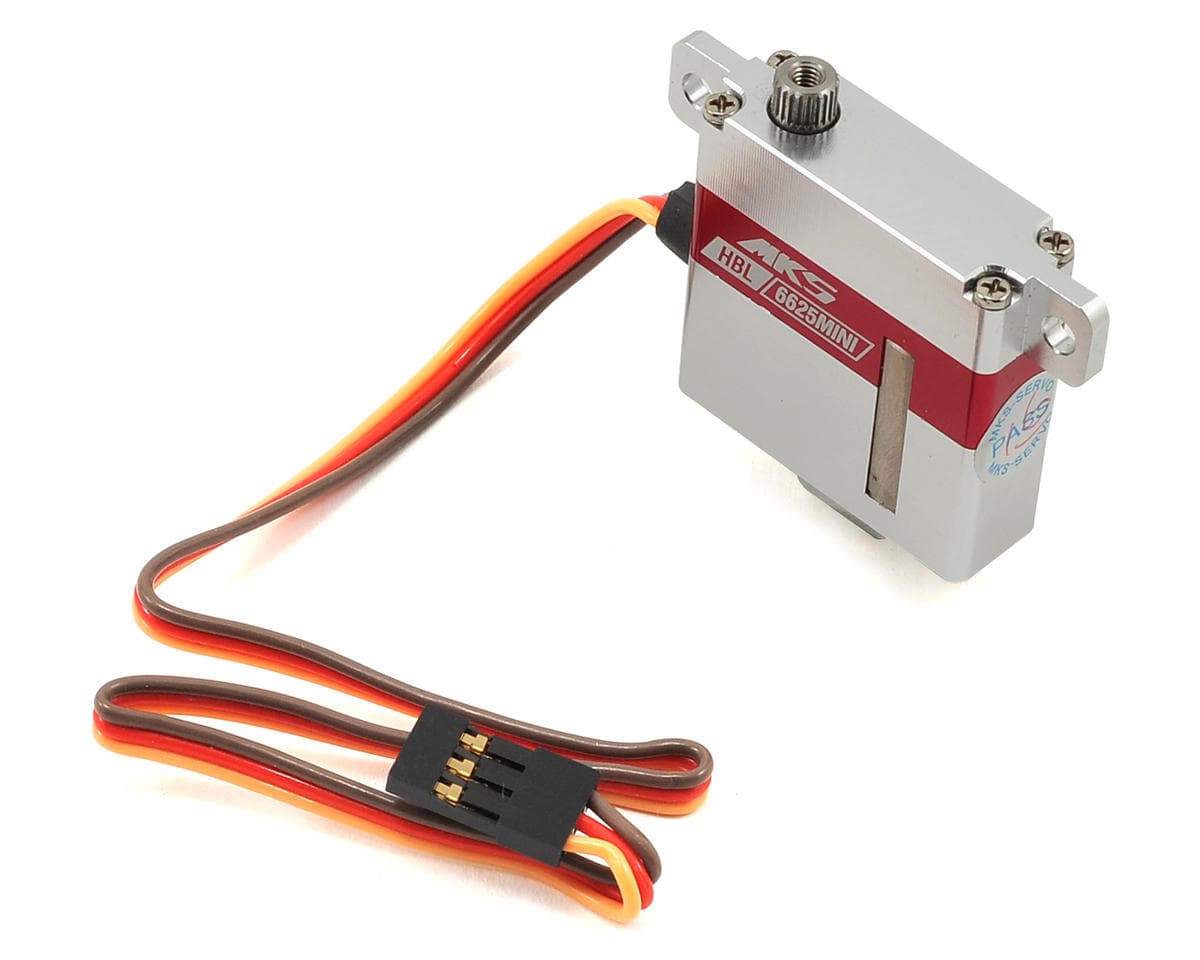

MKS Servos HBL6625 Mini Titanium Gear Glider Wing Servo w/Aluminum Case (High Voltage)

The MKS HBL6625 Mini Titanium Gear Glider Wing High Voltage Servo is perfect for discus launch, hand launch and F3K glider applications that require a precise wing servo with low power consumption and superior holding torque, combined with a precision machined aluminum case and the flexibility of high voltage brushless circuitry.

Specifications:

• Torque:
• @6.0V: 72.2 oz-in (5.2 kg-cm)
• @7.4V: 77.7 oz-in (5.6 kg-cm)
• @8.2V: 83.3 oz-in (6.0 kg-cm)
• Speed:
• @6.0V: 0.14s
• @7.4V: 0.11s
• @8.2V: 0.10s
• Weight: 26.9 g

• Dimension: 30x10x29.9mm
• Working Voltage: 3.5 ~ 8.4 V DC Volts  (2S LiPo unregulated)
• Working frequency: 1520?s / 333hz
• Dead Band: 0.001 ms (Default)
• Bearing: Dual Ball Bearings

• Motor: Brushless Motor
• Gear: Chrome-Titanium alloy gear
• Case: 6061 Aluminum CNC Casing
