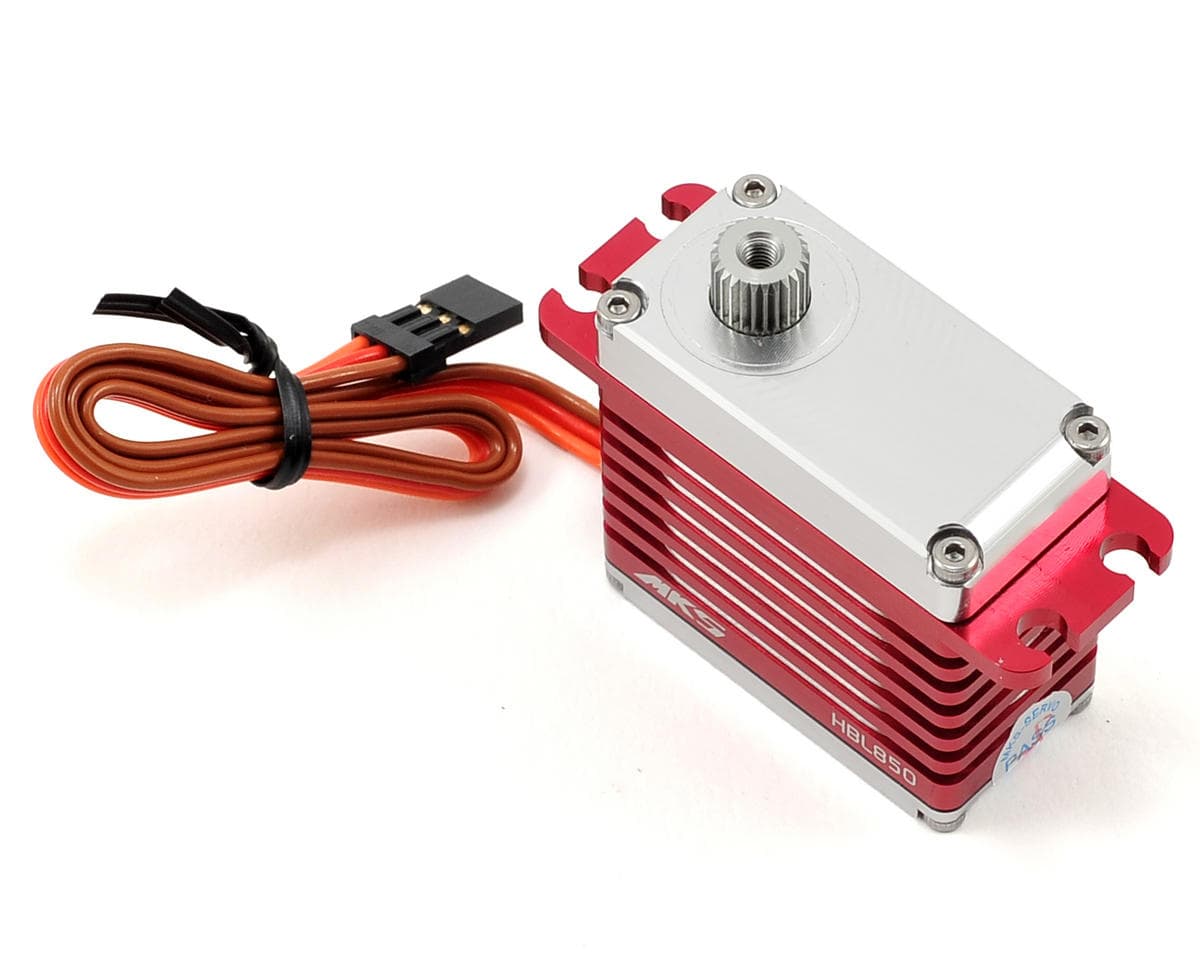

MKS Servos HBL850 Brushless High Speed Digital Cyclic Servo (High Voltage)
Part # MKS-HBL8505.0(1)
Where to buy
$219.99
Prices are as last seen at the store; stock is not tracked.
About this part
This is the MKS HBL850 Brushless Titanium Gear High Speed Digital Cyclic Servo.
Specifications:
- Dead Band: 0.0008ms (Default)
- Control System: +Pulse Width Control
- Working Frequency: 1520?s / 333hz
- Operating Voltage: 6 ~ 8.4 Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed:
- @6V: 0.1 sec/60° degrees at no load
- @7.4V: 0.079 sec/60° degrees at no load
- @8.4V: 0.071 sec/60° degrees at no load
- Stall Torque:
- @6V: 252 oz-in (18.2 kg/cm)
- @7.4V: 312.46 oz-in (22.5 kg/cm)
- @8.4V: 345.79 oz-in (24.9 kg/cm)
- 360° Modifiable: NO
- Motor Type: Brushless Motor
- Potentiometer Drive: Indirect Drive
- Bearing Type: Dual Ball Bearings
- Gear Type: Metal Gears
- Connector Wire Length: 24.0 cm (9.4 in)
- Dimensions: 40x20x38.5mm
- Weight: 73g
Reviews5.0 · 1 review
Ryan Robinsonon MKS Servos HBL850 Brushless High Speed Digital Cyclic Servo (High Voltage)
these are my second favorite cyclic servos next to the 380. less torque than 380 but more speed. Lexus of the servo world!!!!
1 found this helpful
