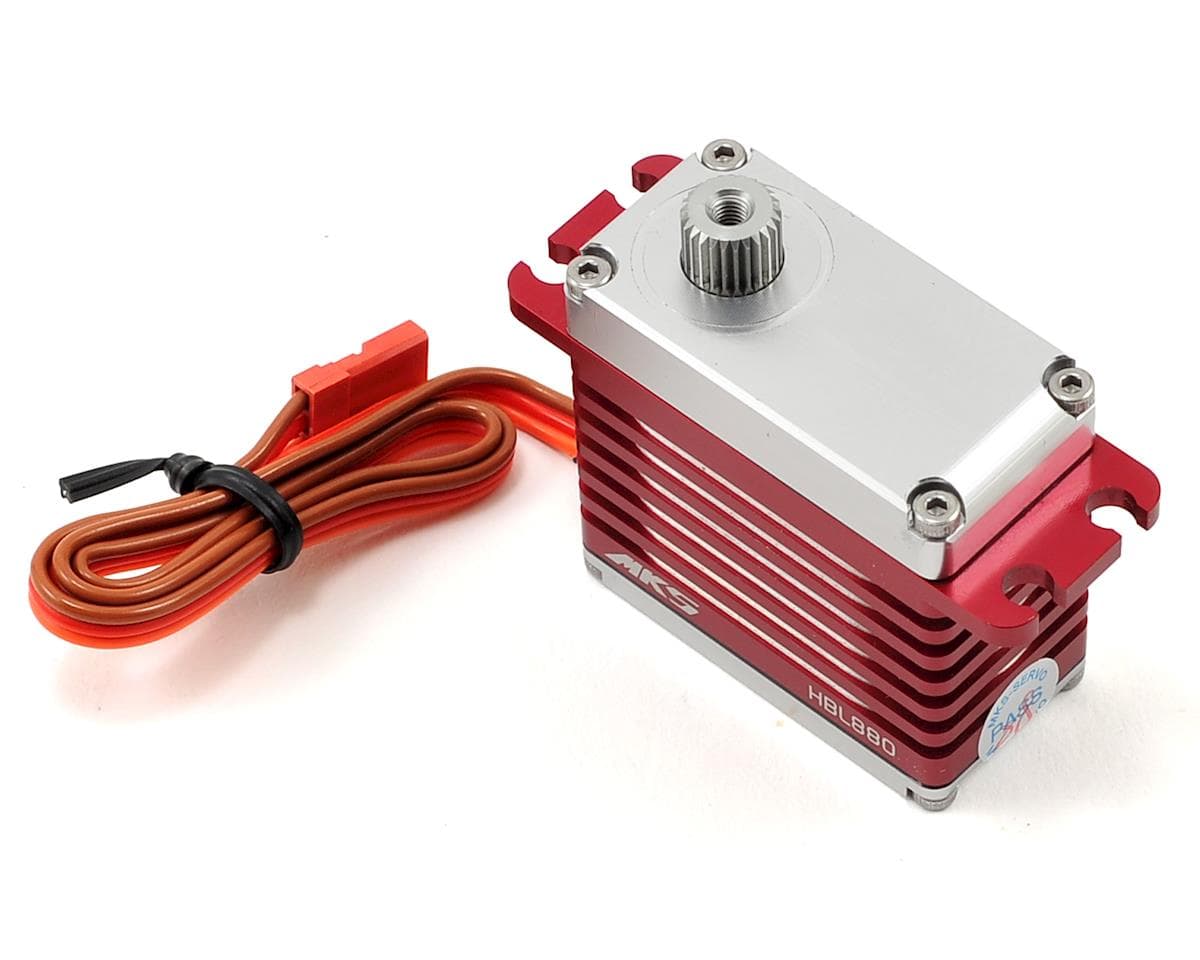

MKS Servos HBL880 Brushless Titanium Gear High Torque Digital Tail Servo (High Voltage)
About this part
This is the MKS HBL880 Brushless Titanium Gear High Speed Digital Tail Servo.
Specifications:
- Dead Band: 0.0008ms (Default)
- Control System: +Pulse Width Control
- Working Frequency: 760?s / 560hz
- Operating Voltage: 6 ~ 8.4 Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed:
- @6V: 0.044 sec/60° degrees at no load
- @7.4V: 0.036 sec/60° degrees at no load
- @8.4V: 0.032 sec/60° degrees at no load
- Stall Torque:
- @6V: 113.87 oz-in (8.2 kg/cm)
- @7.4V: 140.26 oz-in (10.1 kg/cm)
- @8.4V: 155.39 oz-in (11.19 kg/cm)
- 360° Modifiable: NO
- Motor Type: Brushless Motor
- Potentiometer Drive: Indirect Drive
- Bearing Type: Dual Ball Bearings
- Gear Type: Metal Gears
- Connector Wire Length: 24.0 cm (9.4 in)
- Dimensions: 40x20x38.5mm
- Weight: 73.2g
Reviews5.0 · 5 reviews
Very quick strong and solid! Great packaging. If you want top of the line this is it!
Simply put: this is the best heli tail servo out there. Period. Having hunting problems with your tail? Dump what you are using and put one of these babies in and what watch what happens. No more tail problems. Gears are manufactured to tight tolerances and are best in class. You really can't go wrong here. I love mine and will not use anything else in my heli's.
best tail servo on the planet. response is unparalleled. impeccable quality. unrivaled reliability.
I am very satisfied with the fast response and soft movement.
The best tail rotor servo, without the need to use in voltage regulator, is the best servo so far.
All five reviews are 5/5 and describe the MKS HBL880 high-voltage tail servo favourably. Reviewers repeatedly mention fast, strong response and solid build quality, with titanium gears described as well made. Two reviewers say it runs without a separate voltage regulator and one says it resolved tail hunting problems. Several reviews use strongly superlative language, and the set contains no criticism, so it offers little information on drawbacks, longevity, or performance outside the high-voltage configuration. Two reviews are from verified owners.
- + Fast, strong response
- + Solid build quality
- + Titanium gears
- + Runs without external voltage regulator
- − No criticisms in reviews
- − Limited long-term reliability feedback
