Parts/Radio & control/Servos/MKS Servos HBL950 Brushless Titanium Gear High Torque Digital Servo (High Voltage)
About this part

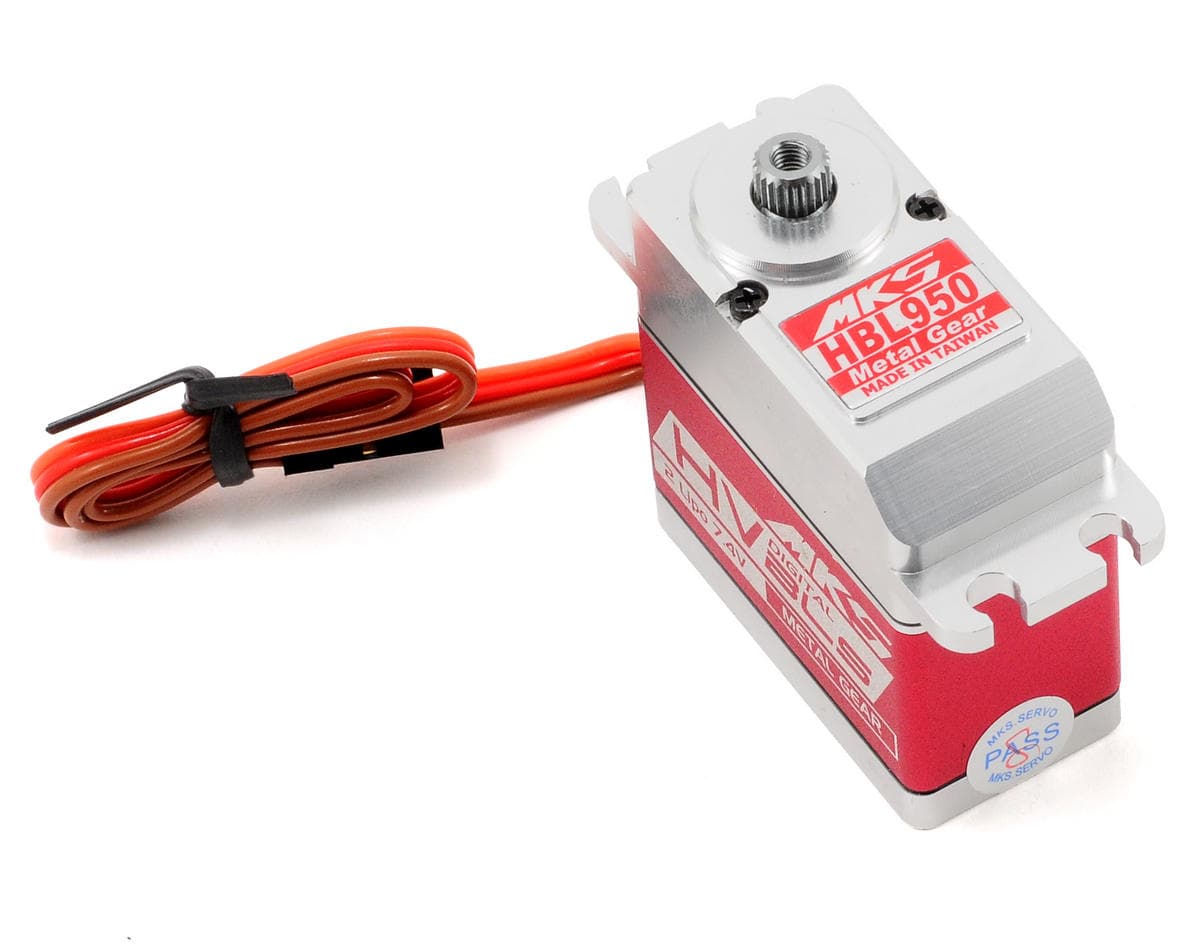

This is the MKS HBL950 Brushless, Titanium Gear, High Torque, High Voltage Digital Servo.
HBL-950 Specifications:
- Dead band: 0.0008ms (Default)
- Control System: +Pulse Width Control
- Working frequency: 1520μs / 333hz
- (RX) Required Pulse: 3.5 ~ 7.2 Volt Peak to Peak Square Wave
- Operating Voltage: 6.0 ~ 7.2 V DC
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (6.0V): 0.12 sec/60° degrees at no load
- Operating Speed (7.4V): 0.10 sec/60° degrees at no load
- Stall Torque (6.0V): 174.7 oz/in (13.3 kg.cm)
- Stall Torque (7.4V): 229.14 oz/in (16.5 kg.cm)
- 360° Modifiable: NO
- Motor Type: Brushless Motor
- Potentiometer Drive: Indirect Drive
- Bearing Type: Dual Ball Bearings
- Gear Type: Titanium Gears
- Programmable: NO
- Connector Wire Length: 24.0cm (9.4")
- Dimensions: 40x20x40mm (1.57x0.79x1.50")
- Weight: 70.2g (2.48 oz)
Reviews3.0 · 2 reviews
Ryan Robinsonon MKS Servos HBL950 Brushless Titanium Gear High Torque Digital Servo (High Voltage)
MKS BABY!!!! i used to own this set but they are still rocking in a goblin700 today as a friend owns them now. going on 6 years old! Lexus of the servo world!!!!
3 found this helpful
Anonymouson MKS Servos HBL950 Brushless Titanium Gear High Torque Digital Servo (High Voltage)
Too expensive !
Builds using this part
No builds use this part yet — add it to yours from the build editor.
