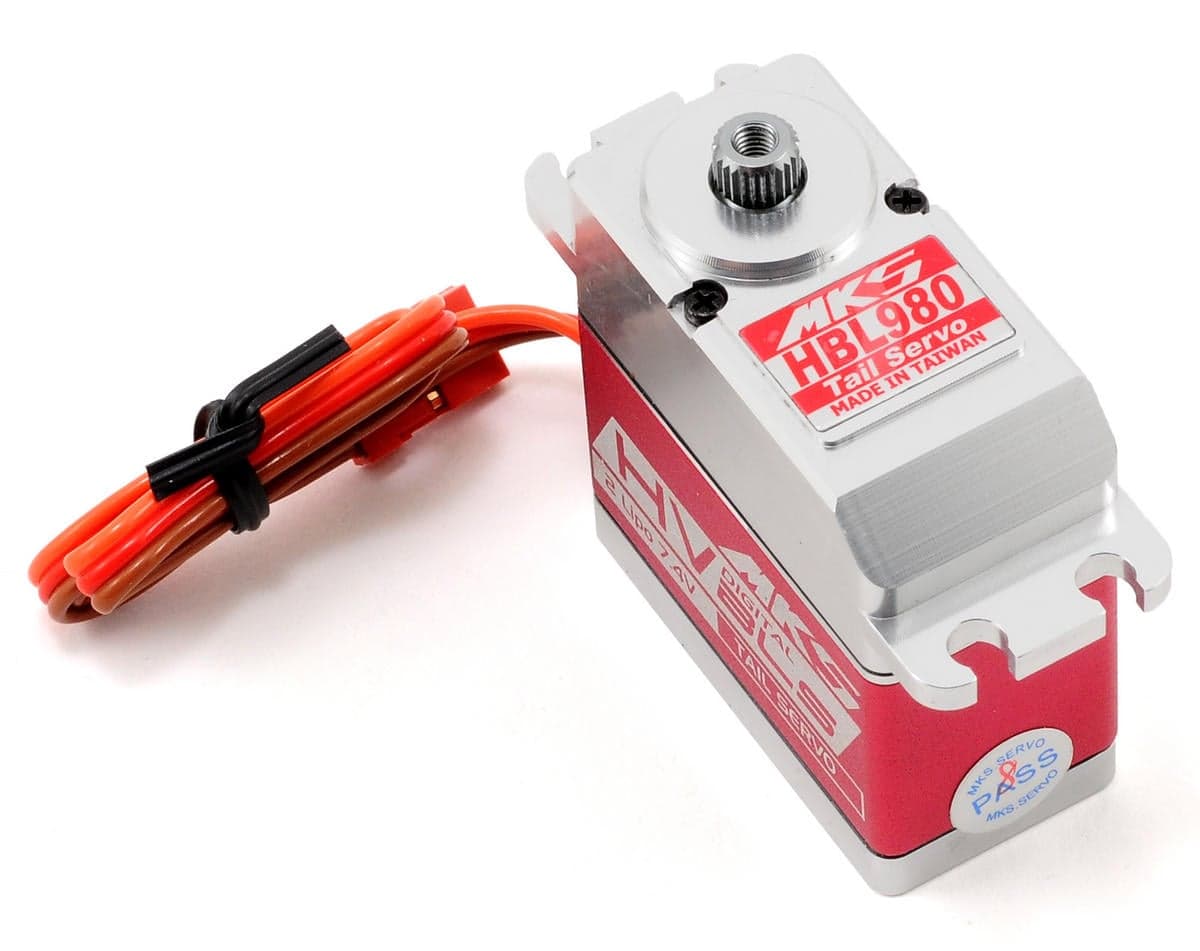

MKS Servos HBL980 Brushless Titanium Gear High Speed Digital Servo (High Voltage)

This is the MKS HBL980 Brushless, Titanium Gear, High Speed, High Voltage Digital Servo.

HBL-980 Specifications:

• Dead band: 0.0008ms (Default)
• Control System: +Pulse Width Control
• Working frequency: 760μs / 560hz
• (RX) Required Pulse: 3.5 ~ 7.2 Volt Peak to Peak Square Wave
• Operating Voltage: 6.0 ~ 7.2 V DC
• Operating Temperature Range: -10 to + 60 Degree C
• Operating Speed (6.0V): 0.04 sec/60° degrees at no load
• Operating Speed (7.4V): 0.036 sec/60° degrees at no load
• Stall Torque (6.0V): 62.5 oz/in (4.5 kg.cm)
• Stall Torque (6.0V): 77.77 oz/in (5.6 kg.cm)
• 360° Modifiable: NO
• Motor Type: Brushless Motor
• Potentiometer Drive: Indirect Drive
• Bearing Type: Dual Ball Bearings
• Gear Type: Titanium Gears
• Programmable: NO
• Connector Wire Length: 24.0cm (9.4")
• Dimensions: 40x20x40mm (1.57x0.79x1.50")
• Weight: 70.2g (2.48 oz)
