Parts/Radio & control/Servos/MKS Servos HBL990 Brushless Titanium Gear High Speed Digital Tail Servo (High Voltage)
MKS Servos

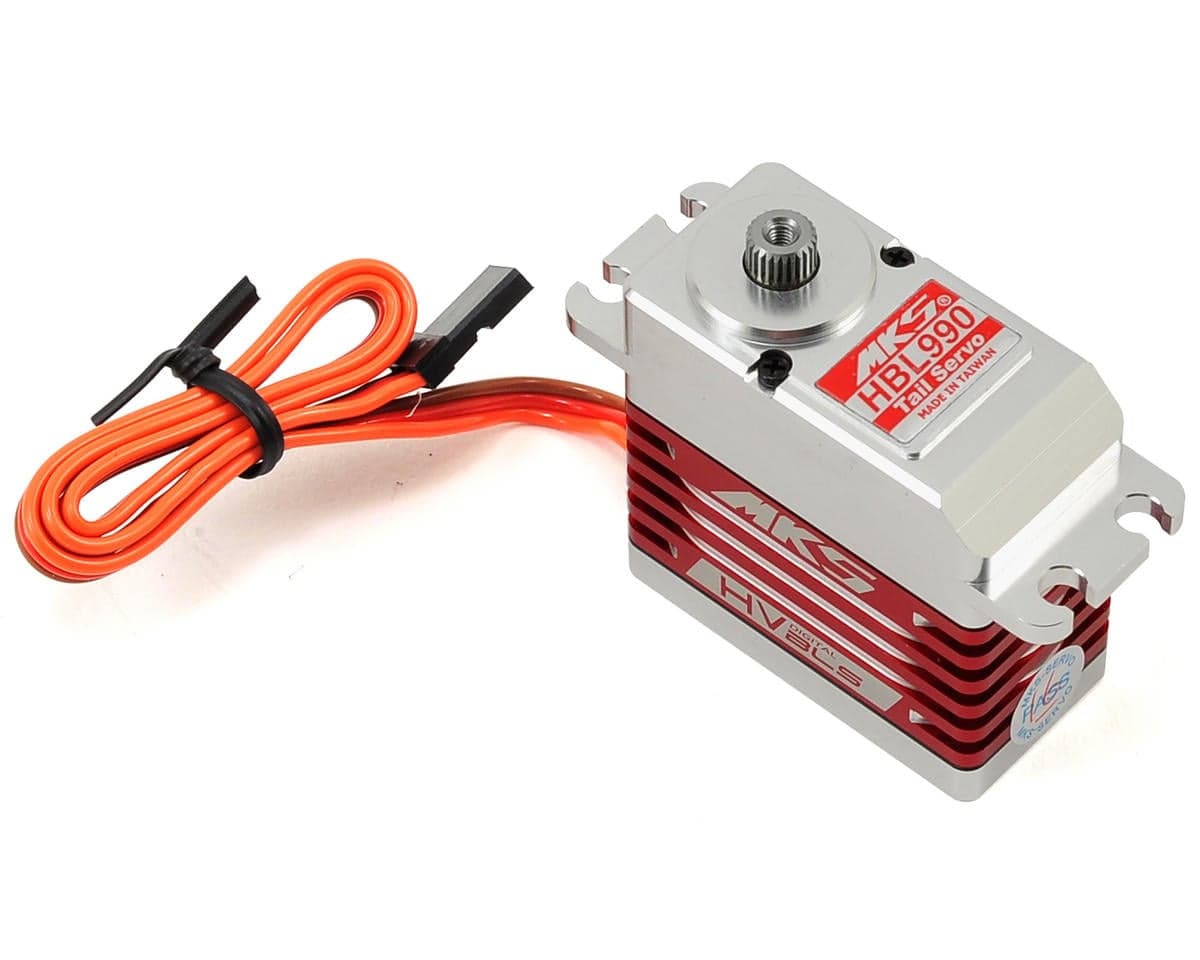

MKS Servos HBL990 Brushless Titanium Gear High Speed Digital Tail Servo (High Voltage)
Part # MKS-HBL990
Where to buy
$185.89
Prices are as last seen at the store; stock is not tracked.
About this part
This is an MKS HBL990 Brushless Titanium Gear High Speed Digital Tail Servo.
Compatible Gyro's:
- Spartan DS760, Quark
- Futaba GY611, GY601, GY520
- ALIGN GP700, GP750
- Mikado V-Bar Tail, CSM SL720
- Curtis Youngblood Mini-G, Solid G
- Thunder Tiger TG-7000
- BeastX Mircobeast
Specifications:
- Torque:
- @6.0V: 65.2 oz-in (4.7 kg-cm)
- @7.4V: 80.5 oz-in (5.8 kg-cm)
- @8.2V: 87.4 oz-in (6.3 kg-cm)
- Speed:
- @6.0V: 0.04 s
- @7.4V: 0.036 s
- @8.2V: 0.030 s
- Weight: 70.55 g
- Dimension: 40x20x40mm
- Working Voltage: 3.5 ~ 8.4 V DC Volts (2S Lipo un-regulated)
- Working Frequency: 760μs / 560hz
- Dead Band: 0.0008 ms (Default)
- Bearing: 2BB
- Motor: 4-Pole Brushless Motor
- Gear: Chrome-Titanium alloy gear
