MKS Servos

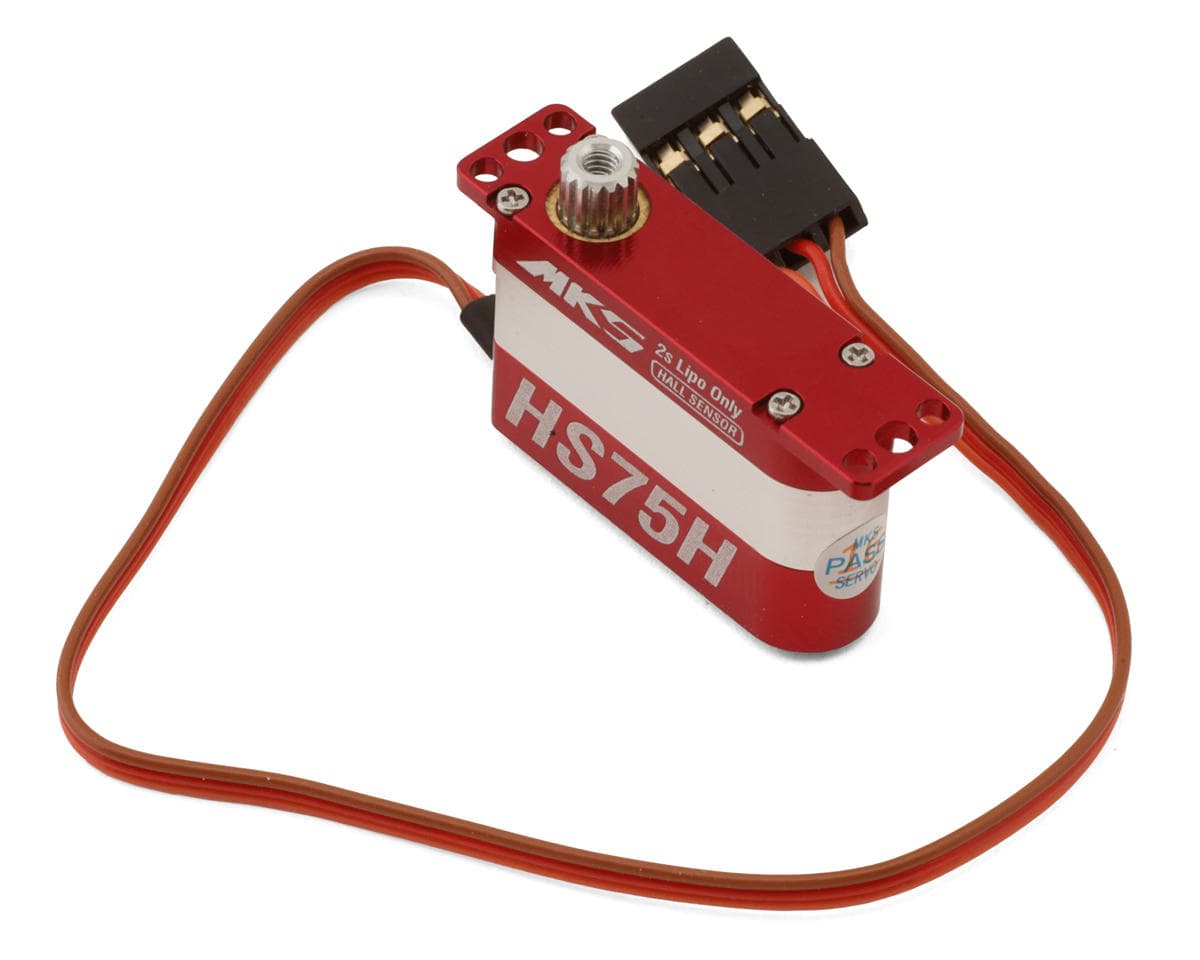

MKS Servos HS75H Metal Gear High Voltage Digital Servo
Part # MKS-HS75H
Where to buy
$83.59
Prices are as last seen at the store; stock is not tracked.
About this part
MKS Servos HS75H Metal Gear High Voltage Digital Servo. Ideal for small places the HS75H is constructed using an aluminum case and thin profile making it incredibly strong. Weighing in at only 7.9 grams this servo boasts an impressive 55.55oz-in of torque!
Features:
- Uses Pulse Width Control (PWM)
- High quality coreless motor
- Dual ball bearing
- Full metal gears
Specifications:
- Voltage: 4.0-8.4V DC
- Torque:
- 4.8V: 37.49 oz/in (2.7 Kg/cm)
- 6V: 47.22 oz/in (3.4 Kg/cm)
- 7.4V: 52.77 oz/in (3.8 Kg/cm)
- 8.4V: 55.55 oz/in (4.0 Kg/cm)
- Speed:
- 4.8V: 0.143 sec/60°
- 6V: 0.114 sec/60°
- 7.4V: 0.094 sec/60°
- 8.4V: 0.087 sec/60°
- Dimensions: 23.75x7.5x16.1mm
- Weight: 7.9g
- Working Frequency: 1520?s / 333Hz
- Dead Band: 0.001ms (Default)
- Temperature Range: -10 to + 60 Degree C
