MKS Servos

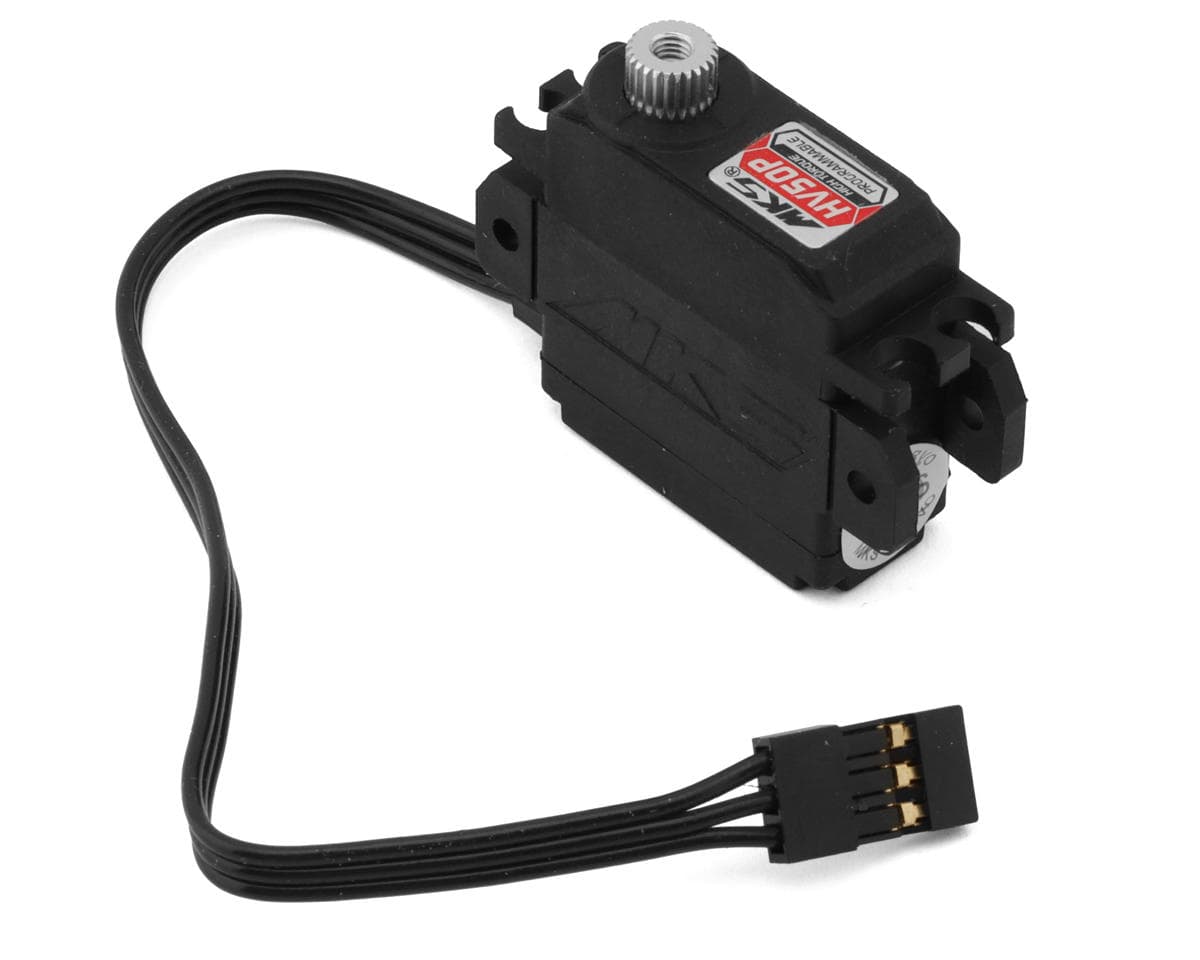

MKS Servos HV50P 1/12 Metal Gear High Voltage Servo
Part # MKS-HV50P5.0(2)
Where to buy
$109.99
Prices are as last seen at the store; stock is not tracked.
About this part
MKS Servos HV50P 1/12 Metal Gear High Voltage Servo. Designed to fit most 1/12 applications this servo is an excellent addition for your next build. This high performance servo is capable of handling up to 8.4V and boasts an impressive 0.071 sec/60° speed and 8.3 kg-cm (115.2 oz/in) of torque.
Features:
- Uses Pulse Width Control (PWM)
- High quality coreless motor
- Dual ball bearing
- Full metal gears
Specifications:
- Voltage: 4.0-8.4V DC
- Torque:
- 6V: 84.7 oz/in (6.1 Kg/cm)
- 7.4V: 104.1 oz/in (7.5 Kg/cm)
- 8.4V: 115.2 oz/in (8.3 Kg/cm)
- Speed:
- 6V: 0.097 sec/60°
- 7.4V: 0.079 sec/60°
- 8.4V: 0.071 sec/60°
- Dimensions: 27x12.1x27.7mm
- Weight: 18.1g
- Working Frequency: 1520s / 333Hz
- Dead Band: 0.001ms (Default)
- Temperature Range: -10 to + 60 Degree C
Reviews5.0 · 2 reviews
Darren EisenhardtVerified owneron MKS Servos HV50P 1/12 Metal Gear High Voltage Servo
I have MKS servo's in all of my rc stuff without issues, so I went with this servo for my CRC MetriCKs 1/12 scale. What a great servo
David ConstantVerified owneron MKS Servos HV50P 1/12 Metal Gear High Voltage Servo
This is 3rd one not because I have broken the other 2 but I have 3 cars that use them. And so far they are perfict.
