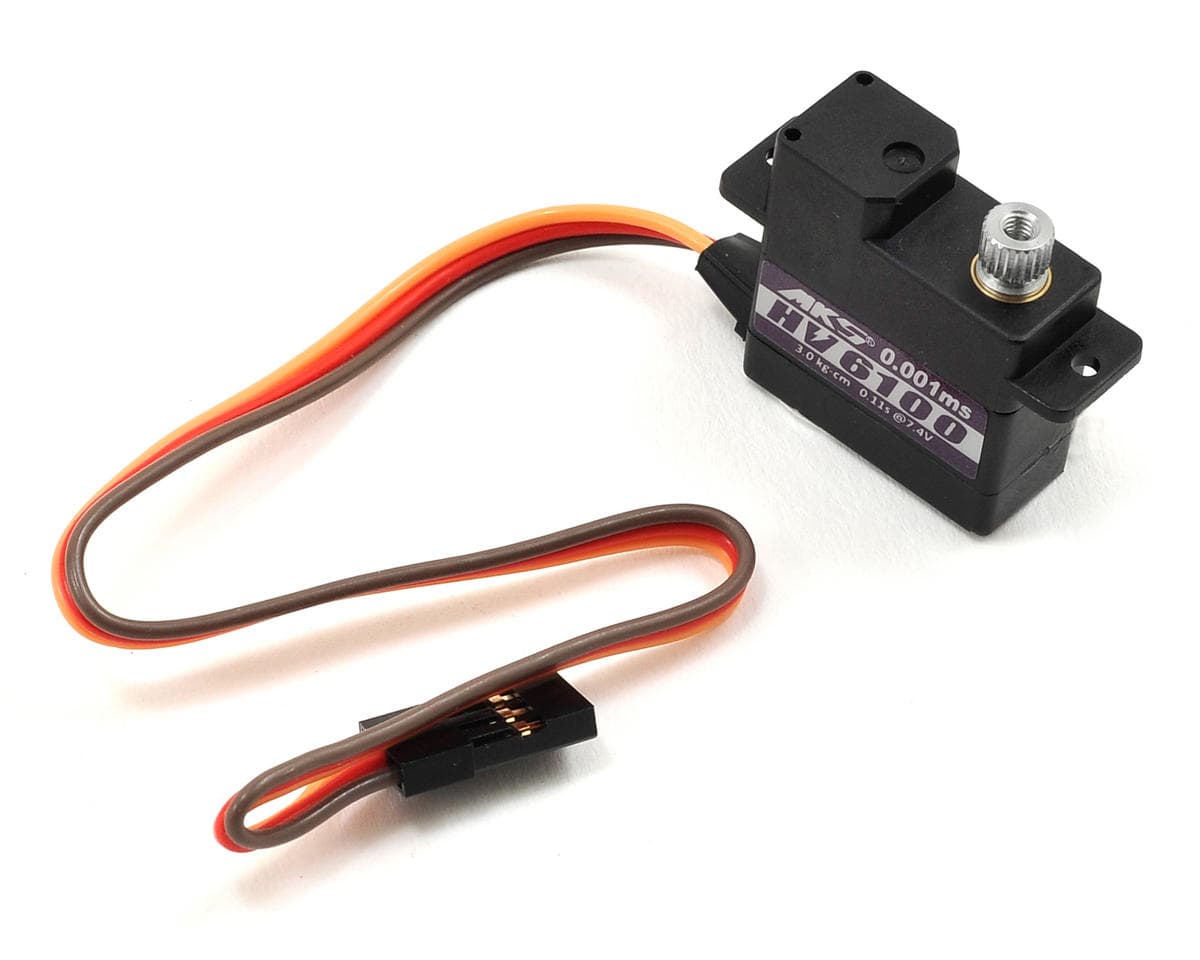

Name: MKS Servos HV6100 Metal Gear Mini Glider Wing Servo (High Voltage)
Brand: MKS Servos
SKU: MKS-HV6100
Price: 52.79 USD

MKS Servos HV6100 Metal Gear Mini Glider Wing Servo (High Voltage)

AMain Hobbies

The MKS HV6100 Metal Gear Mini Glider Wing Servo is perfect for discus launch, hand launch, 2M flap and F3K V-tail glider applications that require a precise wing servo with low power consumption and superior holding torque, combined with the flexibility of high voltage circuitry.&nbsp;

 Specifications:
<ul>
 <li>Torque:</li>
 <ul>
 <li>@6.0V: 36.1 oz-in (2.6 kg-cm)</li>
 <li>@7.4V: 41.6 oz-in (3.0 kg-cm)</li>
 <li>@8.2V: 47.2 oz-in (3.4 kg-cm)</li>
 </ul>
 <li>Speed:</li>
 <ul>
 <li>@6.0V: 0.14s</li>
 <li>@7.4V: 0.11s</li>
 <li>@8.2V: 0.10s</li>
 </ul>
 <li>Weight: 10g
 </li>
 <li>Dimension: 22.5x10x23.5mm&nbsp; &nbsp;</li>
 <li>Working Voltage: 3.8 ~ 8.4 V DC Volts&nbsp; (2S LiPo unregulated)</li>
 <li>Working frequency: 1520μs / 333hz</li>
 <li>Dead Band: 0.001 ms (Default)</li>
 <li>Bearing: 2 Jewel Bearings + 1 Bronze Bushing
 </li>
 <li>Motor: Coreless Motor</li>
 <li>Gear: Metal + Aluminum Magnesium alloy gears</li>
</ul>

The MKS HV6100 Metal Gear Mini Glider Wing Servo is perfect for discus launch, hand launch, 2M flap and F3K V-tail glider applications that require a precise wing servo with low power consumption and superior holding torque, combined with the flexibility of high voltage circuitry.&nbsp; Specifications: Torque: @6.0V: 36.1 oz-in (2.6 kg-cm) @7.4V: 41.6 oz-in (3.0 kg-cm) @8.2V: 47.2 oz-in (3.4 kg-cm) Speed: @6.0V: 0.14s @7.4V: 0.11s @8.2V: 0.10s Weight: 10g Dimension: 22.5x10x23.5mm&nbsp; &nbsp; Working Voltage: 3.8 ~ 8.4 V DC Volts&nbsp; (2S LiPo unregulated) Working frequency: 1520&#956;s / 333hz Dead Band: 0.001 ms (Default) Bearing: 2 Jewel Bearings + 1 Bronze Bushing Motor: Coreless Motor Gear: Metal + Aluminum Magnesium alloy gears
