MKS Servos

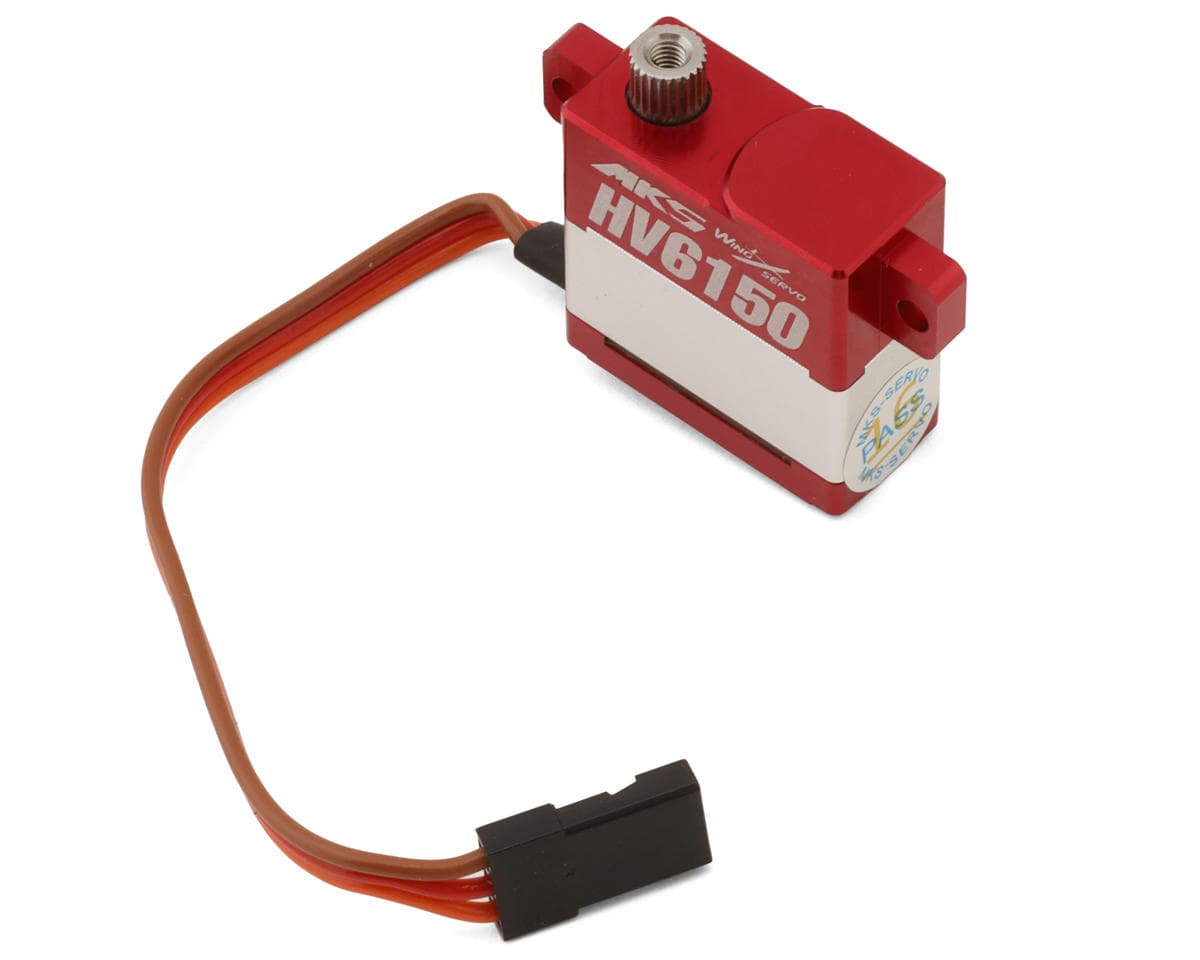

MKS Servos HV6150 Metal Gear High Voltage Digital Wing Servo
Part # MKS-HV6150
Where to buy
$71.49
Prices are as last seen at the store; stock is not tracked.
About this part
MKS Servos HV6150 Metal Gear High Voltage Digital Wing Servo. Designed to fit perfectly into thin wings this servo features an aluminum case and metal gears that you can depend on. Weighting in at only 16.4g this high voltage servo boasts an impressive 10.9 Kg/cm (151.3 oz/in) of torque!
Features:
- Uses Pulse Width Control (PWM)
- High quality coreless motor
- Dual ball bearing
- Full metal gears
Specifications:
- Voltage: 4.0-8.4V DC
- Torque:
- 4.8V: 6.3 Kg/cm (87.4oz/in)
- 6V: 8.2 Kg/cm (113.8oz/in)
- 7.4V: 9.8 Kg/cm (136.1oz/in)
- 8.4V: 10.9 Kg/cm (151.3oz/in)
- Speed:
- 4.8V: 0.274 sec/60°
- 6V: 0.190 sec/60°
- 7.4V: 0.174 sec/60°
- 8.4V: 0.159 sec/60°
- Dimensions: 23.5x11x25mm
- Weight: 16.4g
- Working Frequency: 1520s / 333Hz
- Dead Band: 0.001ms (Default)
- Temperature Range: -10 to + 60 Degree C
