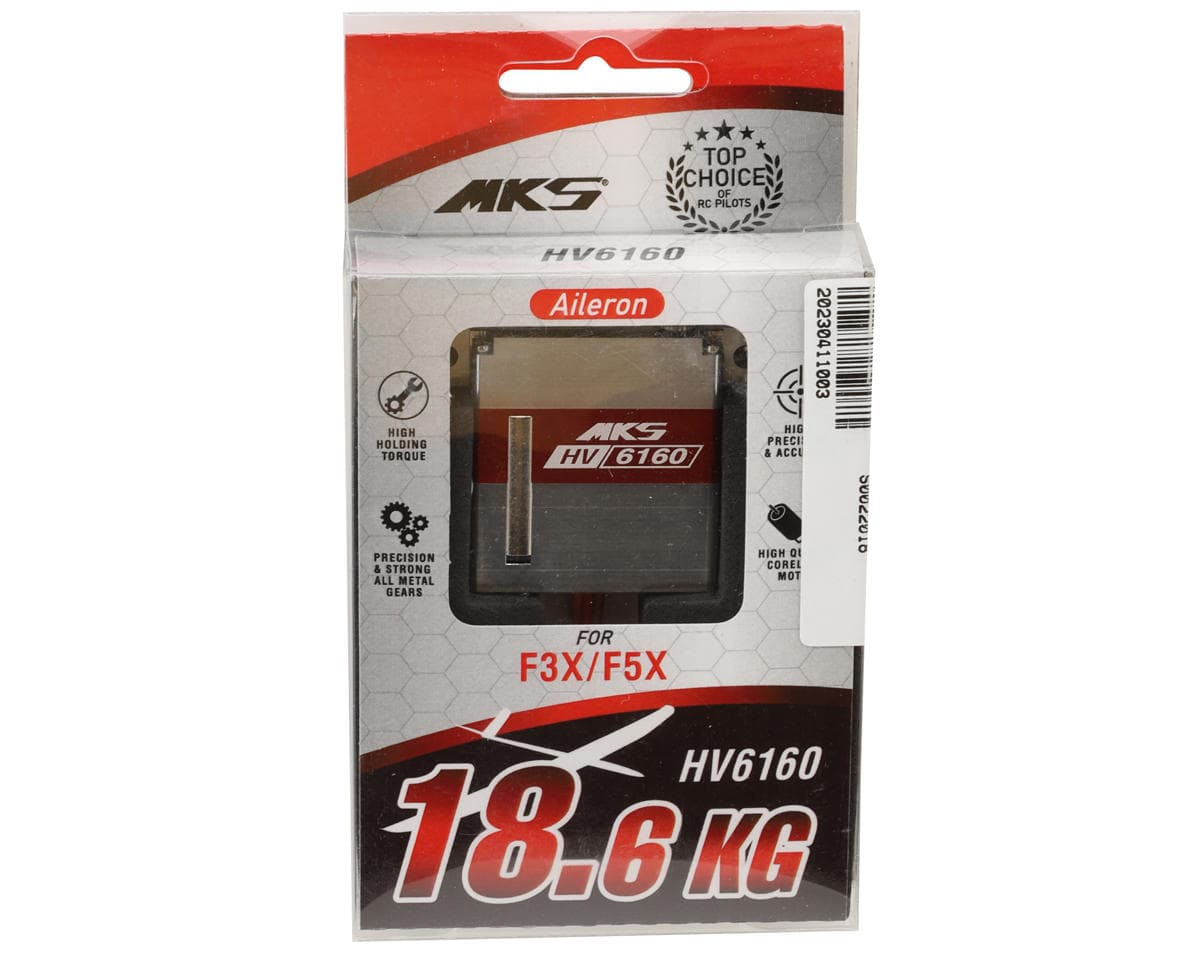

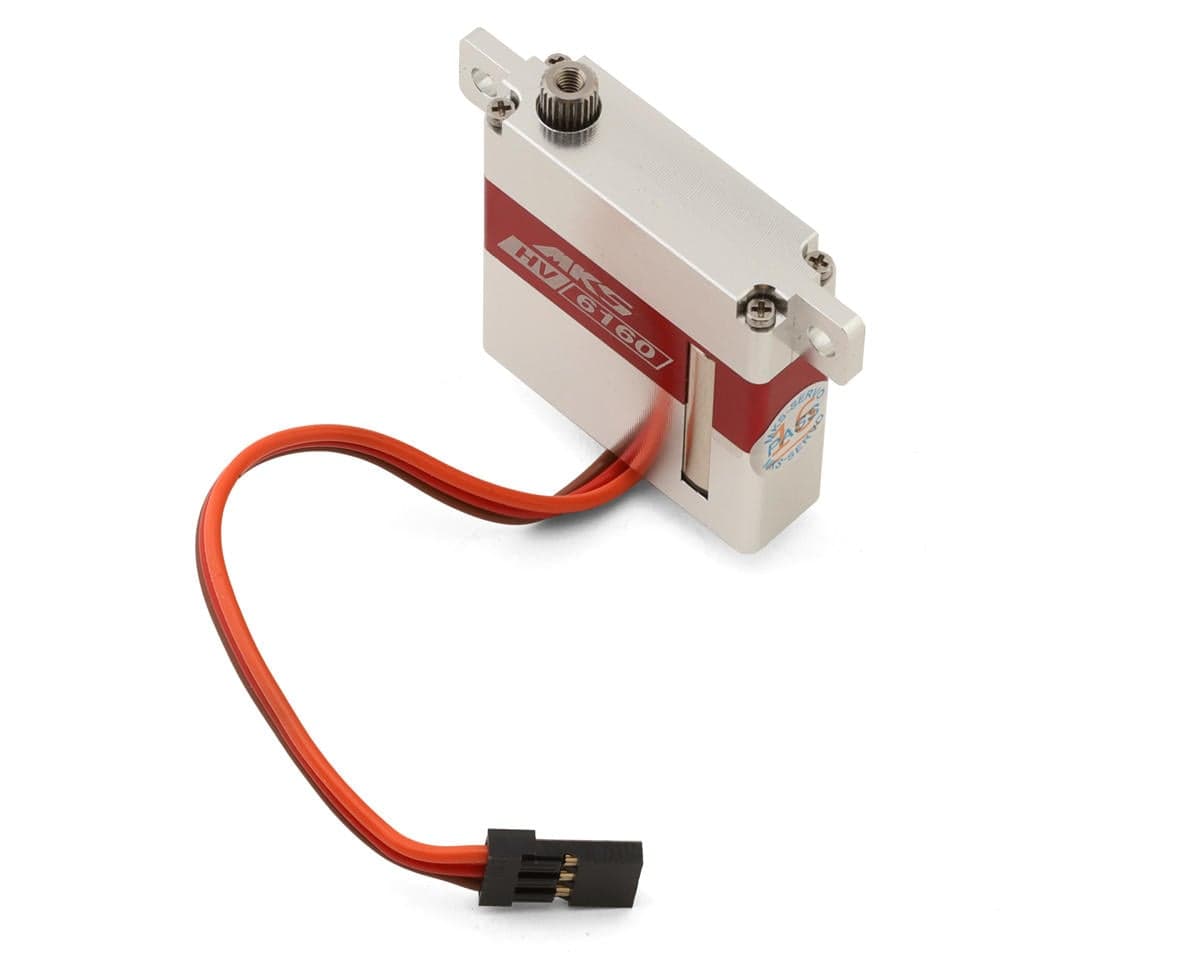

MKS Servos HV6160 Metal Gear High Voltage Digital Wing Servo
Part # MKS-HV6160
Where to buy
$76.99
Prices are as last seen at the store; stock is not tracked.
About this part
MKS Servos HV6160 Metal Gear High Voltage Digital Wing Servo. Ideal for thin wings the HV6160 is constructed using an aluminum case and thin profile making it incredibly strong. Weighing in at only 30.7 grams this servo boasts an impressive 258.3oz-in of torque!
Features:
- Uses Pulse Width Control (PWM)
- High quality coreless motor
- Dual ball bearing
- Full metal gears
Specifications:
- Voltage: 4.0-8.4V DC
- Torque:
- 4.8V: 11.7 Kg/cm (162.4 oz/in)
- 6V: 14.5 Kg/cm (201.3 oz/in)
- 7.4V: 17.0 Kg/cm (236.1 oz/in)
- 8.4V: 18.6 Kg/cm (258.3 oz/in)
- Speed:
- 4.8V: 0.230 sec/60°
- 6V: 0.182 sec/60°
- 7.4V: 0.147 sec/60°
- 8.4V: 0.133 sec/60°
- Dimensions: 33x10x35.2mm
- Weight: 30.7g
- Working Frequency: 1520s / 333Hz
- Dead Band: 0.001ms (Default)
- Temperature Range: -10 to + 60 Degree C
