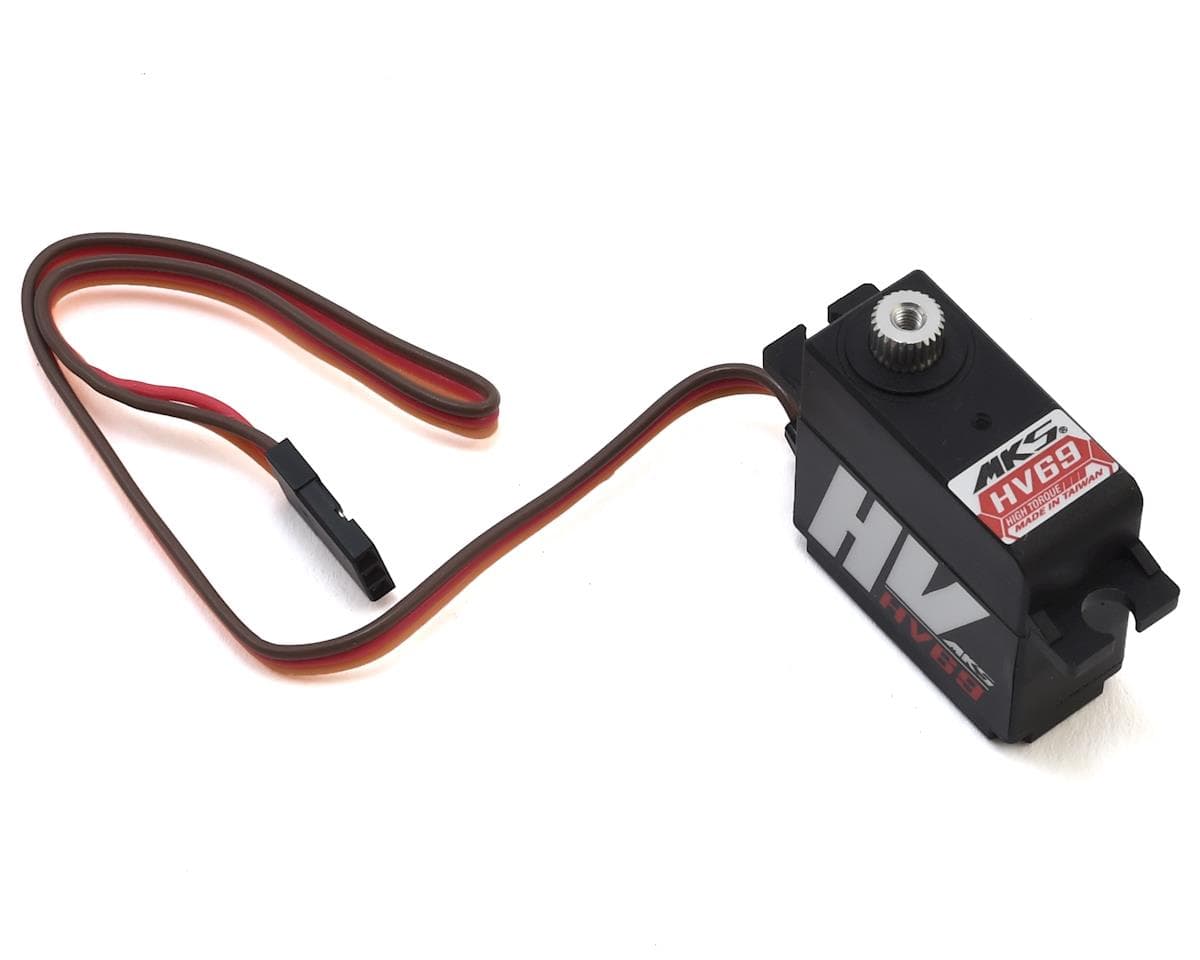

MKS Servos HV69 Metal Gear Micro Digital Servo (High Voltage)
About this part
Specifications:
- Torque:
- @6.0V: 104.2oz/in (7.5kg/cm)
- @7.4V: 127.8 oz/in (9.2 kg/cm)
- @8.2V: 141.7 oz/in (10.2 kg/cm)
- Speed:
- @6.0V: 0.13 s
- @7.4V: 0.11 s
- @8.2V: 0.10 s
- Weight: 21g
- Dimension: 29x13x28.7mm
- Working Voltage: 4.8 ~ 8.2V DC Volts (2S Lipo un-regulated)
- Working Frequency: 1520μs / 333hz
- Dead Band: 0.001 ms (Default)
- Bearing: Double bearings
- Motor: Coreless Motor
- Gear: Metal alloy gear
Reviews4.5 · 2 reviews
I bought 4 MKS-HV69 servos in March 2020 and installed them in my PA Addiction XL. I have 500+ flights on them and I am very impressed. Fast and powerful, it feels a lot more locked in than the NTX 100 servos that I purchased with the plane. These small servos are so robust that one broke 2 aileron hinges and some wood structure when I powered up standing too close to the big control surface. All is good, but I was surprised when it happened. Buying 4 more for a PA XR-61 I just bought!
Bought 5 of HV 69 and just finished my kit . Went to install elevator servo and its dead? I look to do a return and it says No longer returnable april 15 ? They only give you one month to return Now im screwed out of 75 dallors ? Where is the Quality Control? Has a QC sticker. MkS is supposed to be Quality . And Amains return policy is unfair . .jetinit
