MKS Servos

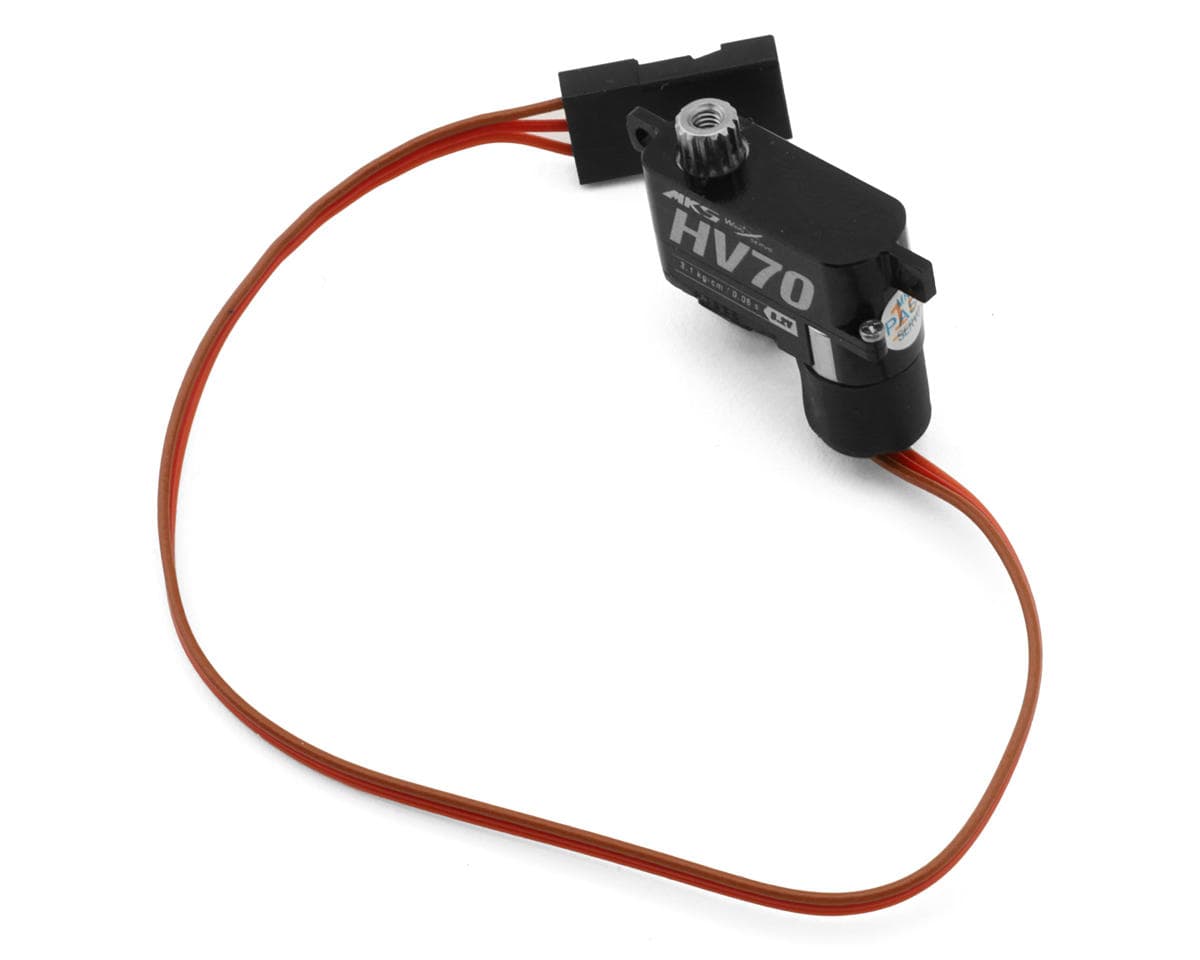

MKS Servos HV70 Metal Gear High Voltage Micro Servo
Part # MKS-HV70
Where to buy
$70.18
Prices are as last seen at the store; stock is not tracked.
About this part
MKS Servos HV70 Metal Gear High Voltage Micro Servo. This micro servo is perfect for light weight aircraft and is especially suited for aerobatic high performance applications. Weighing in at only 5.4grams and boasting up to 43.1oz-in of torque this is a must have for your next light weight build.
Features:
- Uses Pulse Width Control (PWM)
- High quality coreless motor
- Full metal gears
Specifications:
- Voltage: 4.0-8.4V DC
- Torque:
- 4.8V: 2.0 Kg/cm (27.8 oz/in)
- 6V: 2.6 kg/cm (36.1 oz/in)
- 7.4V: 2.9 Kg/cm (40.3 oz/in)
- 8.4V: 3.1 Kg/cm (43.1 oz/in)
- Speed:
- 4.8V: 0.110 sec/60°
- 6V: 0.085 sec/60°
- 7.4V: 0.064 sec/60°
- 8.4V: 0.060 sec/60°
- Dimensions: 18.6x7x16.7mm
- Weight: 5.4g
- Working Frequency: 1520s / 333Hz
- Dead Band: 0.001ms (Default)
- Temperature Range: -10 to + 60 Degree C
