About this part

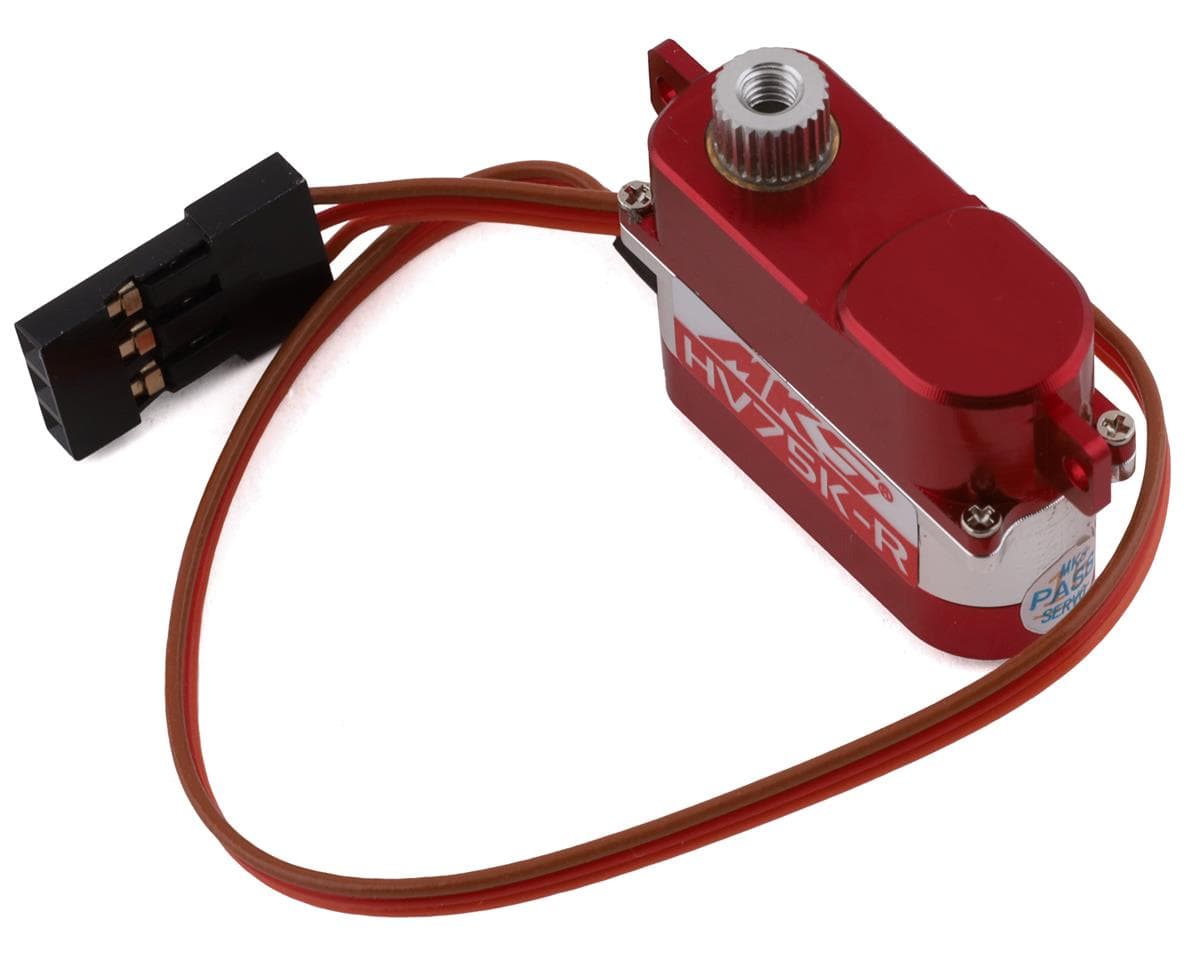

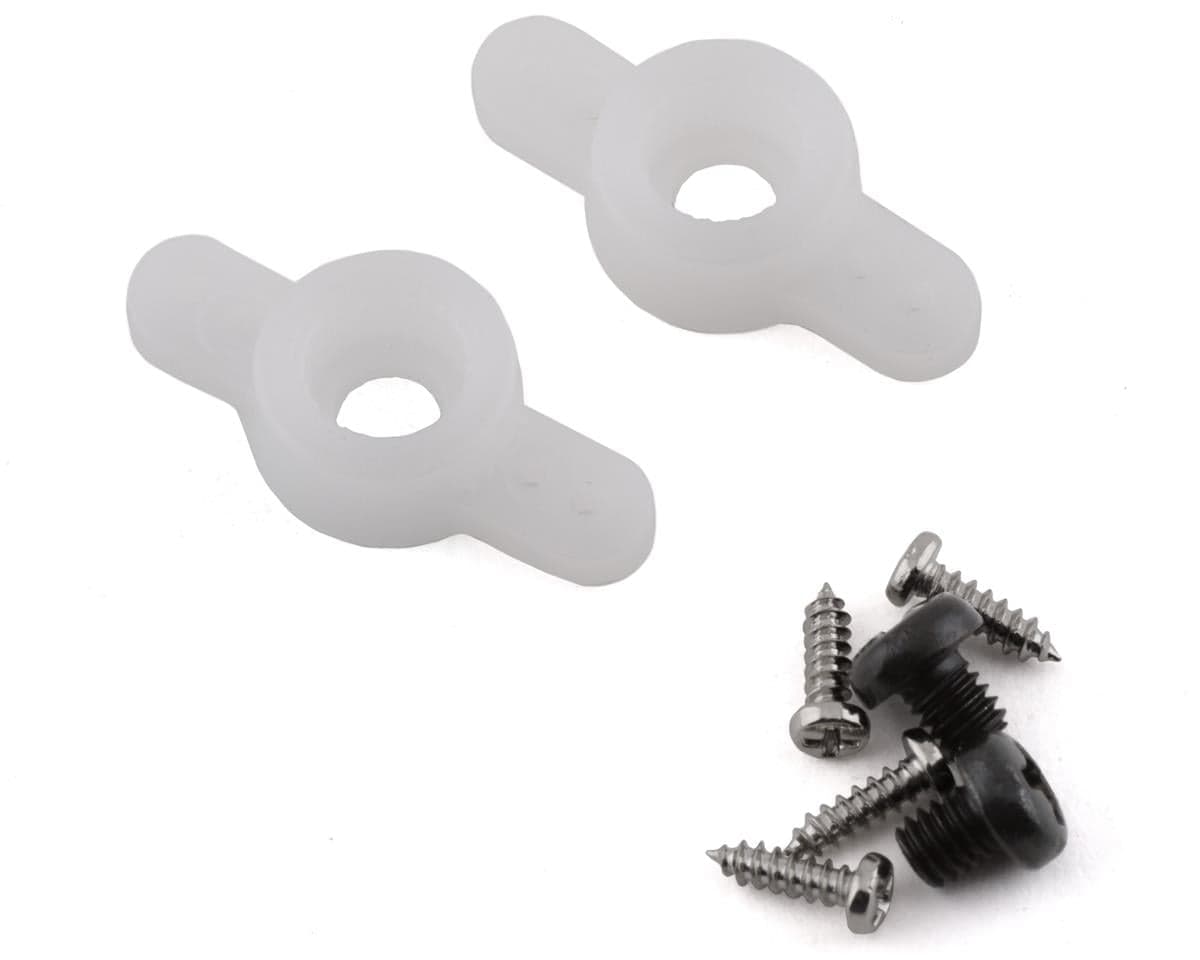

The MKS HV75K-R Coreless Metal Gear Digital Wing Servo are a great option for DLG, HLG or F3K Gliders. Designed to be extremely accurate, this servo is very light and will not add excess weight to your glider. Package includes one servo, two servo horns and hardware.
NOTE: With the precision cut gears, it is not advised to turn the servo output by hand.
NOTE: With the precision cut gears, it is not advised to turn the servo output by hand.
Features:
- Pulse Width Control
- Single ball bearing
- 7075 Chrome-Titanium alloy servo gears
- Coreless motors
Specifications:
- Voltage: 3.7-8.4V
- 6V: 31.9 oz/in (2.30 kg/cm)
- 7.4V: 38.88 oz/in (2.8 Kg/cm)
- 8.4V: 45.83 oz/in (3.3 Kg/cm)
- Speed:
- 6V: 0.13 sec/60°
- 7.4V: 0.10 sec/60°
- 8.4V: 0.09 sec/60°
- Dimensions: 23 X 9 X 16.7 mm
- Weight: 0.26oz (7.5g)
- Dead Band: 0.001ms (Default)
- Working Frequency: 1520us / 333Hz
