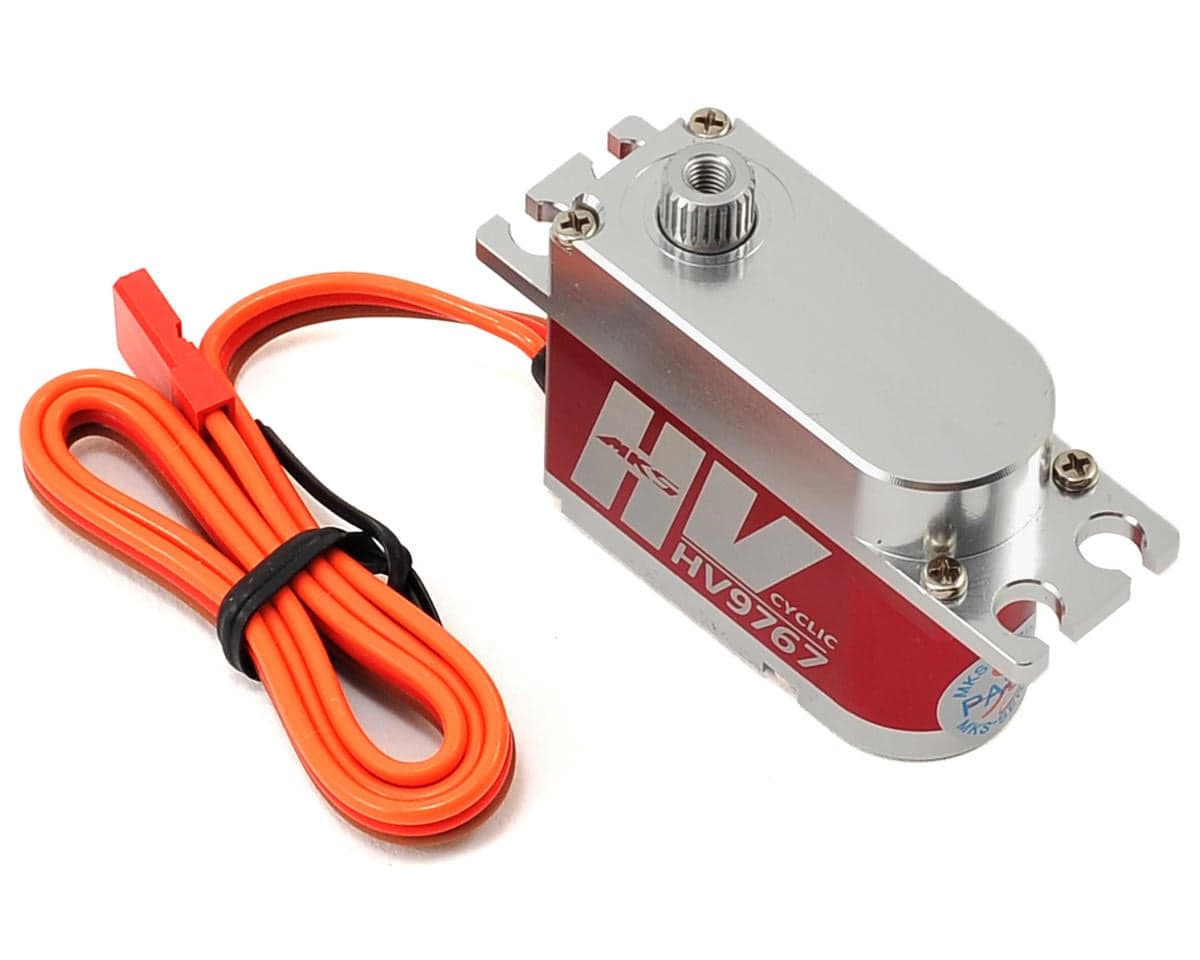

Name: MKS Servos HV9767 Titanium Gear High Voltage Cyclic Servo w/Aluminum Case
Brand: MKS Servos
SKU: MKS-HV9767
Price: 107.25 USD

MKS Servos HV9767 Titanium Gear High Voltage Cyclic Servo w/Aluminum Case

AMain Hobbies

This is an MKS HV9767 Titanium Gear High Voltage Cyclic Servo with Aluminum Case. This servo is recommended for 500 class helicopter cyclic applications.


Specifications:


<ul>
 <li>Torque: </li>
 <ul>
 <li>@6.0V: 94.4 oz-in (6.8 kg-cm)</li>
 <li>@7.4V: 118.0 oz-in (8.5 kg-cm)</li>
 <li>@8.2V: 130.5 oz-in (9.4 kg-cm)</li>
 </ul>
 <li>Speed:</li>
 <ul>
 <li>@6.0V: 0.090 s</li>
 <li>@7.4V: 0.078 s</li>
 <li>@8.4V: 0.070 s</li>
 </ul>
 <li>Weight: 38.55 g</li>
 <li>Dimension: 35.5x15x28.5mm&nbsp;&nbsp;</li>
 <li>Working Voltage: 5.5 ~ 8.4 V DC Volts&nbsp; (2S Lipo un-regulated)</li>
 <li>Working Frequency: 1520?s / 333hz</li>
 <li>Dead Band: 0.001 ms (Default)</li>
 <li>Bearing: 2BB&nbsp;</li>
 <li>Motor: Coreless Motor</li>
 <li>Gear: Chrome-Titanium alloy gear</li>
 <li>Electric Current Draw: 2.6A max.(8.2V)?2.4A max.(7.4V)?2.0A max (6.0V)</li>
 <li>Wire Length: 29.5 cm</li>
</ul>

This is an MKS HV9767 Titanium Gear High Voltage Cyclic Servo with Aluminum Case. This servo is recommended for 500 class helicopter cyclic applications. Specifications: Torque: @6.0V: 94.4 oz-in (6.8 kg-cm) @7.4V: 118.0 oz-in (8.5 kg-cm) @8.2V: 130.5 oz-in (9.4 kg-cm) Speed: @6.0V: 0.090 s @7.4V: 0.078 s @8.4V: 0.070 s Weight: 38.55 g Dimension: 35.5x15x28.5mm&nbsp;&nbsp; Working Voltage: 5.5 ~ 8.4 V DC Volts&nbsp; (2S Lipo un-regulated) Working Frequency: 1520?s / 333hz Dead Band: 0.001 ms (Default) Bearing: 2BB&nbsp; Motor: Coreless Motor Gear: Chrome-Titanium alloy gear Electric Current Draw: 2.6A max.(8.2V)?2.4A max.(7.4V)?2.0A max (6.0V) Wire Length: 29.5 cm
