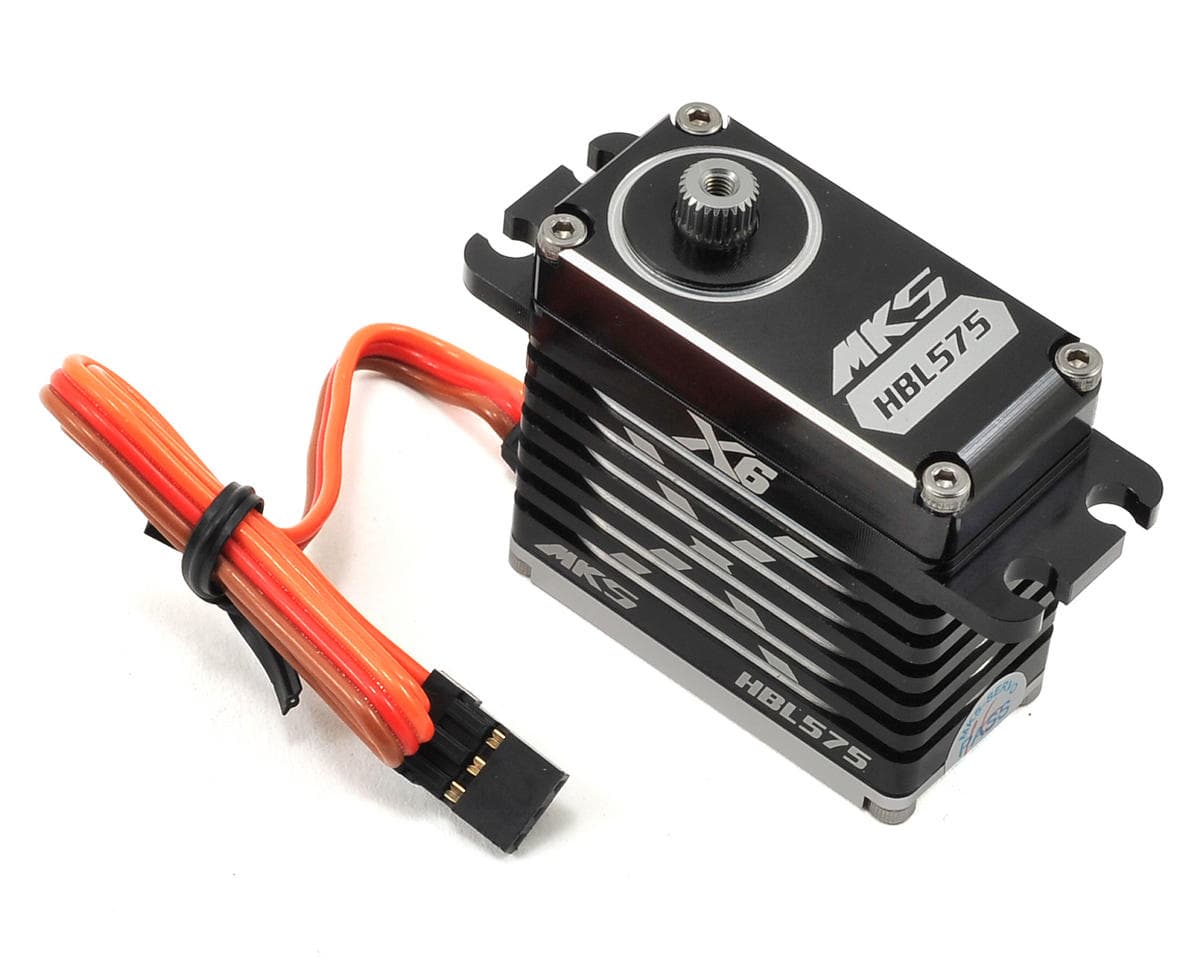

MKS Servos X6 HBL575 Brushless Titanium Gear High Speed Digital Servo (High Voltage)
About this part
The MKS X6 HBL575 Brushless Titanium Gear High Speed Digital Servo is perfect for 1/10 and 1/8 scale applications that require high speed, low power consumption and superior holding torque, combined with the flexibility of high voltage circuitry in a standard size package.
Features:
- Ideal for 1/10 and 1/8 buggy applications
- High speed, incredible efficiency, and low power consumption
- Chrome-Titanium gears for precision and durability
- .082 / 249.9 oz-in @6.0V and .06 / 333.3 oz-in @ 8.2V!
- Standard dimensions make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- HD 4096 Resolution
- 0.0008ms Dead Band
- Superior Holding Torque
- Japanese Brushless Motor
Specifications:
- Torque:
- @6.0V: 249.97 oz-in (18 kg-cm)
- @7.4V: 305.5 (22 kg-cm)
- @8.2V: 333.3 (24 kg-cm)
- Speed:
- @6.0V: 0.082 s
- @7.4V: 0.066 s
- @8.2V: 0.06 s
- Weight: 71.4 g
- Dimension: 40x20x38.5mm
- Working Voltage: 3.5 ~ 8.4 V (2S LiPo unregulated)
- Working frequency: 1520?s / 333Hz
- Dead Band: 0.0008 ms (Default)
- Bearing: 2BB
- Motor: Japan High Quality Brushless Motor
- Gear: Chrome-Titanium alloy gear
Reviews5.0 · 4 reviews
Just about as fast as servo as possible. Pretty much instant response. Great hold too. Worth every penny. Running in Tekno eb48 2.2
Excellent servo. It's faster and more durable than the Tekin T250 I use to have on my buggy.
badass servos. X8 power speed and reliability with regular futaba spline output gear. i own two sets and they rock!
We have owned this servo 6 months now and find this servo to be by far the best servo in our inventory. Very pleased.
All four reviews are highly positive, rating the servo 5 out of 5. Reviewers describe fast, near-instant response and strong holding power. One reviewer compares it favourably with a Tekin T250 on a buggy, citing speed and durability, and another reports owning two sets. One notes use with a Tekno EB48 2.2 and another reports six months of ownership as a fleet servo. No recurring problems or disagreements are mentioned. Reviews are brief and do not address price beyond one remark that it is worth the cost.
- + Fast, near-instant response
- + Strong holding power
- + Durable over extended use
- + Good value for money
