About this part

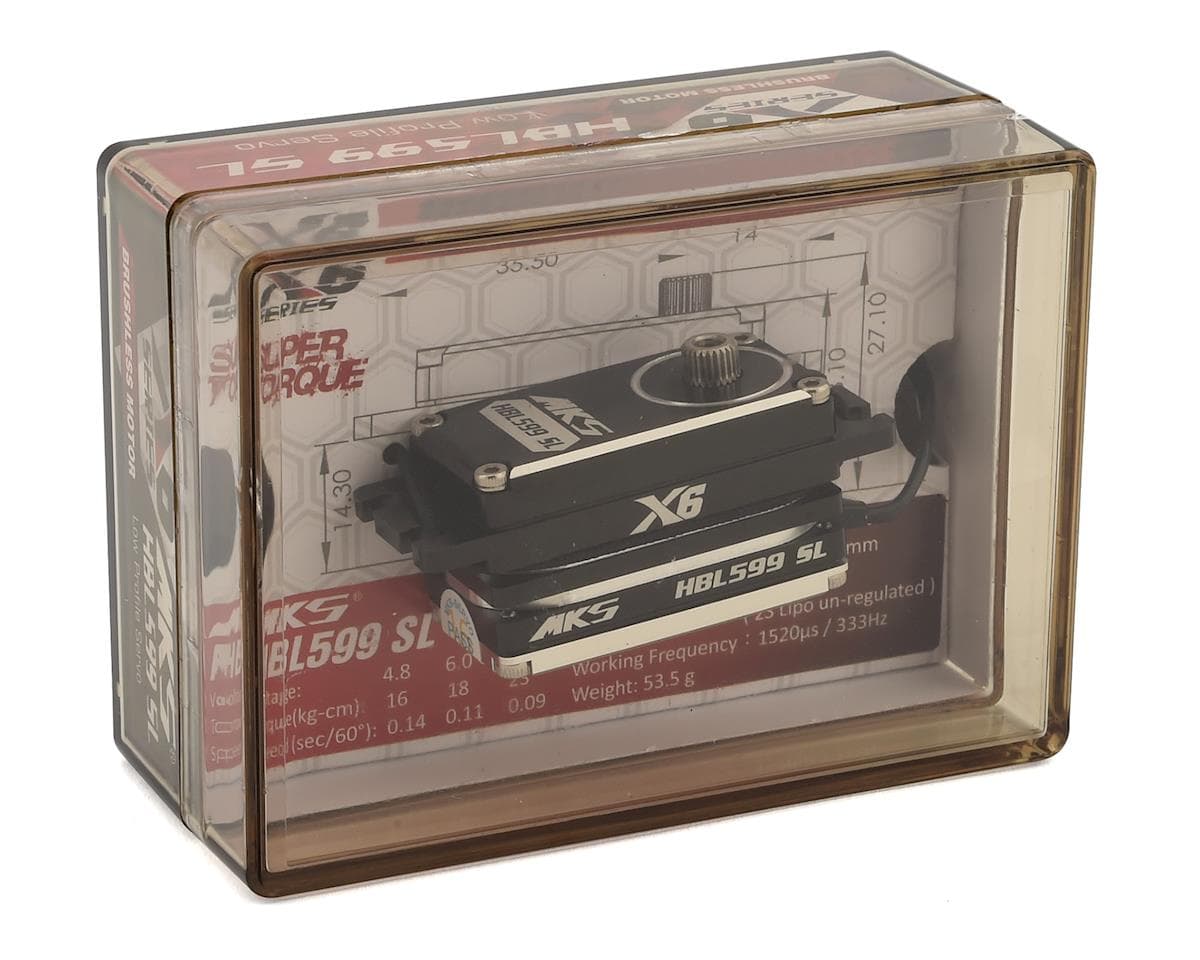

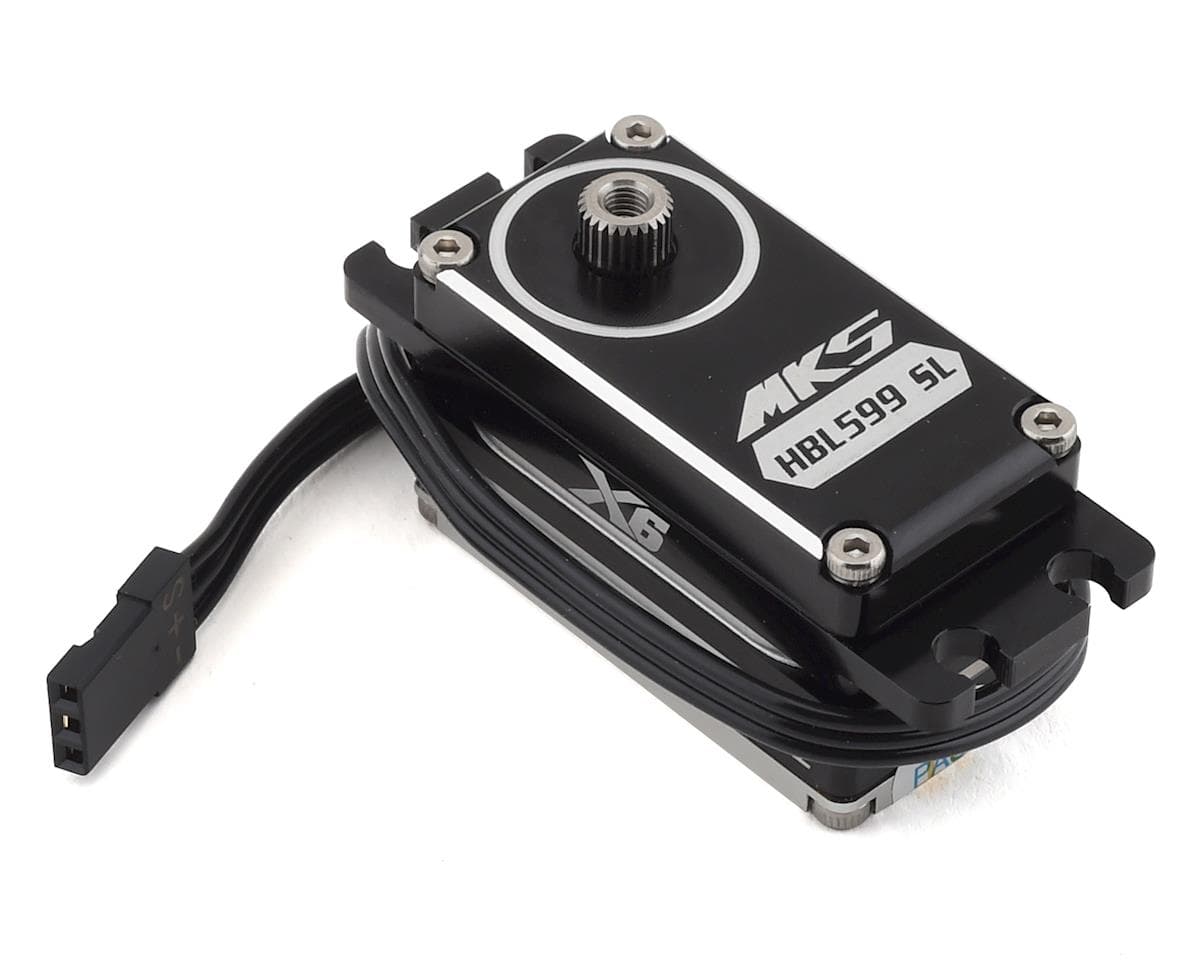

The MKS X6 HBL599SL Brushless Titanium Gear High Torque Digital Servo is perfect for 1/10 to 1/5 scale applications that require stump pulling torque, low power consumption and high speed, combined with the flexibility of high voltage circuitry in a low profile size package.
Features:
- Ideal for 1/10 monster truck, 1/8 truck and buggy and 1/5 scale applications
- Ultra torque, incredible efficiency, and low power consumption
- Smoother, faster, more efficient for top level performance
- Chrome-Titanium gears for precision and durability
- .11 / 249 oz-in @6.0V and .09 / 319 oz-in @ 8.2V!
- Standard dimensions make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- HD 4096 Resolution
- 0.0008ms Dead Band
- Superior Holding Torque
- Japanese Brushless Motor
Specifications:
- Torque:
- @6.0V: 249.9 oz-in
- @7.4V: 319.4 oz-in
- Speed:
- @6.0V: 0.11 s
- @7.4V: 0.09 s
- Weight: 53.5 g
- Dimension: 40x20x23.1mm
- Working Voltage: 3.5 ~ 8.4 V (2S LiPo unregulated)
- Working frequency: 1520μs / 333Hz
- Dead Band: 0.0008 ms (Default)
- Bearing: 2BB
- Motor: Japan High Quality Brushless Motor
- Gear: Chrome-Titanium alloy gear
Reviews5.0 · 3 reviews
I purchased two of this for my D418 and B6D.1 upgrade my currently MKS-HBL575SL but this latest model super strong and smooth hit many times in wall and pipe with out problem center alignment still same not like other servo. I use to have protek servo 160T and 160SS but this servo hands me down. I highly recommended for 1/10 4WD and 2WD scale.
With good pricing from Amain for Black Friday I always wanted to try MKS servos and let me tell you that that the 599SL did not disappoint me in my 1/10 4wd buggy (B74.1D) . The servo ears are perfect and let you adjust the proper geometry for your steering. This is the most linear steering I got from my wheeler, really precise and hold center really well. I will update more down the road since lockdowns does not permits more testing at the track. Overall really satisfied , only time will tell if the servo can handle a couple of crashes and hits. This servo was only tested at 6volts and it was perfect. Update (April 2021) after a couple of practice sessions this servos is still awesome and highly recommended for any 1/10 Buggies and stadiums trucks. No wonders Ty Tessmann uses these servos their pretty amazing. Update ( January 31st 2024) this servo is still the king and yes this servo is much stronger than the other cheaper version the HBL550LX (also really good) but does not come close to the power of the 599sl. If you race seriously and have the money to spare go for this one , if your on the fence because of budget the other HBL550LX will do the job but at this price point the reefs 299LP is a better buy. Enjoy
Excellent servo. Quality and performance is top notch. Worth the purchase.
Three verified owners all rate this high-voltage brushless titanium-gear low-profile servo 5/5. Reviewers report strong torque, smooth and linear steering, good centre hold, and durability through wall and pipe hits in 1/10 2WD and 4WD buggies and wheelers. One owner upgraded from the HBL575SL and another from Protek 160T/160SS servos and found this model stronger. Reviewers note the servo ears allow proper steering geometry adjustment. One review was tested only at 6V and another noted long-term crash durability was not yet proven. No reviewer raised a clear complaint.
- + Strong torque
- + Smooth, linear steering
- + Holds centre well
- + Durable through hits
- − Few reviews
- − Long-term crash durability not yet proven in reviews
