About this part

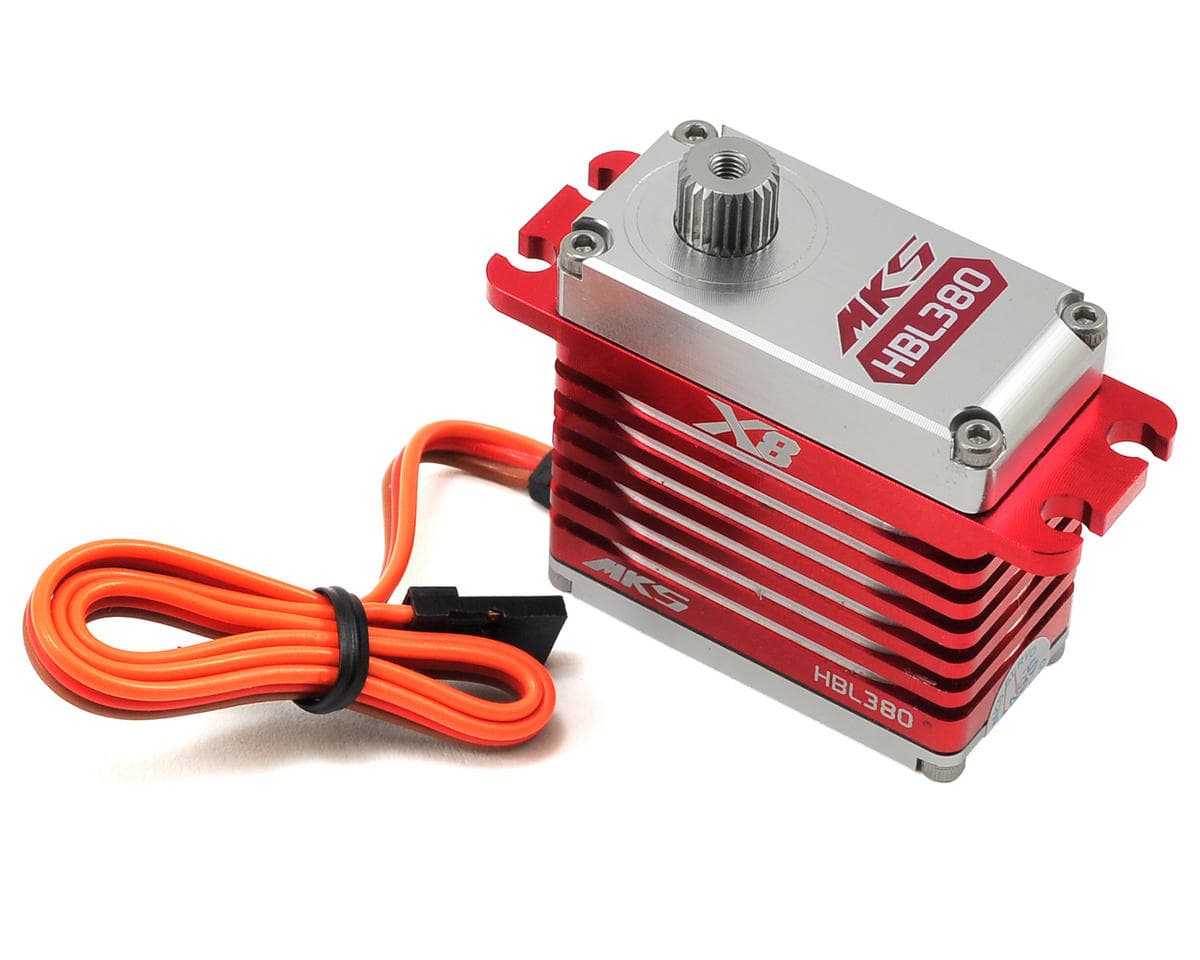

The MKS X8 HBL380 Brushless Titanium Gear High Torque Large Scale Digital Servo is perfect for larger, heavier applications that require high speed and torque, low power consumption and superior holding torque, combined with the flexibility of high voltage circuitry in a standard size package.
Features:
- Ideal for 1/8 truck and 1/5 scale applications, as well as large scale airplanes and jets
- Perfect for cyclic on 700-800 class helicopters
- High speed, incredible efficiency, and low power consumption
- Chrome-Titanium gears for precision and durability
- .082 / 249.9 oz-in @6.0V and .06 / 333.3 oz-in @ 8.2V!
- Standard dimensions make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- HD 4096 Resolution
- 0.0008ms Dead Band
- Superior Holding Torque
- Japanese Brushless Motor
Specifications:
- Torque:
- @6.0V: 430 oz-in (31 kg-cm)
- @7.4V: 541.6 (39 kg-cm)
- @8.2V: 569.38 (41 kg-cm)
- Speed:
- @6.0V: 0.11 s
- @7.4V: 0.09 s
- @8.2V: 0.08 s
- Weight: 73 g
- Dimension: 40x20x38.5mm
- Working Voltage: 3.5 ~ 8.4 V (2S LiPo unregulated)
- Working frequency: 1520μs / 333Hz
- Dead Band: 0.0008 ms (Default)
- Bearing: 8x12mm double bearings
- Motor: Japan High Quality Brushless Motor
- Gear: Chrome-Titanium alloy gear
- Electric current draw: 6.2A max. (8.2V) / 5.8A max. (7.4V) / 4.7A max. (6.0V)
- Wire Length: 24 cm
Reviews4.7 · 3 reviews
greatest servo on the planet for heli cyclic so much holding power it's unreal
I use these servos in my scale helicopter 7 and 800 size on both the cyclic and tail rotor. They have phenomenal holding power and the movements are crisp and precise so it really helps when using a flybarless controller. I use Ikons now and these servos are a perfect match. I gave it only 4 stars because nothing is perfect. The servo chatter takes a bit of getting used to and using SeaCraft metal arms, they are difficult to get on and off without a puller. I use these servos at high voltage, set at 7 volts by my Kontronik BEC.
Lots of torque! Sleek look and Very impressive performance!
Reviewers consistently praise the servo's holding power and torque, with one describing it as strong enough for heli cyclic use, and another noting crisp, precise movement that pairs well with a flybarless controller. One reviewer uses it on cyclic and tail rotor in 700 and 800 size scale helicopters, running at 7 volts from a BEC. Noted drawbacks include servo chatter that takes time to get used to, and difficulty removing SeaCraft metal arms without a puller. Reviews are few and mostly from verified owners, and they focus on helicopter applications.
- + Strong holding power and torque
- + Crisp, precise movement
- + Good match for flybarless controllers
- + Sleek appearance
- − Servo chatter takes getting used to
- − Metal arms hard to fit and remove without a puller
