MST CFX DL1 1/10 Electric 4x4 Scale Trail Rock Crawler Kit w/DL1 Body
About this part
Ultimate Scale Realistic Off-Road Trail Van
Conquer any trail with the MST CFX DL1 1/10 Electric 4x4 Scale Trail Rock Crawler Kit — built with durable metal gears, advanced suspension, precision steering, and a highly detailed mini van body for unmatched climbing performance, realism, and customization.
About the CFX DL1
Durable & Efficient Drivetrain
The MST CFX DL1 1/10 Electric 4x4 Scale Trail Rock Crawler Kit features all-metal gears and a heavy-duty steel CVA drive shaft for smooth, efficient power transfer and long-lasting durability. Full ball bearings reduce operating resistance, while the SA25 front and rear axles, combined with a front-mounted motor and rear-mounted battery, deliver excellent climbing performance and balanced handling.
Exceptional Suspension And Clearance
Equipped with aluminum 4-link suspension and oil-filled threaded shocks, the chassis provides strong rigidity and superior climbing ability. Adjustable shock mounts, scale-realistic solid straight locked axles, 56mm ground clearance, and 55-degree approach and departure angles ensure optimal performance on challenging off-road terrain while maintaining on-road control.
Advanced Steering And Handling
The front motor layout mimics a real vehicle, providing space for interior customization and realistic weight distribution. Axle-mounted servo offers direct, precise steering, while extreme steering angles and a minimal radius of gyration give the crawler exceptional maneuverability in tight or technical trails.

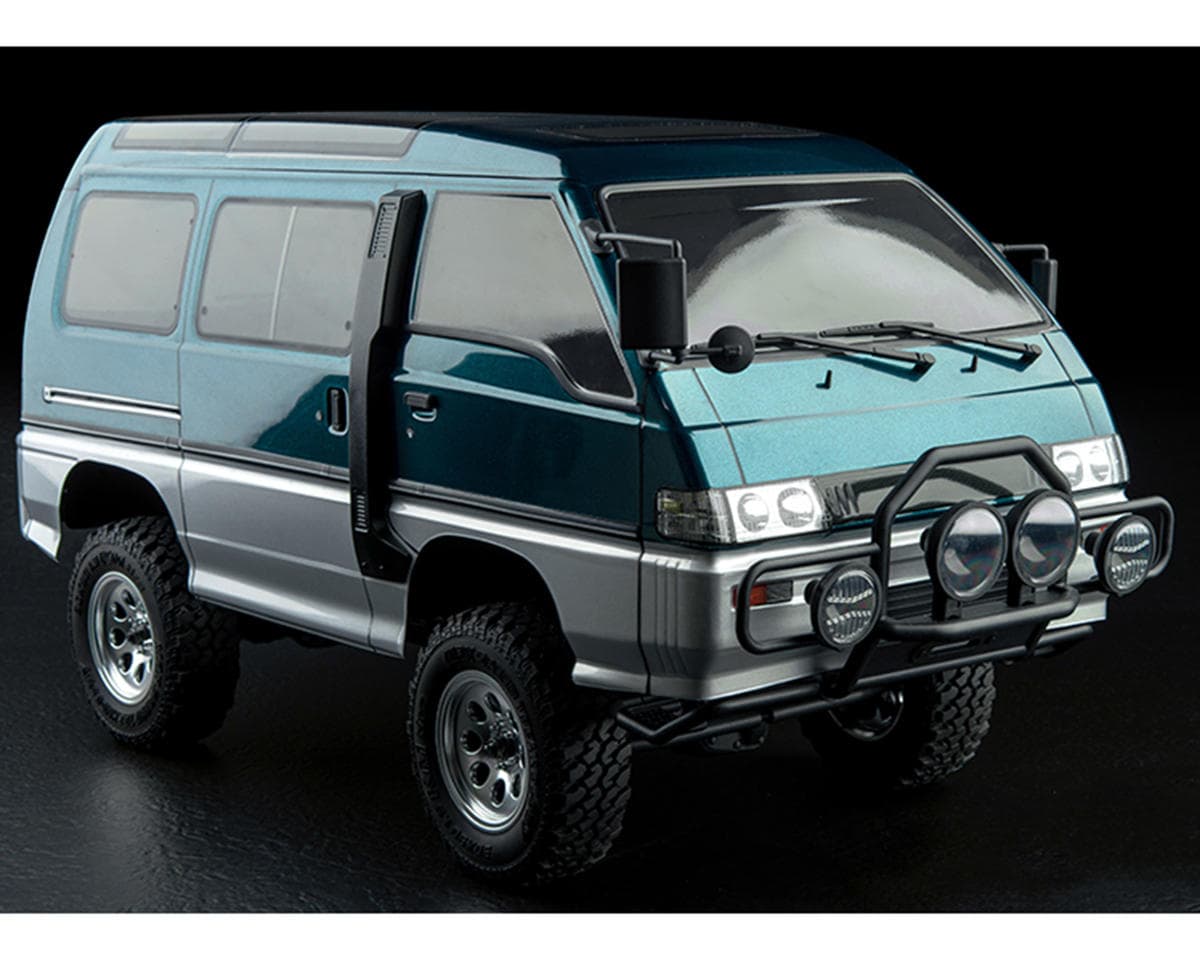

Realistic Scale Mini Van

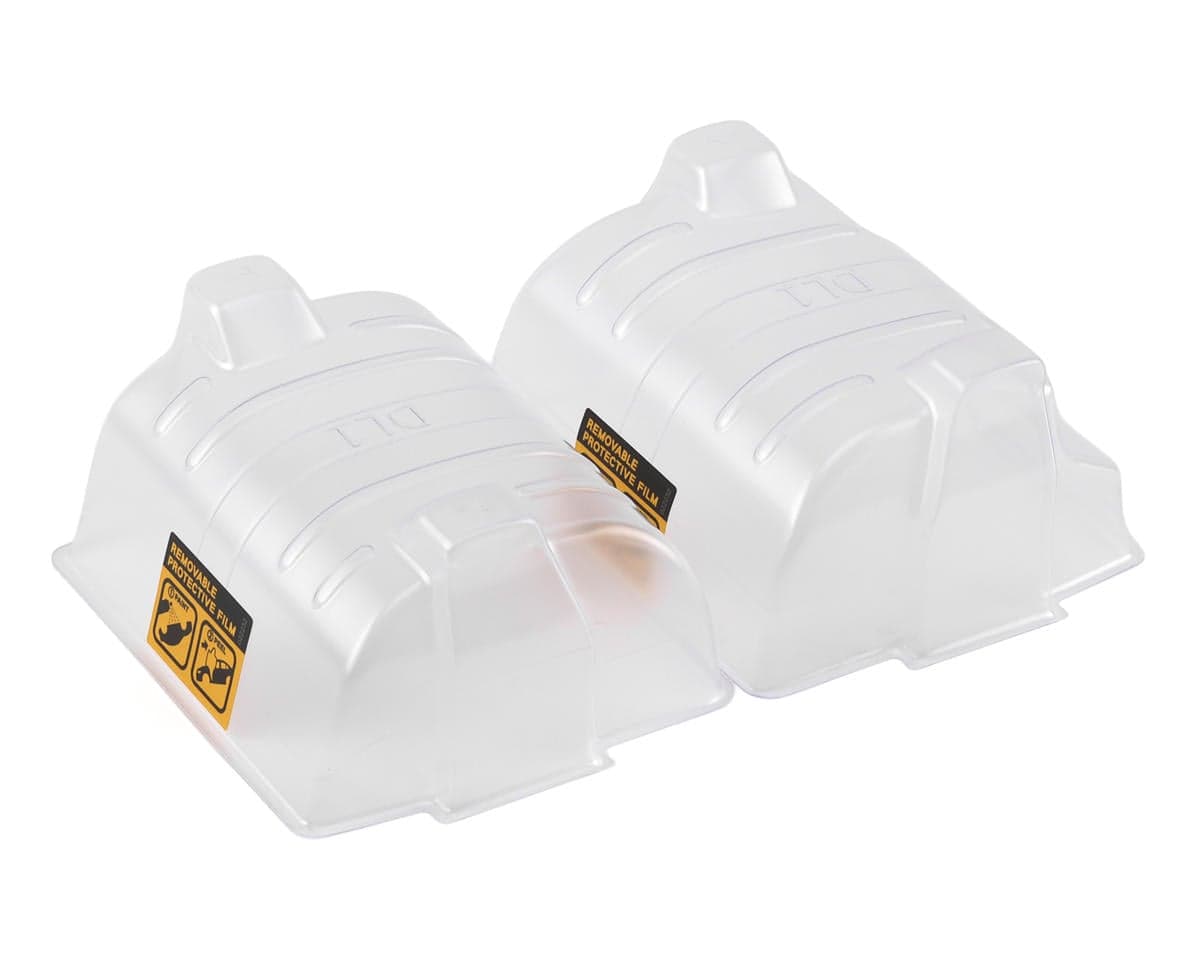

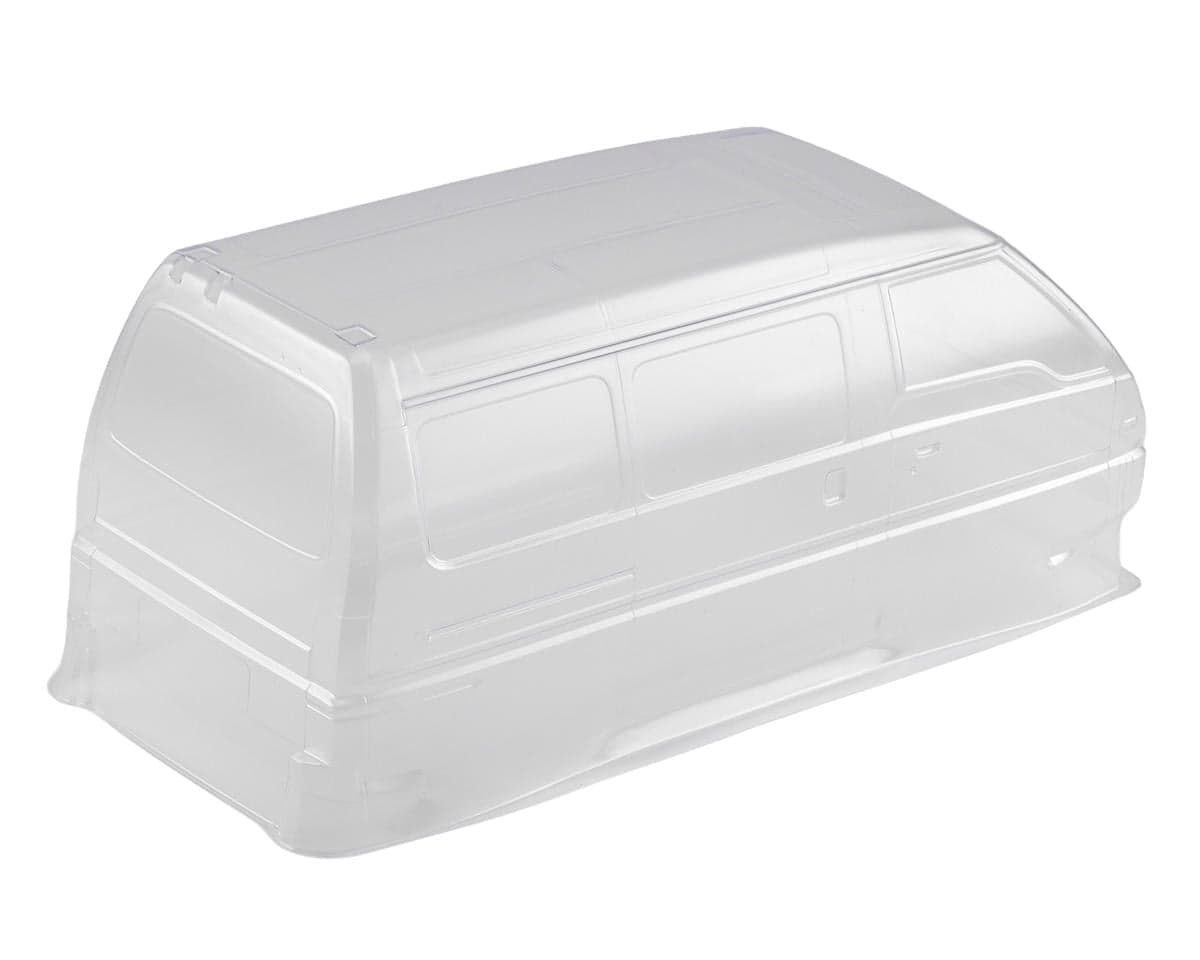

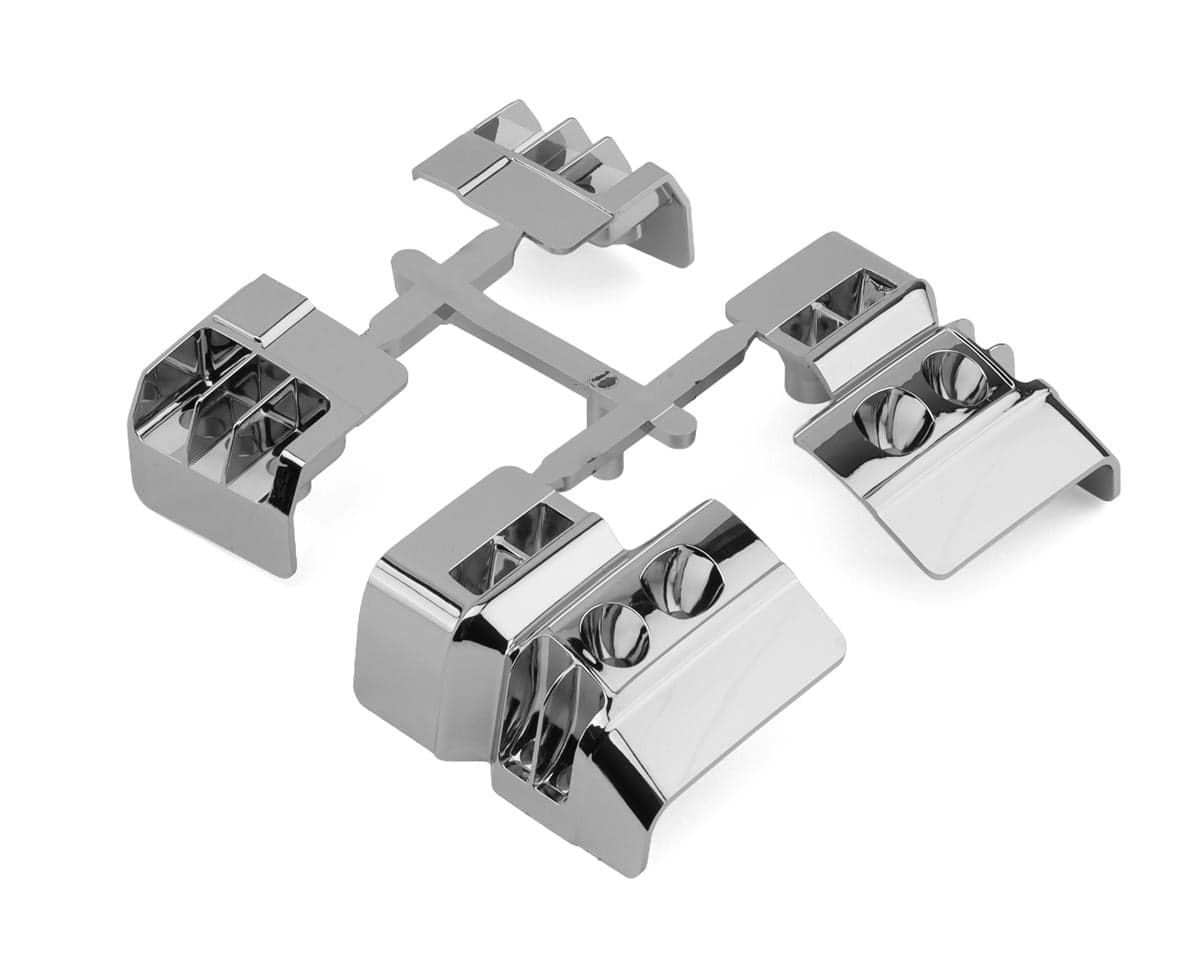

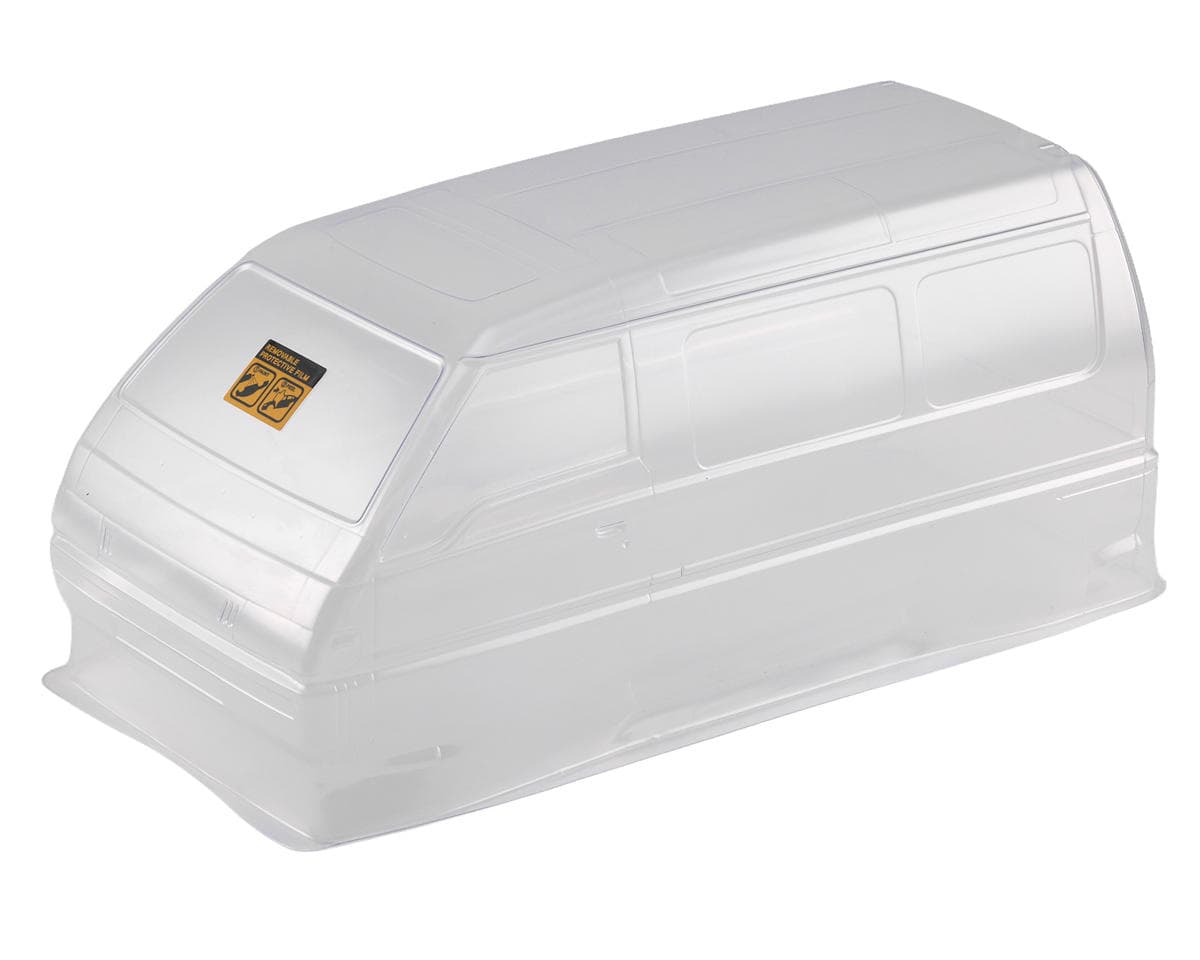

The DL1 body is made from heavy-duty polycarbonate and includes molded accessories such as side mirrors, bumpers, wipers, rear mirrors, ladder, and light buckets. Inner fenders, window masks, pre-cut decals, and protective overspray film simplify painting, LED installation, and customization, delivering true-to-life scale realism without sacrificing durability.
Features:
- All-metal transmission gears for smooth, durable power transfer
- Heavy-duty steel CVA drive shaft for efficient performance
- Aluminum 4-link suspension with oil-filled threaded shocks for superior climbing
- Full ball bearing set reduces operating resistance
- Front-mounted motor and rear-mounted battery for balanced handling
- Scale-realistic solid straight locked axles with 56mm ground clearance
- 55-degree approach and departure angles for extreme off-road capability
- Axle-mounted servo provides precise direct steering
- Heavy-duty polycarbonate DL1 mini van body with molded accessories
- Includes window masks, pre-cut decals, and overspray film
Includes:
- (1) CFX DL1 1/10 Electric 4x4 Scale Trail Rock Crawler Kit
- (1) DL1 Body

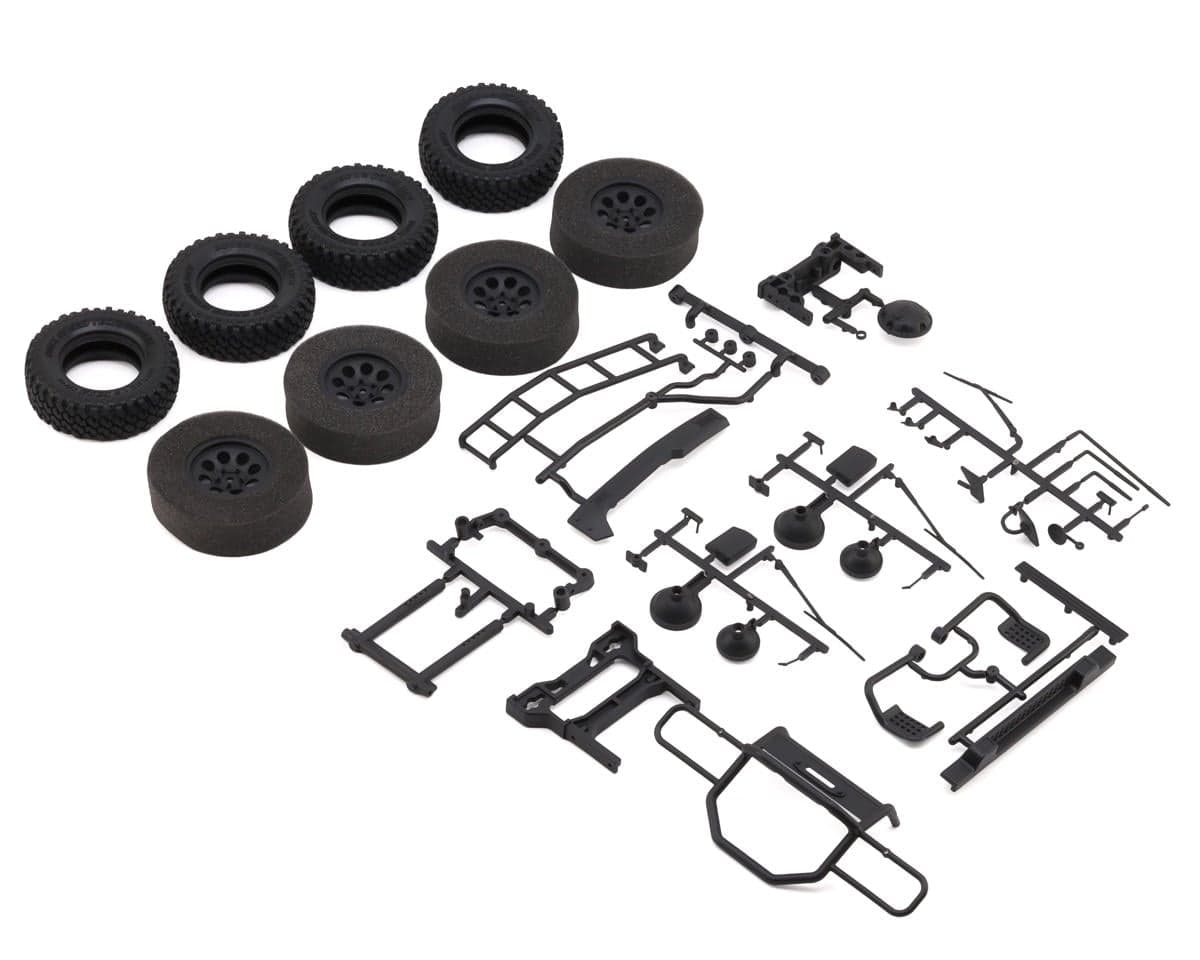

- (1) Molded Scale Accessories Set

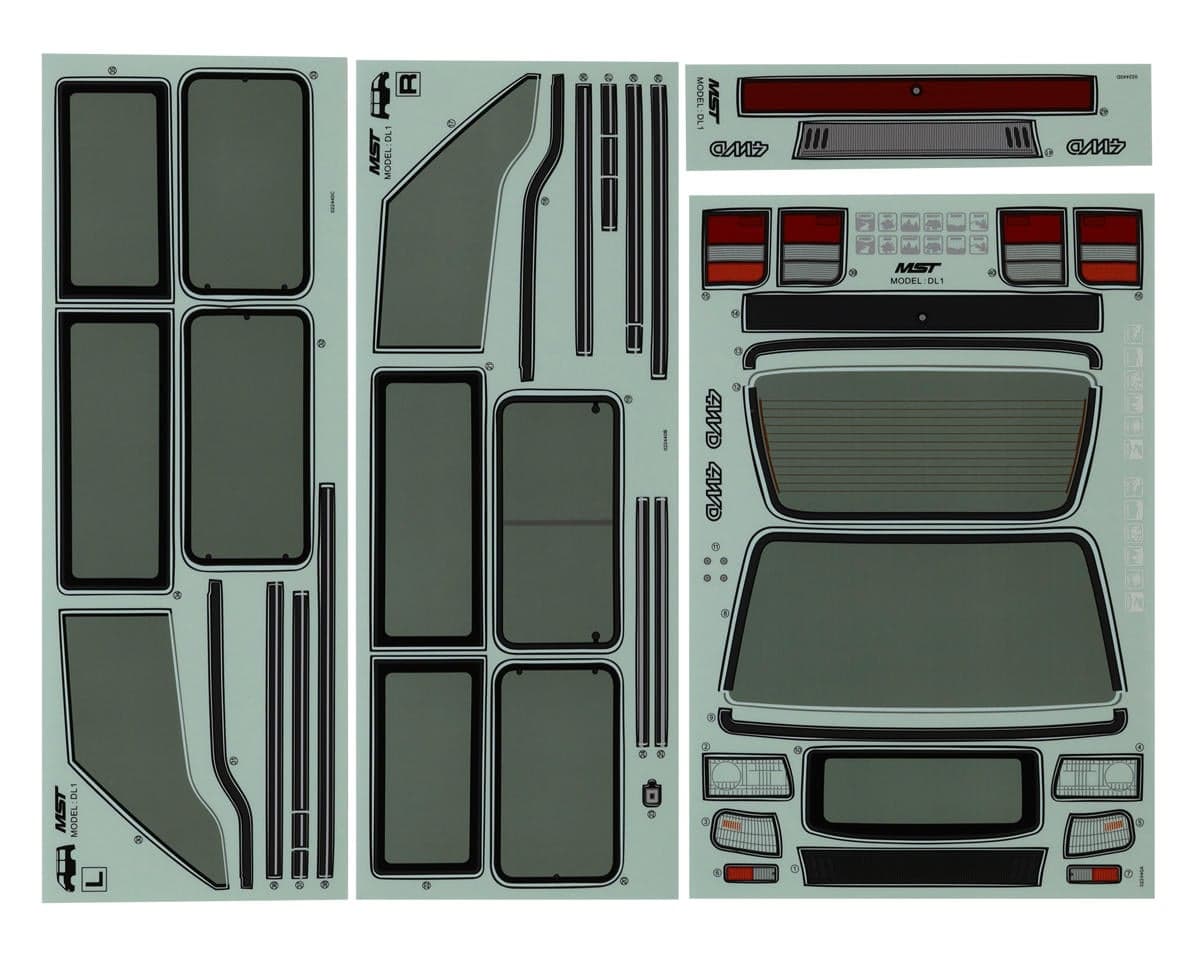

- (2) Decal Sheets
- (1) Window Masks Sheet
- (4) 1.9" Wheels & Tires
- Manual
Needed To Complete:
- (1) 2+ Channel Transmitter/Receiver System
- (1) Compatible Steering Servo (25T Servo Horn Included)
- (1) 2-4S (7.4V - 20V) LiPo Battery
- (1) 540 Class Motor
- (1) ESC (Electronic Speed Control)
- (1) Compatible Battery Charger
- Assembly Tools & Polycarbonate Paint
Specifications:
| Scale | 1:10 |
|---|---|
| Drive | 4WD |
| Power Source | 2S LiPo |
| Length | - |
| Wheelbase | 9.53in (242mm) |
| Width | 7.68 (195mm) |
| Height | - |
| Weight | - |
| Assembly Level | Kit |
*NOTE: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
Manuals:
User Manual (A)
User Manual (B)
Body Manual
