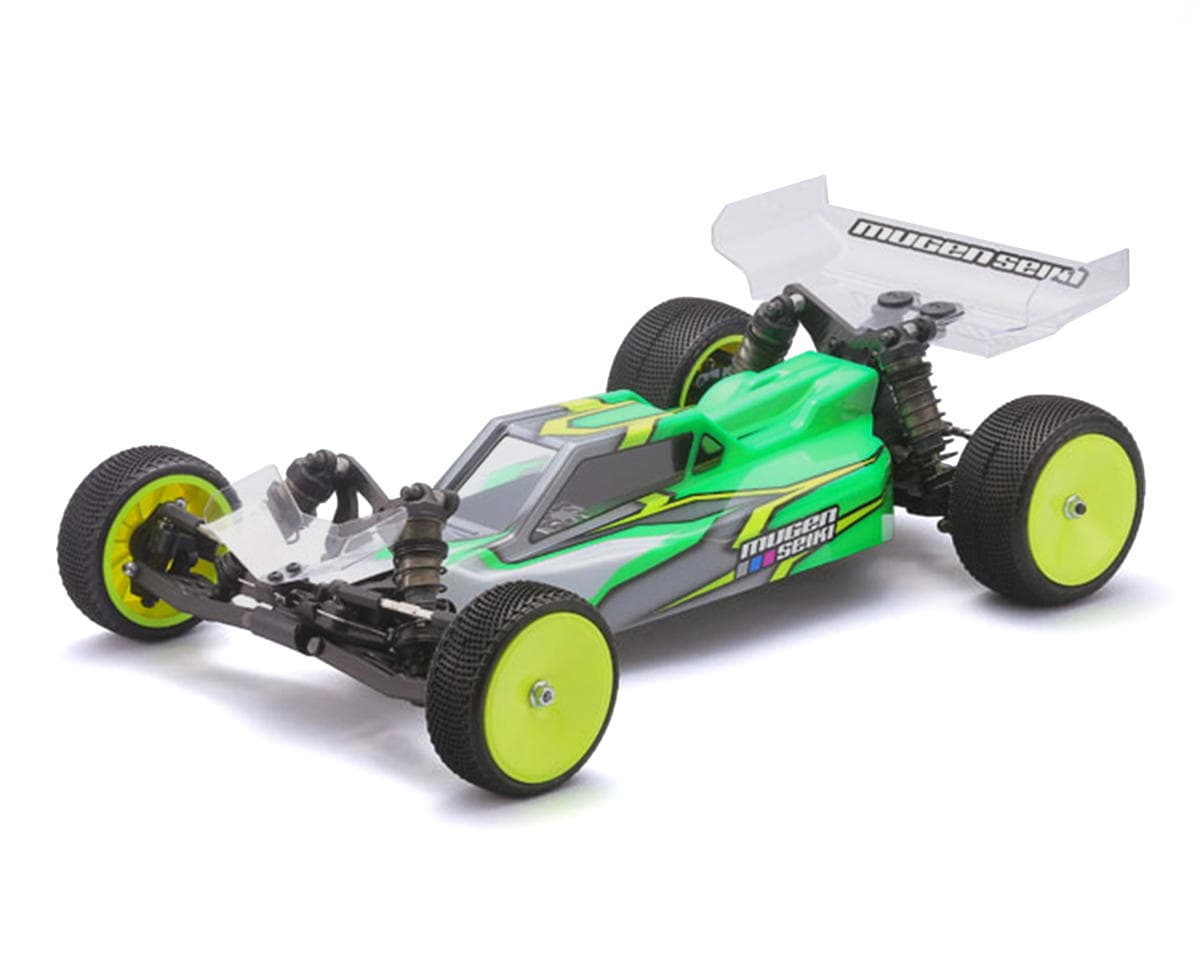

Mugen Seiki MSB1 1/10 2WD Electric Buggy Kit w/Gear Differential
About this part
High Performance 2WD Off-Road Buggy
Meet the latest addition to the Mugen performance race buggy lineup, The MSB1 1/10 2WD Electric Racing Buggy kit! For years Mugen has been one of the most recognizable names in R/C Racing due to their high level of engineering and innovation that brought us some of the most legendary racing platforms to ever hit the market! Yet they they didn't add any 1/10 scale buggies to their lineup, until now! with 1/10 scale racing becoming more popular than ever, Mugen wanted to listen to the people's demands and went back to the lab to bring us this spectacular 2WD race weapon!
Available in gear and ball differential options, The MSB1 features supreme weight balance and and chassis layout, adjustable bottom rear shock mounts that allow for gull wing configuration and super smooth hard coated 13mm big bore shock design to improve handling, landing, and bump absorptions! The chassis of the MSB1 was designed to balance the weight of the electric components with a nice curved departure angle, a layback rear gearbox design, anti-roll sway bars with aluminum collars, heavy duty front and rear turnbuckles and extremely lightweight and rigid machined carbon fiber shock towers with multiple mounting positions!
Elevate your racing performance and experience the highest level of innovation and engineering with this highly tunable and capable 1/10 2WD buggy from Mugen to dominate the Mains with ease and confidence!

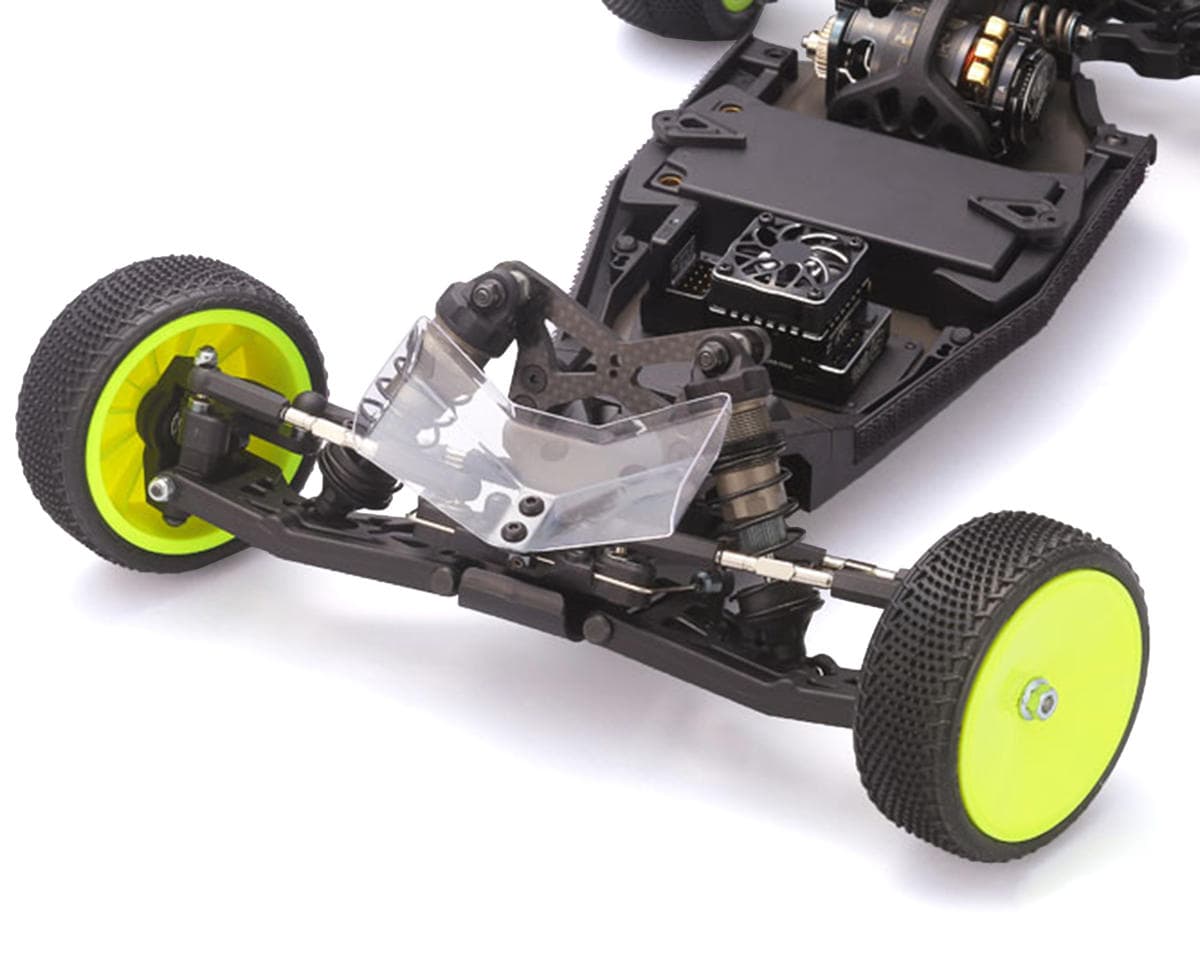

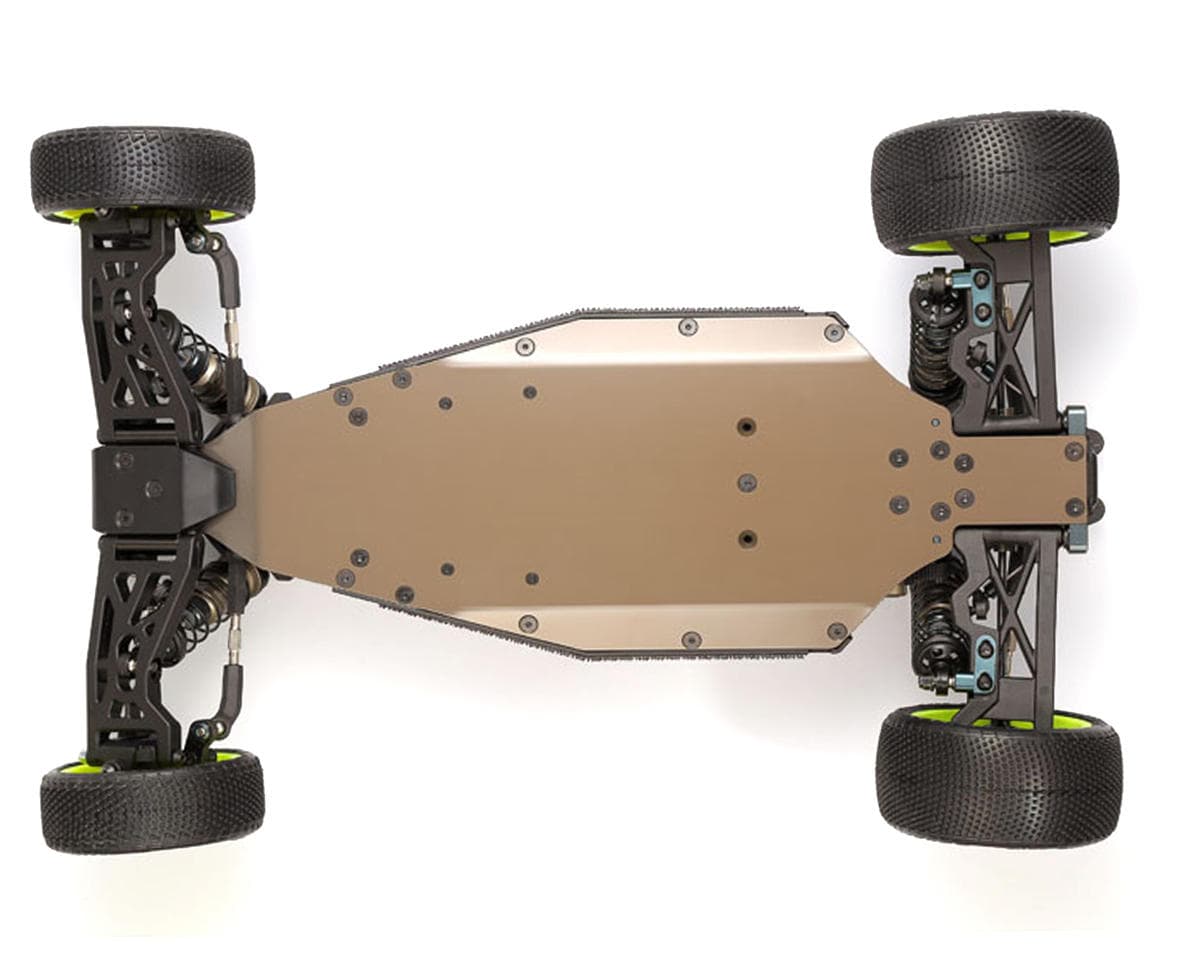

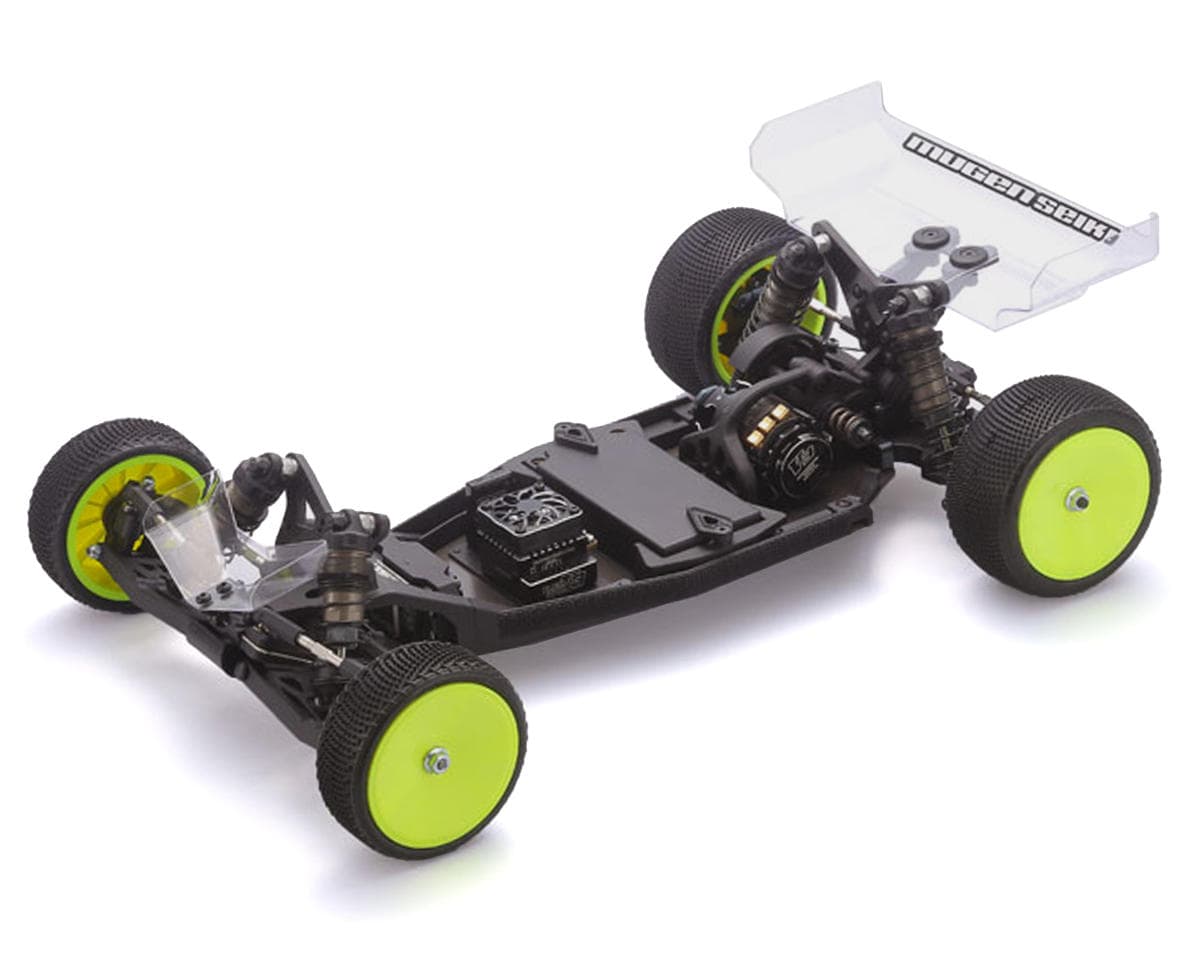

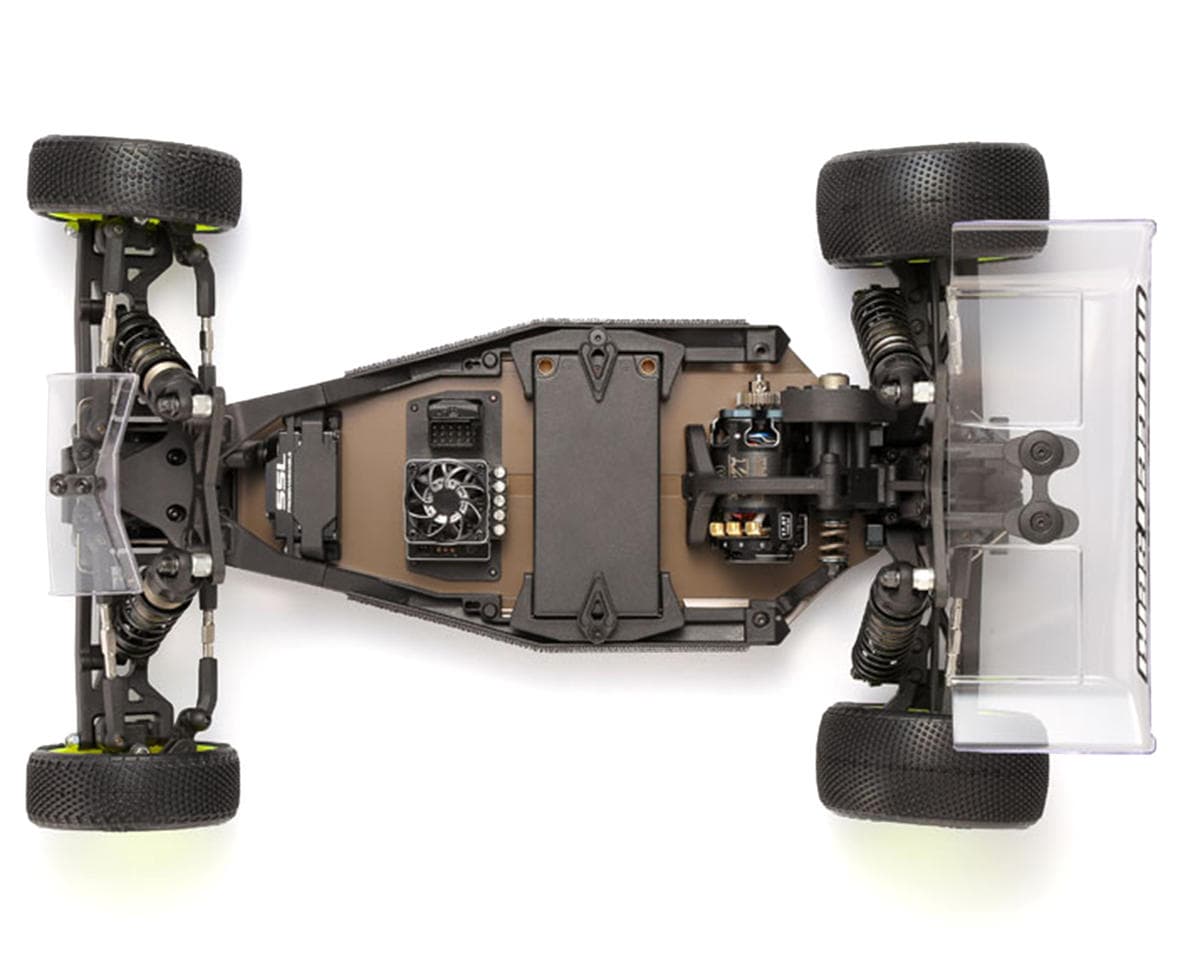

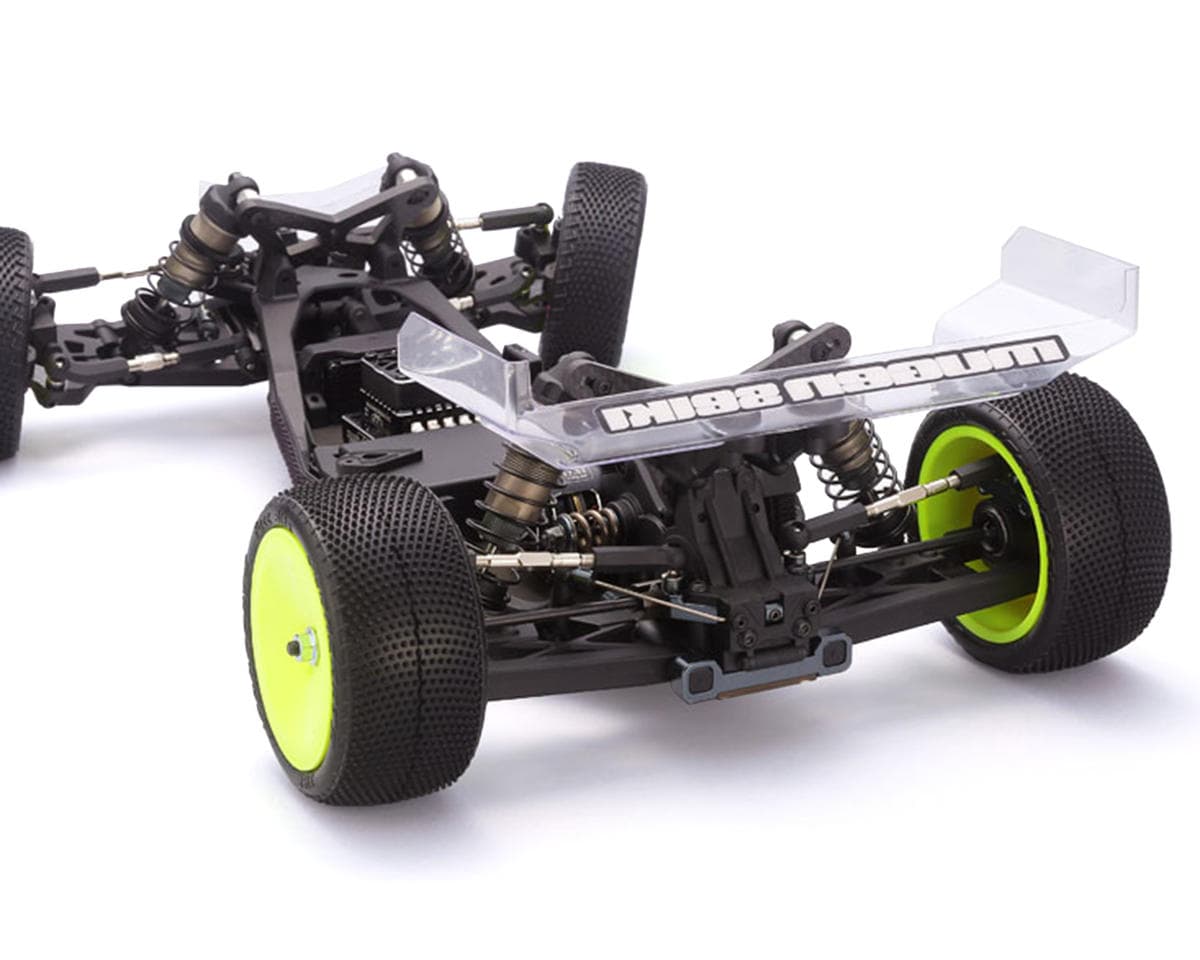

NOTE: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Features:
- Available in gear and ball differential options!
- Supreme weight balance and and chassis layout
- Super Smooth hard coated 13mm big bore shock design to improve handling, landing, and bump absorptions
- Adjustable bottom rear shock mounts that allow for gull wing configuration
- Adjustable differential height
- Super lightweight and durable CNC-machined aluminum chassis with a departure angle
- Extremely lightweight and rigid machined carbon fiber shock towers with multiple mounting positions
- Strong molded lightweight suspension arms improve grip and predictability in all conditions
- Adjustable heavy duty front and rear turnbuckles
- Anti-roll sway bars with aluminum collars
Specifications:
- Scale: 1/10
- Length: -
- Width: -
- Height: -
- Wheelbase: -
- Weight: -
- Drive: 2WD
- Power Source: Electric
- Input Voltage: 2S (7.4-7.6V) LiPo Battery
- Completion Level: Unassembled Kit
Includes:
- (1) 1/10 2WD Electric Buggy Kit
Needed to Complete:
- 1:10 Scale Electric Motor and ESC
- 2-channel surface transmitter/receiver system
- Low Profile Steering Servo
- 7.4V-7.6V 2S LiPo with "shorty" battery dimensions
- Compatible Battery Charger
- Polycarbonate body paint
- Wheels and tires
- Tools for Assembly
Reviews4.3 · 3 reviews
One of the nicest builds I've ever put together, instructions have plenty of tips for different setups (dirt or carpet). If you run on low grip or loose dirt buy the kit with the ball diff, I ended up buying another. The ball diff is the smoothest design and I get consistent runs. I've had both buggies for over a year now and other then rear wings I don't think I've broken anything at all. The only real updates I've put on are the Mugen steering horn and alloy servo mounts.I run the new updated kit with a Mod setup and the original with 17.5 stock with the updated gear diff out of the new kit, it just doesn't take as long to "break in the diff" as the original. The cost of parts is a bit pricey but not far off it's competitions price and the quality is so much better and nice to work on, Ive found that my biggest expense is tyres because I get so much run time out of this buggy. If you are after great quality kit this is it.
Car was fast out the box on the kit setup. Mugen needs to address the front caster blocks, on the carpet setup if you hardly bump a pipe it sheers the mechanical stop and locks the front steering up. Mugen needs come out with an update and this buggy will be money!
Build quality on this car is excellent. Durability is excellent as well. The only negative to this car would be the cost of the factory aluminum parts but I can't knock it for that as I don't think that stuff is really necessary. It is also expected for Japanese. Build is what you would expect out of a Kyosho/Mugen car. Have put this car in multiple A mains and it will see more. Stock suspension is too soft for carpet. Just bought a second one for dirt and we'll see how it does there.
Reviewers generally praise the MSB1's build quality and durability, with one noting it has been run in multiple A-mains and another reporting over a year of use with few breakages beyond rear wings. Factory aluminum parts and overall parts costs are mentioned as expensive, though one reviewer considers them unnecessary upgrades. The gear differential is a point of divergence: one reviewer prefers the ball differential kit for smoother, more consistent running on low-grip or loose dirt, and reports the gear diff takes longer to break in. Stock suspension is described as soft for carpet. One reviewer reports the front caster blocks shear the mechanical stop on carpet setups after a light impact, locking the steering. Ratings are high overall, with one lower rating citing that issue.
- + Excellent build quality
- + Strong durability
- + Fast out of the box
- + Good setup instructions for dirt and carpet
- − Expensive factory aluminum parts
- − Stock suspension soft for carpet
- − Front caster blocks shear mechanical stop
- − Gear diff needs break-in
