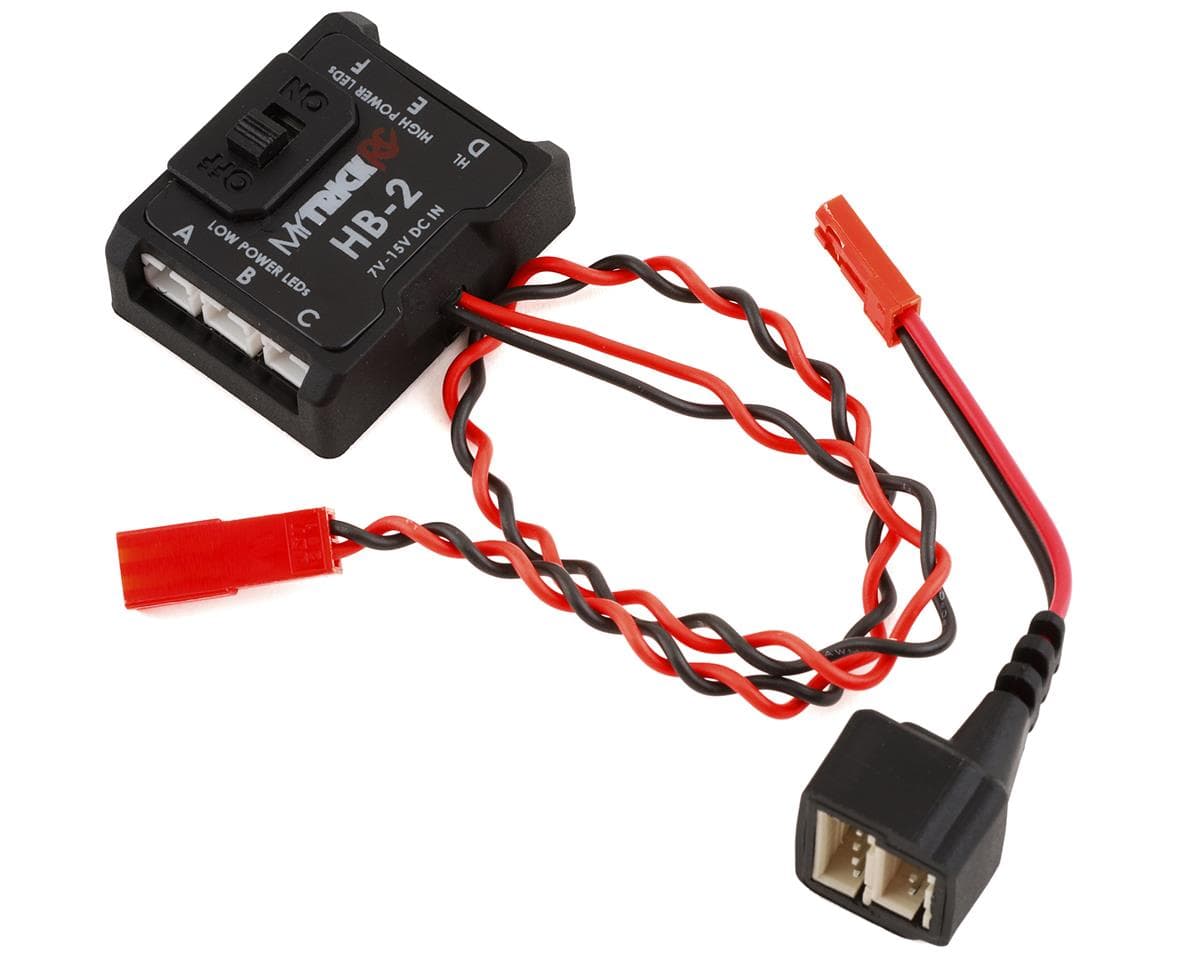

MyTrickRC HB-2 Light Controller
About this part
Light Controller Overview:
The MyTrickRC HB-2 Light Controller is a great option to distribute power to your LED lights. Designed to work with the Attack LED lights, this controller gives you a simple, easy and safe way to add various light configures to a wide range of chassis types. The HB-2 can be powered via 6.5-9VDC and will power up to 12 high power LEDs and 8 standard LEDs.
TECH NOTES:
- The Power Ratings for the HB-2 Controller is: 6.5-9VDC, 3 Amp MAX.
- Ports A, B, and C are for 3mm and 5mm LEDs with an output voltage of 2.8V.
- Ports E and F are for High Power Light Bars, Halos, Wafers, and Strips with an output voltage of 5V.
- Port D is for High Power Headlights and Rock Lights with an output voltage of 4.7V.
- Power up to 12 high power LEDs and 8 standard LEDs
- 6.5-9VDC direct LiPo rated and can also be powered via open receiver port
- Rugged case for added protection
- On and Off switch for easy operation
- (1) HB-2 Controller
- (1) Balance Port Power Cable

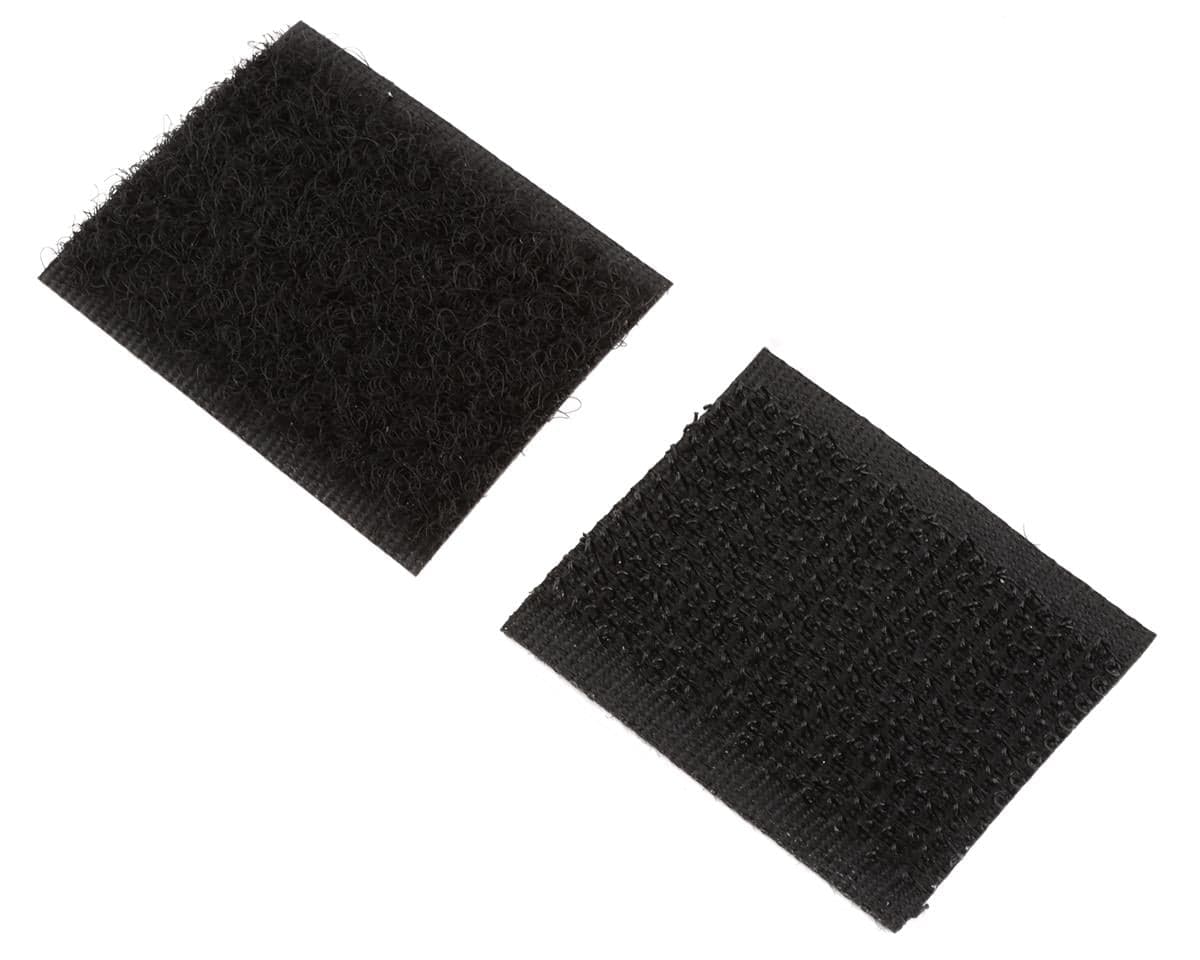

- Mounting Hardware
Reviews5.0 · 2 reviews
Pricey, but when there is little to no competition you can get away with the higher prices. This has to be one of the best smaller lighting controllers out there
This light controller is simple and easy to use. Be warned that the description says you can use 2-4S between 7-15V. That is incorrect. Max is 2S. If you use a 3S to power this controller, you will fry your controller. 4S might just cause it to actually burn, that’s way too much voltage.
